Overview

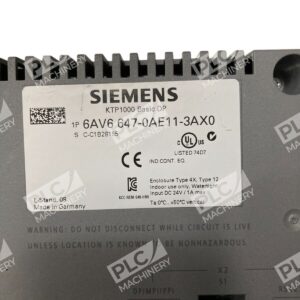

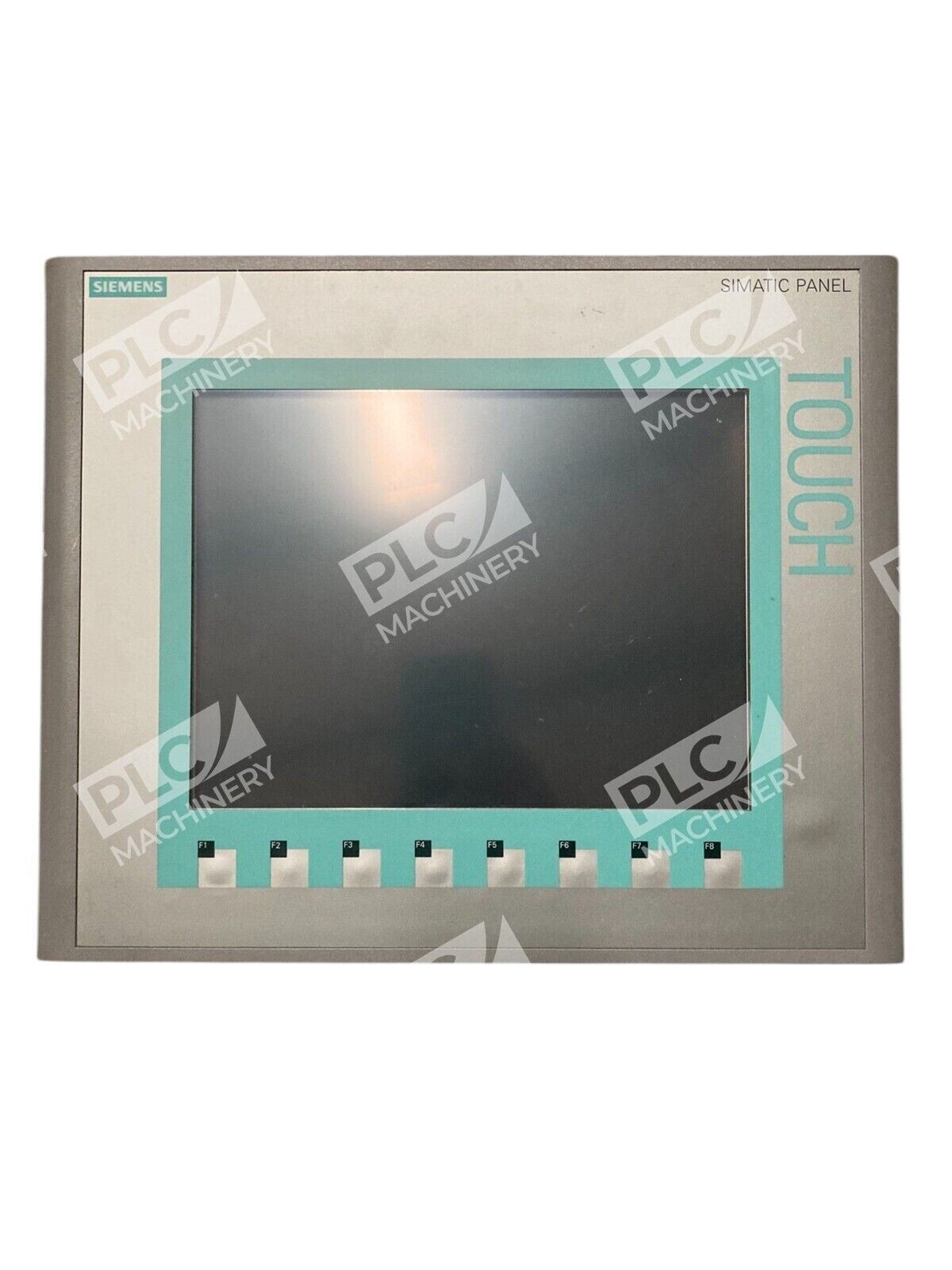

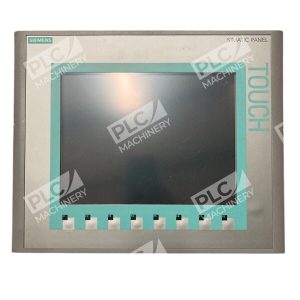

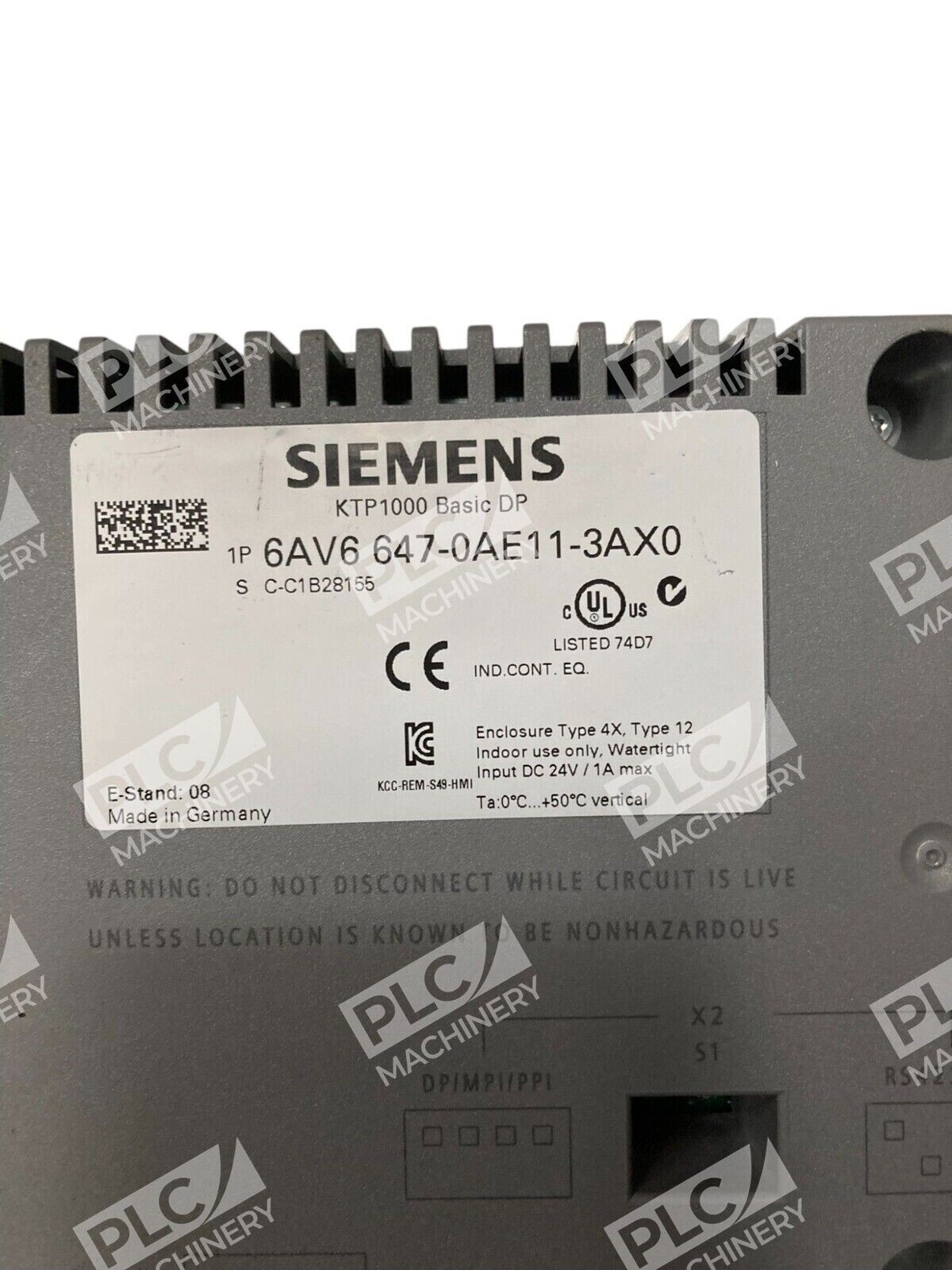

The Siemens KTP1000 Basic DP 6AV6 647-0AE11-3AX0 is a compact HMI panel from the SIMATIC Basic Panel series, engineered for straightforward machine operation and process monitoring in industrial automation. This entry-level touchscreen delivers essential visualization and control functions with a 10-inch TFT color display at an attractive price point, making it ideal for smaller applications and mechanical engineering systems where cost-effectiveness and reliability are critical.
Key Features
- 10-inch TFT color display – 256-color display with 1024×768 pixel resolution for clear visualization
- Resistive touch operation – Tactile button and touchscreen input for intuitive machine control
- PROFIBUS DP (RS485) communication – Direct MPI/PROFIBUS DP interface for PLC connectivity without gateway devices
- IP65 front panel protection – Dust-tight and water-jet resistant for use in harsh industrial environments
- Integrated configuring memory – 1024 KB onboard storage for HMI projects
- TIA Portal compatibility – Configurable with WinCC Basic V11 and STEP 7 Basic V11 software; also supports WinCC flexible 2008 SP2
Technical Specifications
- Display type: 10-inch TFT color
- Display colors: 256 colors (expandable to 64,000 colors with advanced configuration)
- Resolution: 1024×768 pixels
- Input method: Key/touch operation (resistive touchscreen)
- Power supply: 24 VDC
- Communication interface: PROFIBUS DP (RS485), MPI compatible
- Mounting: Panel-mount (flush or recessed)
- Protection rating: IP65 (front panel)
- Configuring memory: 1024 KB
- Net weight: 3.08 kg
- Dimensions (approx): 234.2 mm (L) × 181.2 mm (W) × depth as per panel recess
Typical Applications
The KTP1000 Basic DP is well-suited for:
- Small to medium-sized machine control and monitoring systems
- Production line visualization and operator interfaces
- Packaging, food & beverage, and light manufacturing automation
- Standalone or integrated HMI solutions with Siemens S7-300, S7-400, and S7-1200 PLCs
- OEM applications requiring cost-effective touch-based control interfaces
Compatibility & Replacements
The 6AV6 647-0AE11-3AX0 is part of the SIMATIC KTP Basic Color DP family and is compatible with:
- Siemens software: WinCC flexible 2008 SP2, WinCC Basic V11, STEP 7 Basic V11 (no TIA Portal full version required)
- Communication: PROFIBUS DP networks with standard Siemens automation hardware (S7-300, S7-400, S7-1200 PLC ranges)
- Accessories: Standard 24 VDC power connectors, USB project transfer port, panel-mounting brackets, and protective gaskets
For migration from older Siemens HMI platforms (e.g., KTP400, basic MP277) or upgrades to higher-resolution models (KTP1000 Mobile, KTP1500 Basic), consult Siemens documentation or contact technical support for project conversion requirements.
