Overview

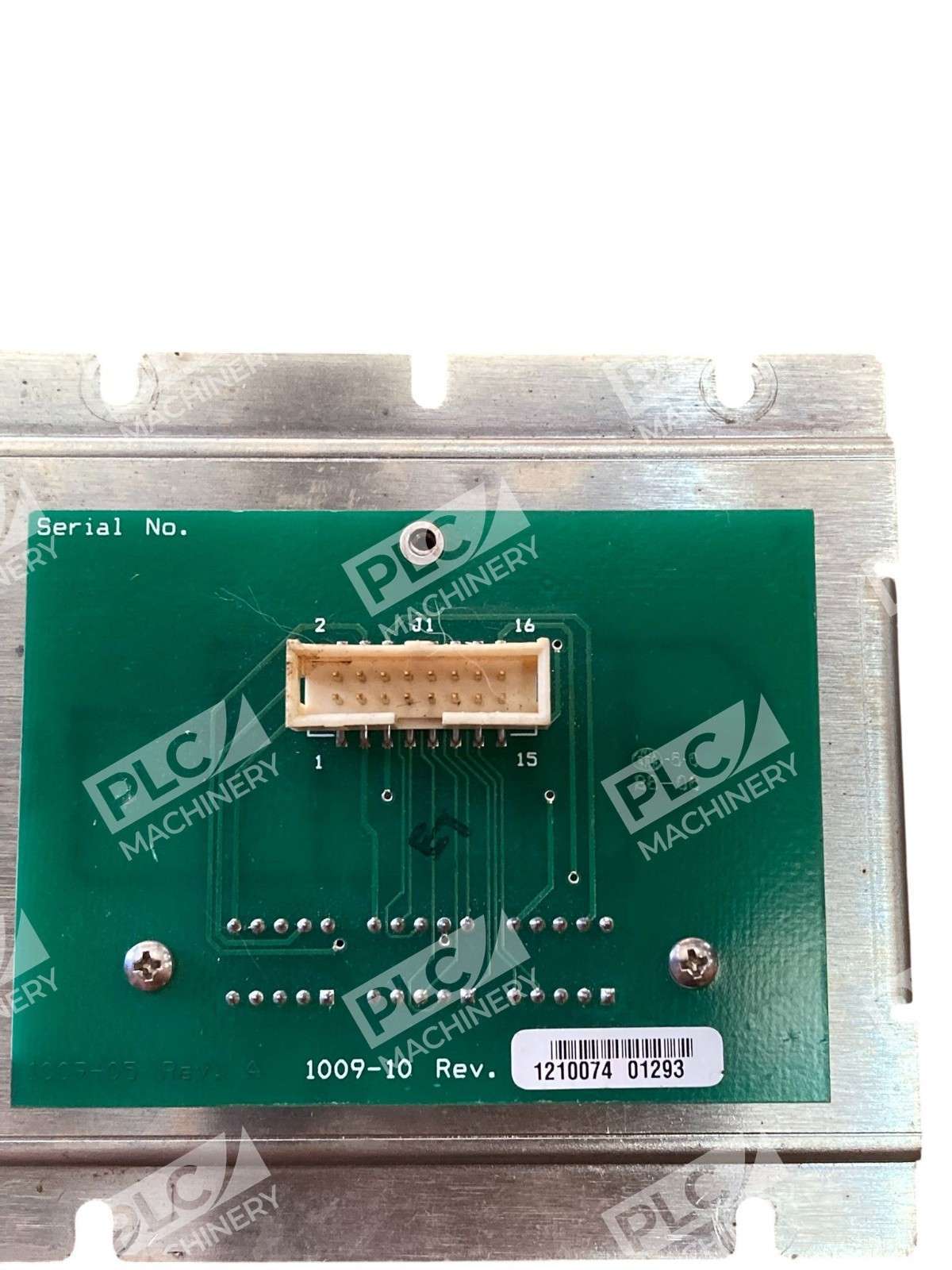

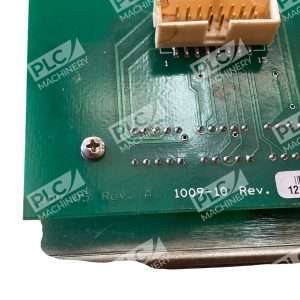

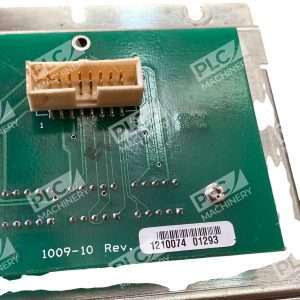

The 1009-05 / 1009-10 digital display board is a 4-digit 7-segment LED HMI interface module designed for industrial control panels and open interface display applications. Revision A of this board provides a compact, direct numeric output solution for process monitoring, status indication, and parameter display in manufacturing and automation environments. This surplus unit is fully functional and ready for integration into existing or new control systems.
Key Features
- 4-digit 7-segment LED display for clear numeric readout
- Dedicated I/O interface for PLC and controller integration
- Compact PCB design suitable for standard control enclosures
- Tested and verified fully functional condition
- Revision A specifications and reliability
- Drop-in replacement for original equipment applications
Technical Specifications
- Display Type: 4-digit 7-segment LED
- Module Designation: 1009-05 / 1009-10 REV. A
- Application: HMI, Process Display, Control Interface
- I/O Interface: Open interface, PLC-compatible
- Condition: Used, tested, fully functional
- Form Factor: PCB board module
Typical Applications
- Industrial process monitoring and display
- Manufacturing equipment control panels
- System parameter and status indication
- Count, timer, and gauge readout interfaces
- Temperature, pressure, and flow monitoring displays
- Legacy automation system replacements and retrofits
Compatibility & Replacements
Compatible With
- PLC control systems with digital I/O capability
- Allen-Bradley, Siemens, Omron, and other industrial controllers
- Standard 24 VDC control voltage systems
- Open-interface control panel architectures
- Legacy industrial automation installations
Replaces / Drop-In Replacement For
The 1009-05 and 1009-10 series modules are direct replacements for original equipment specifications. Verify mounting and electrical interface compatibility with your system integrator or technical documentation before installation.
Works With
- TTL and CMOS logic signal levels
- Digital output modules from industrial PLCs
- BCD (Binary Coded Decimal) and parallel data formats
- Standard industrial control cabinet designs
