Overview

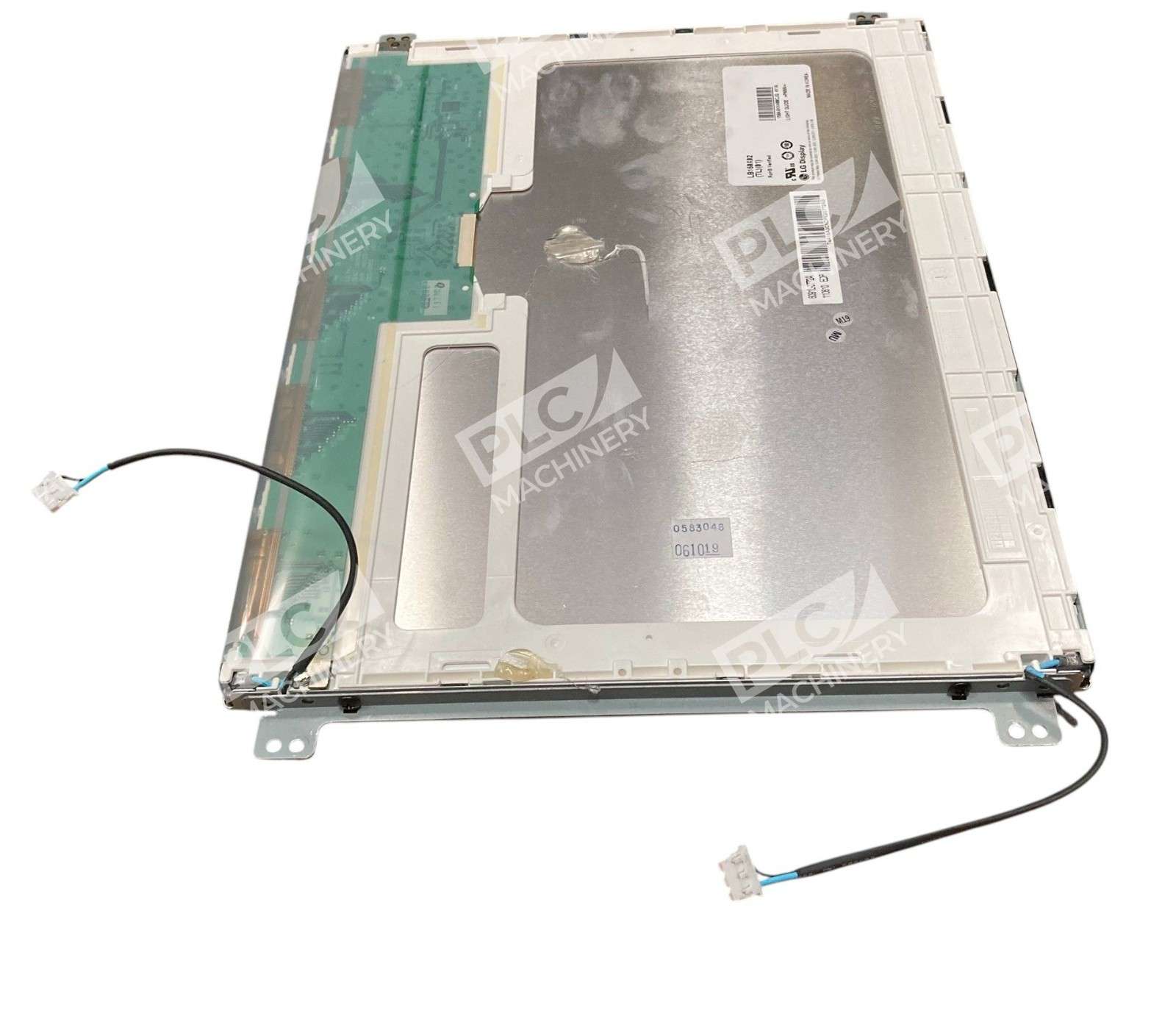

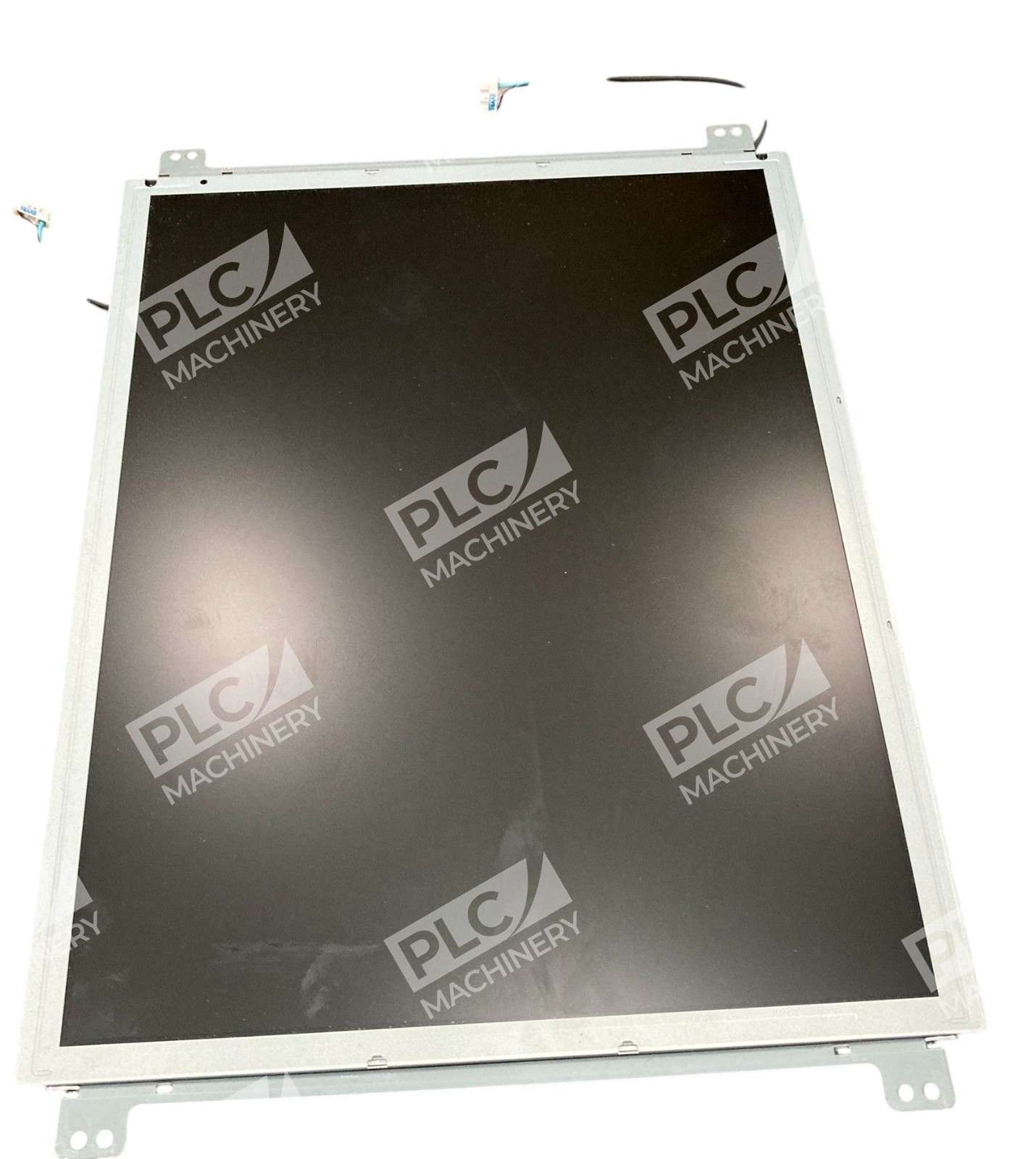

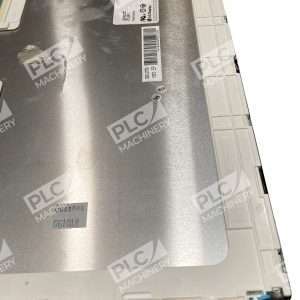

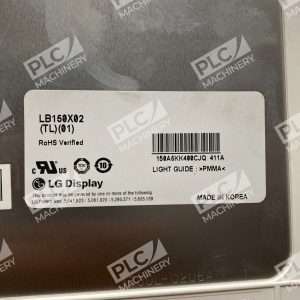

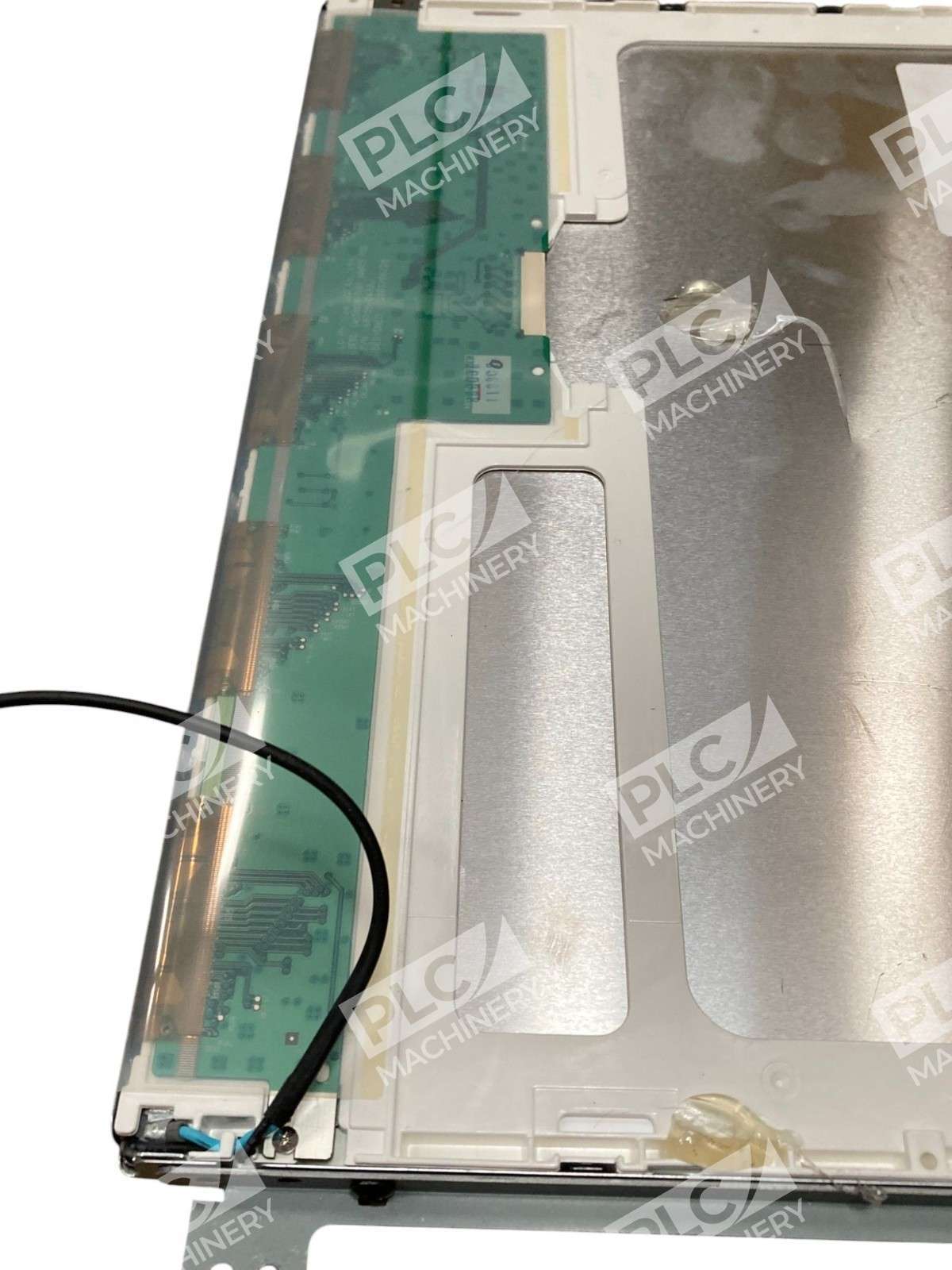

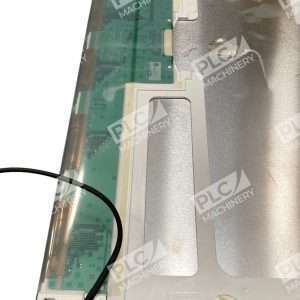

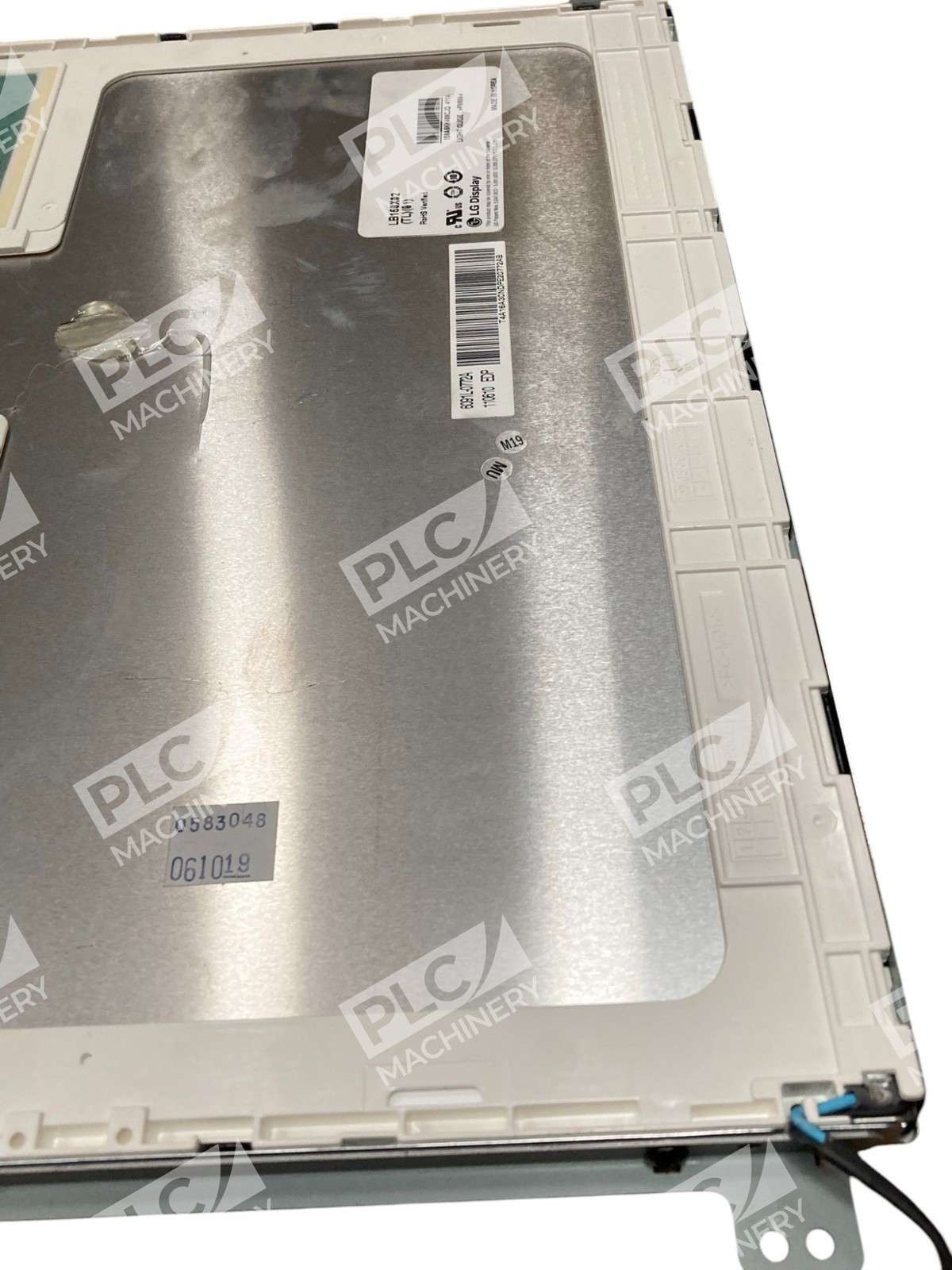

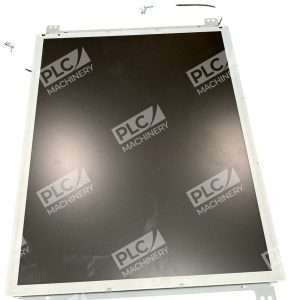

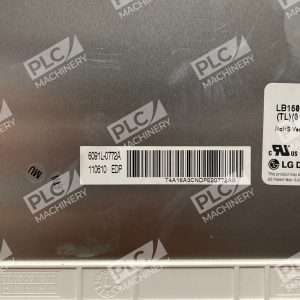

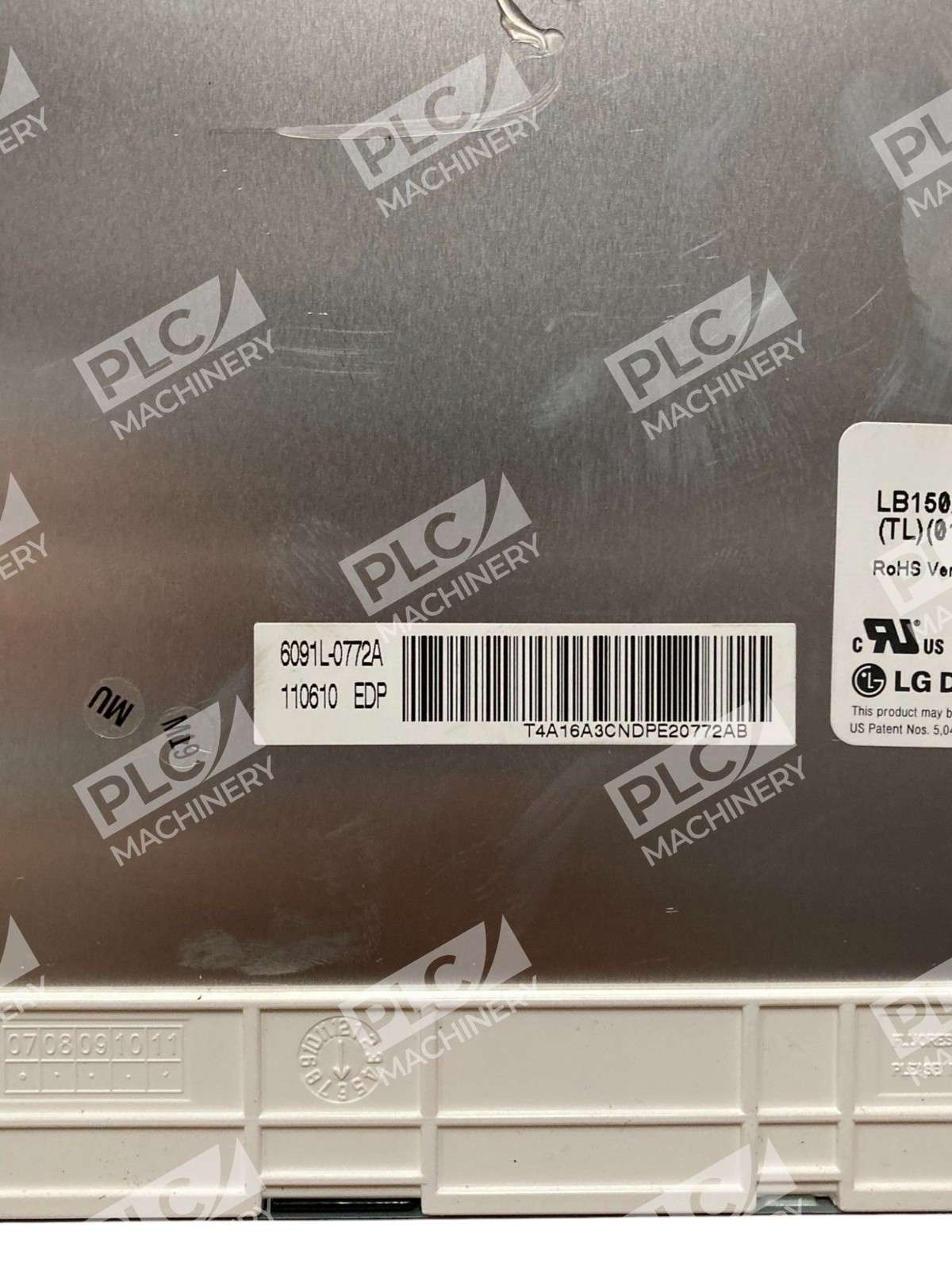

The LG LB150X02 is a 15.0-inch a-Si TFT-LCD display module widely used in industrial control systems, test equipment, and embedded human-machine interfaces. This transmissive panel features standard XGA resolution and integrated CCFL backlighting, offering proven reliability across decades of field deployment in manufacturing and process control environments.
Key Features
- XGA Resolution: 1024×768 pixels with 4:3 aspect ratio for crisp, clear text and graphics
- CCFL Backlight System: Dual CCFL lamps provide 50,000-hour lifespan, Edge-light configuration ensures uniform brightness
- Wide Viewing Angles: 75/75/70/75° (L/R/U/D at CR≥10) for multi-operator visibility
- Fast Response Time: 2/6 ms (Tr/Td) supports dynamic process visualization
- Antiglare Surface: Hard-coated (3H) matte finish reduces reflection in bright factory environments
- Compact Footprint: 326.5×253.5×11.7 mm outline fits standard mounting locations
Technical Specifications
Display Type: TN, Normally White, Transmissive
Diagonal Size: 15.0 inches
Resolution: 1024×768 (XGA)
Brightness: 300 cd/m² (Typical)
Contrast Ratio: 800:1 (Transmission)
Color Gamut: 60% NTSC, 16.7M colors (6-bit + Hi-FRC)
Backlight: CCFL ×2, 50K-hour life, requires external driver
Response Time: 2 ms (rise), 6 ms (fall)
Refresh Rate: 60 Hz
Viewing Angles: 75/75/70/75° (L/R/U/D, CR≥10)
Signal Interface: LVDS (1 channel, 8-bit, 20-pin connector)
Supply Voltage: 3.3V Typical
Operating Temperature: 0°C to 50°C
Storage Temperature: −20°C to 60°C
Active Display Area: 304.128×228.096 mm
Outline Dimensions: 326.5×253.5×11.7 mm
Weight: 1.00 kg (Typical)
Surface Treatment: Antiglare, Hard Coating (3H)
Typical Applications
- Industrial HMI panels and operator interfaces for manufacturing equipment
- Process control and SCADA visualization systems
- Medical diagnostic and laboratory instruments
- Test and measurement equipment with legacy parallel or LVDS display buses
- Kiosk and point-of-service terminals requiring XGA resolution
Compatibility & Replacements
Compatible With
- Industrial controllers with LVDS parallel video output
- Embedded systems supporting 1024×768 XGA resolution
- Custom HMI platforms using single-channel 8-bit LVDS
- Legacy equipment retrofit and refurbishment projects
- FPGA and ASIC-based display drivers with LVDS signaling
Replaces / Drop-In Replacement For

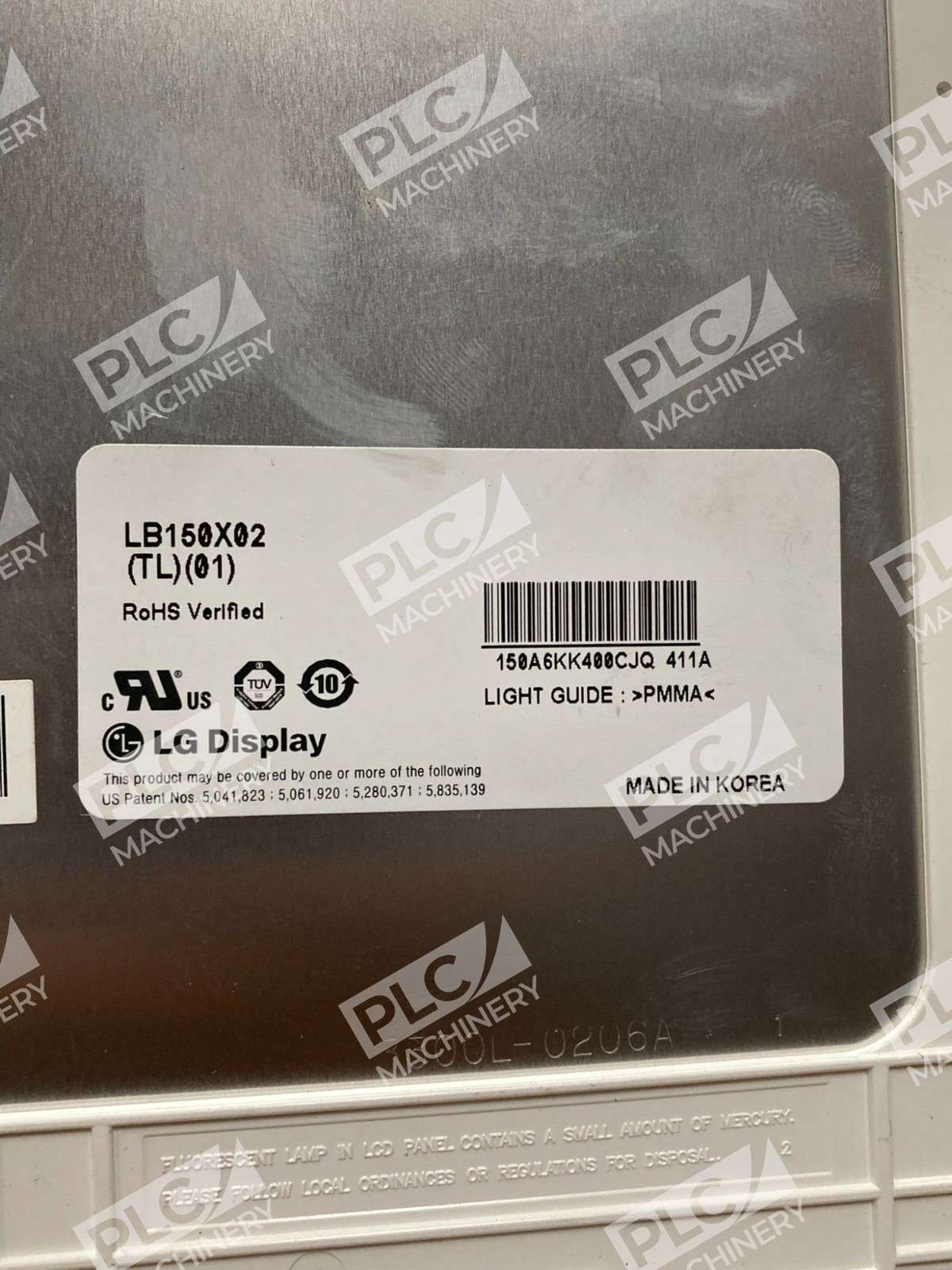

- LB150X02-TL01 (full part number variant)
- Other 15-inch XGA LVDS panels with identical mechanical envelope and pinout; verify connector compatibility
Works With
- External CCFL backlight drivers (3.3V power supply recommended)
- LVDS-to-parallel or digital video bridge chipsets
- Standard 20-pin LCD connector assemblies (flat-flex or pin-strip variants)
- VGA scaler modules for legacy VGA signal conversion to LVDS
