Overview

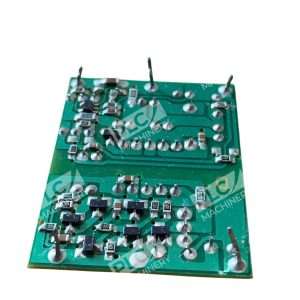

The TDK CE-5522A is a specialized DC-DC converter board engineered for LCD display backlight power supply applications. This compact converter delivers stable, regulated power to LCD backlight systems in HMI panels, industrial monitors, and commercial display equipment. TDK CE-5522A units are known for efficient power conversion and reliable performance in temperature-controlled environments typical of control room and manufacturing floor installations.
Key Features
- Compact PCB form factor for integration into confined display module assemblies
- Stable DC-DC conversion for backlight power delivery
- Suitable for industrial and commercial LCD display applications
- Efficient power transfer with minimal thermal output
- Proven reliability in manufacturing and control system environments
Technical Specifications
Detailed electrical specifications (input voltage, output voltage, power rating, and thermal performance) should be verified with the original datasheet available from TDK’s product documentation or obtained directly from the manufacturer. For specific operational parameters and performance curves, consult the CE-5522A series datasheet.
Typical Applications
- LCD backlight power supply in HMI (Human-Machine Interface) panels
- Industrial display module assemblies
- Commercial-grade monitor backlighting systems
- Control system display equipment requiring stable LED/backlight power
- Legacy display systems requiring replacement converter boards
Compatibility & Replacements
Compatible With
- TDK CE-5522 series LCD display modules
- Standard LCD backlight driver circuits
- 12V and 24V industrial display systems (verify voltage compatibility)
- HMI panel installations requiring external backlight conversion
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Original equipment specifications and pinout documentation should be cross-referenced to confirm direct replacement capability.
Works With
- Standard LCD panel driver interfaces
- Typical industrial power supply architectures (12V, 24V DC buslines)
- Backlight LED and fluorescent lamp driver circuits
- Industrial display assemblies with passive converter board slots
