Overview

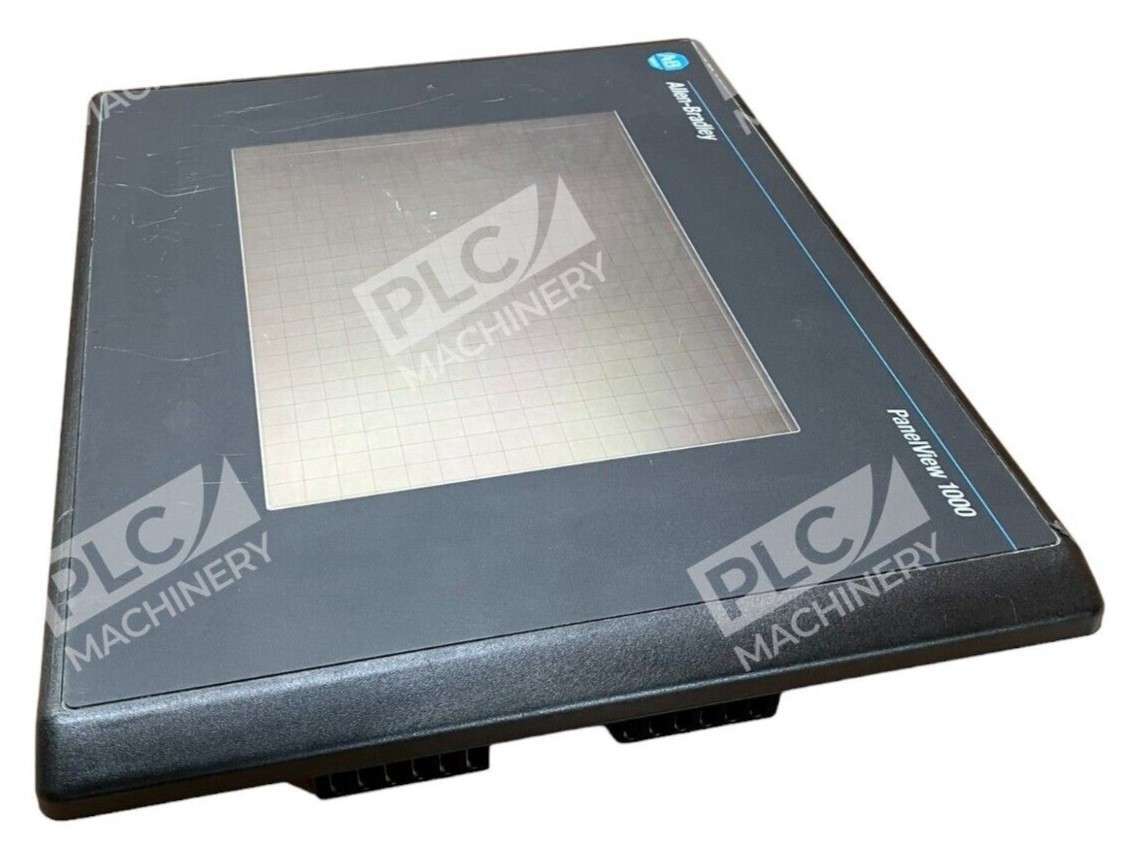

The Allen-Bradley 2711-T10C20 is a PanelView 1000 standard operator interface terminal designed for machine operators and process engineers to monitor and control industrial automation systems. This color touchscreen HMI features analog-resistive touch technology, built-in Ethernet networking, and RS-232 printer communication—making it ideal for manufacturing, packaging, and process control environments.
Key Features
- 10.1-inch Color Display: Active matrix TFT with color graphics for clear visibility and detailed operator feedback
- Analog-Resistive Touchscreen: Direct operator control of runtime objects without mechanical switches or buttons
- Ethernet Communication: 10/100 Mbps transmission speed with auto-negotiation capability for connectivity to Allen-Bradley controllers and third-party devices
- RS-232 Printer Port: Dedicated interface for alarm printer communication and event documentation
- PLC Compatibility: Works with PLC5, MicroLogix, SLC, CompactLogix, and ControlLogix processors
Technical Specifications
- Display Size: 10.1-inch colored display
- Resolution: 640 x 480 pixels

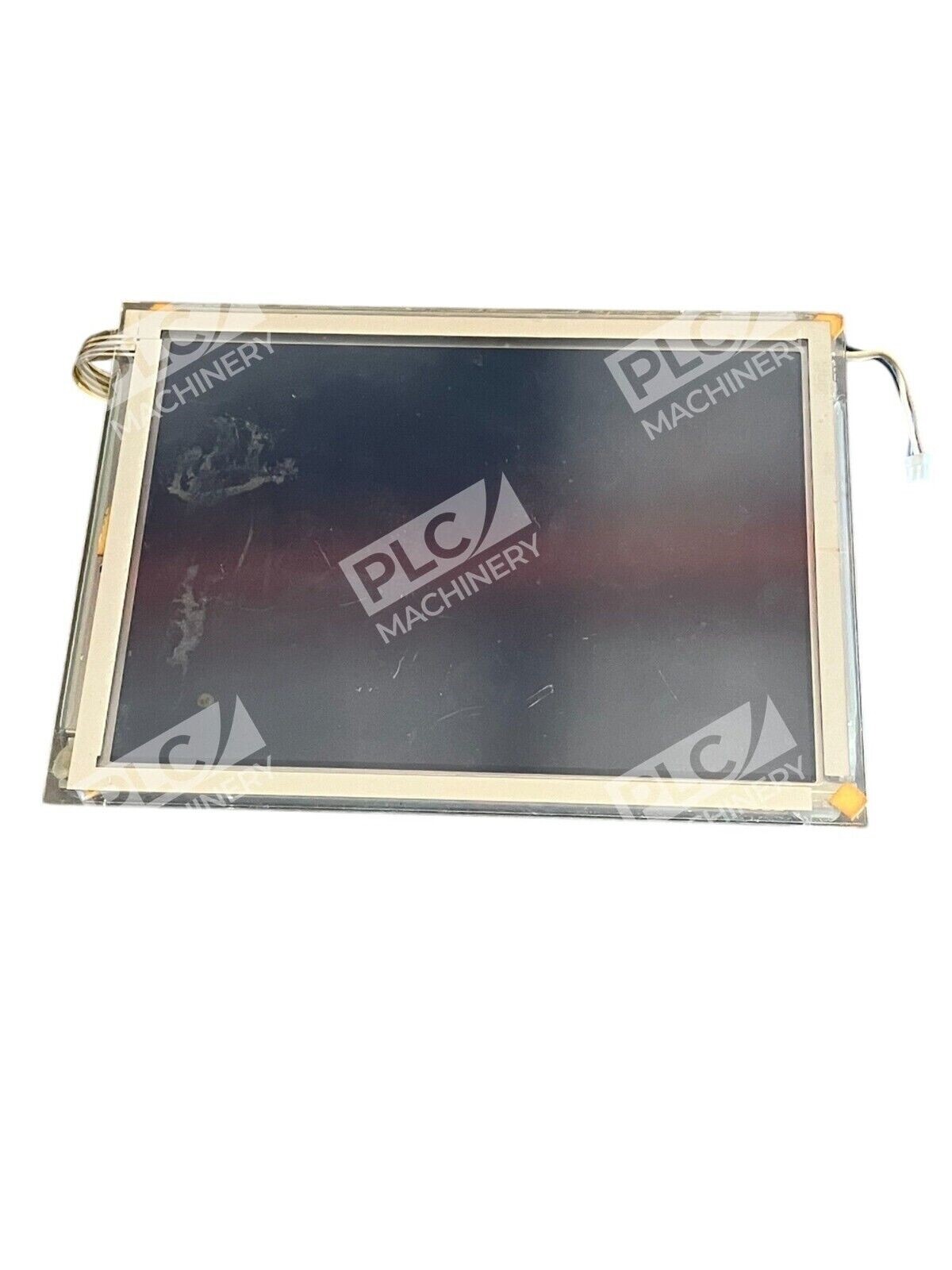

- Display Technology: TFT color with CCF backlight (user-replaceable)

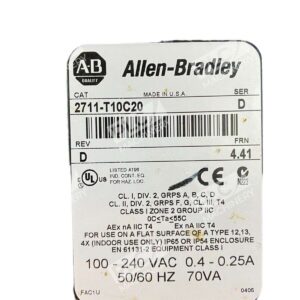

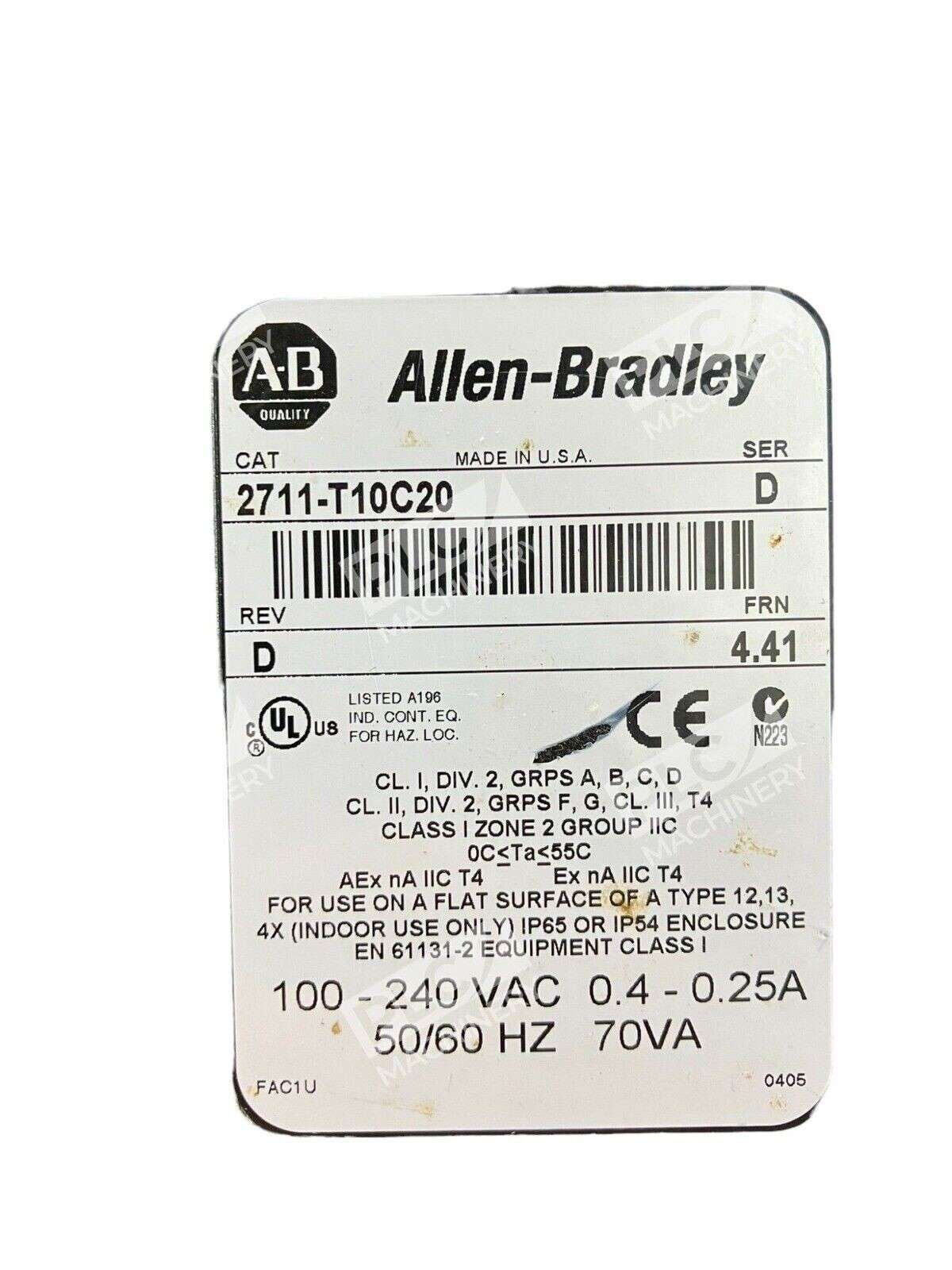

- Input Voltage: 85–264VAC supply voltage
- Power Consumption: 55VA maximum
- Memory: 1008 Kbytes of application and runtime memory

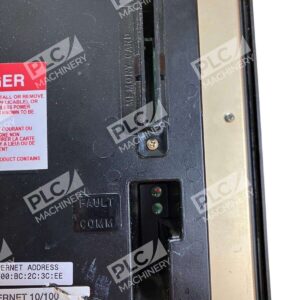

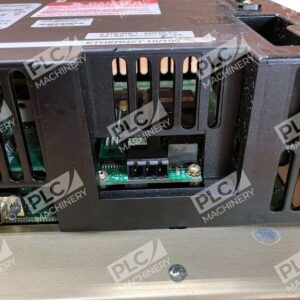

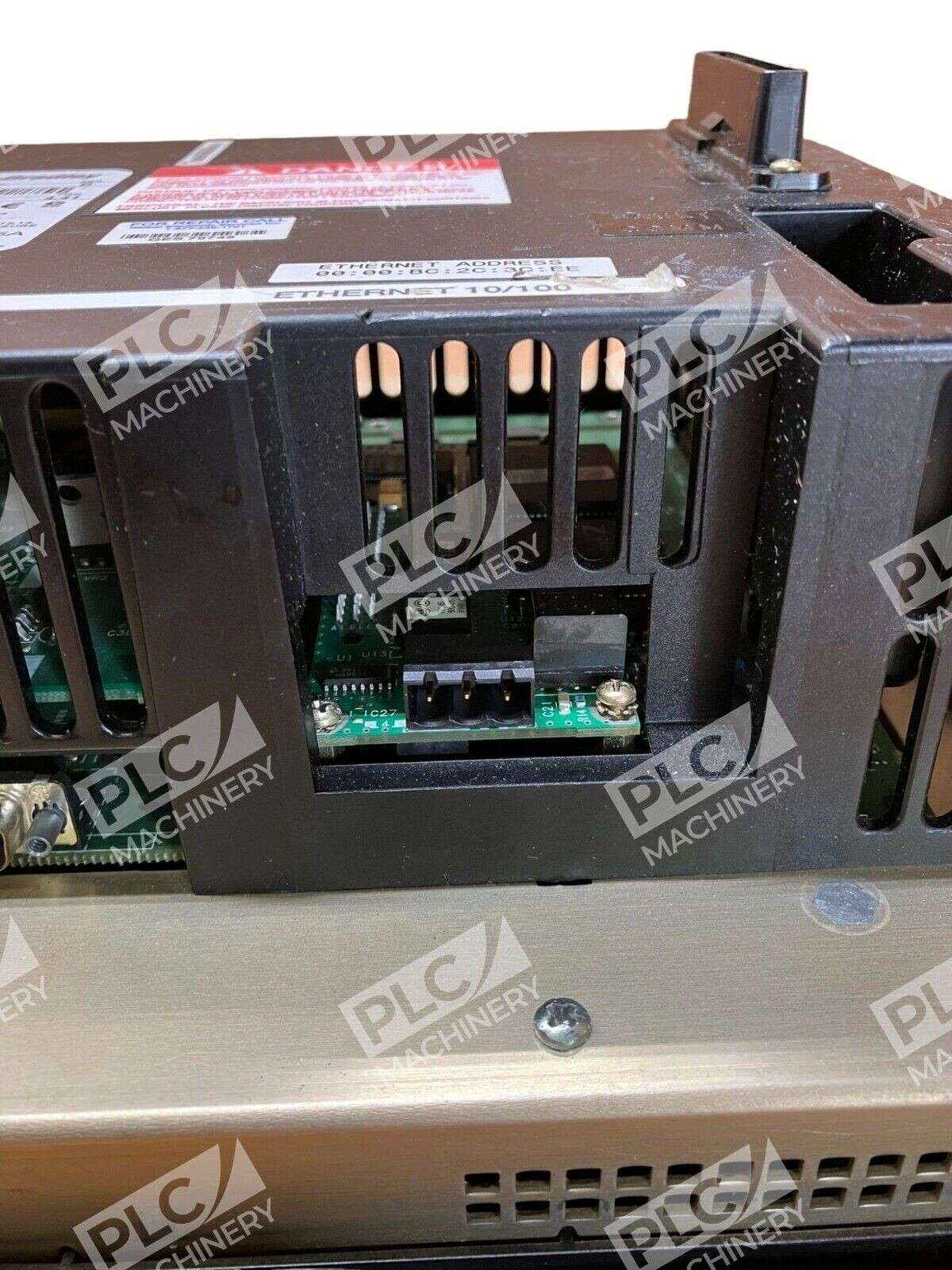

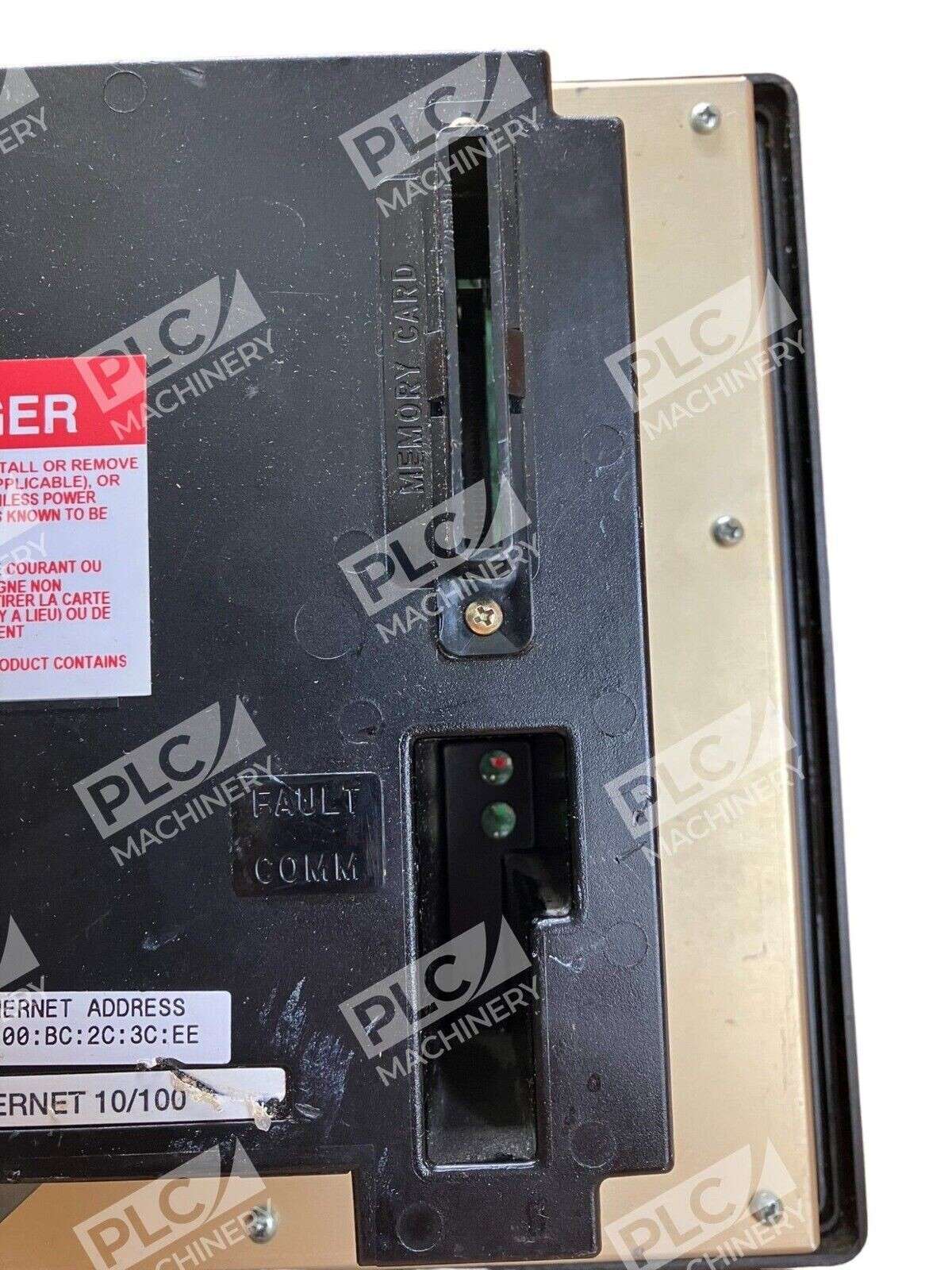

- Communication Ports: Ethernet (10/100 Mbps, auto-negotiation) and RS-232 9-pin Sub D
- Enclosure Rating: NEMA Type 12/13 or 4X for indoor use only
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: Approximately 11 × 15 × 4 inches (282 × 370 × 112 mm)
- Weight: 6.00 lbs
- Display Area: 8.3 × 6.2 inches (211 × 158 mm)
Typical Applications
The 2711-T10C20 is widely deployed in:
- Packaging and bottling machinery control
- Manufacturing process monitoring and operator interface
- Water/wastewater treatment system oversight
- Pharmaceutical production line management
- Motor control centers and industrial drive systems
- Facility automation and building controls
- Oil and gas production monitoring
Compatibility & Replacements
With Ethernet compatibility, the 2711-T10C20 can be used to easily integrate plant floor and enterprise level data if necessary. This terminal is designed for drop-in replacement in legacy PanelView 1000 systems and is backward-compatible with earlier Allen-Bradley control platforms. Consult technical documentation for specific firmware version requirements and PanelBuilder32 software compatibility. The model has been discontinued by the manufacturer; used and remanufactured units remain available through authorized surplus distributors.
