Overview

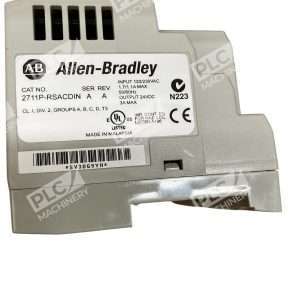

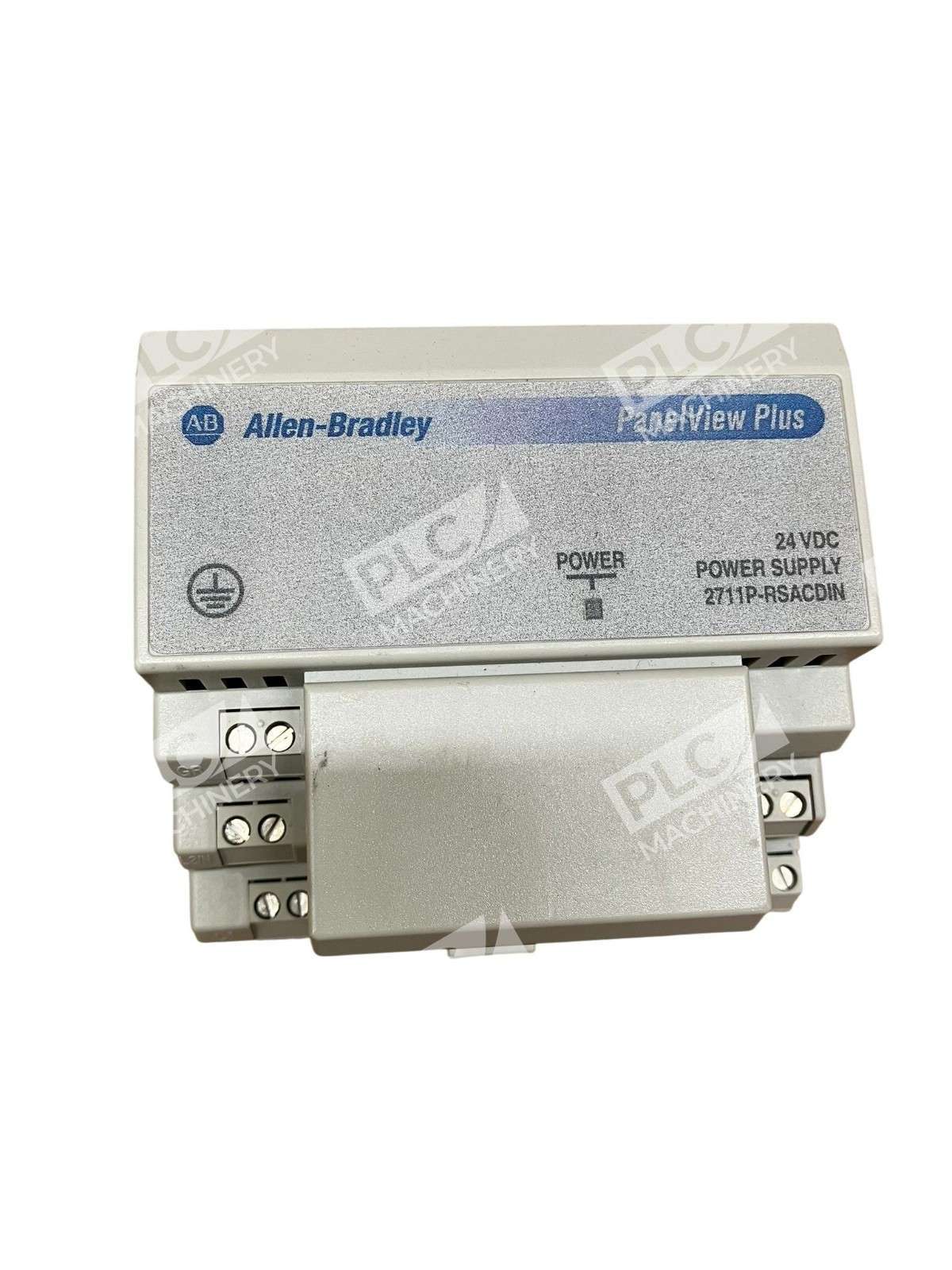

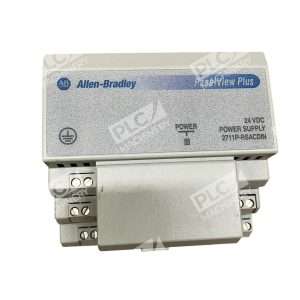

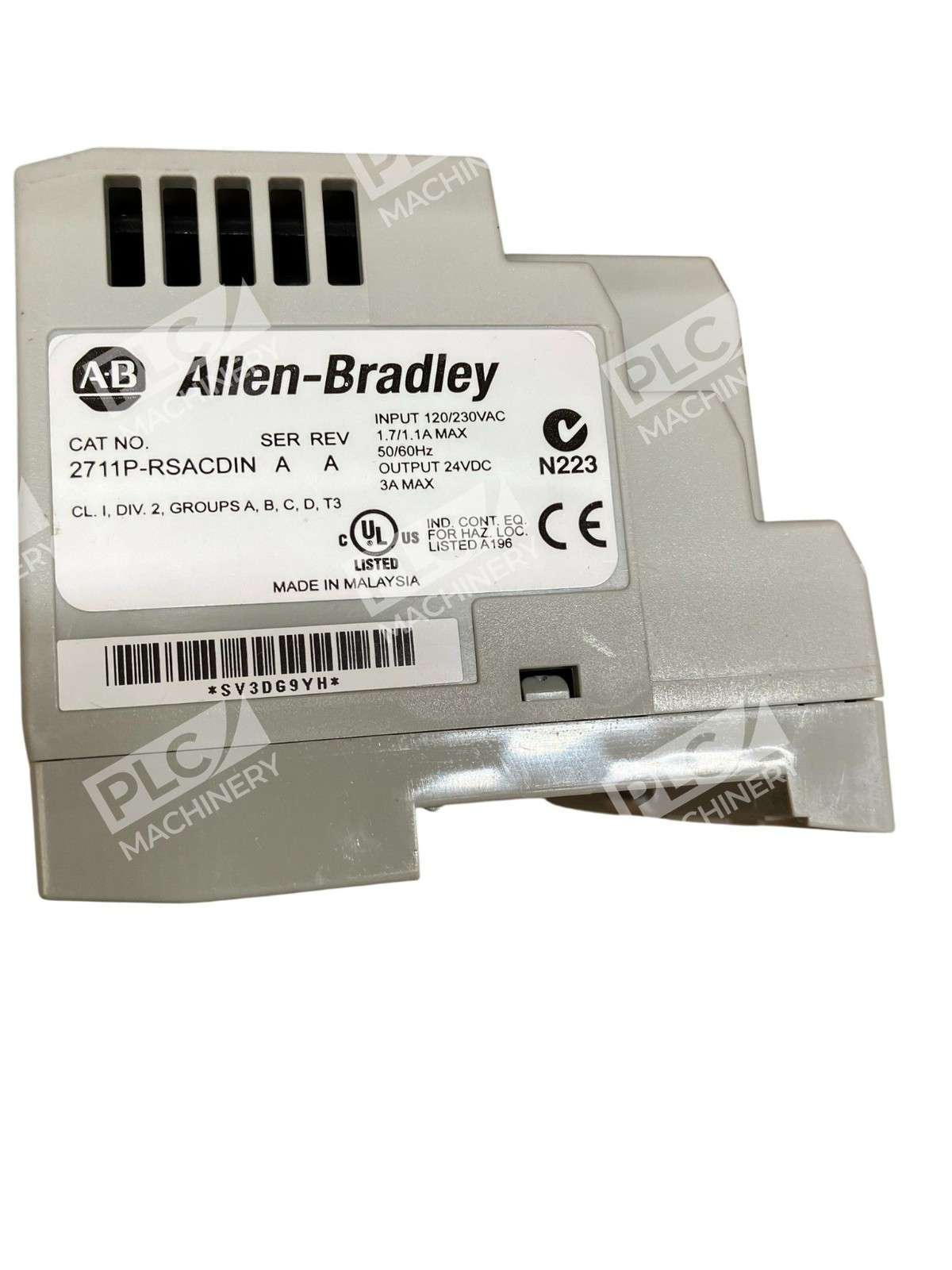

The Allen-Bradley 2711P-RSACDIN is a proven, compact AC to DC power supply module engineered for the PanelView Plus family of industrial HMI terminals. This remote power supply converts wide-range AC input (85–265VAC, 47–63 Hz) to regulated 24VDC output at a maximum of 3A. It features DIN-rail mounting for flexible panel integration and includes integrated protection circuits for overvoltage and overcurrent conditions.
Key Features
- AC to DC conversion: 85–265VAC input to 24VDC output (20.4–27.6V regulated)
- 3A maximum output current with green power-on LED indicator (illuminates >20.4V)
- DIN-rail mount (35 mm × 7.5 mm) with optional panel mounting via 1794-NM1 kit
- Overvoltage and overcurrent protection built-in
- SELV/PELV rated for safe extra-low voltage applications

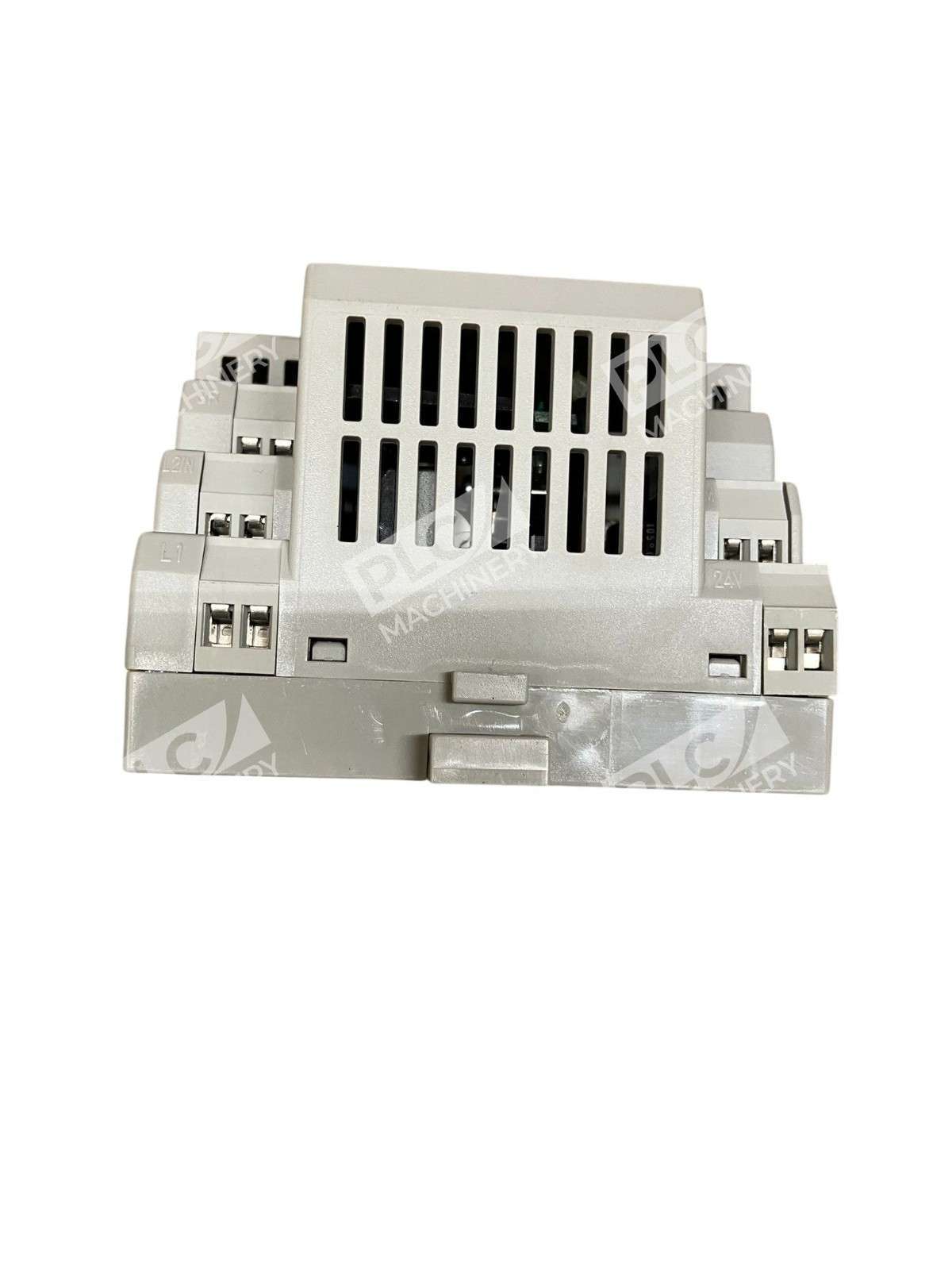

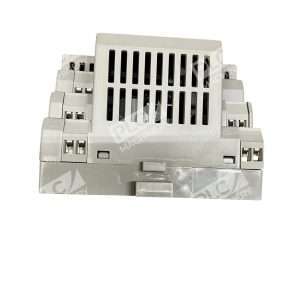

- Screw terminal connections accept up to 12 AWG copper wire (75°C rated)
Technical Specifications
- Input Voltage: 85–265VAC
- Input Current: 1.7A max @ 120V, 1.1A max @ 230V
- Input Frequency: 47–63 Hz
- Output Voltage: 24VDC nominal (20.4–27.6V regulated)
- Output Current: 3A maximum
- Mounting Type: DIN rail (35 × 7.5 mm)
- Dimensions: 87 × 68 × 69 mm (W × H × D)
- Operating Temperature: See manufacturer datasheet for full environmental specs
- Certifications: CE, UL, CUL, CCC, C-TICK, GOST
- Safety Rating: SELV/PELV (Safety Extra-Low Voltage / Protective Extra-Low Voltage)
Typical Applications
The 2711P-RSACDIN is the standard remote power supply for Allen-Bradley PanelView Plus terminals in automation environments where space is limited and DIN-rail mounting is preferred. Common applications include:
- PanelView Plus 700, 1000, 1200, and 1500 series HMI terminals
- PanelView Plus CE (Compact Edition) devices
- Machine control panels requiring 24VDC @ 3A from standard AC mains
- Multi-panel automation systems in manufacturing and process control
Compatibility & Replacements
Note: This product is discontinued as of December 30, 2024, and Rockwell Automation has announced no planned direct replacement. For new projects, consult Rockwell Automation or your distributor for equivalent alternatives.
The 2711P-RSACDIN is compatible with:
- PanelView Plus 700, 1000, 1200, 1500 series (any revision)
- PanelView Plus CE terminals with DC power input
- Standard 35 mm DIN rails in electrical enclosures
Screw terminal connections must accommodate 12 AWG solid or stranded copper wire with a torque setting of 5.7 in-lbs. The unit requires mounting in a protective enclosure.
