Overview

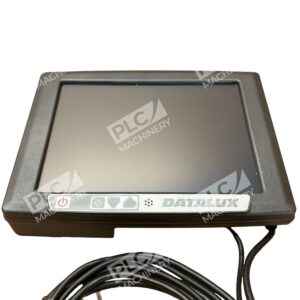

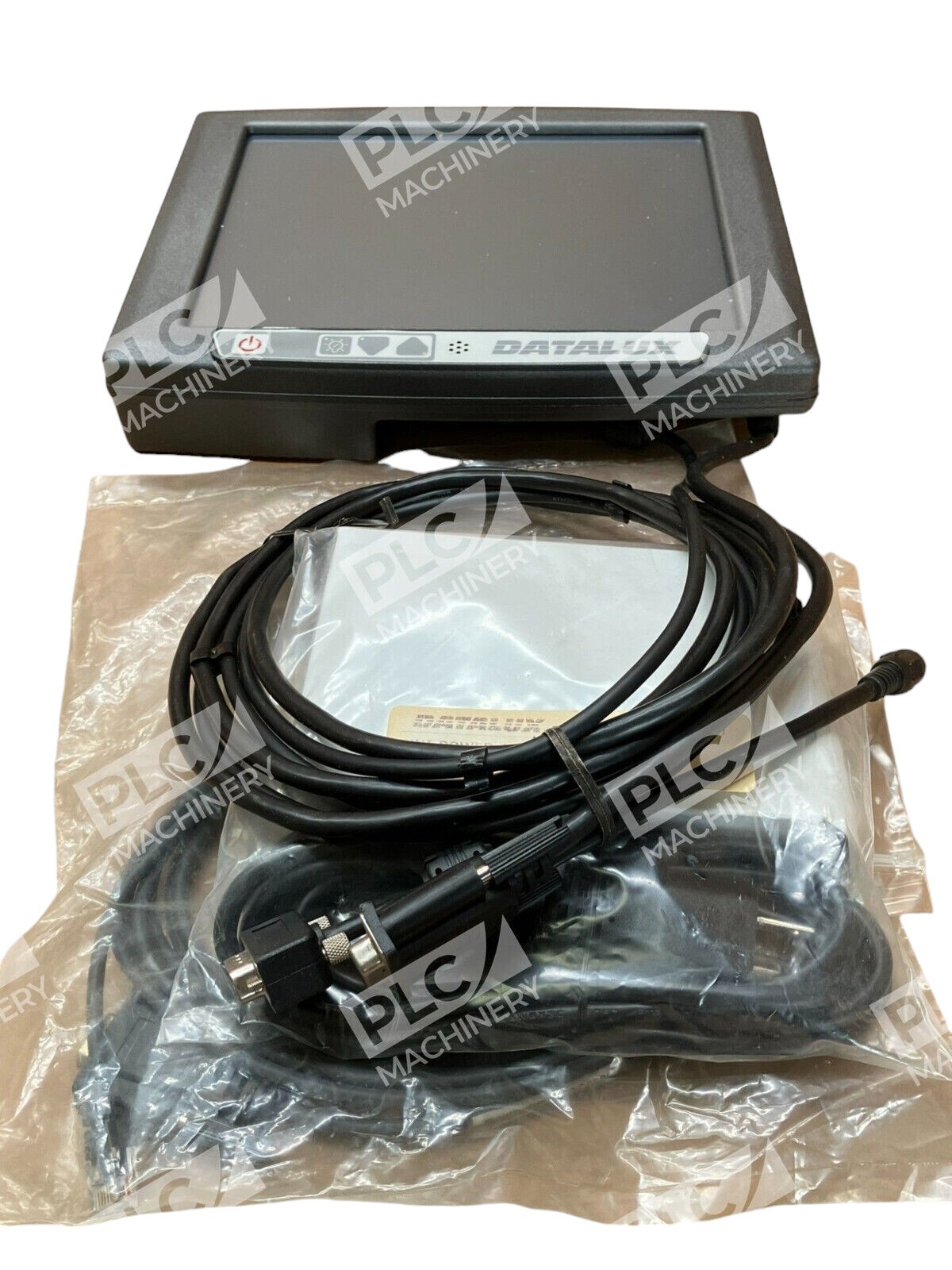

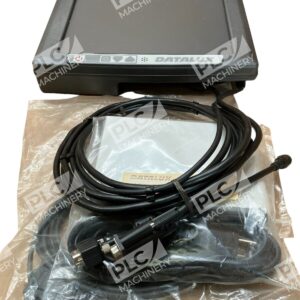

The Datalux LMV-SG10-002 is a compact 10.4-inch LCD touch screen display engineered for industrial automation and human-machine interface (HMI) applications. This sealed enclosure design prevents dust and contaminant infiltration, making it suitable for factory floors and harsh control environments. The SG10 series combines reliable SVGA graphics with optional touch-screen capability to support real-time operator feedback and system monitoring.
Key Features
- 10.4-inch SVGA Display: Native SVGA resolution with optional touch-screen capability for clear industrial control interfaces
- Sealed All-Metal Enclosure: Sealed to prevent penetration of dust or other contaminants from the surrounding environment
- High-Brightness Panel: High-bright monitor readable in daylight with front panel controls for precise dimming
- Flexible Interface Options: Can be ordered with either serial (RS-232) or USB (USB 2.0) touch-screen interface
- Compact Design: 10.4-inch LCD monitor featuring touch-screen capability and compact, all-metal enclosure
Technical Specifications
Verify complete electrical specifications with your system integrator or distributor, as historical datasheets from the original manufacturer are no longer directly available online. Key parameters include SVGA resolution (800×600), 10.4-inch diagonal display, optional RS-232 or USB 2.0 touch interface, and industrial-grade metal housing for thermal and shock resistance.
Typical Applications
- Industrial automation control panels and HMI systems
- PLC-based monitoring and operator interfaces
- Manufacturing floor visualization and diagnostics
- Motion control and robotics systems
- Legacy system upgrades and panel rebuild
- Open-architecture industrial display interfaces
Compatibility & Replacements
Compatible With
- Industrial PLC systems (Allen-Bradley, Siemens, Mitsubishi, Omron)
- Computer systems with RS-232 or USB serial ports
- Datalux LMV10 series monitor systems
- Custom industrial automation software applications
- Touch-screen control software via serial or USB protocol
Replaces / Drop-In Replacement For
The Datalux LMV-SG10-002 is a direct replacement for legacy Datalux SG10 series displays and may replace comparable 10.4-inch SVGA touch-screen panels in equivalent industrial HMI applications. Verify mechanical mounting, power requirements, and interface pinouts with your original equipment documentation before ordering.
Works With
- RS-232 serial communication protocol
- USB 2.0 interface (touch-screen option)
- VGA input signals (analog video)
- Standard industrial HMI development software
- Custom operator control applications
