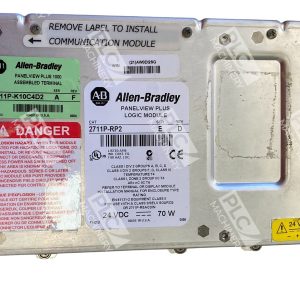

Allen-Bradley 2711P-K10C4D2 Overview

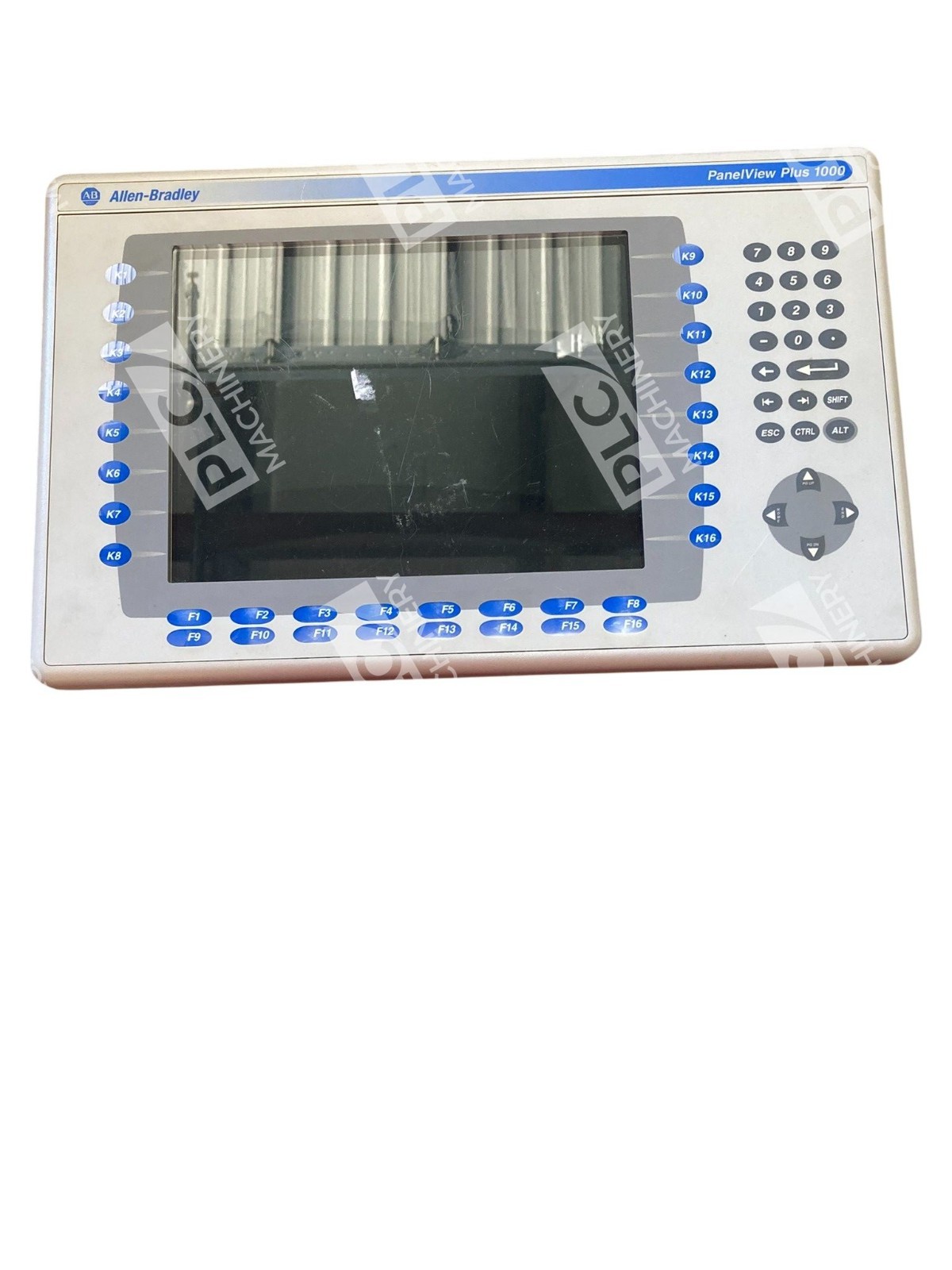

The Allen-Bradley 2711P-K10C4D2 is part of the PanelView Plus 1000 interface series. This keypad interface terminal features a 10-inch screen that supports color graphics, making it ideal for operator visualization and control in manufacturing and process environments. Running Windows CE 4.1, this terminal is engineered for efficient operator control and monitoring in industrial applications.
Key Features
- 10-inch color display with graphics support
- Keypad input interface for operator data entry and control
- 128 MB internal memory
- Ethernet communication network support
- DC-powered with 18 to 32 Volts DC operating range
Technical Specifications
Standard Communication includes Ethernet and RS-232 connectivity. Ethernet port features RJ45, 10/100Base-T connector for network communication with MDI/MDI-X support. The unit supports isolated, simultaneous operation of multiple communication interfaces for data gathering from different automation controllers.
Typical Applications
The terminal allows seamless integration into control systems and supports a wide range of factory automation tasks with user-friendly HMI functionality. Common uses include:
- Production line operator interfaces and monitoring
- Process control visualization in pharmaceutical and food processing
- Machine condition and alarm display systems
- Material handling system status and route control
Compatibility & Replacements
Common Series variants are Ser A, B, C, D, and F. Internal backlight replacement part number is 2711P-RL10C. Related keypad-input models in the PanelView Plus 1000 family include 2711P-K10C4A2, 2711P-K10C4B2, and 2711P-K10C4D1. For additional Ethernet connectivity, the 2711P-RN20 Ethernet communication module is available for 700 to 1500 PanelView Plus terminals.
