Overview

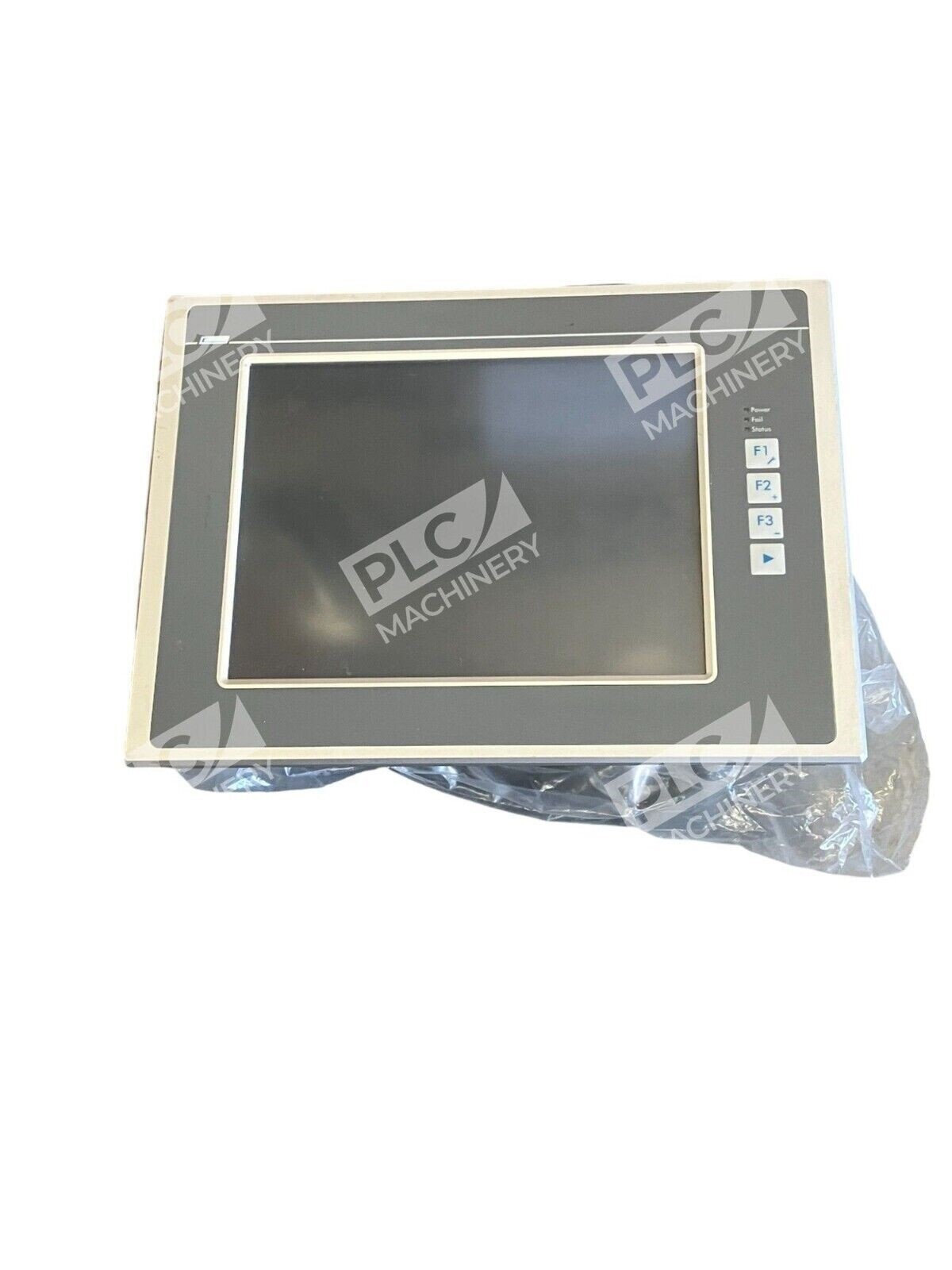

The Lenze 3401-0004 EL 1700 is a touchscreen operator interface panel manufactured by Lenze Americas. This HMI panel is engineered for use in motion control and industrial automation environments, providing a graphical user interface for system monitoring and control. The EL 1700 runs Windows CE, a compact operating system optimized for embedded industrial applications.
Key Features
- Touchscreen display for intuitive operator interaction
- Windows CE operating system for embedded industrial applications
- Compatible with Lenze PLC and automation systems
- German engineering and manufacturing quality
- Compact form factor suitable for machine and cabinet mounting
- Open interface design for custom application development
Technical Specifications
- Supply Voltage: 24 VDC
- Display Type: Touchscreen
- Operating System: Windows CE
- Manufacturer: Lenze Americas
- Part Number: 3401-0004
- Model: EL 1700
- Country of Origin: Germany
- Interface Type: Open Interface Operator Panel
- Weight: Approximately 25 lbs (depending on mounting hardware)
Typical Applications
- Machine tool control and monitoring
- Motion control system visualization
- Process automation interfaces
- Industrial equipment operator stations
- Custom automation solutions requiring graphical HMI
- Lenze drive and inverter system integration
Compatibility & Replacements
Compatible With
- Lenze PLC systems
- Lenze automation controllers
- Lenze motion control drives and inverters
- Windows CE-based Lenze applications
- Open automation systems via standard communication protocols
Replaces / Drop-In Replacement For
- Lenze 3401-0005 EL 1700 (variant model)
- Other Lenze EL series HMI panels in motion control applications
Works With
- Lenze PLC Designer software
- Windows CE development environments
- Standard industrial communication protocols
- VNC remote connection for system management
- Lenze-supplied visualization software
