Overview
The Triplett 220-GL panel meter is a precision analog instrument designed for DC milliampere measurement in the 0–200 DCMA range. Standard indication accuracy of ±2% for AC & DC ensures reliable readings in industrial control, test, and measurement applications. This two-stud mount meter is a proven choice for facility maintenance, equipment diagnostics, and quality assurance tasks requiring accurate current monitoring.
Key Features
- Taut band suspension standard for sensitive ranges — reduces friction and improves response time
- Two stud mounting — simple, secure installation in standard panel cutouts
- Internal resistance (0–200 DCMA): 360 Ω — optimized for low-impedance circuits
- Durable construction with clear, easy-to-read scale markings
- Compact 2.5″ front face — fits tight panel spaces
Technical Specifications
- Measurement Range: 0–200 DC milliamperes (DCMA)
- Internal Resistance: 360 Ω
- Accuracy: ±2% of full scale

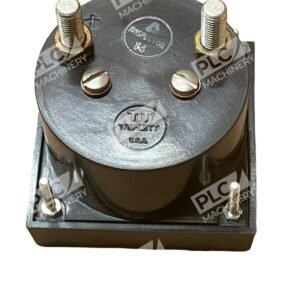

- Mounting: Two-stud (rear termination)
- Meter Series: GL-Series

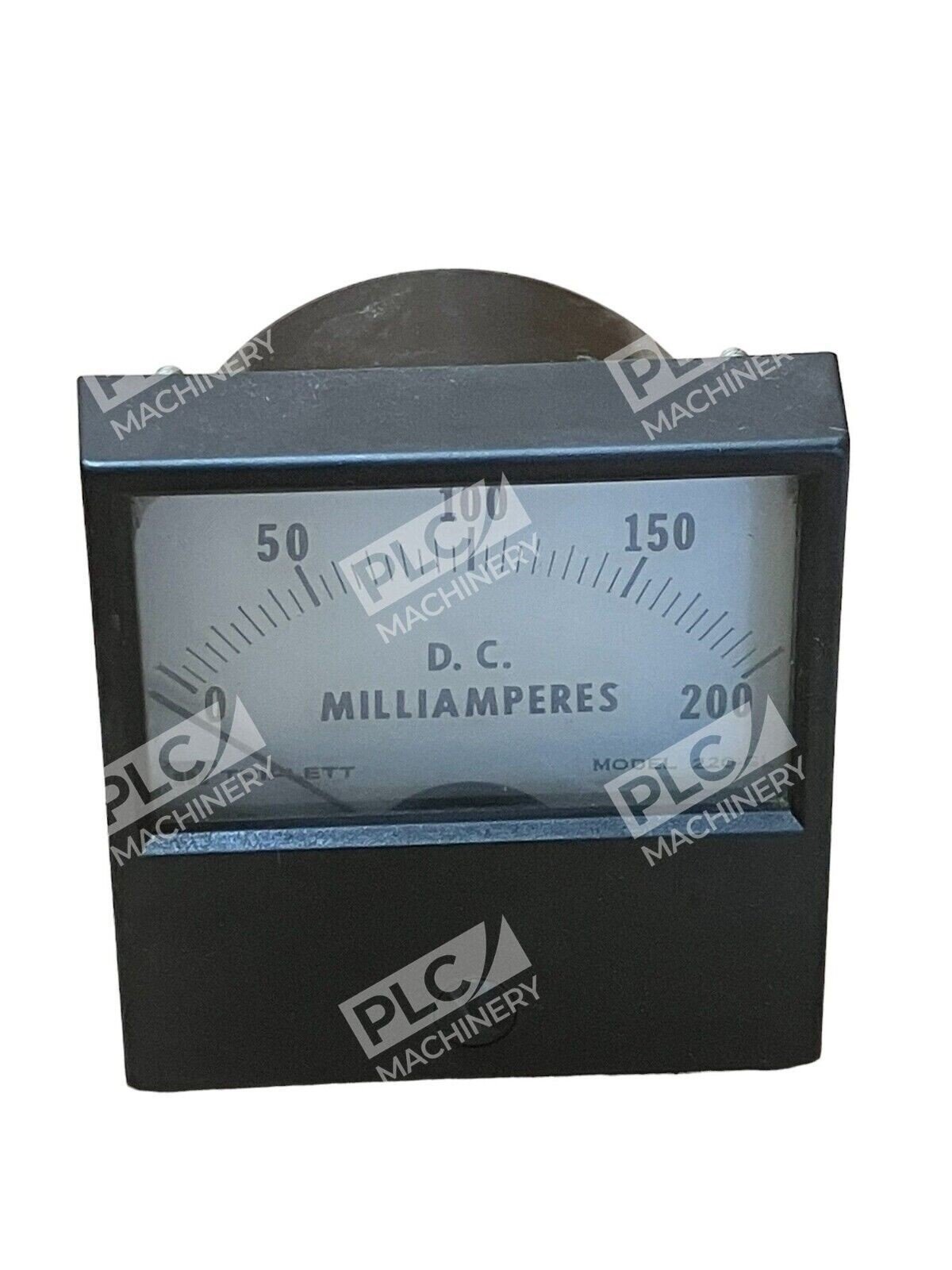

- Display Type: Analog needle gauge

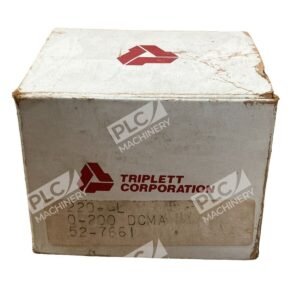

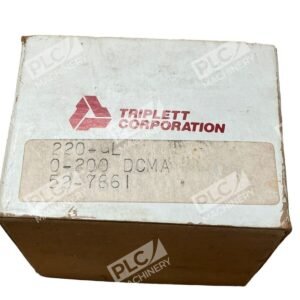

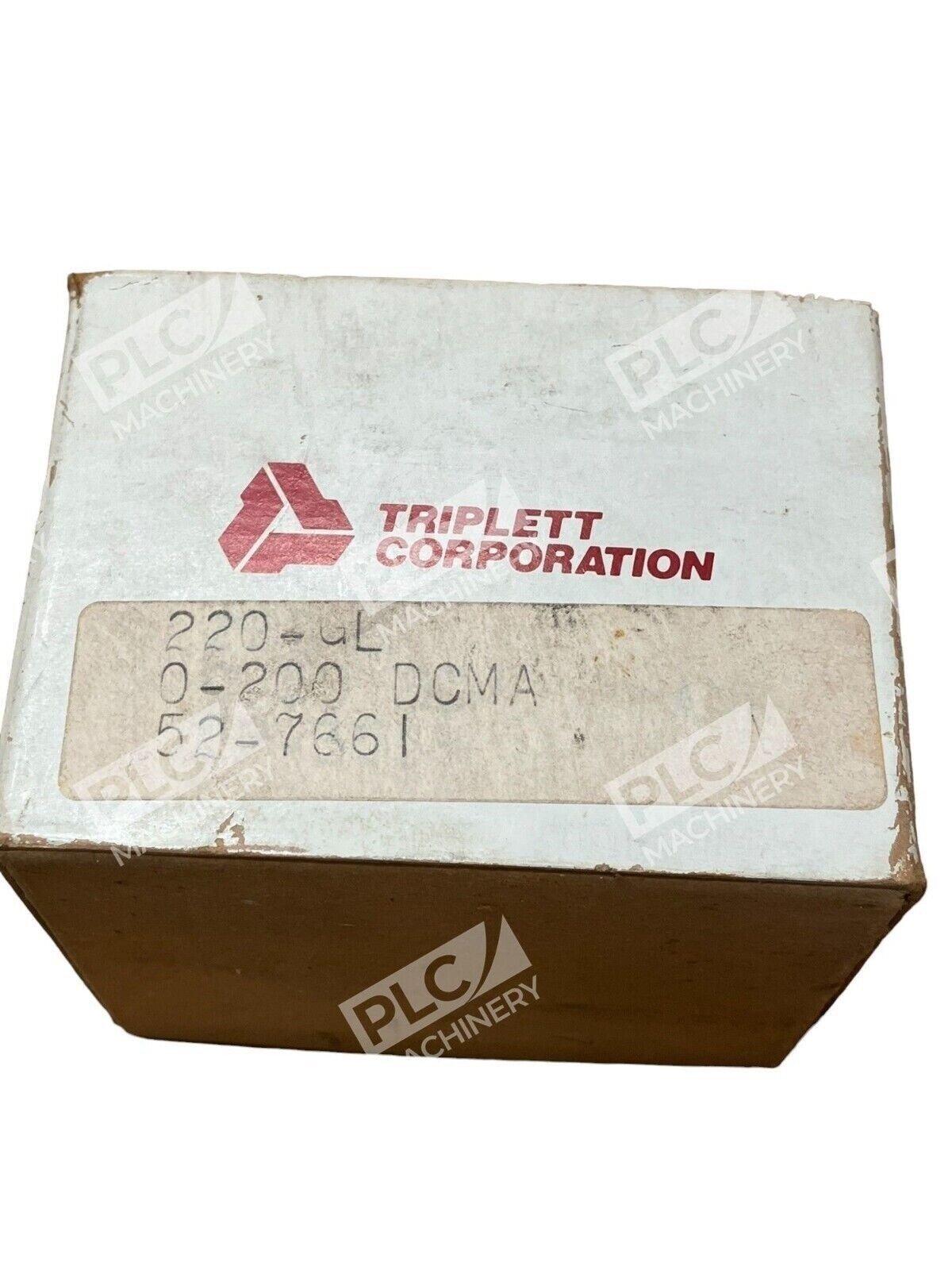

- Part Number: 52-7661
Typical Applications
- DC current monitoring in control circuits and power supplies
- Battery charge/discharge rate measurement
- Motor and solenoid current diagnostics
- Industrial process parameter verification
- Equipment troubleshooting and commissioning
- Panel-mount instrumentation for test benches and production lines
Compatibility & Replacements
Compatible With
- Standard DIN 43700 / ANSI panel cutouts (2.5″ or equivalent)
- DC power circuits rated up to 200 mA source capability
- Low-impedance measurement loops (24 VDC systems, sensor circuits)
- Industrial control panels and switchboards
Replaces / Drop-In Replacement For
- Triplett 220-G (older G-series variant; verify mounting and internal resistance)
- Other 0–200 DCMA analog panel meters with two-stud mounting and 360 Ω input impedance
Works With
- DC current-output transducers (4–20 mA or 0–200 mA)
- Shunt resistors for extended range measurement
- Standard electrical test and troubleshooting equipment
- Industrial monitoring and data acquisition systems
