Overview
The Vorne M115/V77-0 Rev 10 is a compact LCD display counter module engineered for industrial production monitoring and event counting. As part of Vorne Industries’ established display product line, the M115/V77-0 provides a straightforward 4-digit numeric display interface for equipment integration in manufacturing floors, quality control stations, and process automation systems. This module supports multiple counting modes and communication protocols typical of Vorne’s counter displays.
Key Features
- 4-digit LCD display for clear numeric readout
- Compact module form factor for flexible mounting
- Supports multiple counting input modes (count up, count down, bidirectional)
- Serial communication capability for networked installations
- Configurable scaling and display parameters via internal switches
- Low-power operation suitable for extended industrial deployments
Technical Specifications
- Display Type: 4-digit LCD

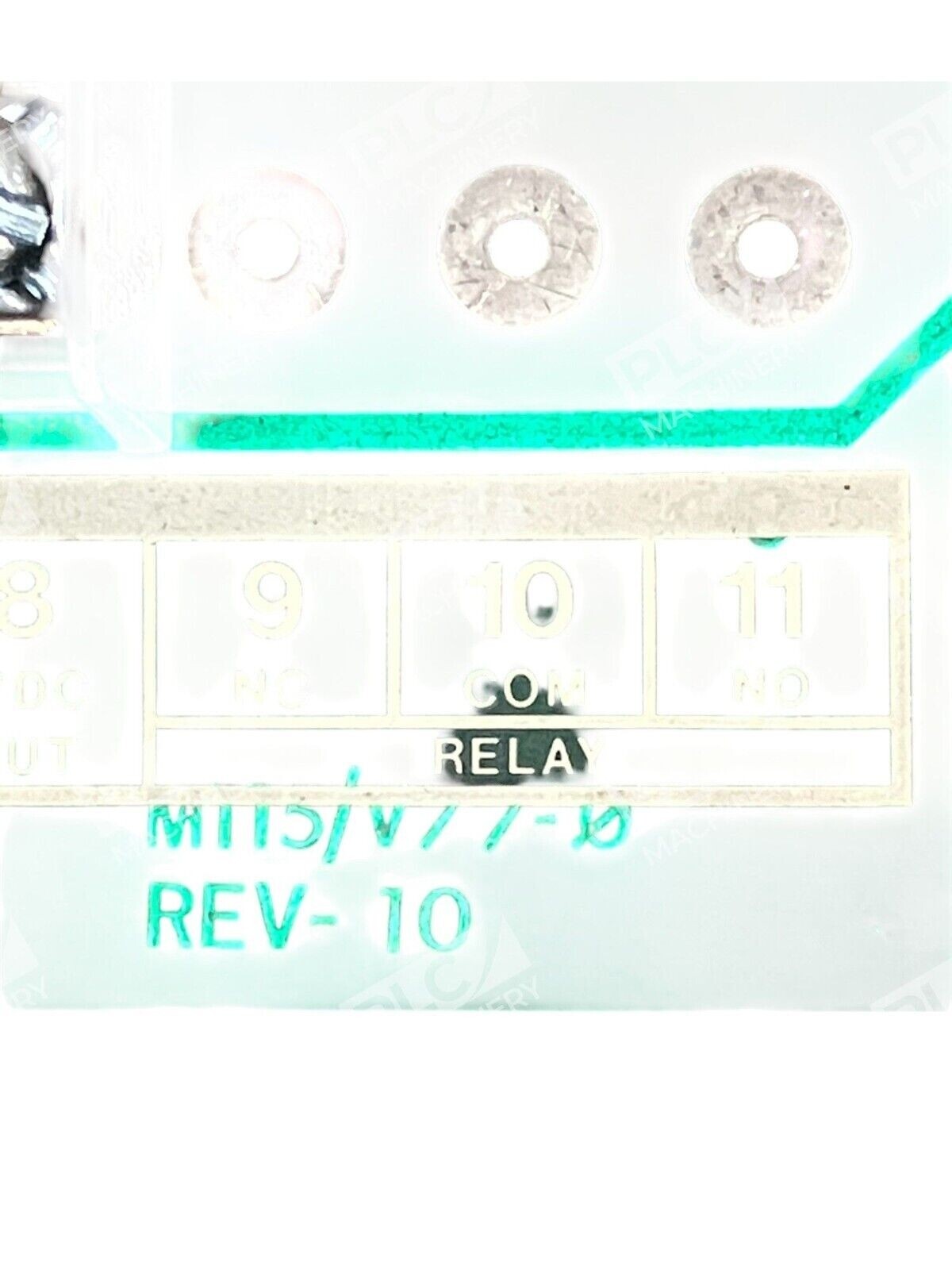

- Model: M115/V77-0 Rev 10

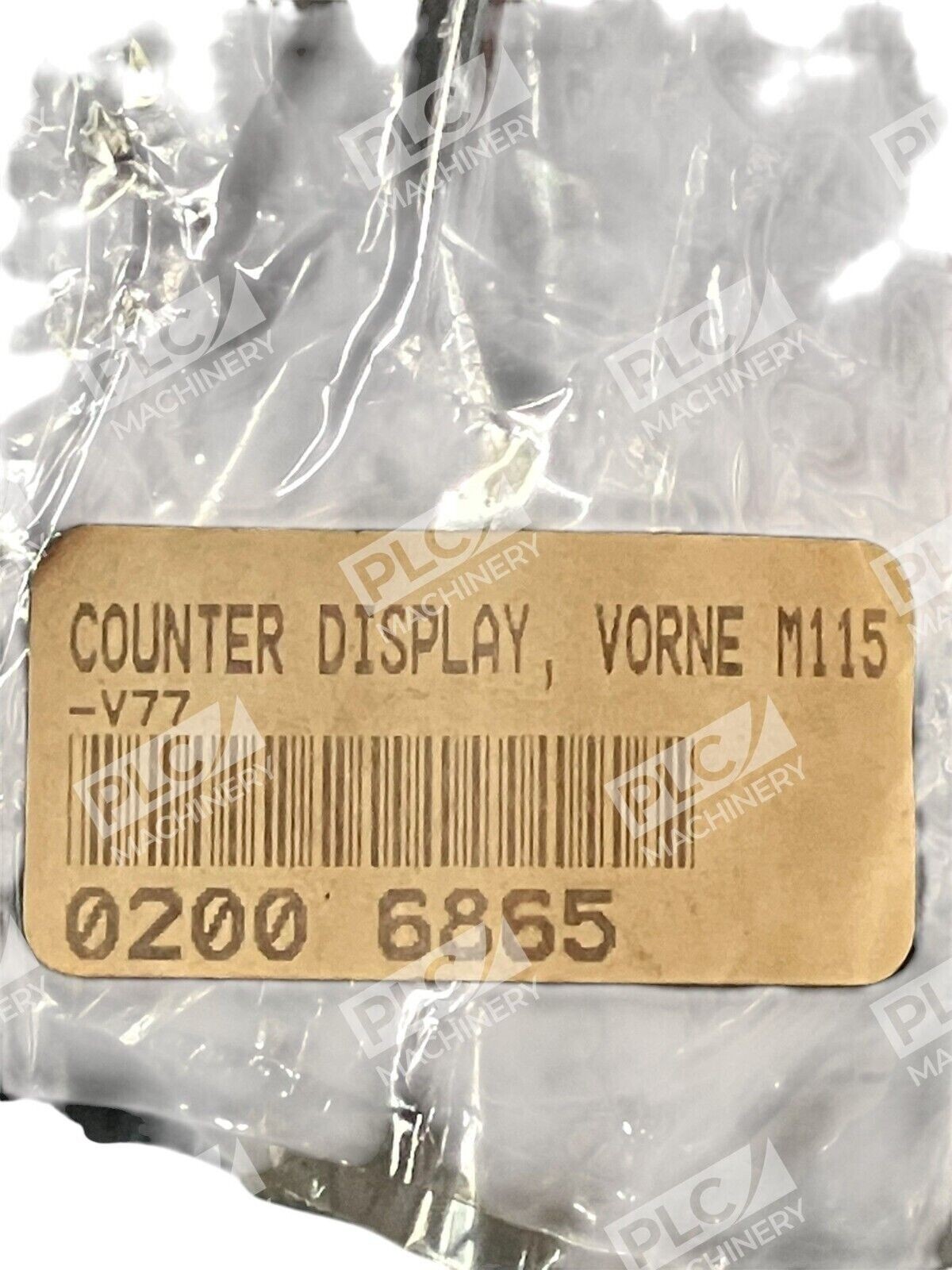

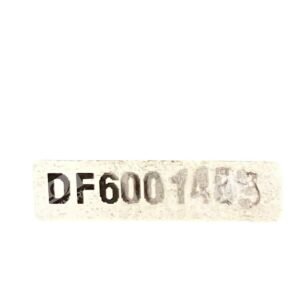

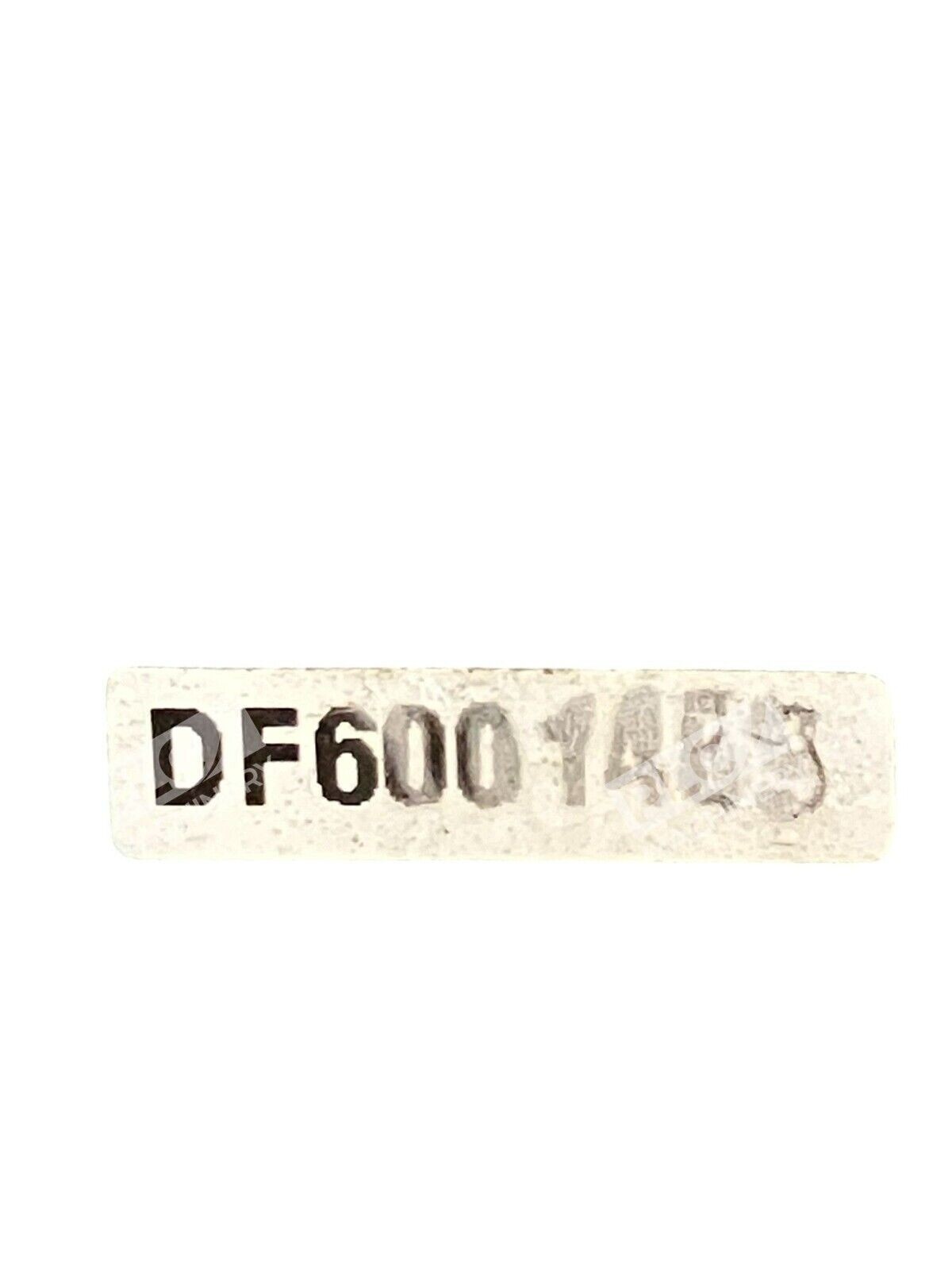

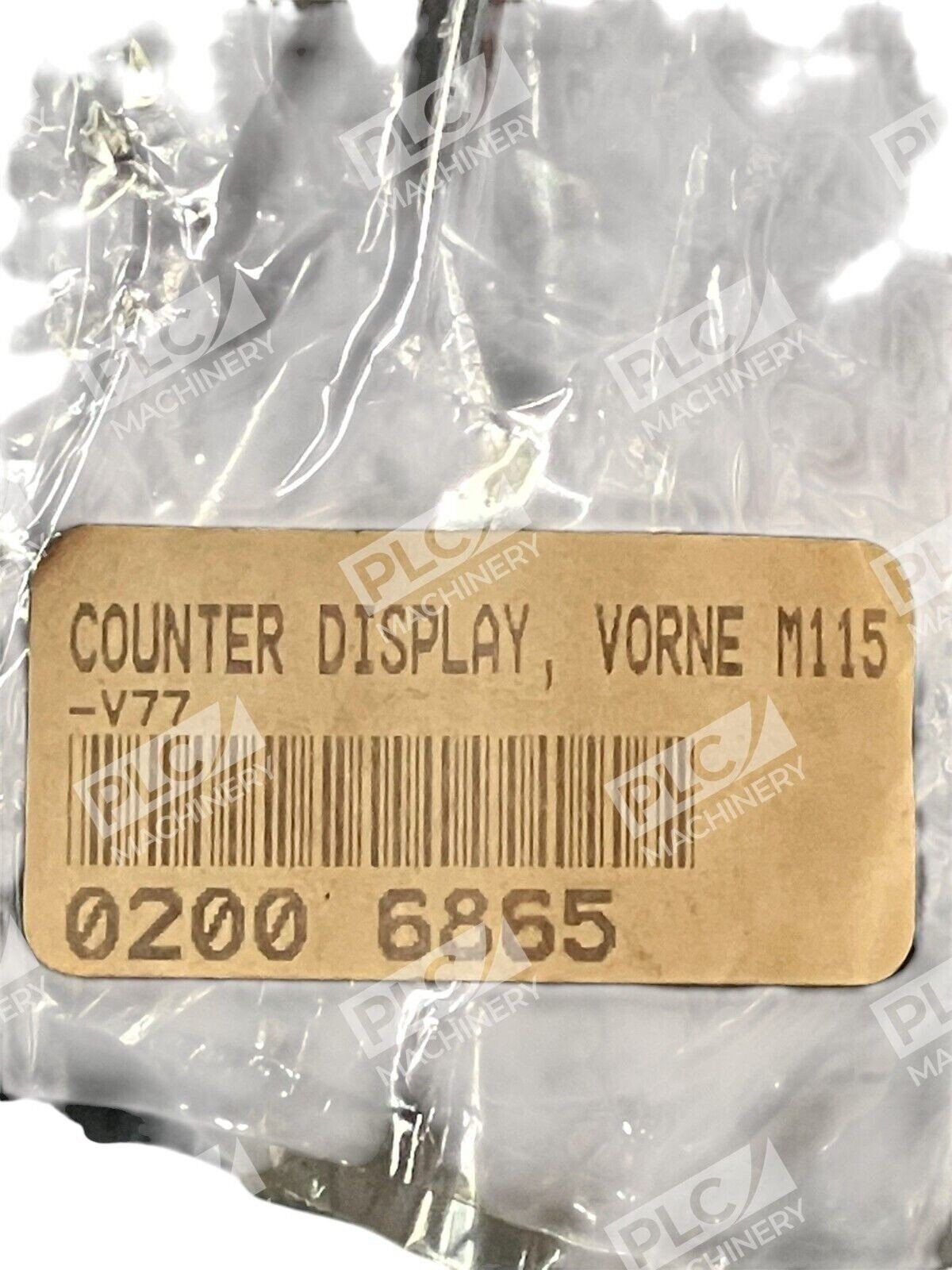

- Part Number: DF6001455 0200 6865
- Display Format: Numeric digits with optional decimal point
- Counting Modes: Up, down, and bidirectional (quadrature encoder compatible)
- Communication: Serial RS-232 compatible
- Input Types: TTL/CMOS compatible digital inputs
- Addressing: Multi-unit network addressing (0–99)
- Power Supply: Regulated 5V and 12V auxiliary outputs available
Typical Applications
- Production line part counting and tracking
- Machine cycle counting and downtime monitoring
- Quality inspection tallies and defect logging
- Inventory and warehouse receiving systems
- Equipment usage and maintenance interval tracking
- Event logging in control cabinet installations
Compatibility & Replacements
Compatible With
- Vorne Industries display and monitoring system ecosystem
- Serial RS-232 equipped industrial control systems
- TTL/CMOS digital I/O from PLCs and microcontrollers
- Standard 24 VDC industrial control power supplies
- Quadrature encoder inputs for precision counting applications
Replaces / Drop-In Replacement For
- Earlier revisions of the Vorne M115/V77 display module
- Verify compatibility with your system integrator before ordering for your specific application and revision requirements.
Works With
- Vorne 77-series display configuration software
- RS-232 serial communication protocols
- Standard industrial 120/240 VAC power conditioning
- Multi-unit networked display installations via serial daisy-chaining
