Overview

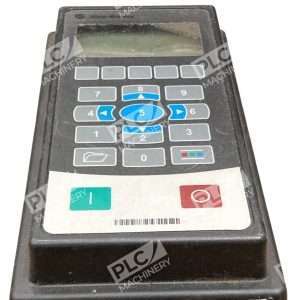

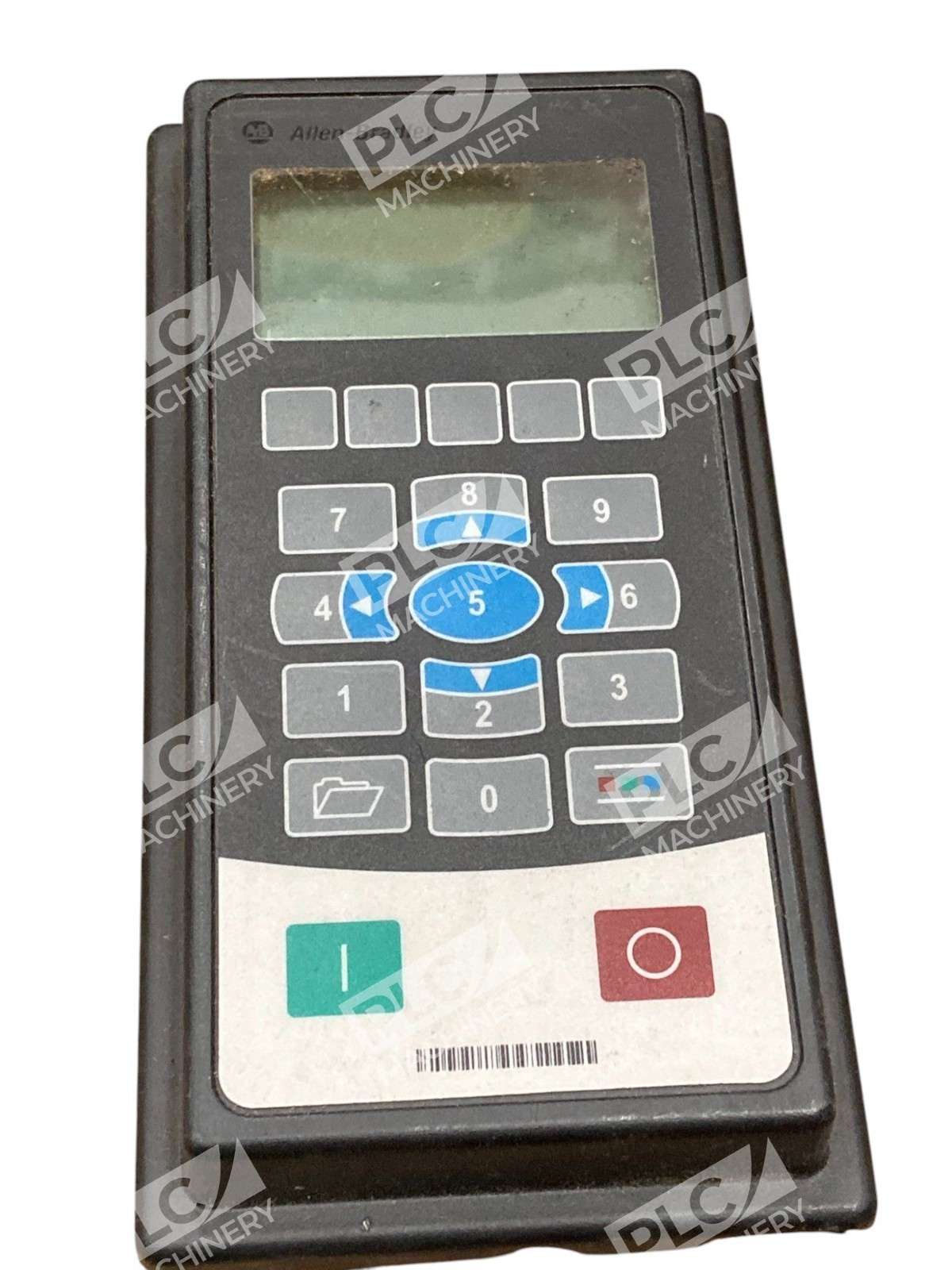

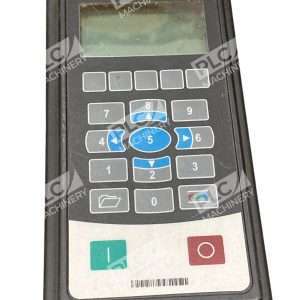

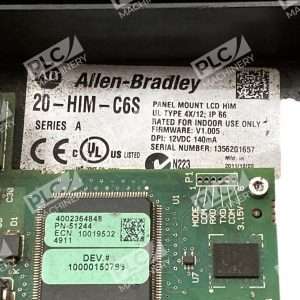

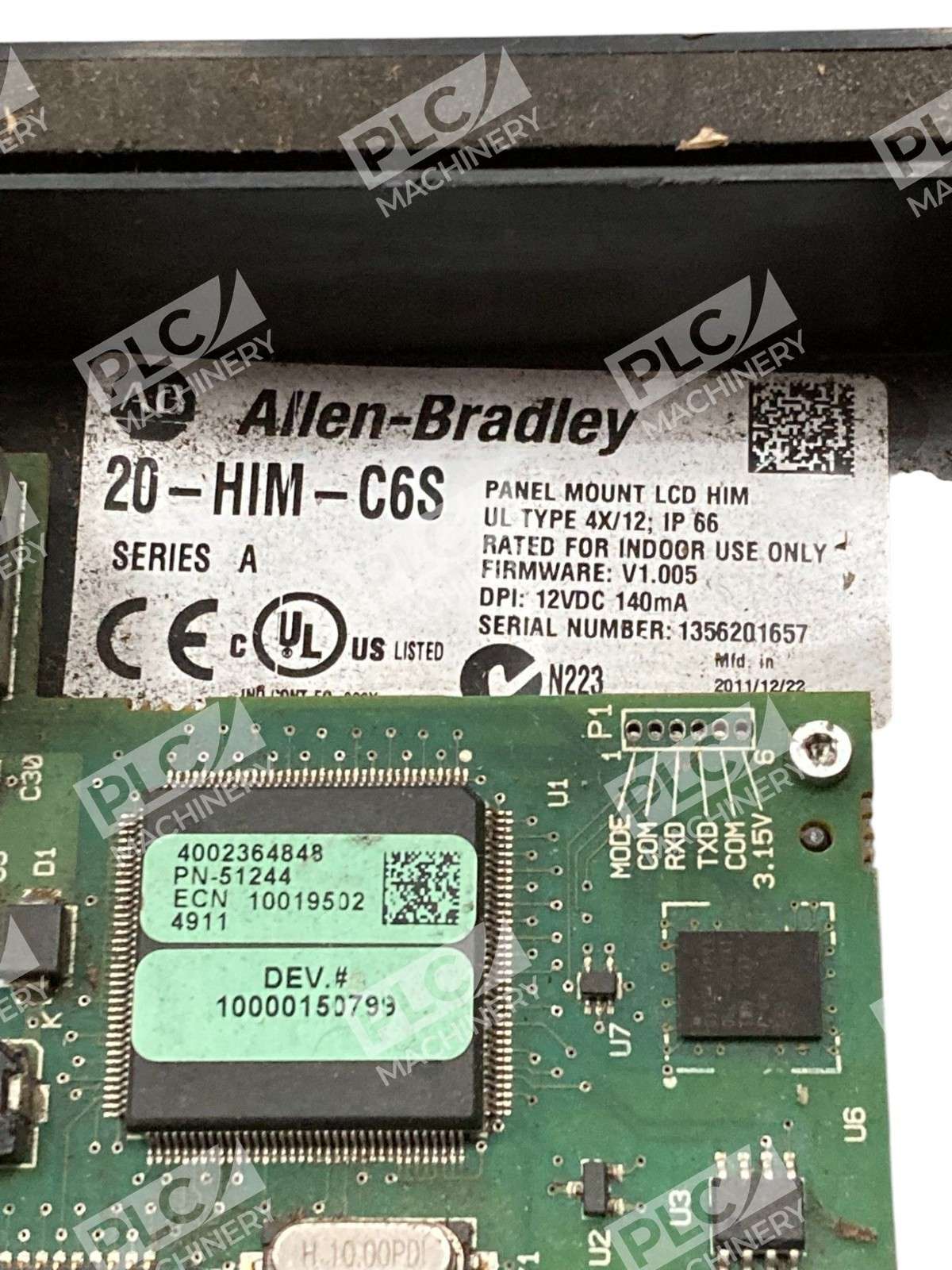

The Allen-Bradley 20-HIM-C6S is a PowerFlex Architecture Class enhanced human interface module engineered for seamless integration with PowerFlex variable frequency drives. This panel-mount LCD display provides operators with intuitive control and real-time drive monitoring, featuring a full-numeric keypad and IP66 (NEMA Type 4X/12) enclosure certification for indoor industrial applications. Series A units offer proven reliability in manufacturing, water treatment, HVAC, and material handling systems.
Key Features

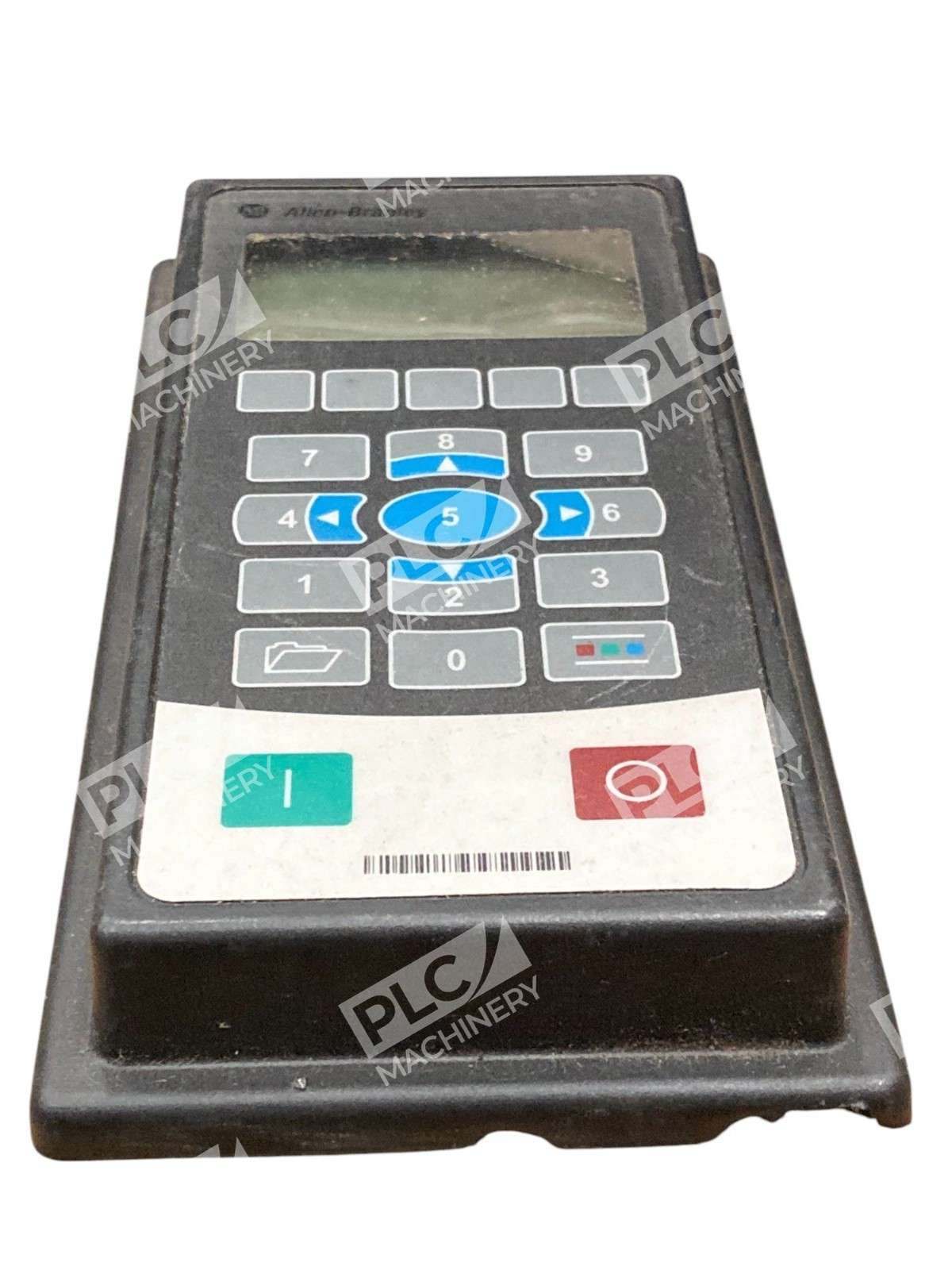

- Full-numeric LCD keypad for operator command input and parameter adjustment
- IP66/NEMA Type 4X-12 enclosure rating—sealed against dust and liquid splash
- PowerFlex Architecture compatibility with 70, 700, 700H, 700S, 700L, 750, 753, 755, and 7000 series drives
- Enhanced HIM functionality for expanded diagnostic and monitoring capabilities
- Includes 1202-C30 3-meter communication cable for drive cover or remote mounting
- Indoor use only; certified to CE, UL, CUL, KC, and C-TICK standards
Technical Specifications
See detailed specifications below for electrical, mechanical, and operational ratings:
Typical Applications
The 20-HIM-C6S suits any automation environment where PowerFlex drives are deployed:
- Manufacturing & Packaging: Speed ramps, jog control, fault diagnostics on conveyor systems and packaging lines
- Water & Wastewater: Pump control, pressure monitoring, and drive maintenance in wet enclosures
- HVAC: Fan and blower speed adjustment with real-time efficiency feedback
- Material Handling: Hoist, lift, and agitator control with on-site parameter tuning
- General Industrial: Remote operator interface and drive status display for retrofit and new installations
Compatibility & Replacements
The 20-HIM-C6S provides direct drop-in HIM functionality for PowerFlex 70 and 700 series drive control. When specifying replacements or upgrades, verify the target PowerFlex model and communication cable length (the standard 1202-C30 offers 3 meters). Rockwell Automation offers alternative remote HIM and panel-mount display options for non-PowerFlex or legacy systems; consult your distributor for compatibility assessment. Series A units are actively manufactured and widely available in industrial distribution channels.
