Overview

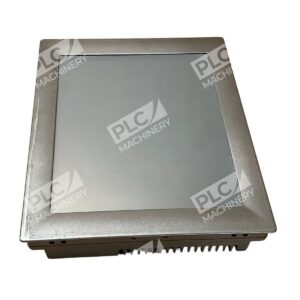

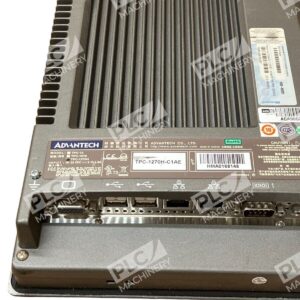

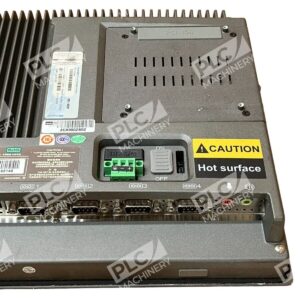

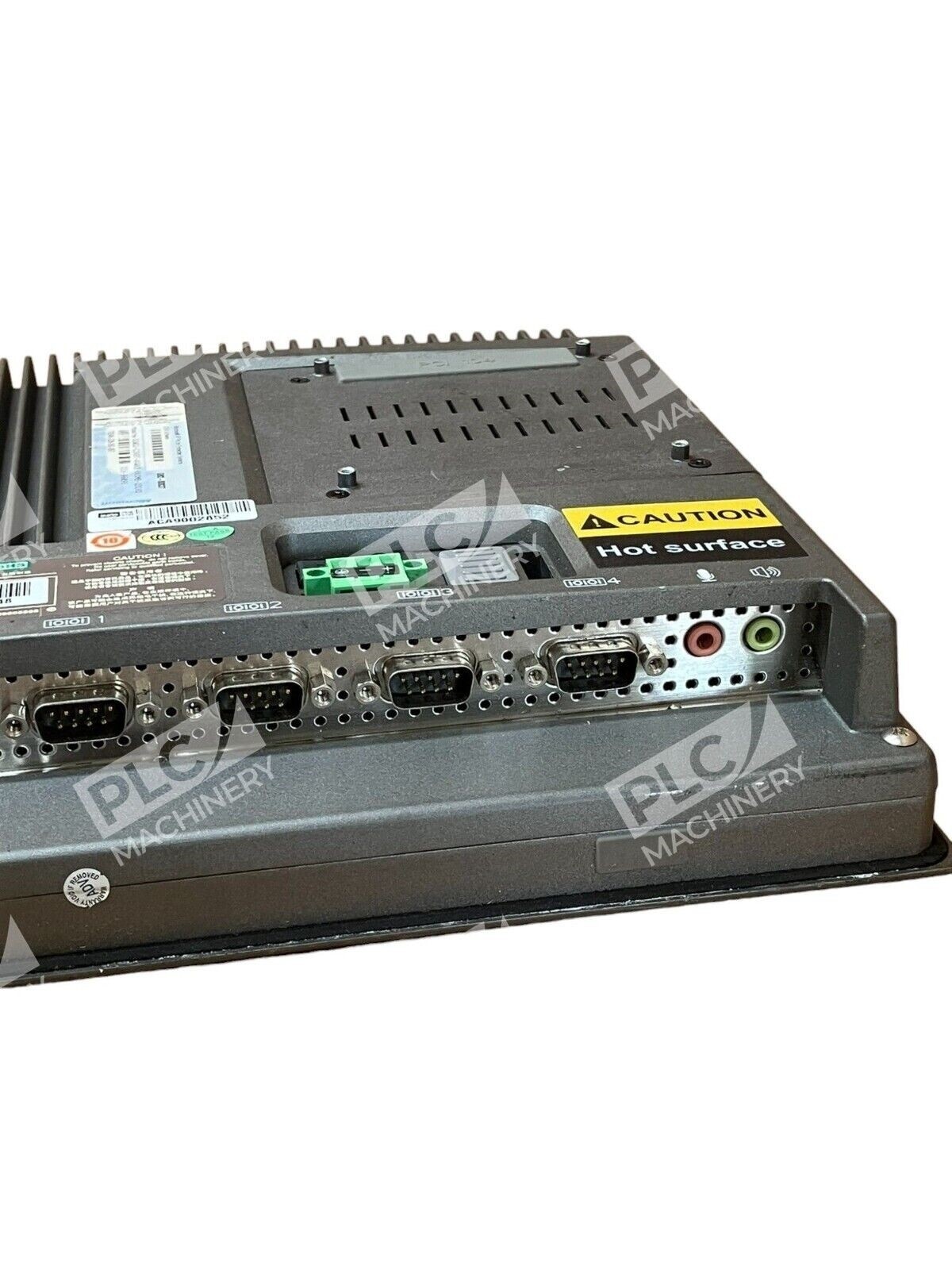

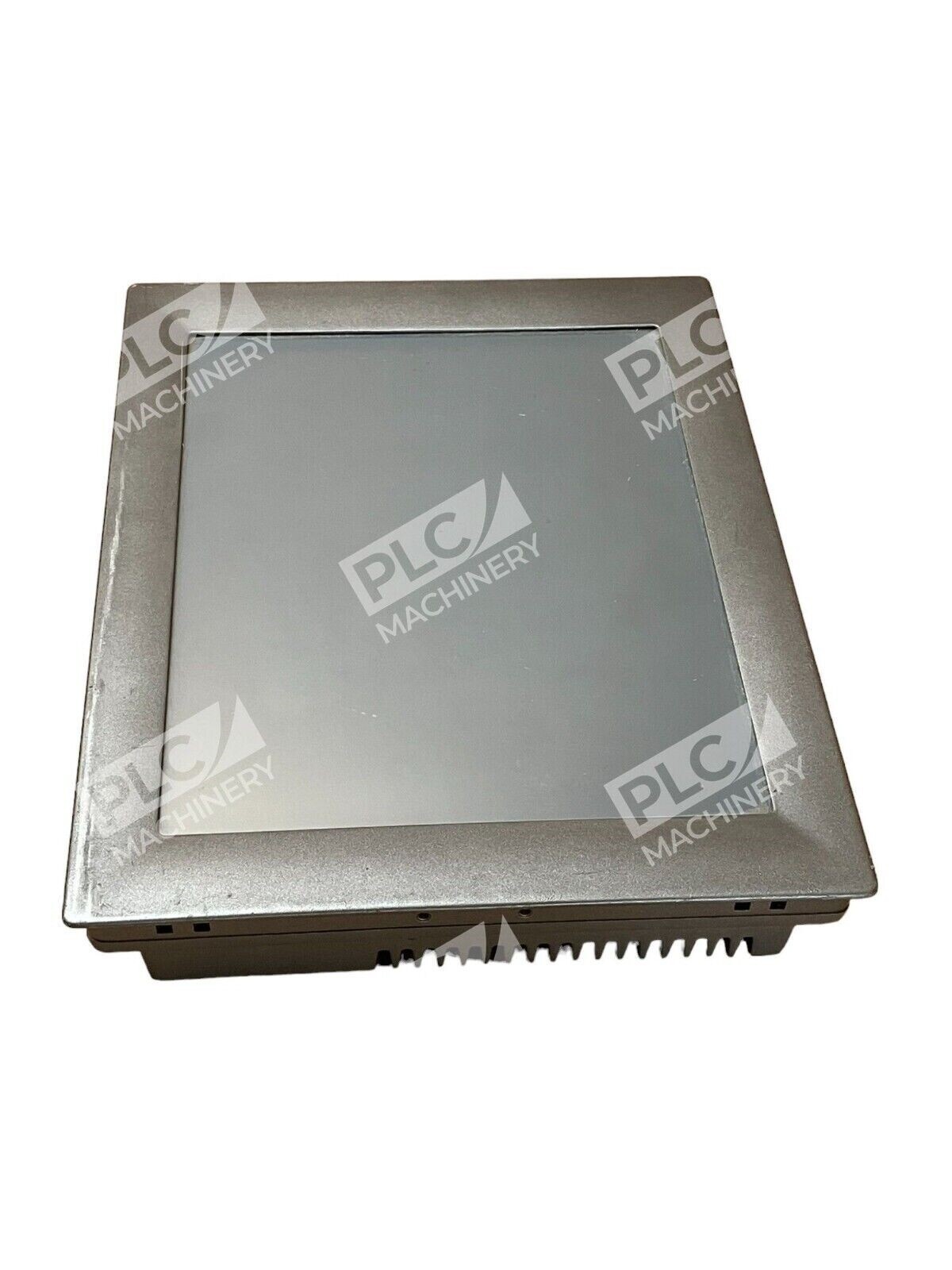

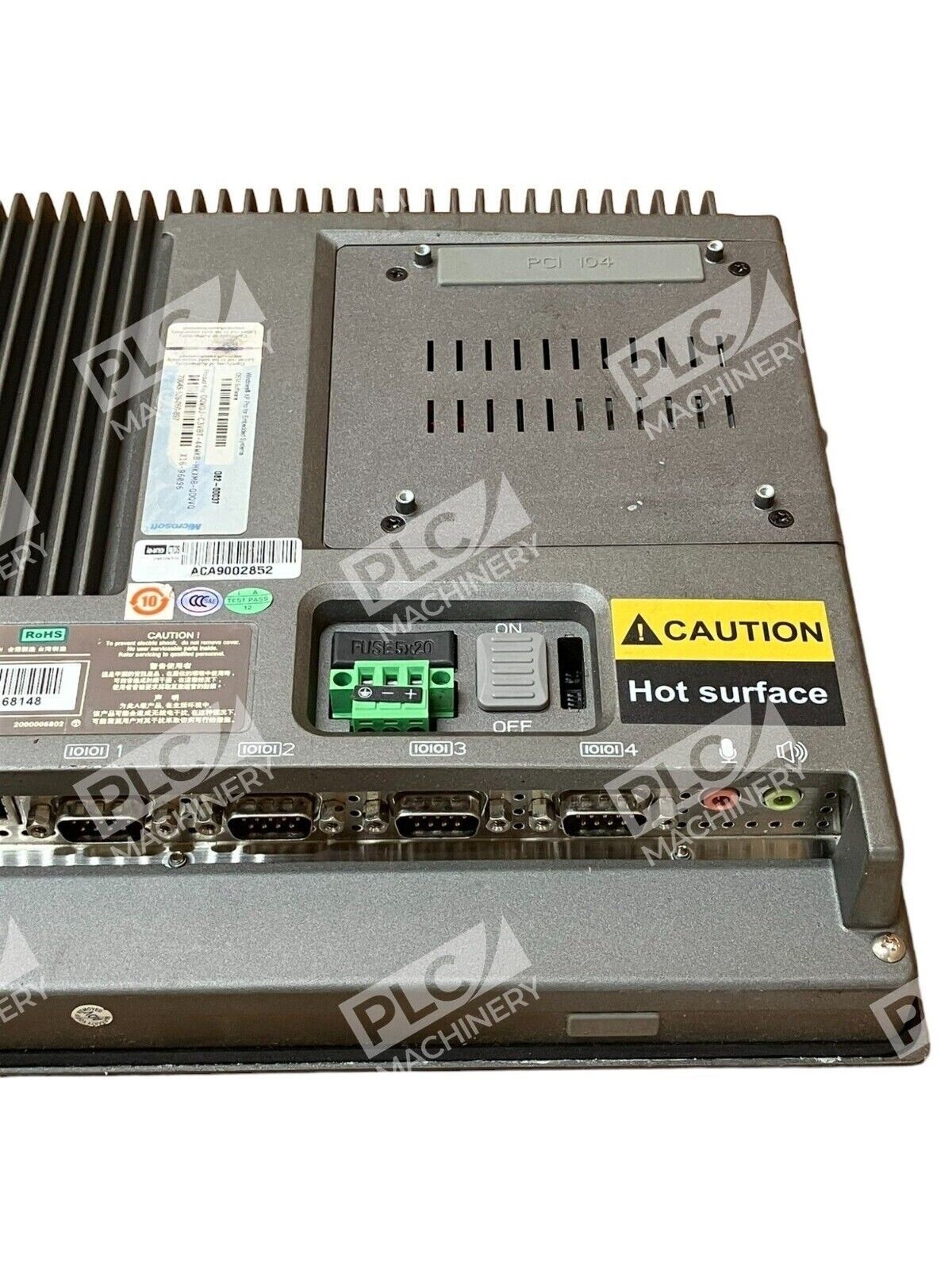

The Advantech TPC-1270H-C1AE is a compact 12.1″ SVGA touch panel computer engineered for industrial operator interfaces and HMI applications. This unit features an Intel Celeron M 1GHz processor with onboard DDR2 SDRAM memory, making it suitable for real-time monitoring, data entry, and equipment control in manufacturing facilities, machinery automation, and process industries. The integrated resistive touchscreen and robust aluminum enclosure provide reliable performance in demanding production environments.
Key Features
- 12.1″ SVGA TFT LCD display with 5-wire analog resistive touchscreen interface
- Wall, panel, and desktop mounting options; front panel rated NEMA4, IP65 ingress protection
- Power input range of 18–32VDC with typical power consumption of 40W
- Operating temperature range 0–50°C; storage temperature -20–60°C
- Touchscreen durability exceeds 36 million touches at a single location without failure
- Compact 3.3kg (7.28lbs) weight with die-cast aluminum alloy front bezel and ABS+PC back housing
Technical Specifications
CPU and Memory: Intel Celeron M 1GHz processor; 1GB onboard DDR2 SDRAM
Display: 12.1″ SVGA TFT LCD, 450 cd/m² luminance, 700:1 contrast ratio, 160°H / 140°V viewing angle, 50,000 hour backlight life
Touchscreen: 5-wire analog resistive, 1 million touches lifespan at single point, >75% light transmission

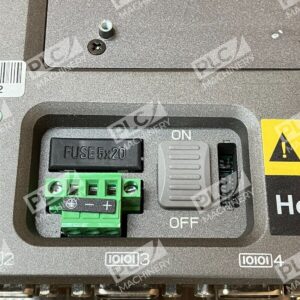

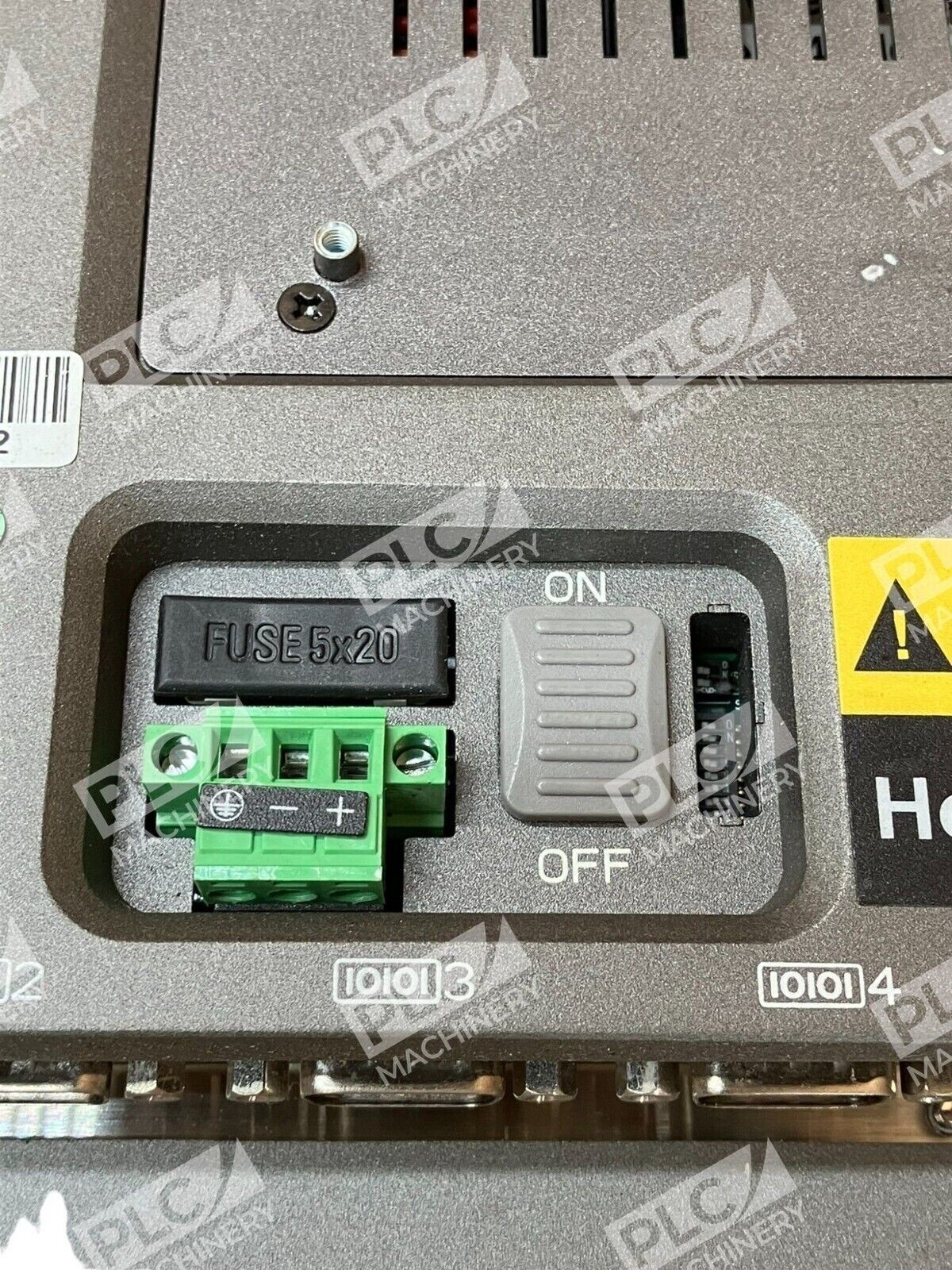

Power: 18–32VDC input; 40W typical consumption
Environment: Operating 0–50°C, 10–95% RH non-condensing humidity; storage -20–60°C
Protection: Front panel NEMA4, IP65 rated
Mounting: Desktop, wall, or panel mount configuration
Weight & Dimensions: 3.3kg net weight
Typical Applications
- Manufacturing equipment control and real-time monitoring
- Machine operator interfaces for CNC and industrial machinery
- Production line data acquisition and logging
- Process control visualization in chemical, food, and beverage plants
- Utility and facility management HMI displays
- Quality assurance and inspection workstations
Compatibility & Replacements
Compatible With
- Windows XP/XPe operating systems
- Standard industrial automation software and SCADA platforms
- Ethernet and serial communication protocols
- PLC and process automation systems via HMI software
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The TPC-1270H-C1AE is functionally equivalent to other models in the TPC-1270H series (C1BE, P1E, P2E variants) depending on processor and memory configuration requirements.
Works With
- Advantech WebAccess SCADA platform
- Industrial HMI software environments (Wonderware, InTouch, FactoryTalk, etc.)

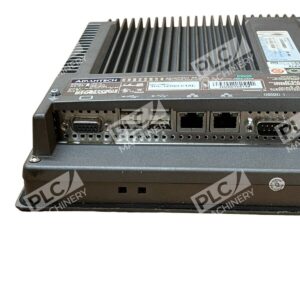

- Standard Ethernet and serial communication interfaces
- Windows-based automation control systems
