<h2>Overview</h2>

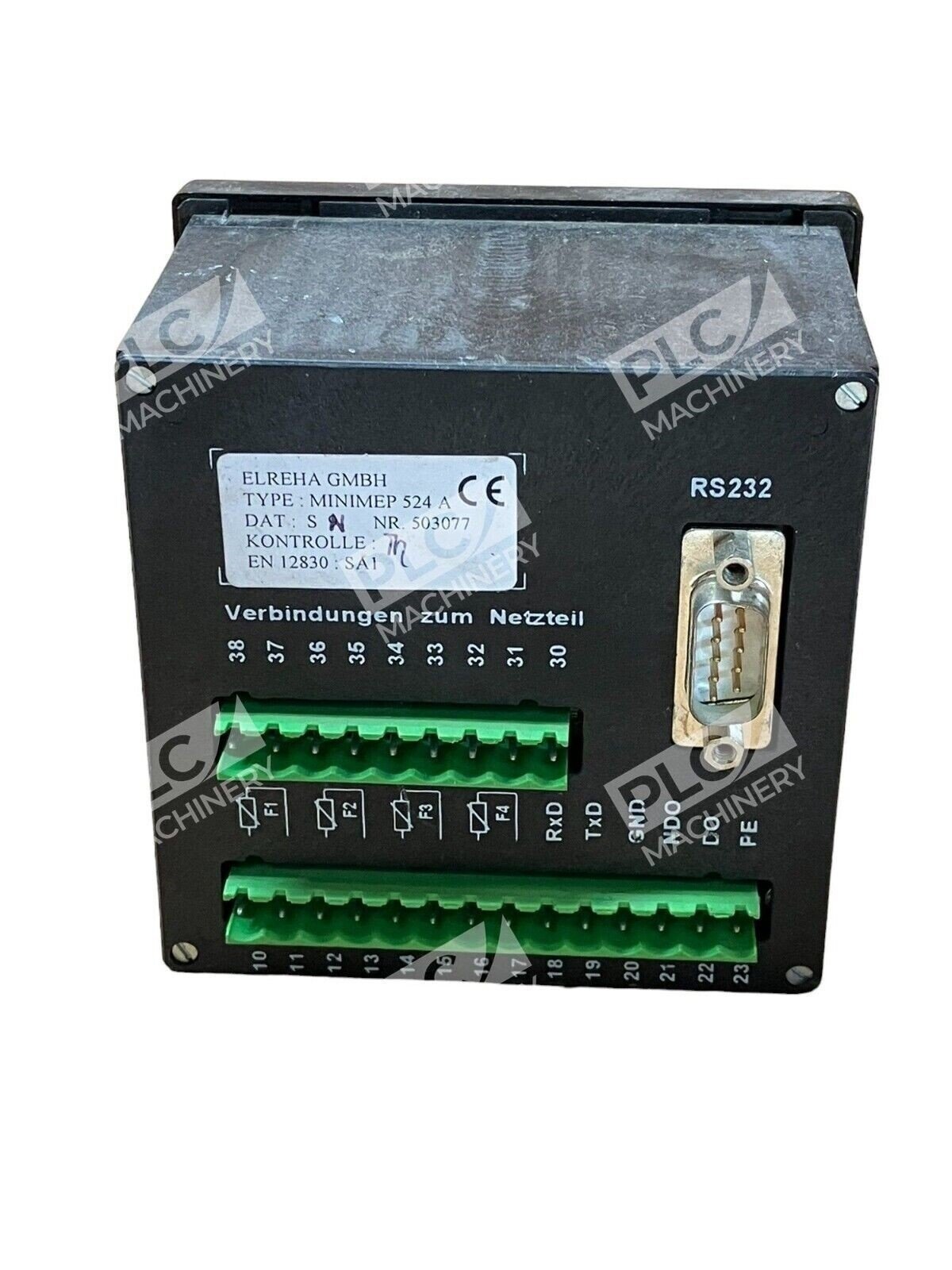

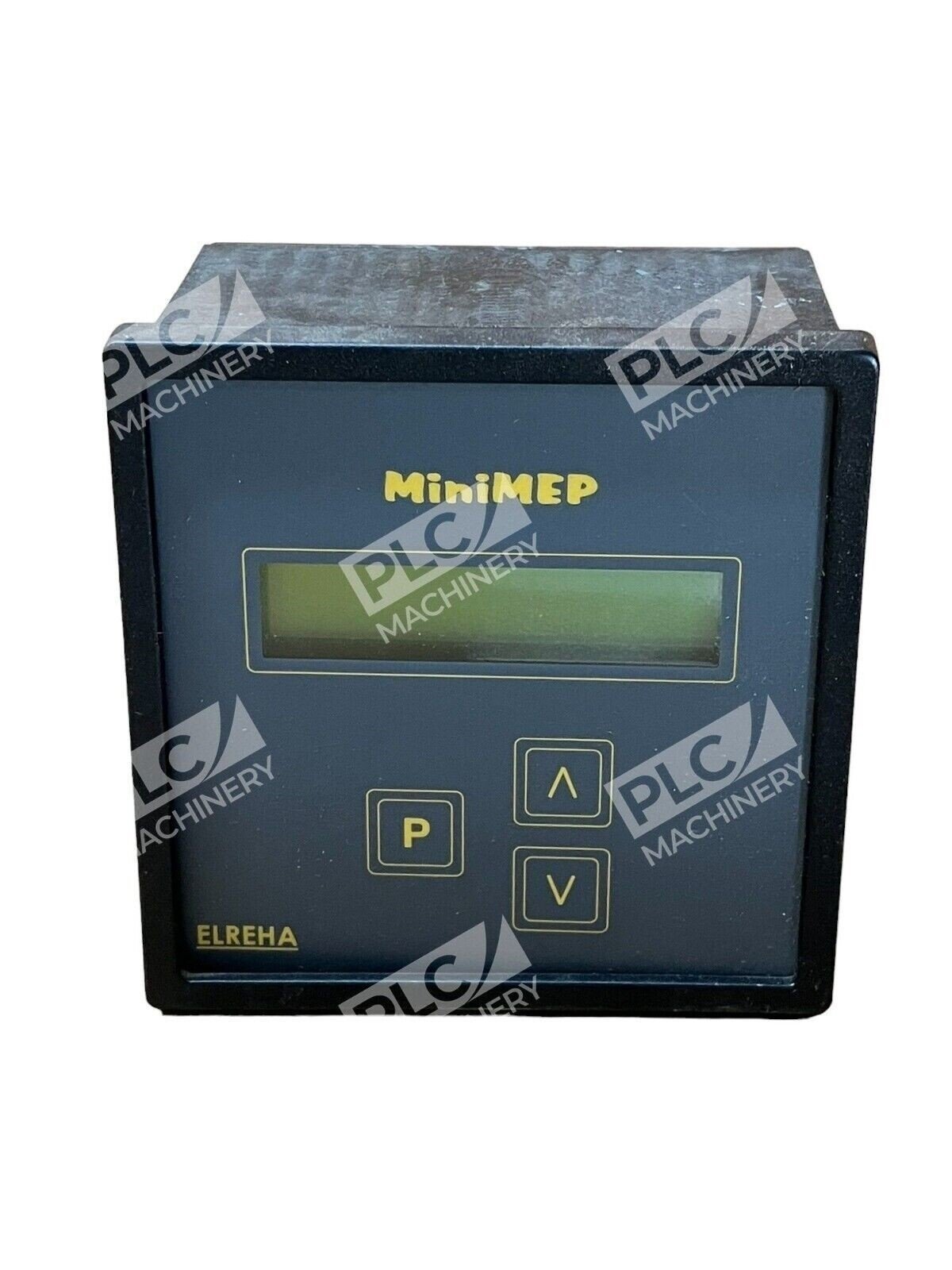

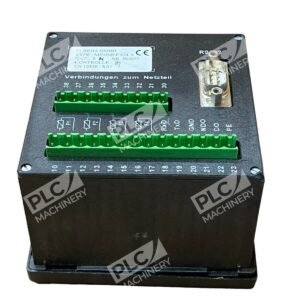

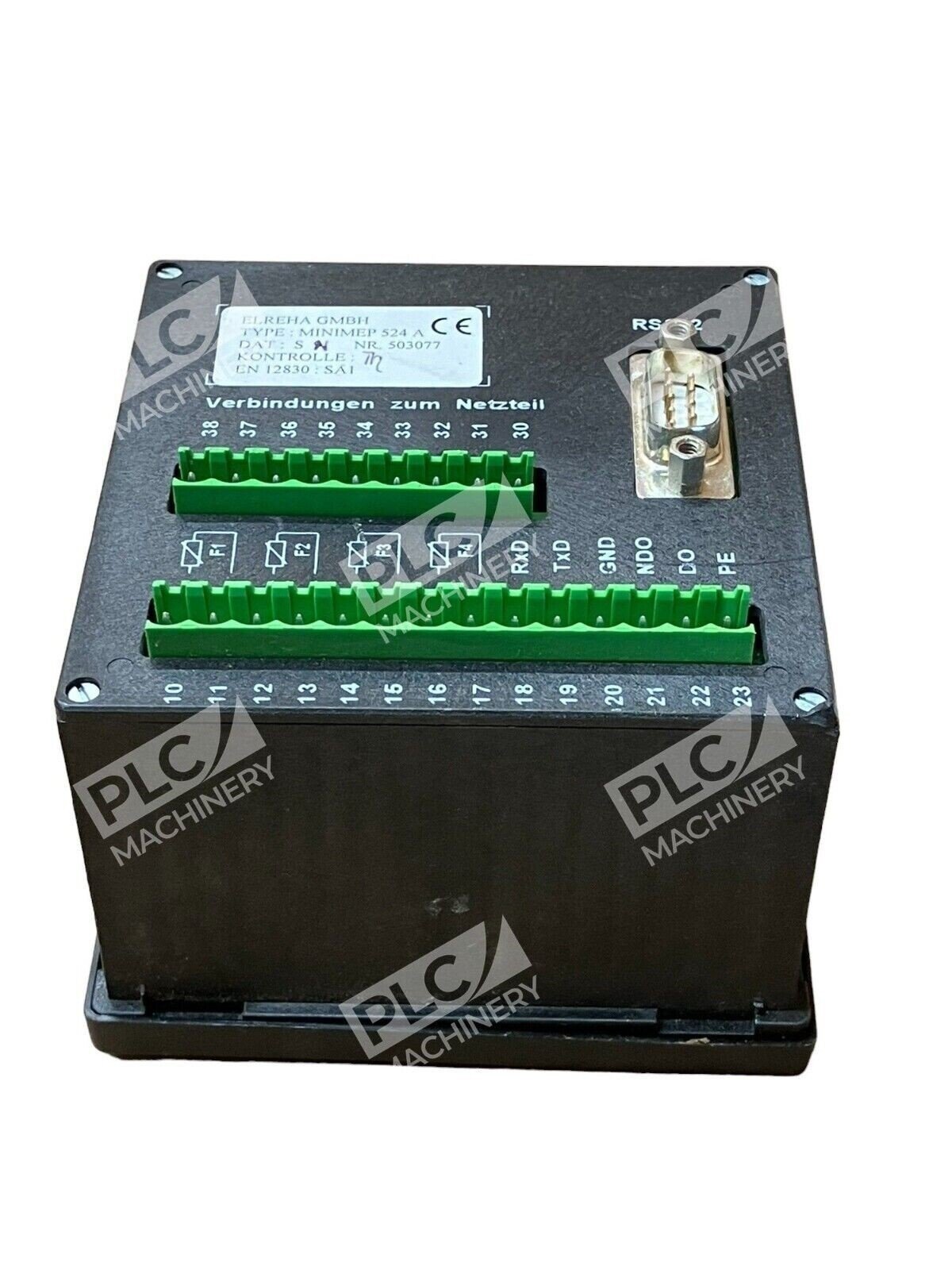

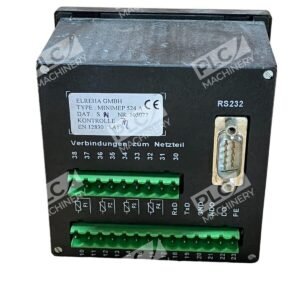

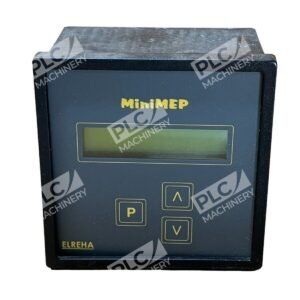

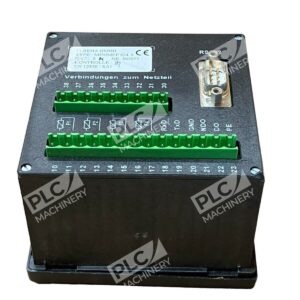

<p>The <strong>Elreha MiniMEP 524A</strong> is a paperless temperature and humidity recording system (datalogger) meeting EU Standard EN 12830. Designed for long-term data capture in food storage, pharmaceutical, and industrial environments, this unit provides continuous monitoring without the need for external PCs or mechanical printers. The system delivers proof of temperature and humidity control for regulatory compliance including 21 CFR and HACCP Quality Assurance protocols.</p>
<h2>Key Features</h2>
<ul>
<li>EU EN 12830 certified for food storage and pharmaceutical monitoring</li>
<li>Unlimited data storage even without mains voltage</li>
<li>Real time clock with approximately 10-year battery backup</li>
<li>4-language LCD dot-matrix display (German, English, French, Dutch) with backlight</li>
<li>Simple 3-key operation for temperature and humidity configuration</li>
<li>Individual alarm limits (high/low) for each sensor input with programmable time delay</li>
<li>Error message memory recording last 6 occurred events</li>
<li>Wide operating temperature range suitable for freezing and hot industrial processes</li>
<li>Networkable via interface for data retrieval and backup</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Data Recording:</strong> Temperature and relative humidity with sensor input monitoring</li>
<li><strong>Display:</strong> LCD dot-matrix, backlighted, 4 selectable languages</li>
<li><strong>Data Storage:</strong> Unlimited capacity, retention without mains power</li>
<li><strong>Battery Backup:</strong> Approximately 10 years (real time clock and memory)</li>
<li><strong>Alarm Function:</strong> Over/under temperature and humidity with configurable delay per input</li>
<li><strong>Error Logging:</strong> Memory stores last 6 error events with time stamps</li>
<li><strong>Interface:</strong> Front-mounted interface for data download and system configuration</li>
<li><strong>Compatible Sensors:</strong> TF 501 series temperature probes (various lengths), FF 2520 humidity transmitter</li>
<li><strong>Standard:</strong> EN 12830 (EU compliance)</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Food storage and cold chain monitoring (compliance with 21 CFR Part 11)</li>
<li>Pharmaceutical and laboratory temperature control verification</li>
<li>HACCP Quality Assurance Systems and audit documentation</li>
<li>Industrial process monitoring in wide-temperature environments (freezing to high-heat applications)</li>
<li>Temperature and humidity logging for equipment and material storage</li>
<li>Regulatory compliance recording for environmental chambers and storage facilities</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>TF 501 series temperature sensors (various cable lengths and diameters)</li>
<li>FF 2520 humidity transmitter with 4/20 mA output</li>
<li>CV-Scheduler software for data printout and backup via PC/Laptop</li>
<li>External lead accumulator for continuous recording</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The MiniMEP 524A is part of the MiniMEP series. Compatible model variants in the same series include MiniMEP 424A, 2424A, 434A, 2434A, 534A, and 2534A. Verify exact compatibility with your integrator before ordering.</p>
<h3>Works With</h3>
<ul>
<li>CV-Scheduler data management and reporting software</li>
<li>PC/Laptop systems for data retrieval and analysis</li>
<li>Standard temperature and humidity sensor interfaces</li>
<li>External power supplies and accumulator backup systems</li>
</ul>
