Overview

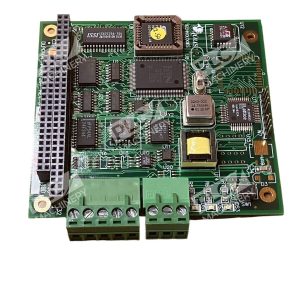

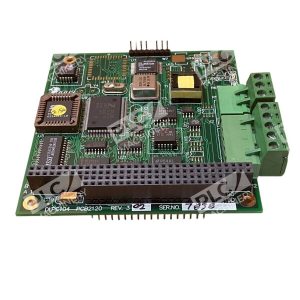

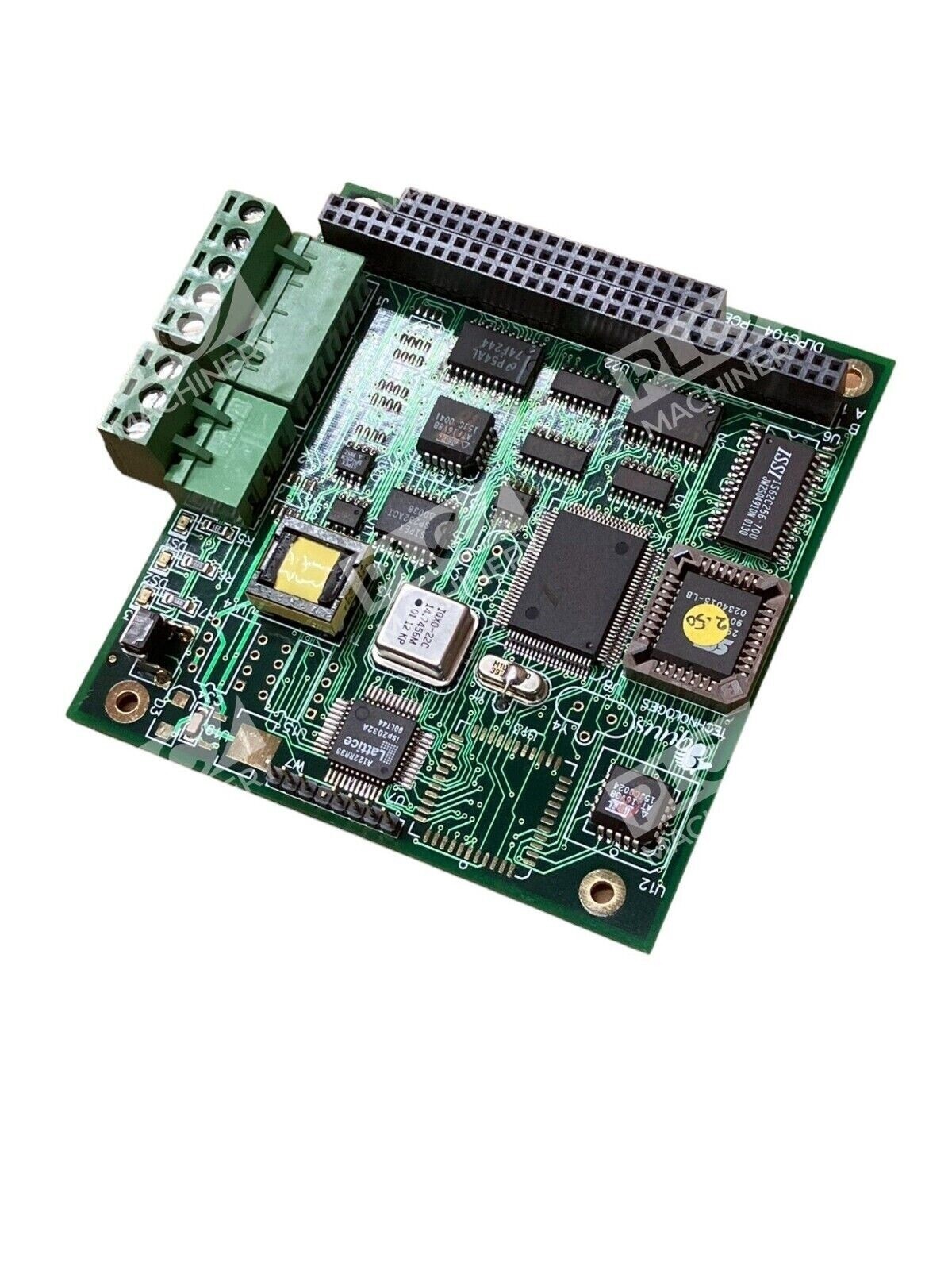

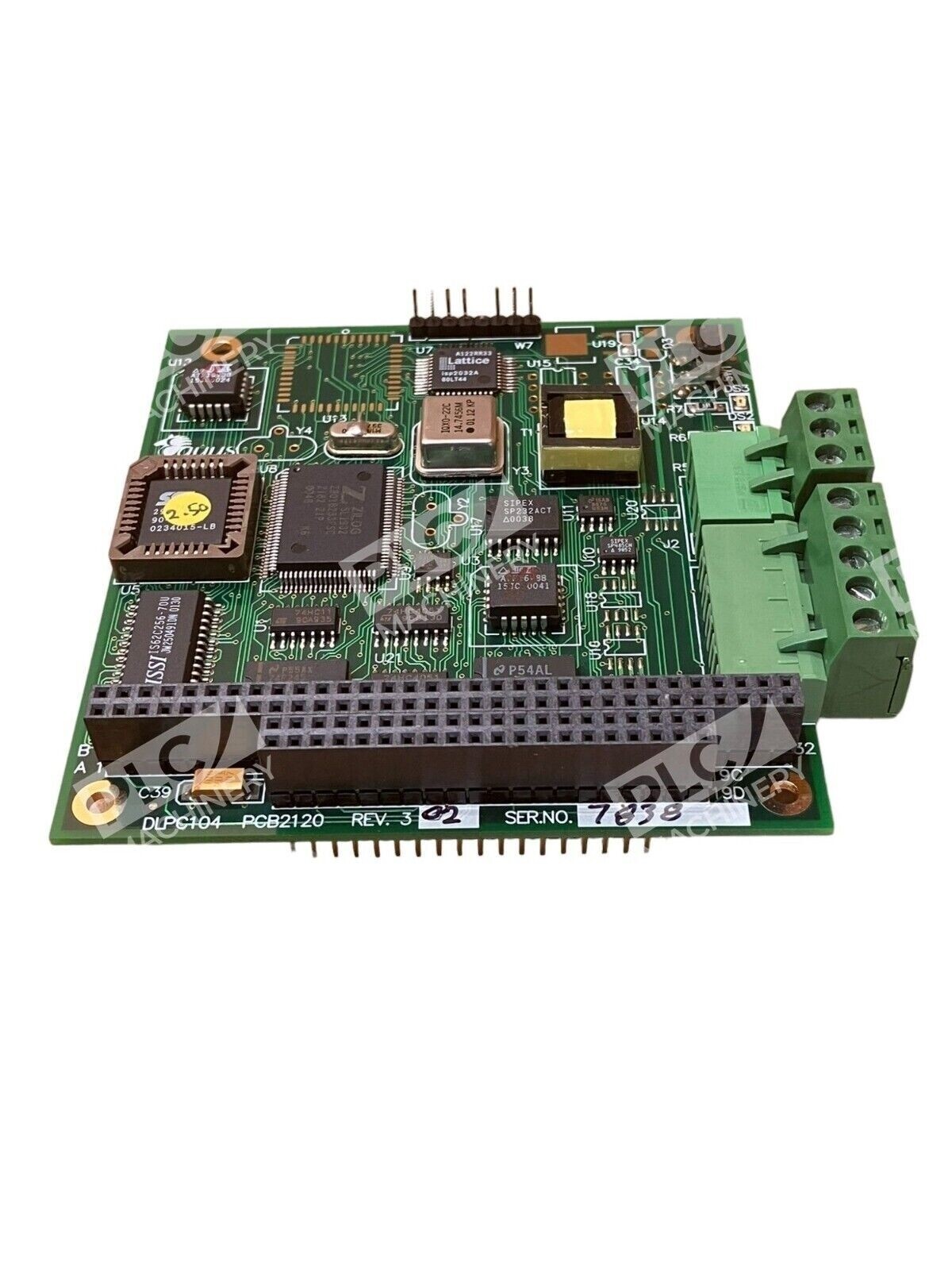

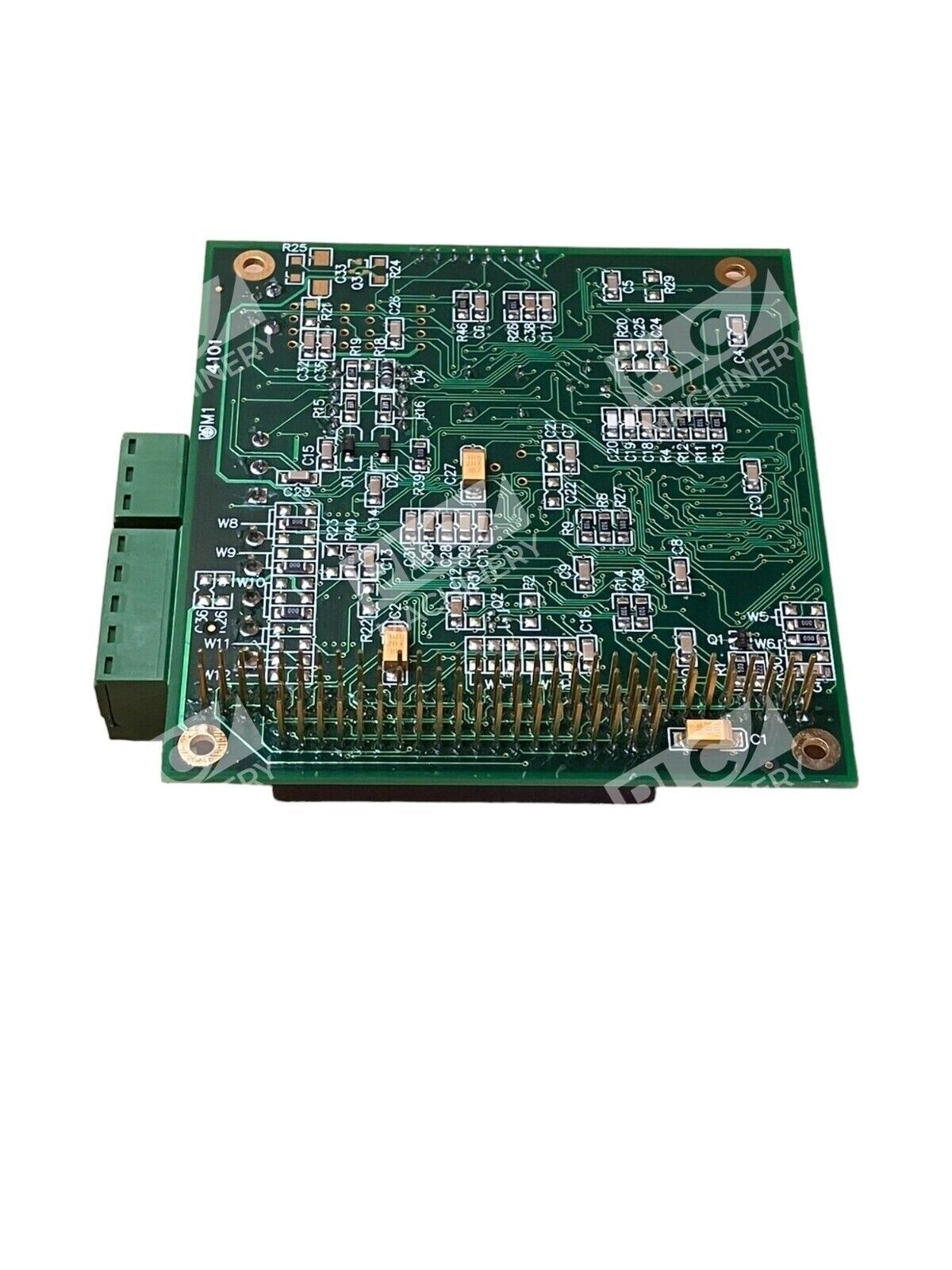

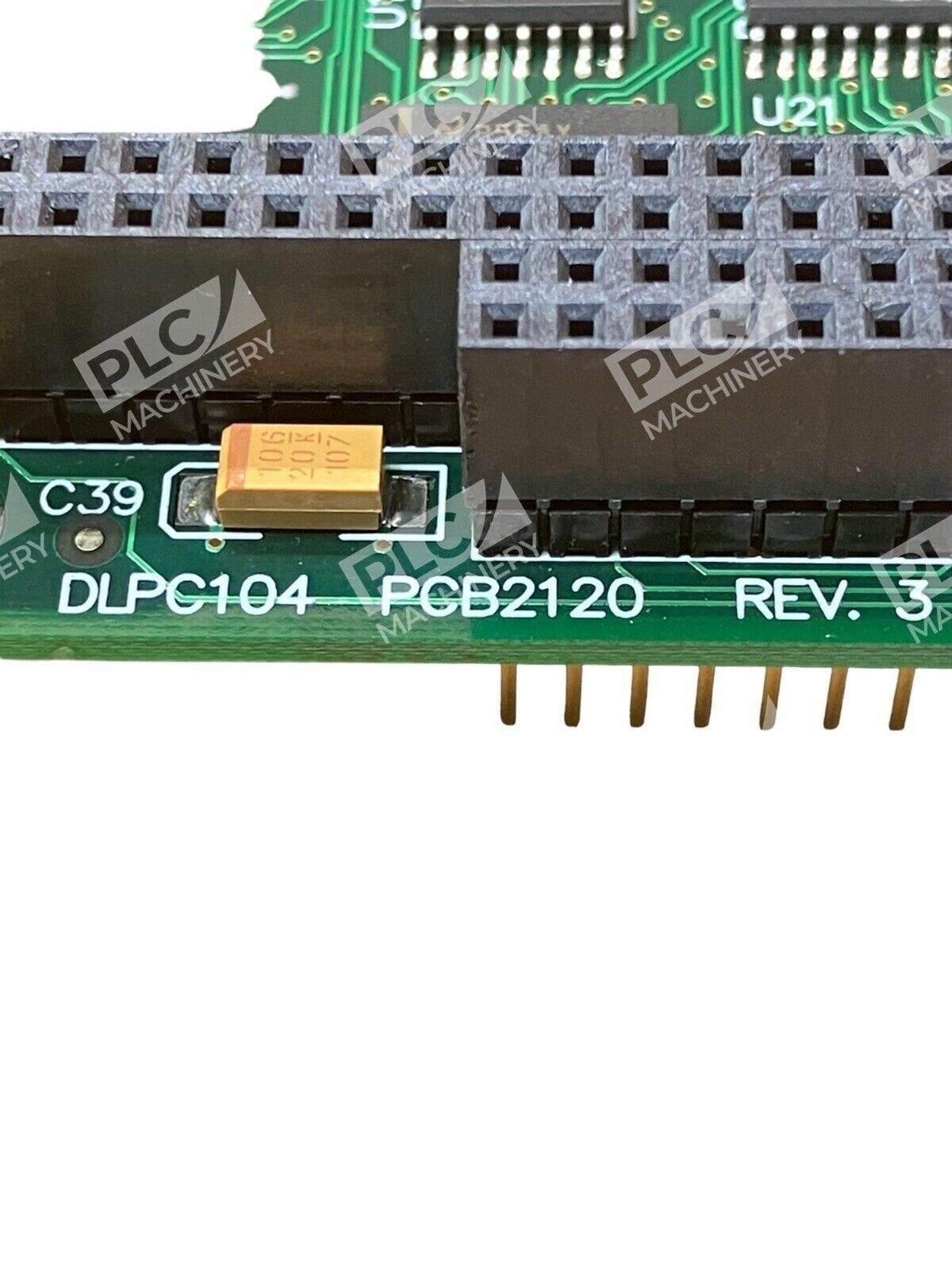

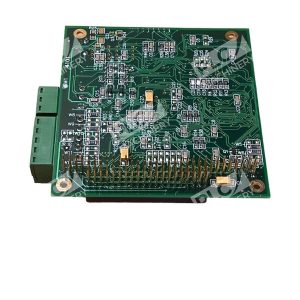

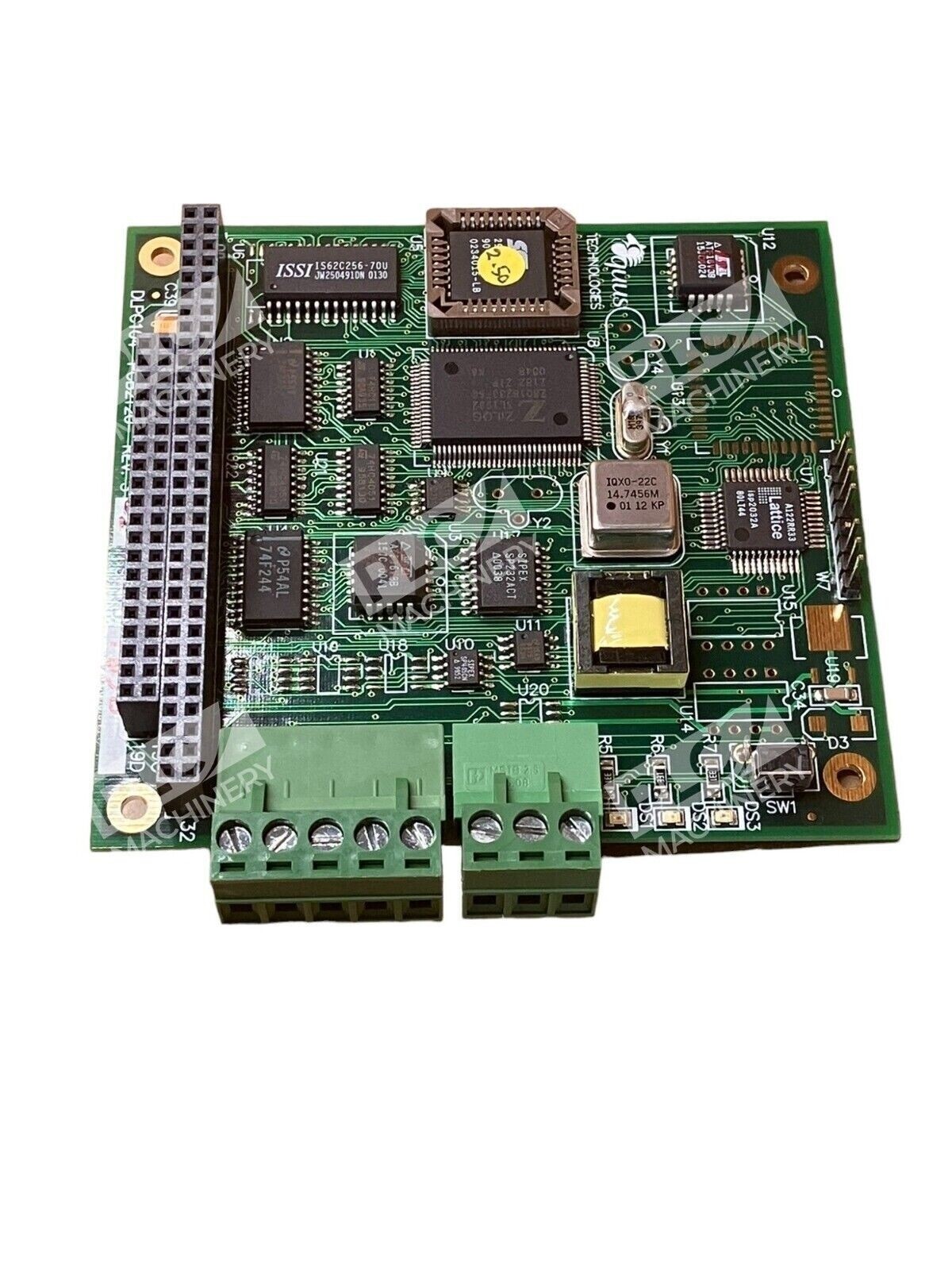

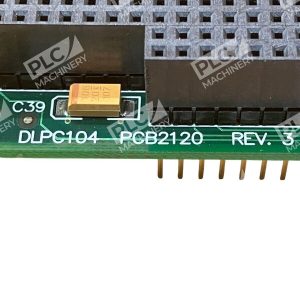

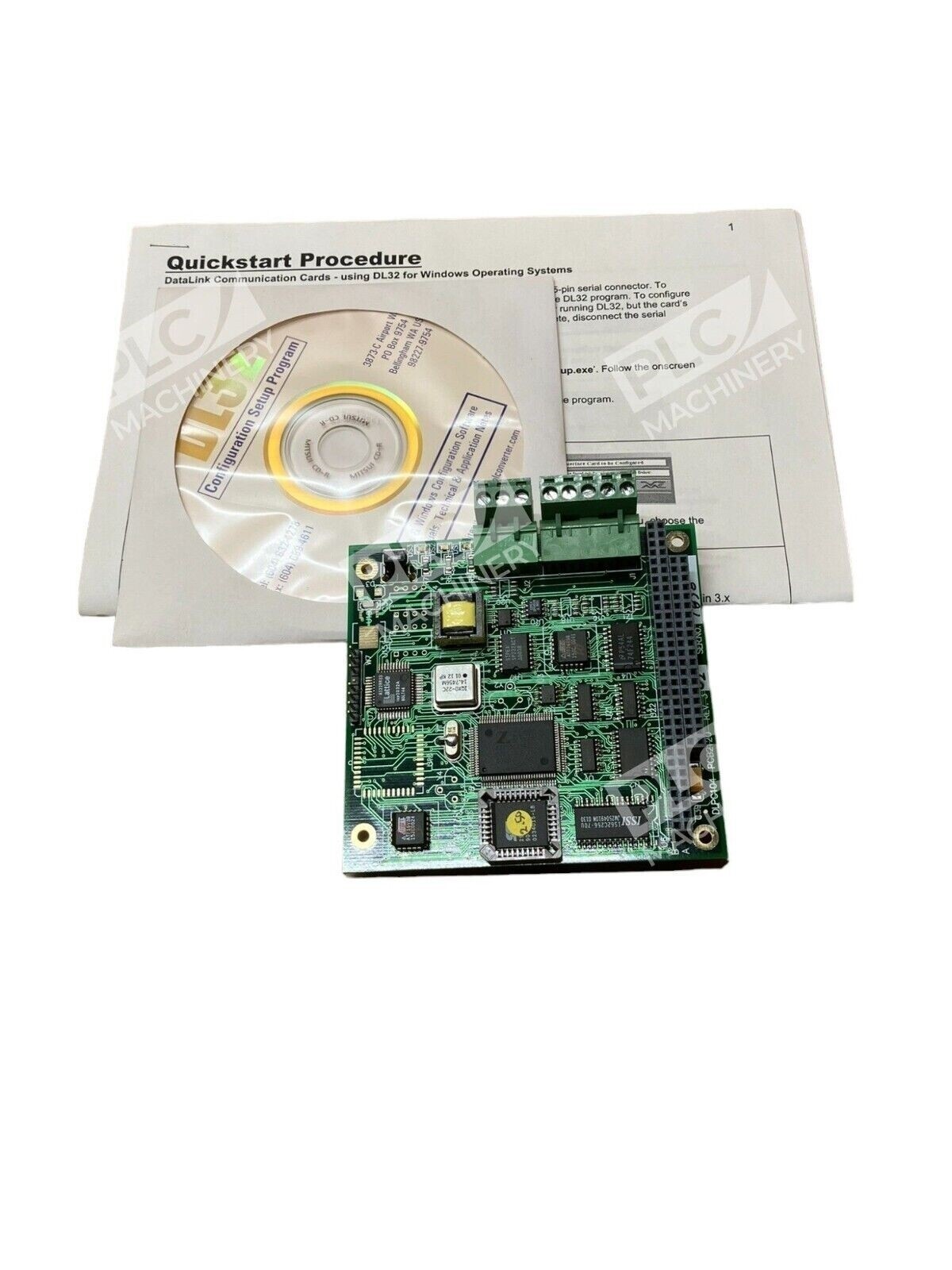

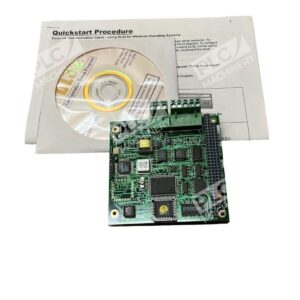

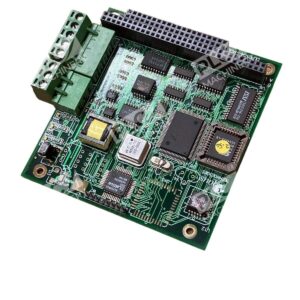

The DL-PC/104 is a plug-and-play PC/104 interface card designed to bridge PCs and MMI (Man-Machine Interface) systems to Allen-Bradley DH+ and Remote I/O (RI/O) networks. This adapter leverages the PC/104 standard—a rugged, stackable embedded computing form factor—to provide reliable serial communication in industrial automation environments.
Key Features
- PC/104 plug-and-play connector for easy installation in embedded systems
- Uses existing Allen-Bradley DF1 COM port drivers—no new software investment required
- Support for DataHighway Plus (DH+) and Remote I/O (RI/O) protocols
- Lower total cost of ownership compared to dedicated AB interface cards
- Compact form factor suitable for space-constrained control cabinets and distributed I/O applications
- Proven compatibility with legacy and modern PC-based automation platforms
Technical Specifications
- Form Factor: PC/104 module
- Bus Interface: PC/104 (ISA-based 104-pin connector)
- Communication Protocols: DataHighway Plus (DH+), Remote I/O (RI/O), DH-485
- Driver Support: Allen-Bradley DF1 COM port drivers
- Baud Rates: 4800, 9600, 19.2 kbaud (configurable)
- Network Addressing: Configurable DH-485 address (0–31 decimal)
- Compatibility: Windows-based configuration software and DOS drivers available
- Part Number: DL-PC/104 (CIF104-RIO variant)
- Manufacturer: Equustek Solutions Inc.
Typical Applications
- Integrating legacy PC-based HMI and SCADA systems with Allen-Bradley DH+ networks
- PC-based motion control and distributed I/O interfacing via DataHighway Plus
- Retrofit upgrades for industrial PC systems requiring AB network access without PCI card replacement
- OEM equipment and panel-mounted PCs needing compact, rugged DH+ connectivity
- Legacy system modernization where DF1 driver investment already exists
Compatibility & Replacements
Compatible With
- Allen-Bradley DataHighway Plus (DH+) networks
- Allen-Bradley Remote I/O (RI/O) systems
- DH-485 serial networks
- PCs and embedded systems with PC/104 expansion slots
- MMI (Man-Machine Interface) panels with PC/104 bus support
- Legacy Windows-based HMI and SCADA platforms using DF1 drivers
Replaces / Drop-In Replacement For
- Allen-Bradley 1784-PKTX (lower-cost alternative)
- SST 5136-SD-104
- Other proprietary PC/104 DH+ interface solutions requiring dedicated drivers
Works With
- Allen-Bradley DF1 COM port drivers (no new drivers required)
- Windows-based configuration software (DL32)
- DOS-based configuration utilities
- PC/104-compliant embedded Linux and real-time operating systems
- Legacy SCADA and HMI packages supporting DF1 serial communication
