Overview

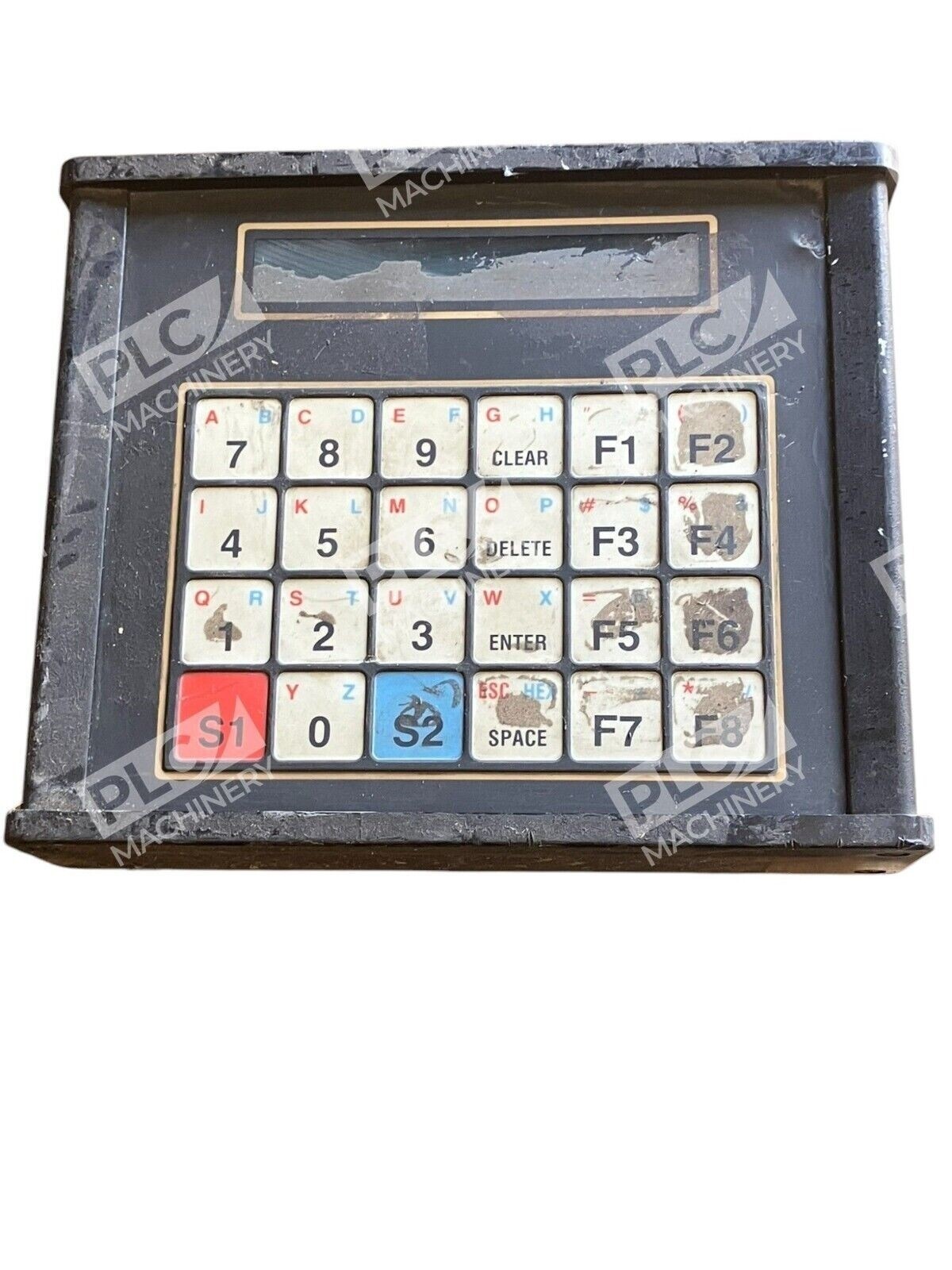

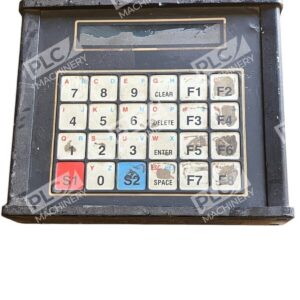

The Computerwise TT5-10 is an industrial-grade alphanumeric operator interface and data terminal from the TransTerm 5 product family. Introduced in 1985, the TT5-10 remains a cost-effective, reliable solution for shop-floor data collection, time and attendance tracking, WIP (work-in-progress) monitoring, inventory control, and equipment interface applications where simple, keyboard-based operator interaction is required.
Key Features
- Two-line, 48-character alphanumeric LC display for clear operator prompts and data feedback
- 24-key membrane keyboard with eight programmable function keys for custom application mapping
- Hermetically sealed, full-sized membrane keyboard resistant to grease, moisture, dust, and most chemicals
- RS-232 serial communications interface for direct connection to host computers and PLCs
- Aluminum construction built to withstand harsh industrial environments
- Optional counter inputs and relay outputs for basic process control integration
- Compact footprint suitable for operator stations, workbenches, and panel mounting
Technical Specifications
- Display Type: Liquid Crystal Display (LCD), two lines × 24 characters (48 total characters)
- Keyboard: 24-key membrane keyboard with eight programmable function keys
- Communications: RS-232-C serial interface; optional RS-422 TNET network interface available
- Power Input: 110–120 VAC via external adapter (220–240 VAC adapter optional)
- Power Consumption: 175 mA typical (additional options may increase consumption)
- Alternative Power: 12 VDC via serial connector (pin 20)
- Enclosure Dimensions: Height 5.63″ (14.3 cm) × Width 6.9″ (17.5 cm) × Depth 1.75″ (4.4 cm)
- Weight: 1.92 lbs (0.87 kg)
- Relay Outputs: Available on TT5B/C models; maximum 10 VA (20 VDC @ 500 mA)
- Counter Inputs: TT5 variants support counter inputs for external dry switch monitoring
- Construction: Aluminum frame with sealed membrane keyboard
- Operating Environment: Industrial; suitable for shop floors, warehouses, manufacturing facilities
Typical Applications
- Employee time and attendance tracking
- Work-in-progress (WIP) and job cost control
- Inventory management and cycle counting
- Barcode scanning and data collection (with optional scanner)
- Equipment status monitoring and operator messaging
- Access control and personnel tracking
- Basic process control and equipment interface via relay outputs
Compatibility & Replacements
Compatible With
- Host computer systems with RS-232 serial ports
- PLCs and industrial controllers with RS-232 communication capability
- Computerwise TNET networked terminal systems (with optional TNET interface module)
- Standard terminal emulation software and serial communication applications
- External barcode scanners, magnetic card readers, and RFID readers (via auxiliary serial port)
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. TransTerm 5 variants (TT5, TT5A, TT5B, TT5C) share core architecture; the TT5-10 designation refers to a specific configuration of the TT5 base platform.
Works With
- RS-232 serial communication protocols and terminal emulation software
- Optional RS-422 TNET interface for multi-drop shop-floor networking
- Computerwise WINNET data collection software suite
- Custom application software via serial protocol integration
- Industry-standard barcode scanning and RFID reader systems
