Overview

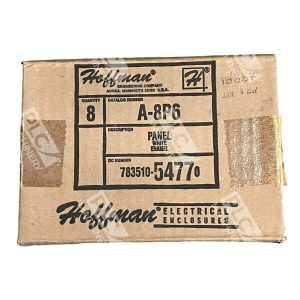

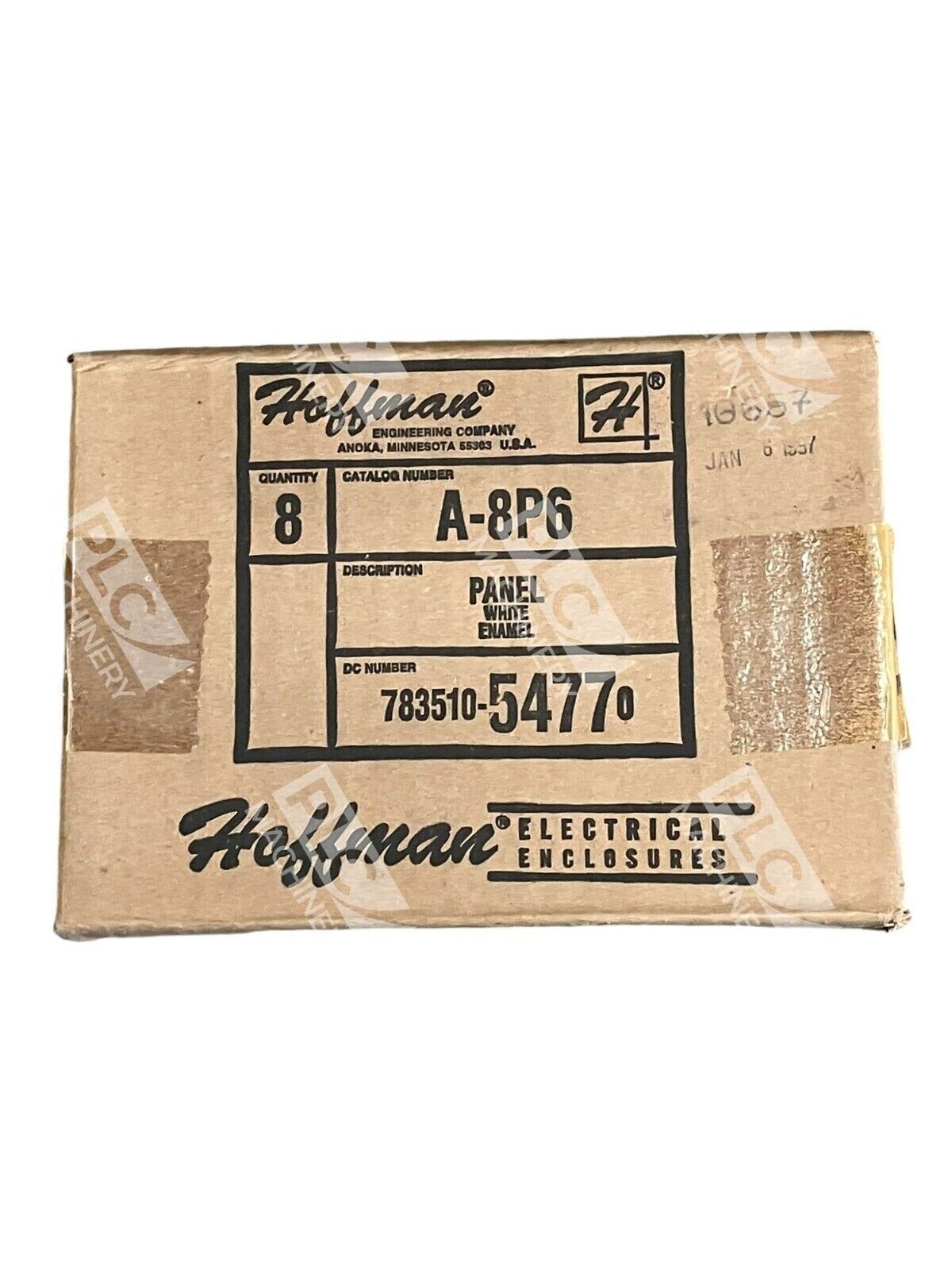

The Hoffman A-8P6 is a replacement panel for junction and electrical enclosures, engineered for reliable mounting in standard 8×6 JIC-sized boxes. This white painted steel sub-panel measures 6.75″ x 4.88″ internally and is constructed from 14-gauge steel with white polyester powder coat finish. Mounting hardware is included, making it ready for immediate installation in compatible enclosure frames. Commonly used in control cabinets, electrical distribution systems, and custom panel layouts throughout manufacturing and utility applications.
Key Features
- 14-gauge mild steel construction with white polyester powder coat for corrosion resistance
- Fits standard 8×6 JIC junction box enclosures
- Mounting hardware included for tool-free installation
- Interior dimensions: 6.75″ L x 4.88″ W (171.45mm x 123.95mm)
- Solid panel design for custom drilling, cutouts, or mounting components
Technical Specifications
Listed below are the verified specifications for the Hoffman A-8P6:
| Part Number | A-8P6 |
| Material | 14-gauge mild steel |
| Finish | White polyester powder coat |
| Interior Dimensions (L x W) | 6.75″ x 4.88″ (171.45mm x 123.95mm) |
| Fits Enclosure Size | 8″ x 6″ JIC junction box |
| Hardware | Mounting hardware included |
| Panel Type | Solid (for custom drilling and routing) |
| Manufacturer | nVent Hoffman |
| Standards Compliance | UL, IEC, NEMA, CSA |
Typical Applications
- Control panel and push-button enclosure backing plates
- Electrical equipment mounting surfaces within standard junction boxes
- HVAC and building automation system enclosures
- Industrial motor controls and power distribution cabinets
- Food and beverage, pharmaceutical, and process equipment installations
- Custom panel layouts for PLC, VFD, and relay control systems
Compatibility & Replacements
Compatible With
- All 8″ x 6″ JIC (Japanese Industrial Standard) junction box enclosure frames
- Hoffman/nVent standard sub-panel mounting systems
- Custom drilling and routing for pushbuttons, indicator lights, selector switches, and terminals
- Industrial automation control panels and electrical distribution systems
- Enclosures with standard DIN rail or terminal block mounting
Replaces / Drop-In Replacement For
- Original equipment Hoffman A-8P6 panels on 8×6 JIC enclosures
- Other standard 14-gauge steel sub-panels for 8×6 junction boxes (verify hole pattern and hardware compatibility before ordering)
Works With
- Pushbutton and selector switch assemblies
- Indicator light modules and LED indicators
- Terminal blocks and DIN rail mounting systems
- Control relays, contactors, and solid-state devices
- PLC and HMI mounting brackets
- Cable entry systems (conduit, cable glands, DIN connectors)
