Overview

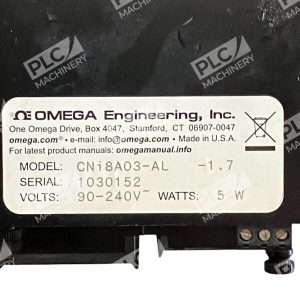

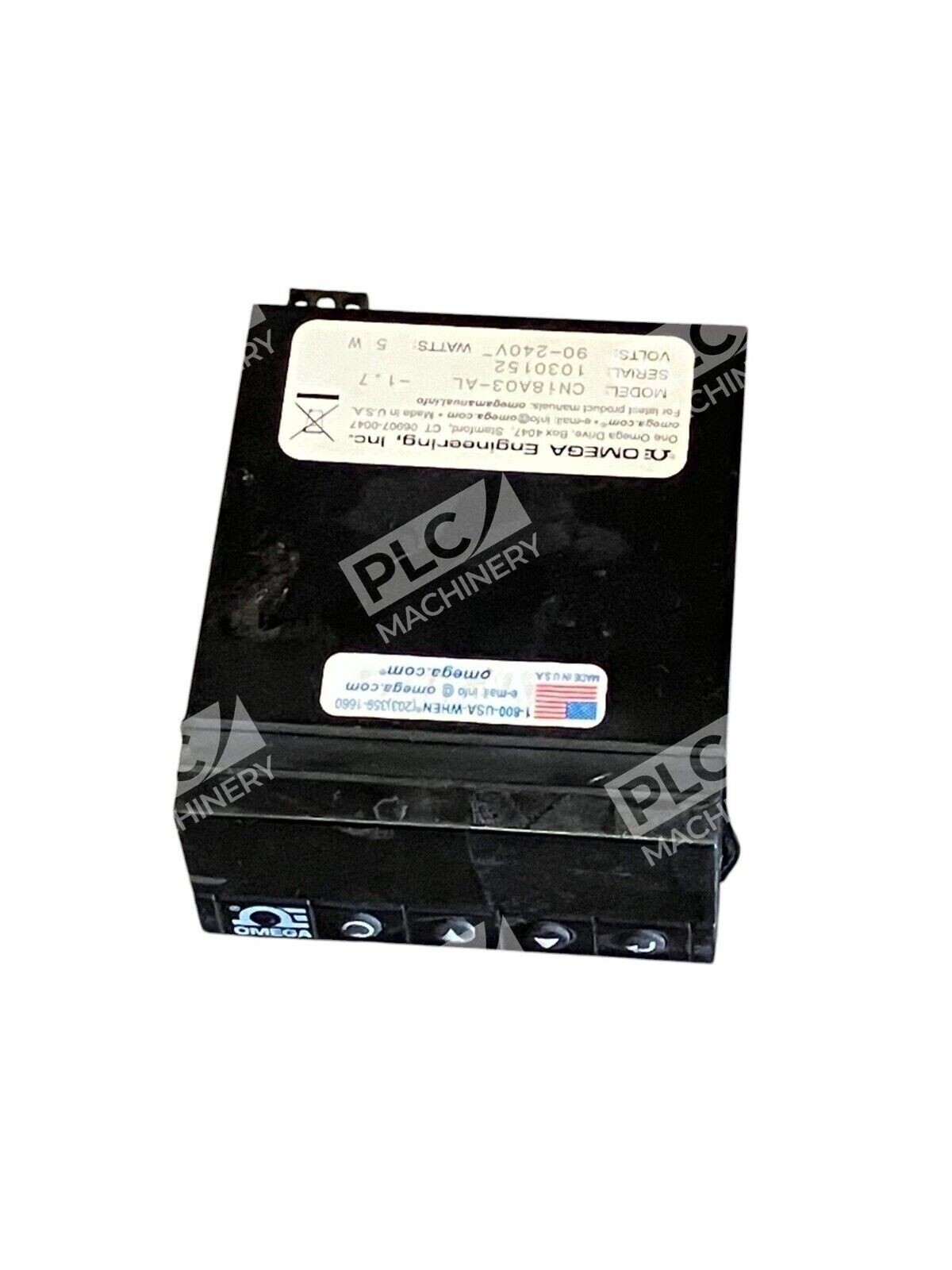

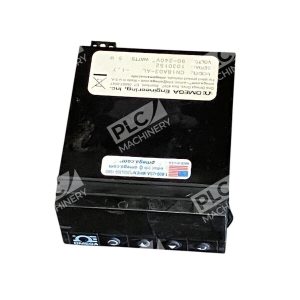

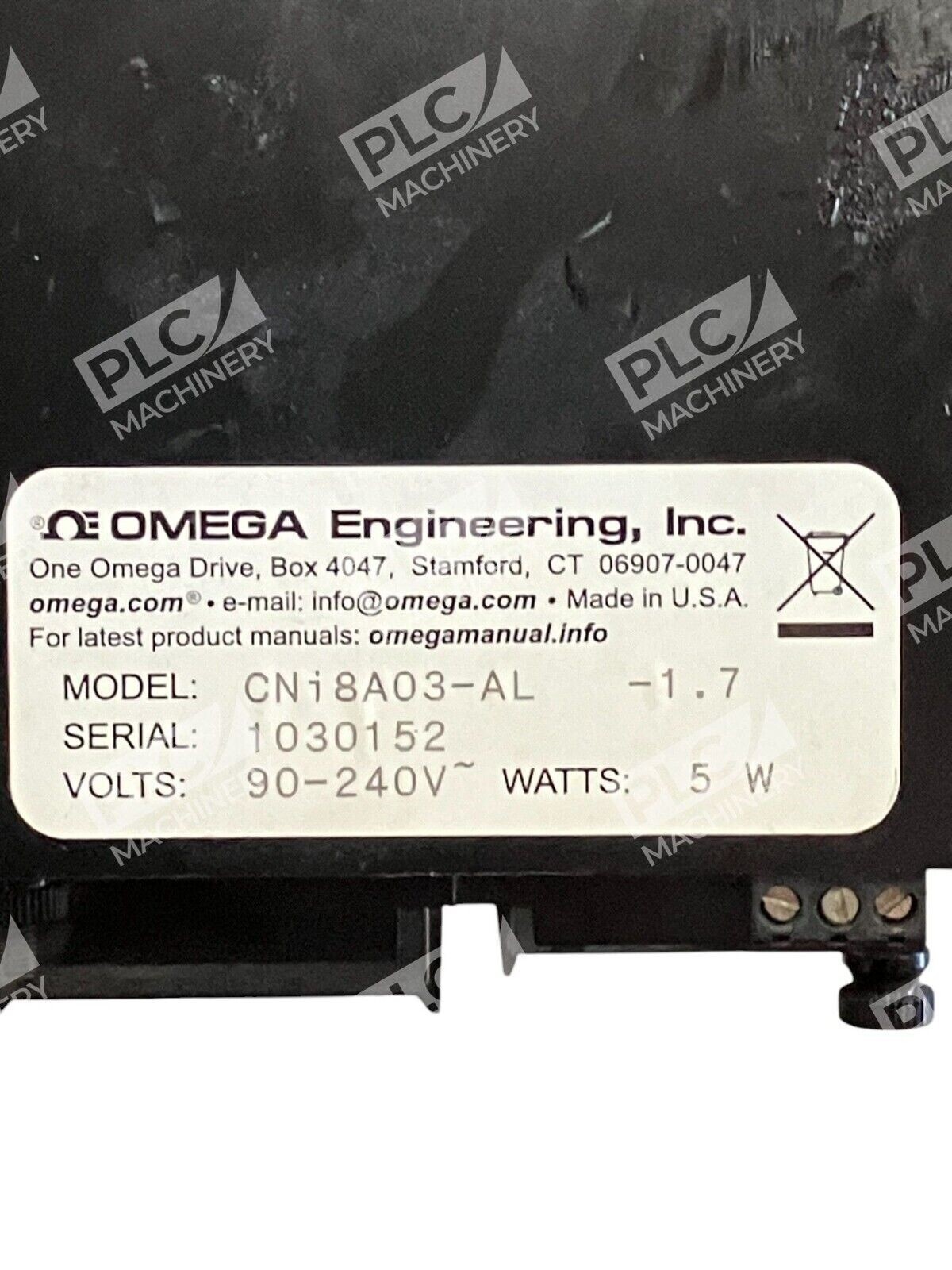

The Omega CN18A03-AL-1.7 panel meter is a digital instrumentation display designed for process and temperature measurement in industrial control applications. Built to Omega’s engineering standards, this compact meter operates on a universal power supply accommodating 90 to 240 Vac input with nominal power consumption of 5 watts. The unit provides reliable, at-a-glance readings on a front-mounted digital display for integration into control panels, enclosures, and test equipment.
Key Features
- Universal AC Power Input: 90 to 240 Vac accommodation with 5W power consumption
- Digital Display Output: Clear front-panel numeric readout for process variables
- Compact Panel Mount Design: 1/8 DIN form factor fits standard panel cutouts
- Industrial Durability: Omega manufacturing quality for demanding automation environments
- Universal Input Support: Compatible with thermocouple, RTD, and process signal inputs
Technical Specifications
Verify detailed specifications with your system integrator or contact Omega Engineering directly, as the complete technical datasheet for this specific model variant was not accessible.
Typical Applications
- Temperature measurement and process monitoring in industrial furnaces and ovens
- Real-time process variable display in automation control cabinets
- Laboratory and test equipment readout
- Semiconductor processing and industrial instrumentation
- Factory automation and condition monitoring systems
Compatibility & Replacements
Compatible With
- Omega thermocouple sensors (J, K, T, E, R, S, B, C, N types)
- Omega RTD sensors (Pt100, Pt500, Pt1000)
- Standard analog voltage and current inputs (4-20 mA, 0-10 VDC)
- Industrial control panel 1/8 DIN mounting rails
- CE and UL-rated industrial cabinets
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The CN18A03-AL-1.7 is a specific configuration variant; exact replacement models should be confirmed with Omega Engineering or an authorized distributor.
Works With
- Omega process control systems and temperature controllers
- Standard industrial 90-240V single-phase power supplies
- Thermocouple and RTD measurement networks
- DIN-rail mounted automation equipment
