Overview

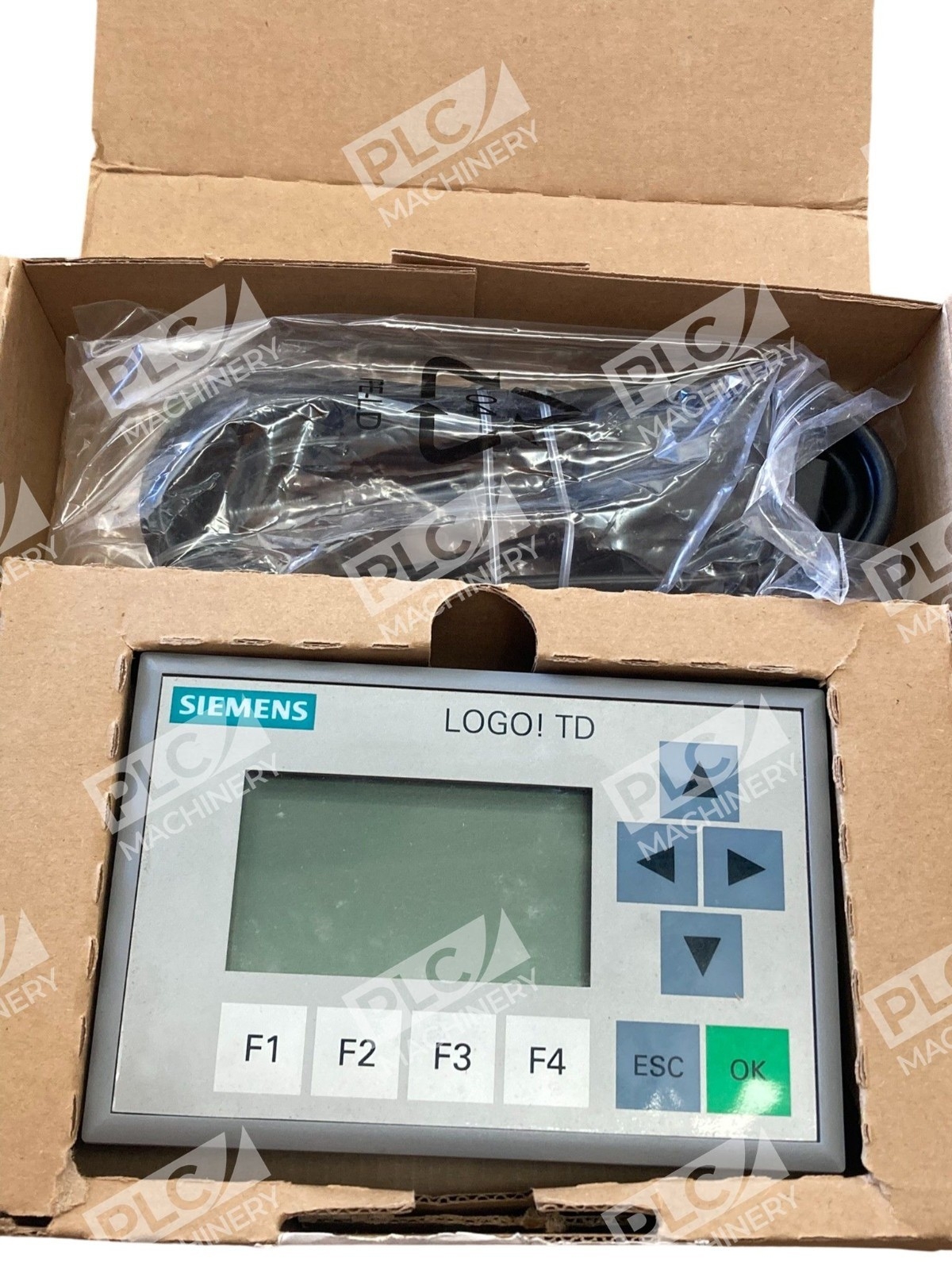

The Siemens 6ED1055-4MH00-0BA0 is a compact 4-line text display module designed as an operator interface for Siemens LOGO! logic controllers. This HMI unit connects directly to LOGO! 6 or LOGO! 7 basic and pure modules via proprietary LOGO! TD cable, enabling real-time monitoring and control of automation systems. With IP65 protection against dust and water ingress, this display is suitable for production floor environments where reliability and durability are essential.
Key Features
- 4-line LCD display with integrated text messaging capabilities
- IP65 protection rating for washdown and harsh industrial environments
- Supports up to 50 configurable messages for status monitoring
- 10 menu languages and 6 integrated character sets (English, German, French, Italian, Spanish, Dutch, Russian, Turkish, Chinese, Japanese)
- Trend view for analog inputs and outputs with status control for all I/Q flags
- Includes 2.5-meter connection cable and DIN rail mounting accessories
- Configured via LOGO! Soft Comfort V6.0 software on Windows, Linux, or Mac OS
Technical Specifications
- Display Type: 4-line LCD text display
- Connection: LOGO! TD proprietary cable (2.5 m included)
- Compatibility: LOGO! 6 (0BA6, 0BA7), LOGO! 7 basic and pure modules
- Protection Class: IP65 (dust-proof and water-resistant)
- Message Capacity: Up to 50 user-configurable messages
- Languages Supported: 10 menu languages with 6 character sets
- Programming Software: LOGO! Soft Comfort V6.0 or later
- Mounting: DIN rail compatible with included hardware
- Status Features: Real-time I/Q/flag status, analog trend visualization, message logging
Typical Applications
- Small to mid-sized industrial automation systems
- Machine control and monitoring interfaces
- Process automation with LOGO! logic controllers
- Facility and building automation with real-time status display
- Pump, motor, and conveyor system control panels
- Food, beverage, and pharmaceutical manufacturing with washdown environments
Compatibility & Replacements
Compatible With
- LOGO! 6 logic modules (0BA6, 0BA7 versions)
- LOGO! 7 basic and pure logic modules
- LOGO! Soft Comfort V6.0 software (Windows, Linux, Mac OS)
- Standard DIN 43880 and EN 60715 mounting rails
- LOGO! TD proprietary connector and cable interface
Replaces / Drop-In Replacement For
- This is a legacy spare part; direct replacements include the newer 6ED1055-4MH08-0BA0 (LOGO! TDE 6-line version with Ethernet) and 6ED1055-4MH08-0BA1 (for LOGO! 8 series with enhanced features)
- Note: Verify compatibility with your existing LOGO! controller firmware before upgrading
Works With
- LOGO! Soft Comfort V6.0 programming and configuration software
- LOGO! TD proprietary protocol and connector system
- Windows 7, Windows 8, Windows 10, Linux, and Mac OS operating systems
- DIN rail-mounted electrical panels and enclosures
