Overview

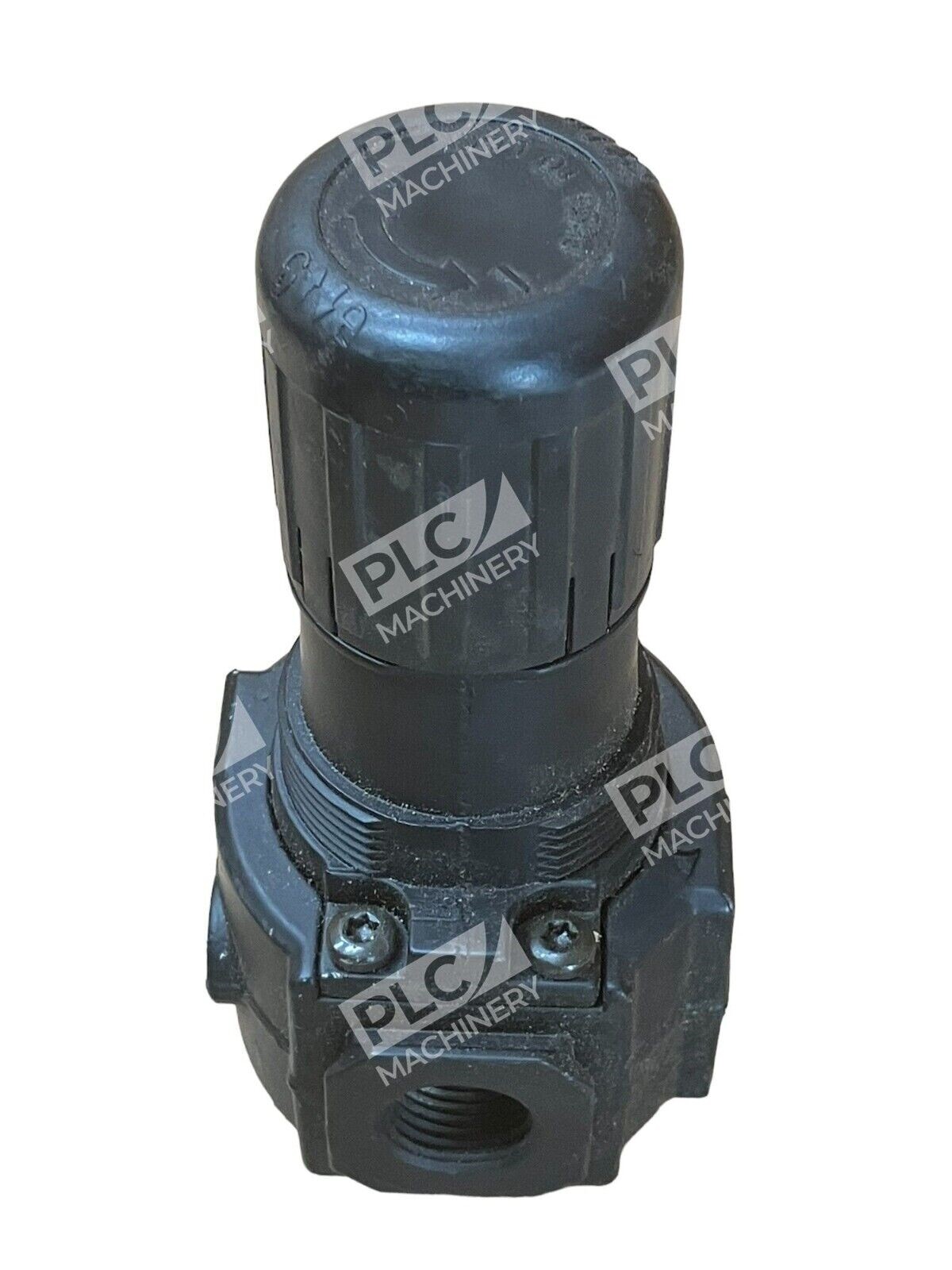

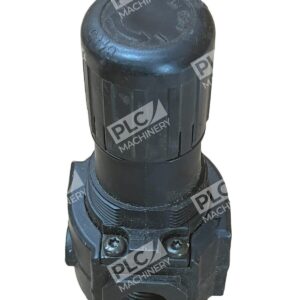

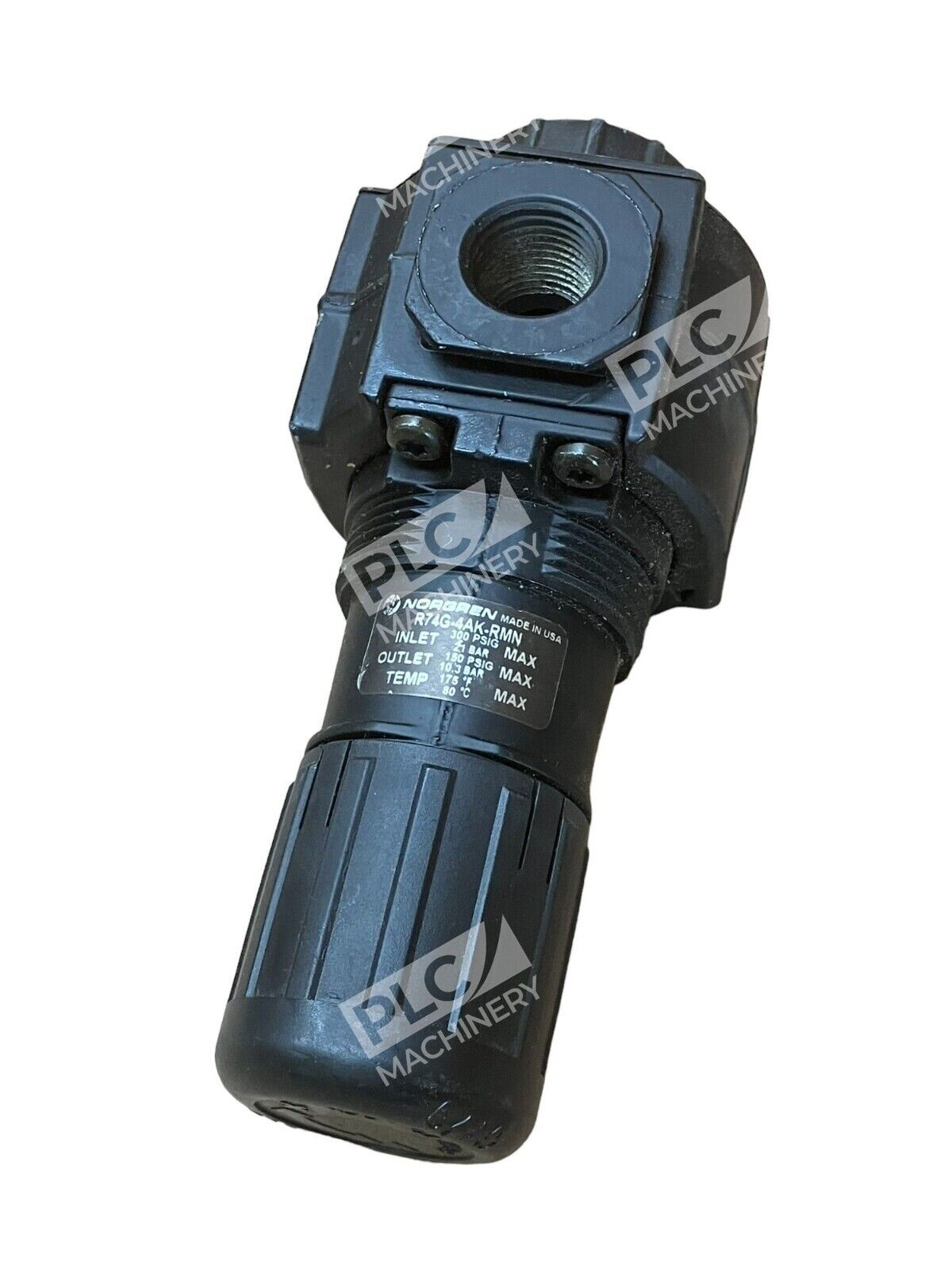

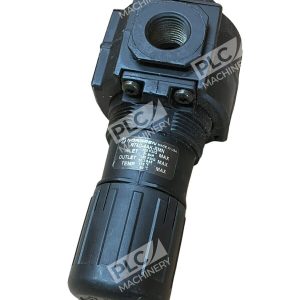

The Norgren R74G-4AK-RMN is a general-purpose relieving pneumatic regulator from the Excelon modular system. This regulator is part of the Excelon Modular System, allowing for inline or modular installation of air preparation components. It features a relieving diaphragm with push-to-lock adjustment knob and is designed for pressure regulation in compressed air systems.
Key Features
- Balanced valve design with standard relieving models for optimal pressure stability
- Push-to-lock adjusting knob with tamper evident accessory
- Aluminum die-cast housing with acetal bottom plug and aluminum die-cast bonnet
- Flexible installation—inline or modular configuration
- Pilot-operated relieving design reduces downstream pressure when system is dead-ended
Technical Specifications

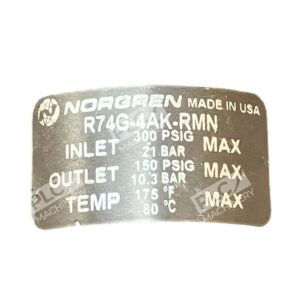

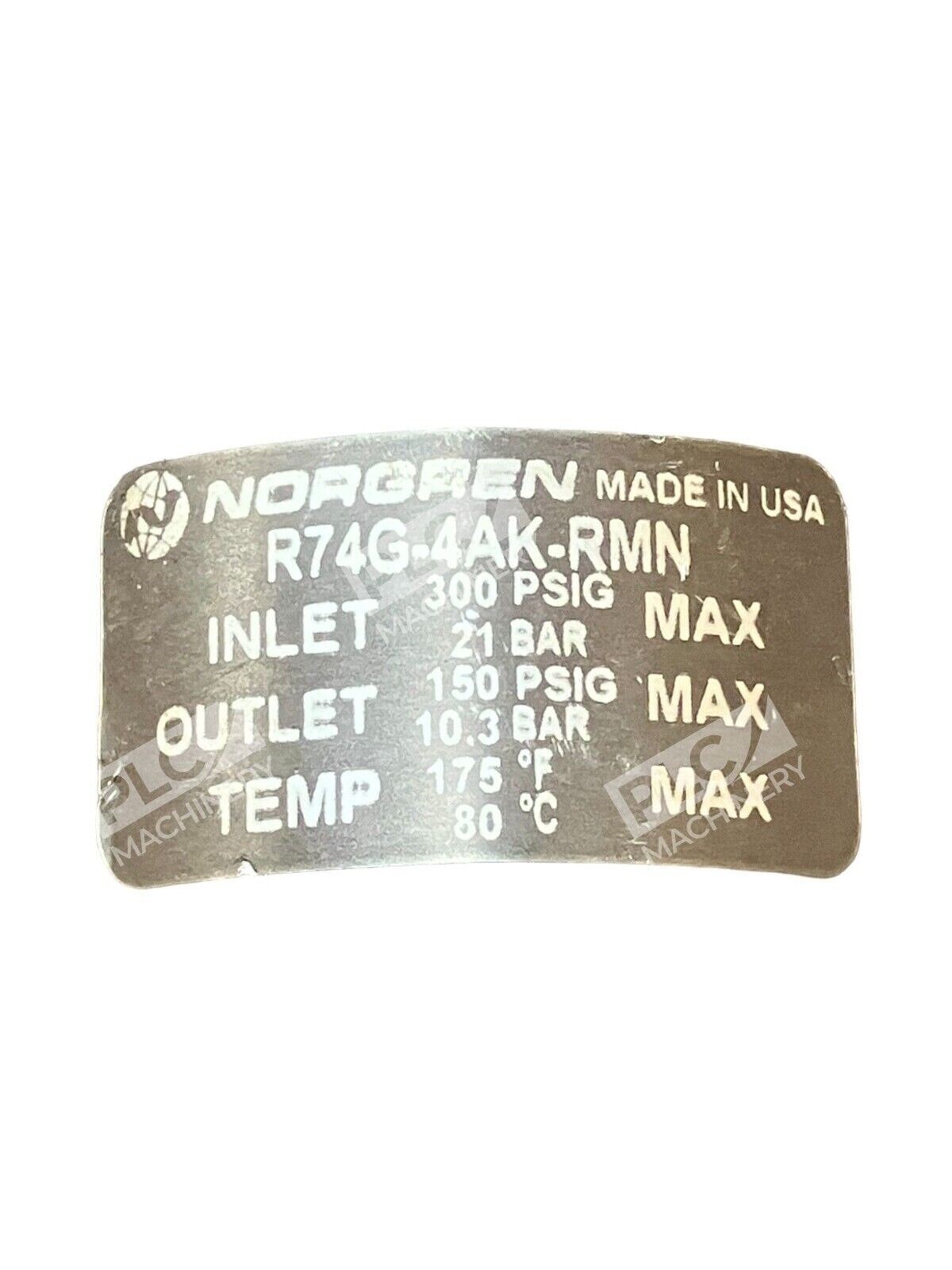

The R74G-4AK-RMN provides a pressure regulation range of 0.3 to 10 bar (4.35 to 145 psi) with a rated flow of 105 dm³/s (222.5 SCFM or 6300 L/min). Maximum inlet pressure is 20 bar (300 psi). The regulator features 1/2″ PTF female threaded inlet and outlet ports with a 1/4″ NPT gauge port.
Typical Applications
- Pneumatic circuit pressure control and stabilization
- Compressed air treatment systems
- Modular air preparation stations
- Industrial automation and control circuits
- Machine tool and factory automation systems
Compatibility & Replacements
Compatible With
- Excelon modular air preparation systems
- Standard ISO pneumatic circuits
- 1/2″ PTF threaded connections
- 1/4″ NPT gauge ports for analog pressure monitoring
Replaces / Drop-In Replacement For
- Equivalent to R74G4AKRMN (non-hyphenated format)
- Similar function to R74G-6GK series (different port sizes)
- Verify compatibility with your specific system before ordering to ensure proper port sizing and flow requirements
Works With
- Norgren Excelon accessory kits (R74G-KITR)
- Norgren gauge assemblies and manifolds
- Standard pneumatic cylinders and valves
- Compressed air filtration and drying equipment
