Overview

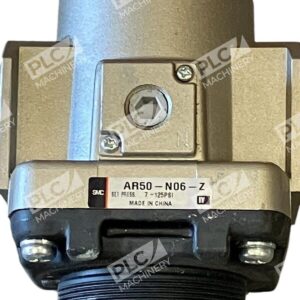

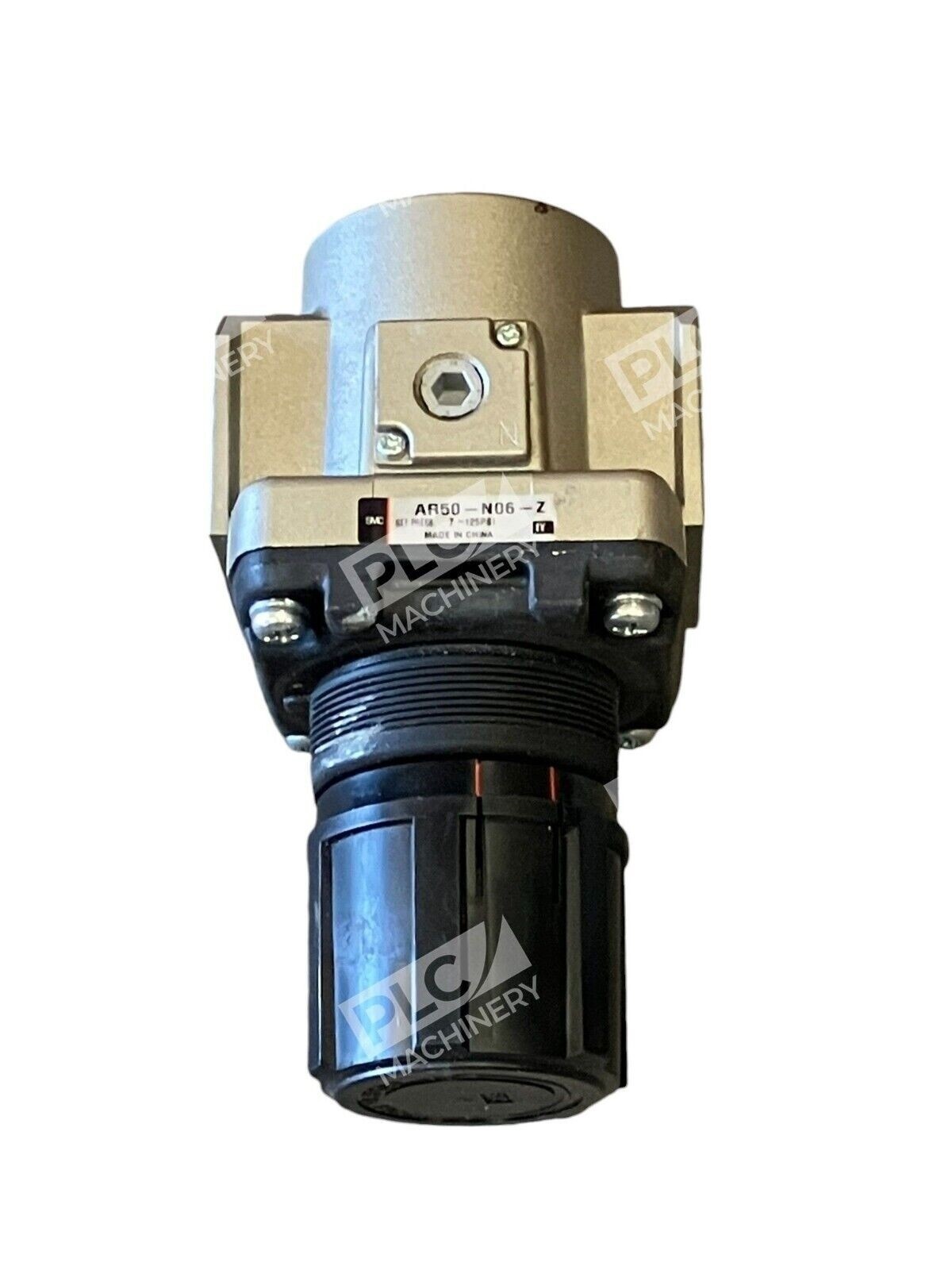

The SMC AR50-N06-Z is a modular pneumatic regulator from SMC’s AR MASS PRO series, engineered for cost-effective and precise pressure control in compressed air systems. Body size 50 with 3/4 inch NPT thread ports, this unit delivers stable regulation without backflow and features relieving exhaust for improved safety and performance. The regulator handles flow up to 353 scfm and is built for left-to-right flow with downward knob adjustment.
Key Features
- Locking adjustment knob prevents accidental pressure drift during operation
- Modular design integrates seamlessly with other SMC air preparation equipment (filters, lubricators, dryers)
- Relieving exhaust automatically vents excess pressure for improved relief sensitivity
- Ozone-resistant rubber knob (HNBR material) ensures durability in industrial environments
- No gauge or mounting bracket included; compatible with optional panel-mount accessories
Technical Specifications
- Series: AR MASS PRO (Body Size 50)
- Pressure Range: 0.05–0.85 MPa (7.25–123 psi)
- Flow Capacity: 353 scfm (cubic feet per minute)
- Port Size: 3/4 inch NPT
- Flow Direction: Left to right, downward knob
- Backflow Protection: Without backflow mechanism (standard relief model)
- Exhaust: Relieving type
- Weight: 2.72 lbs
- Gauge: None (without pressure gauge)
- Mounting: Without bracket; optional panel-mount hardware available separately
Typical Applications
The SMC AR50-N06-Z is suited for:
- Industrial pneumatic tool systems and plant air distribution
- Machinery control circuits requiring stable regulated pressure
- Automation assembly lines and material handling equipment
- Modular compressed air preparation stations (FRL units)
- OEM equipment integrating multiple small air regulators
Compatibility & Replacements
Compatible With
- SMC air preparation equipment (filters, lubricators, regulators) in matching body size 50
- Standard 3/4 inch NPT male/female pneumatic piping and fittings
- Industrial compressed air systems rated 0.05–1.0 MPa inlet pressure
- Panel-mount configurations with optional set nuts and brackets (sold separately)
- Modular FRL (Filter-Regulator-Lubricator) combinations
Replaces / Drop-In Replacement For
- Earlier SMC AR50 series regulators with identical 3/4 NPT body size and 0.05–0.85 MPa range
- Note: This part is discontinued by manufacturer; verify compatibility with your integrator before ordering to confirm fit with existing manifolds or panel assemblies
Works With
- SMC modular regulator networks and air preparation systems
- Generic 3/4 NPT pneumatic valve and component ecosystems
- Industrial control systems using standard pneumatic automation
