Overview

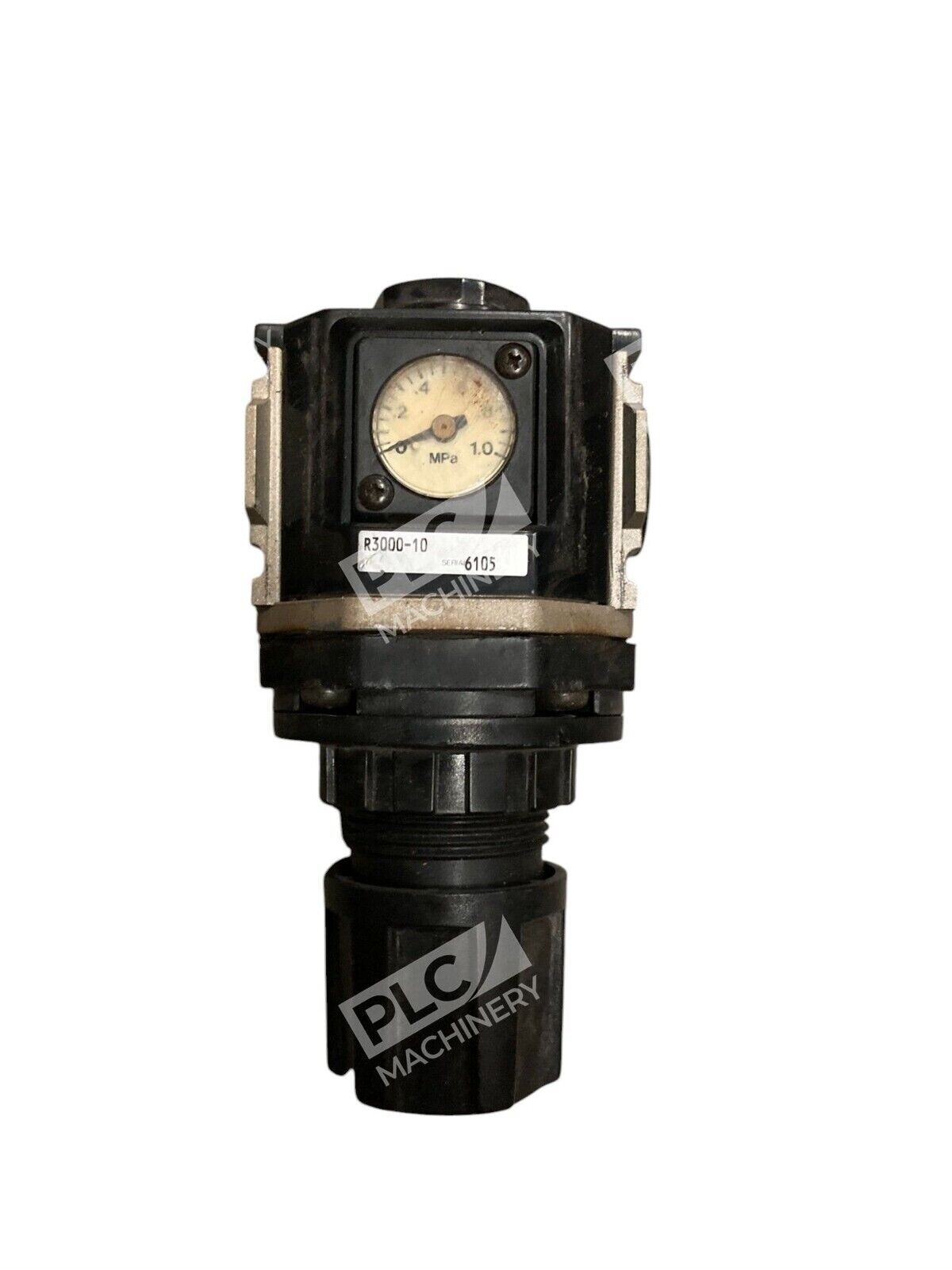

The CKD R3000-10 is a compact pneumatic pressure regulator engineered for precise pressure control in industrial pneumatic systems. Operating at 0.05 to 0.85 MPa with a maximum working pressure of 1.0 MPa, this regulator depressurizes supply pressure and supplies stable set pressure. The R3000-10 features a compact design with pressure gauge embedded and pressure adjustment without tools, making it suitable for diverse industrial pneumatic applications.
Key Features
- Pressure adjustment without tools — Pressure adjustments can be made with one hand and locking performed with one push
- Embedded pressure gauge — Compact, pressure gauge embedded regulator for quick visual pressure verification
- Panel mounting flexibility — The panel mounting nut acts as a jack and enables the knob to be removed easily, then fix the nut to mount in the panel
- Relief mechanism — Standard pressure gauge with relief mechanism
- Modular compatibility — F.R.L. module unit with standard series having unified dimensions per filter, regulator, and lubricator for ultimate performance in functionality, operation, maintainability, and safety
Technical Specifications
- Manufacturer: CKD Corporation
- Model: R3000-10

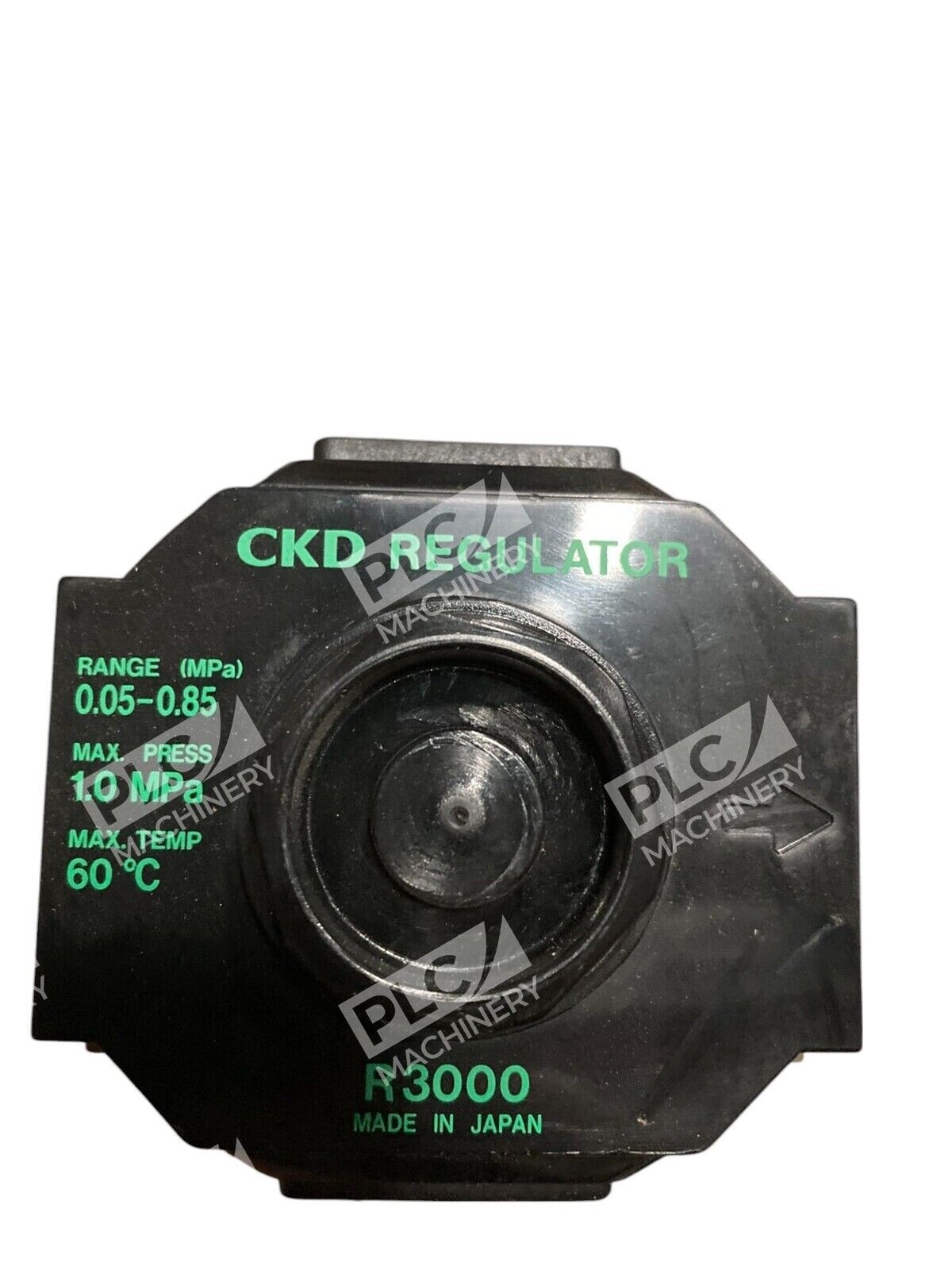

- Operating Pressure Range: 0.05 to 0.85 MPa
- Maximum Working Pressure: 1.0 MPa
- Port Size: 3/8 NPT
- Pressure Gauge: Standard embedded
- Relief Mechanism: Included
- Adjustment: Manual knob (tool-free)
- Working fluid: Compressed air
Typical Applications
The CKD R3000-10 is widely used in:
- Pneumatic cylinder and actuator systems
- Industrial automation equipment
- Pneumatic tool operation and control
- Machine tool auxiliary systems
- Production line pressure control
- Pneumatic testing and measurement systems
Compatibility & Replacements
Compatible With
- Standard pneumatic systems using compressed air
- G thread and NPT thread piping configurations
- F.R.L. (filter, regulator, lubricator) modular systems
- Industrial automation control circuits
- Pneumatic valve manifolds and accessories
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The R3000-10 is part of the CKD R3000 series; model variants with different port configurations or attachments may have different part numbers (e.g., R3000-10-W, R3000-10N-W, R3000-10G).
Works With
- CKD filter and lubricator modules (F/L components)
- Pneumatic pressure switches and sensors
- Standard industrial air compressor systems
- Both metric (MPa) and imperial (psi) pressure gauge displays
