Overview

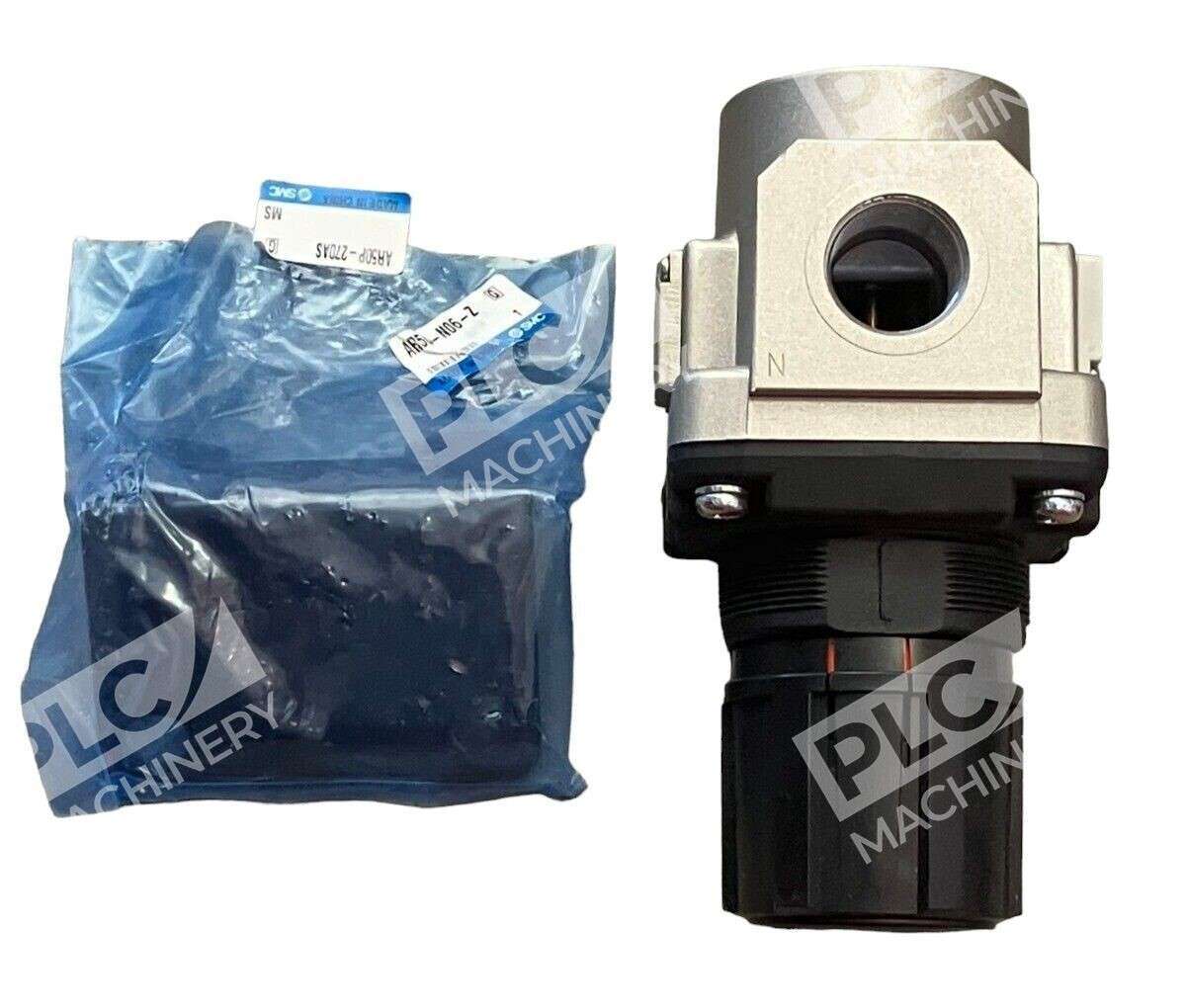

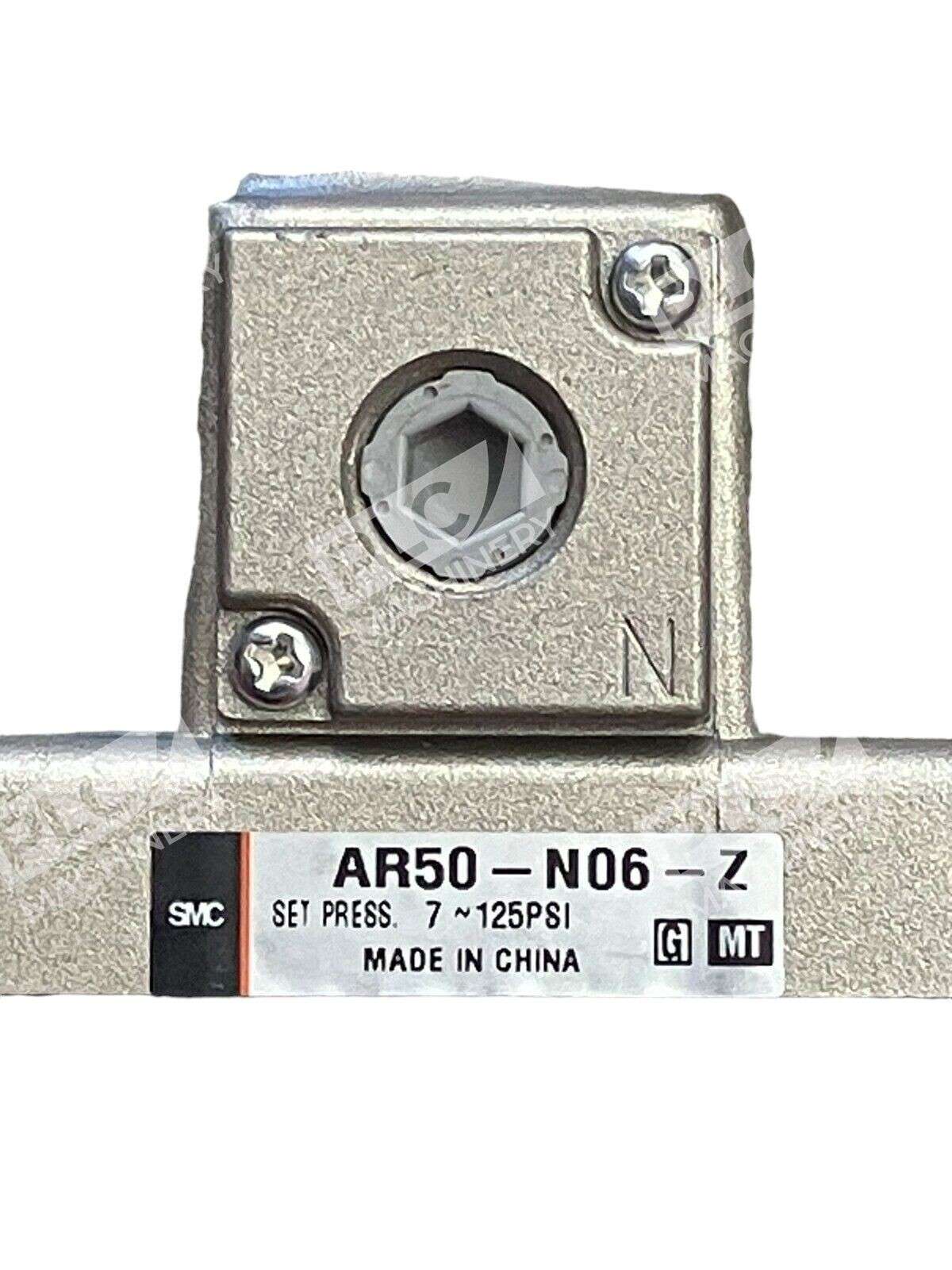

The SMC AR50-N06-Z is a cost-effective, modular pressure regulator designed for pneumatic automation systems. This regulator features a relieving-type design and operates across a wide pressure range (7.25–123 psi). The modular construction allows direct integration with other SMC air preparation equipment, making it ideal for FRL (Filter-Regulator-Lubricator) assemblies and standalone applications. New—No Box condition, fully functional and in stock for immediate shipment.
Key Features
- Modular design connects seamlessly with other SMC air preparation components

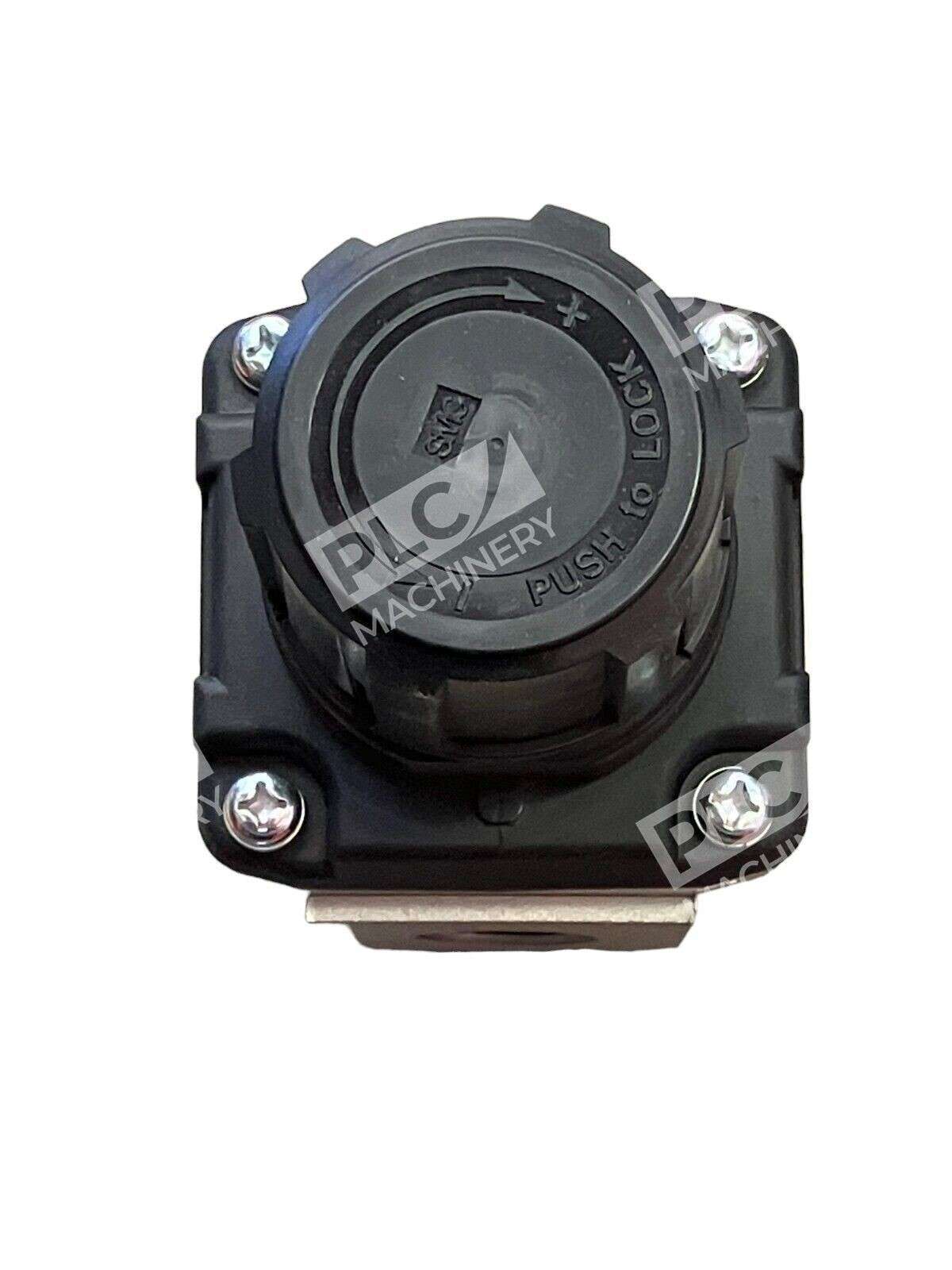

- Locking adjustment knob prevents accidental pressure setting changes
- Ozone-resistant rubber knob (HNBR material) for durability in industrial environments
- Relieving-type operation ensures safe exhaust of pressure buildup
- Optional embedded pressure gauge and backflow mechanism available
- Available in multiple thread types: NPT, Rc, and G(PF)
Technical Specifications
- Port Size: 3/4 inch NPT
- Pressure Setting Range: 7.25–123 psi
- Maximum Pressure: 125 psi
- Flow Capacity: 353 SCFM (standard cubic feet per minute)
- Type: Relieving, modular regulator
- Knob Material: Ozone-resistant rubber (HNBR)
- Thread Type: NPT (also available in Rc and G/PF)
- Gauge Option: Available with or without embedded pressure gauge
- Backflow Function: Optional mechanism to quickly exhaust outlet pressure
- Body Series: AR50 (mid-range modular size)
Typical Applications
- Pneumatic automation control systems and compressed air circuits
- FRL assemblies (Filter-Regulator-Lubricator packs)
- Industrial machinery and process control systems
- Compressed air distribution networks requiring pressure stabilization
- Panel-mount and manifold-integrated pneumatic systems
- OEM equipment requiring modular pressure regulation
Compatibility & Replacements
Compatible With
- SMC modular air preparation equipment (AR, FR, L series)
- Standard 3/4 NPT pneumatic piping and components
- SMC EX product line for explosion-proof applications
- Compressed air systems with 0.05–0.85 MPa (0.7–12.3 psi) operating requirements
- Panel mounting with optional set nuts and brackets
Replaces / Drop-In Replacement For
- SMC AR50 series regulators (AR50-N06 variants)
- Other AR-A series modular regulators of comparable body size
- Verify with your system integrator before substitution to confirm pressure range and thread compatibility
Works With
- SMC AR-B series modular components (panel mounting interchangeability confirmed)
- Standard compressed air line connections (1/8″–1″ piping sizes)
- Pneumatic logic and control systems using relieving-type regulation
- Optional embedded pressure gauge and switch modules for embedded measurement
