<h2>Overview</h2>

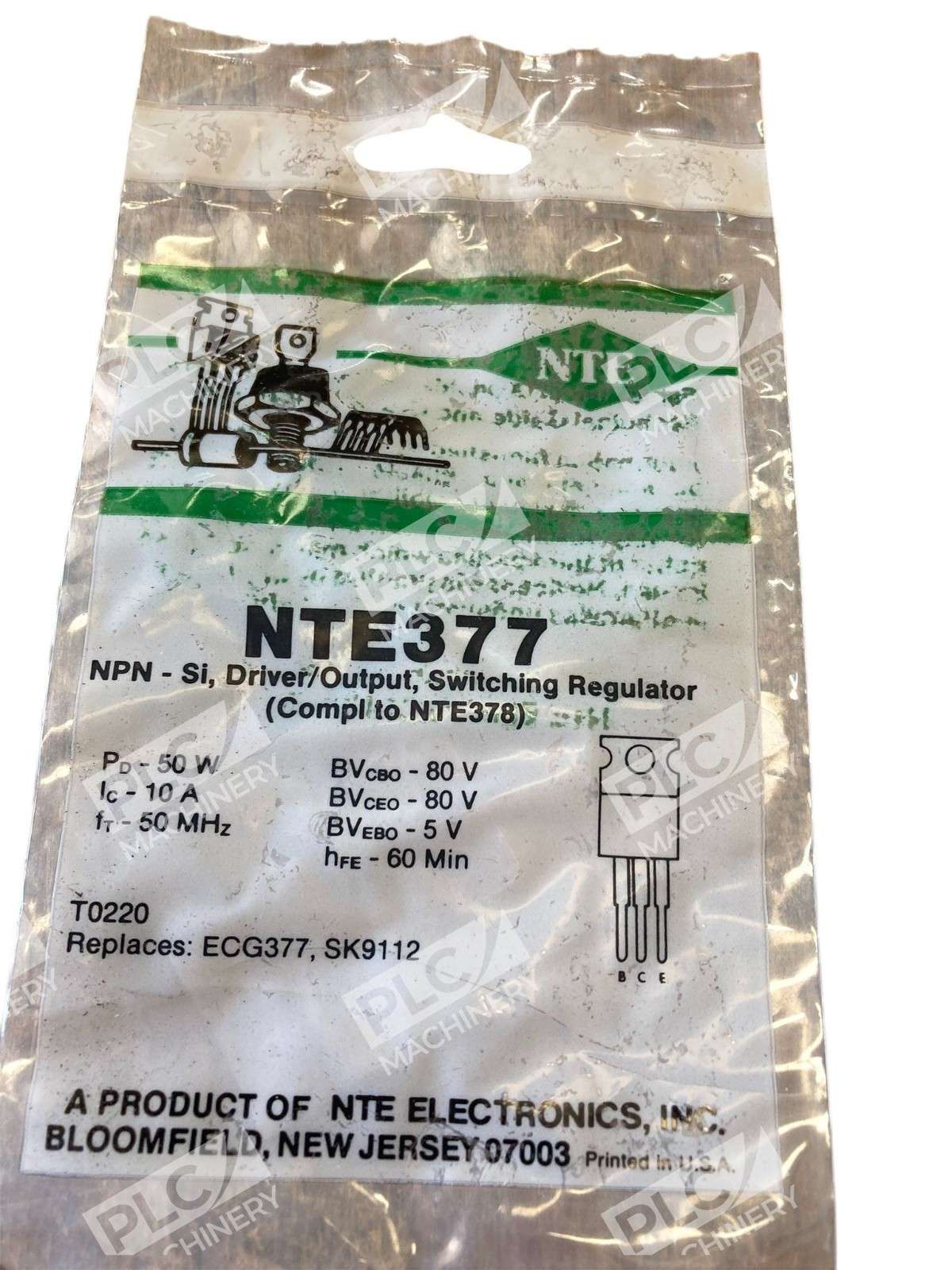

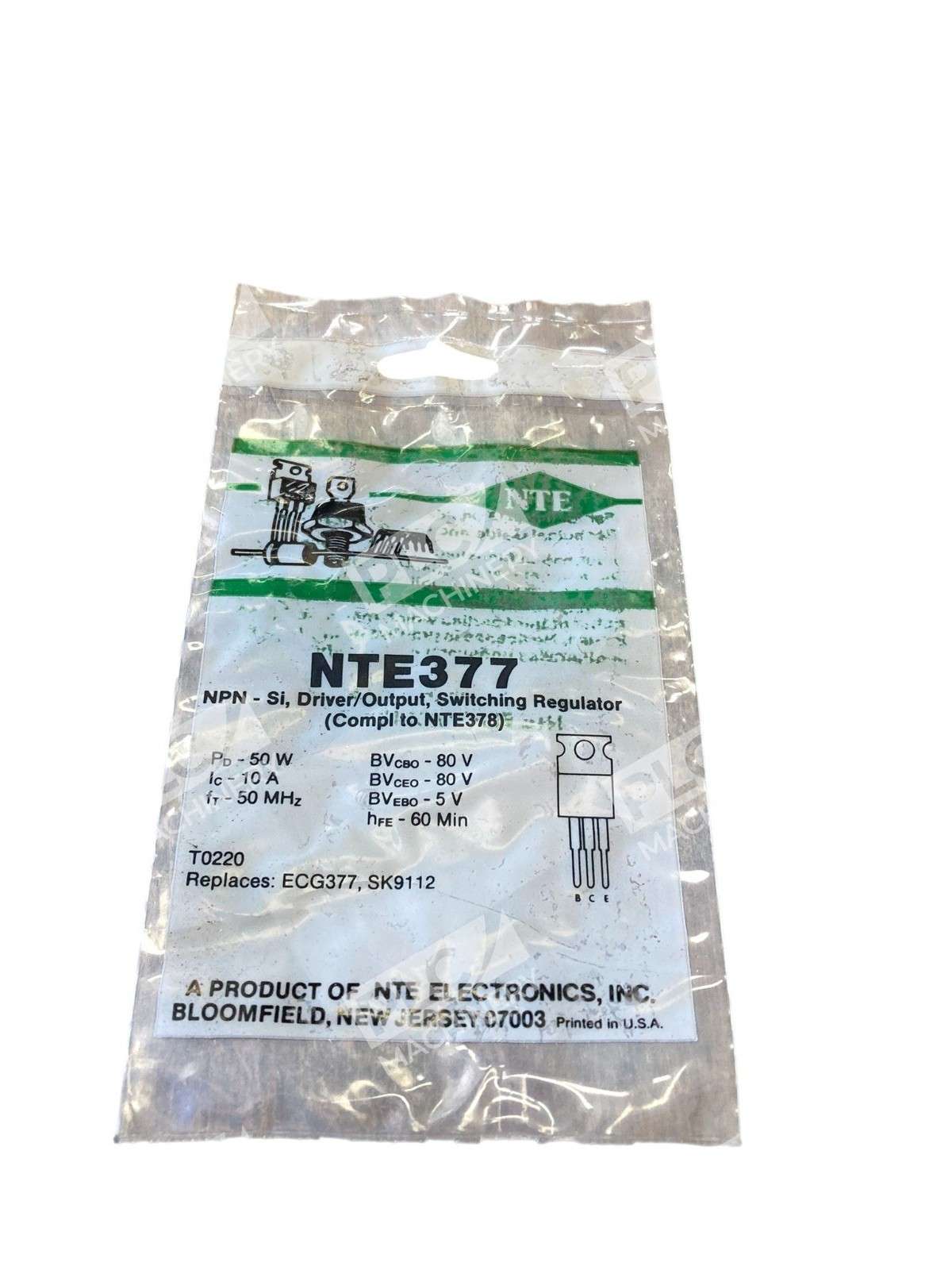

<p>The <strong>NTE NTE377</strong> is a silicon complementary NPN power transistor housed in a TO-220 package. This device is engineered for general-purpose power amplification and switching applications requiring reliable performance in demanding industrial and consumer electronics environments. The transistor’s robust design and proven reliability make it a standard choice for power supply designers and field service professionals.</p>
<h2>Key Features</h2>
<ul>
<li>NPN silicon power transistor with complementary NTE378 (PNP) pair</li>
<li>80V collector-emitter breakdown voltage (VCEO) for versatile DC supply applications</li>
<li>10A continuous collector current rating with 50W power dissipation capability</li>
<li>TO-220 package with industry-standard pin configuration for easy mounting and thermal management</li>
<li>Fast switching speeds suitable for PWM and resonant converter topologies</li>
<li>Minimum hFE (current gain) of 60 ensures predictable circuit performance</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Device Type:</strong> NPN Silicon Power Transistor</li>
<li><strong>VCEO (Collector-Emitter Voltage):</strong> 80V maximum</li>
<li><strong>VCBO (Collector-Base Voltage):</strong> 80V maximum</li>
<li><strong>VEBO (Emitter-Base Voltage):</strong> 5V maximum</li>
<li><strong>IC (Collector Current Continuous):</strong> 10A</li>
<li><strong>PD (Total Power Dissipation):</strong> 50W</li>
<li><strong>hFE (DC Current Gain):</strong> 60 (minimum)</li>
<li><strong>fT (Transition Frequency):</strong> 50 MHz (typical)</li>
<li><strong>Package:</strong> TO-220 (Stud Mount)</li>
<li><strong>Dimensions:</strong> 10.67 × 10.67 × 15.49 mm</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Output stages in switching power supplies and DC-DC converters</li>
<li>Driver stages in PWM amplifier and motor control circuits</li>
<li>Output/driver transistors in Class B and Class AB power amplifiers</li>
<li>Switching regulators and buck/boost converter topologies</li>
<li>Push-pull and half-bridge power stage applications</li>
<li>General-purpose power switching and amplification</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Switching power supply designs rated for 80V or lower DC supplies</li>
<li>PWM controller integrated circuits (UC384X, TL494, SG3524 families)</li>
<li>Resonant converter topologies and soft-switching applications</li>
<li>Linear and switched-mode audio amplifier circuits</li>
<li>Any design requiring matched NPN/PNP complementary pairs (pairs with NTE378)</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>ECG377 (exact ECG equivalent)</li>
<li>SK9112 and SK9112/377 (Semikosmics equivalent)</li>
<li>Various OEM part numbers in power supply and converter applications</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Standard TO-220 heatsinks and thermal interface materials</li>
<li>Industrial PCB designs requiring through-hole or tab-mount construction</li>
<li>Any circuit topology compatible with 80V/10A power transistor specifications</li>
</ul>
