Overview

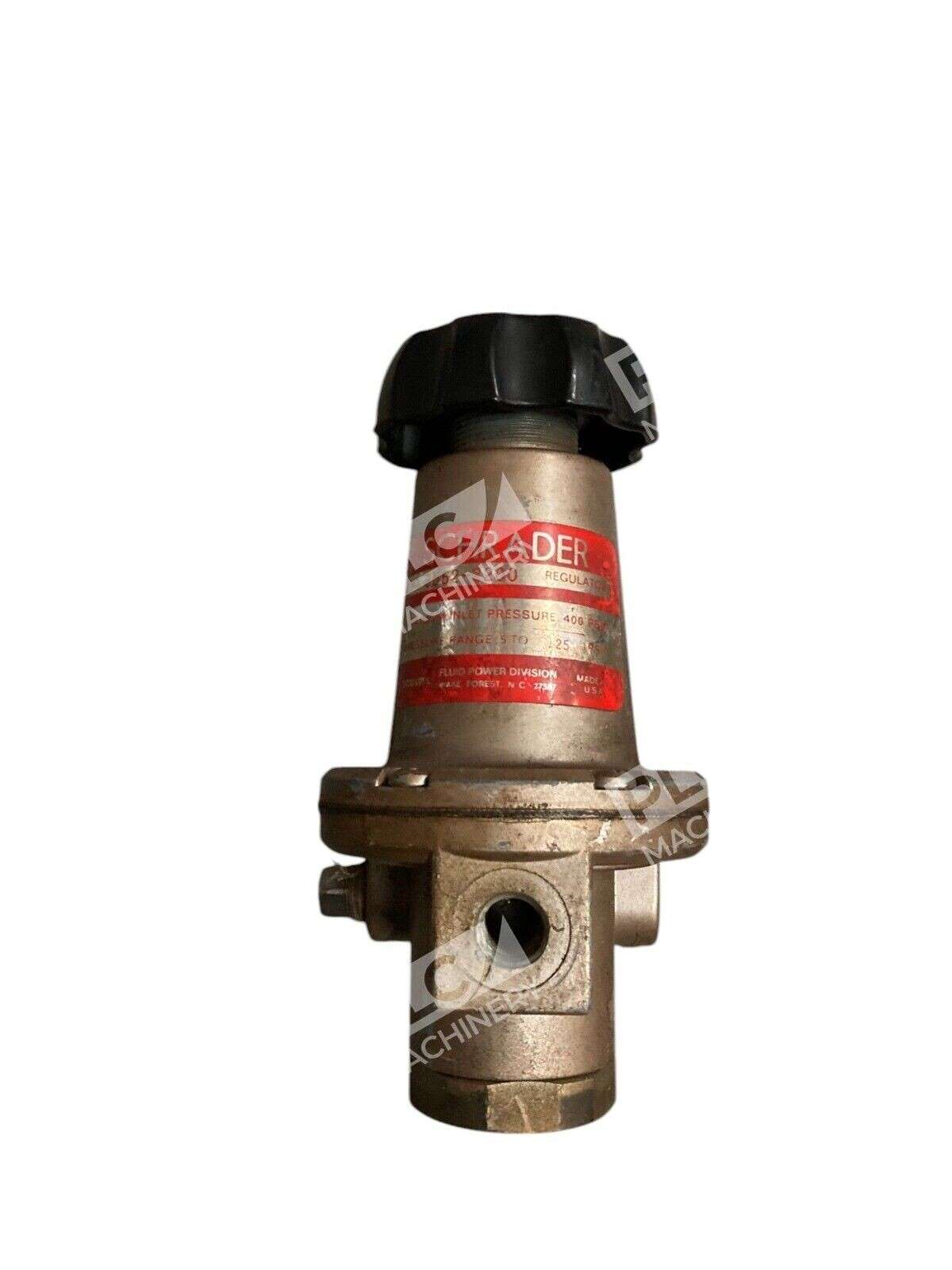

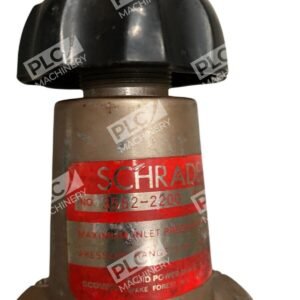

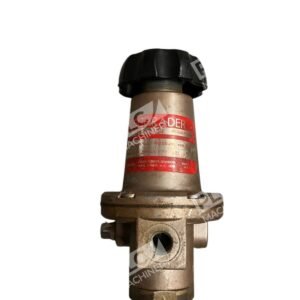

The Parker Schrader 3562-2200 pressure regulator is a discontinued pneumatic regulator designed for reliable pressure control in compressed air and pneumatic systems. This unit maintains a pressure range of 5-125 PSIG and is suitable for a wide range of industrial pneumatic applications requiring precise downstream pressure regulation.
Key Features
- Pressure range: 5–125 PSIG
- Compact, rugged pneumatic regulator design
- NPT threaded ports for standard pneumatic connections
- Adjustable pressure setting via control knob
- Suitable for direct mounting in pneumatic FRL (Filter-Regulator-Lubricator) assemblies
Technical Specifications
- Pressure Range: 5–125 PSIG (0.34–8.6 bar)
- Maximum Inlet Pressure: Verify with manufacturer (typically 300 PSIG for similar models)
- Body Material: Aluminum/brass (standard for Schrader regulators)
- Weight: 3.34 lbs (1.5 kg)
- Port Configuration: NPT threaded connection
- Adjustment: Knob-actuated pressure control
- Operating Temperature Range: –40 °F to 165 °F (–40 °C to 74 °C) typical
- Status: Discontinued by manufacturer
Typical Applications
- Pneumatic tool operation and air motor control
- Industrial air system pressure regulation
- Compressed air treatment in production lines
- Pneumatic automation and control circuits
- Secondary pressure stage in FRL assemblies
Compatibility & Replacements
Compatible With
- Standard compressed air systems and pneumatic networks
- ISO 4401 (NG10) and NG16 manifold cavities (verify port orientation)
- Industrial pneumatic components with NPT threaded connections
- FRL (Filter-Regulator-Lubricator) assemblies
Replaces / Drop-In Replacement For
- Parker Schrader Bellows 3562-2200 (identical model)
- May serve as functional equivalent for other 5-125 PSIG single-stage regulators (verify mounting and port size with integrator)
Works With
- Standard pneumatic supply lines (ISO 4401 and ISO 1219-1 symbols)
- Pneumatic control valves (directional, solenoid, check, etc.)
- Air cylinders, rotary actuators, and pneumatic motors
- Pressure gauges and transducers for system monitoring
