Overview

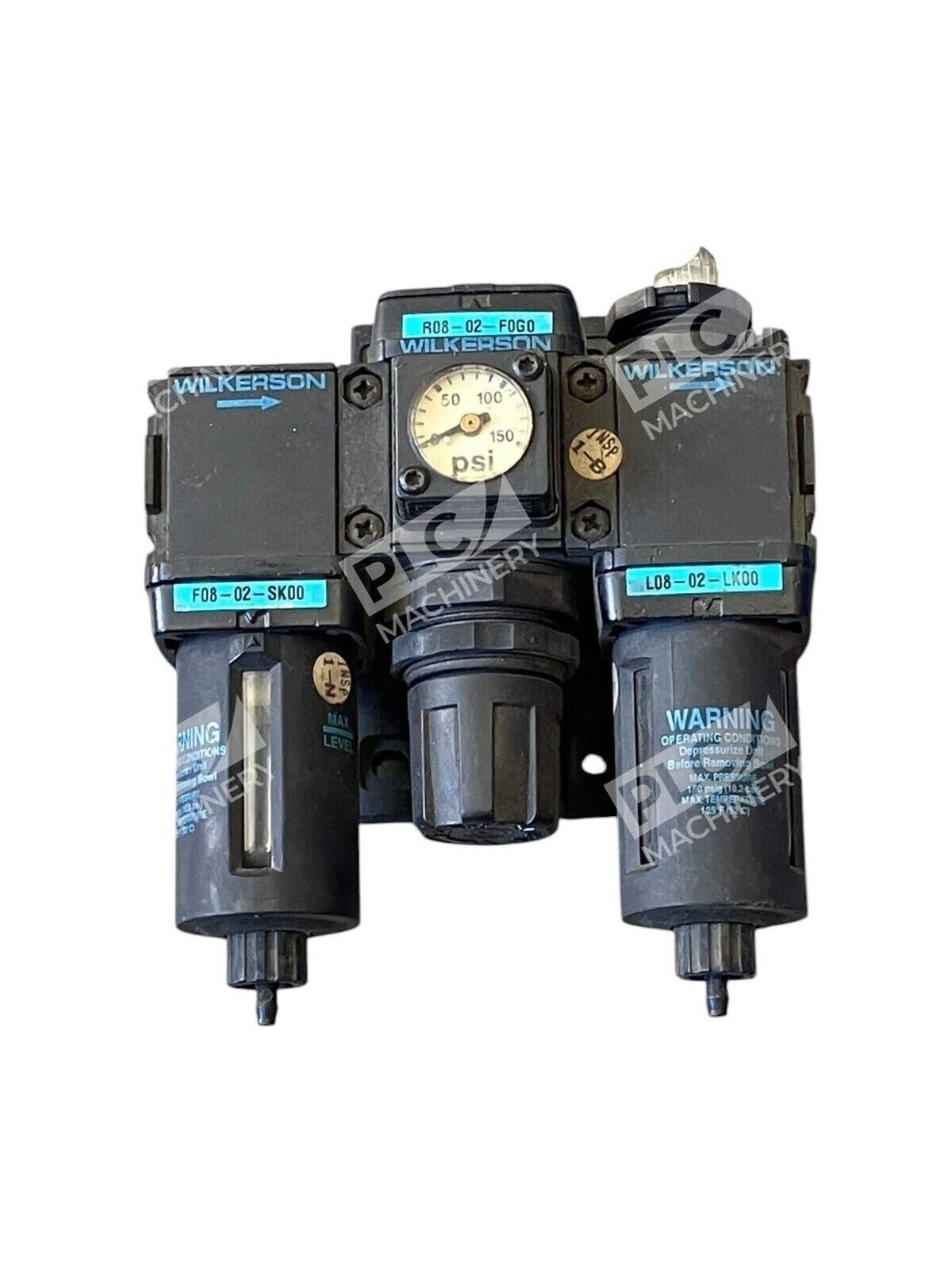

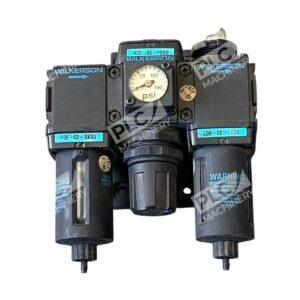

The Wilkerson R08-02-F0G0 is a compact pneumatic pressure regulator designed for precision air treatment in industrial, automotive, and manufacturing environments. With a 1/4″ NPT port and an integral pressure gauge, this unit maintains stable outlet pressure from 0–125 PSIG while handling inlet pressures up to 300 PSIG maximum. The zinc die-cast body and relieving design provide durability and long service life in standard compressed air circuits.
Key Features

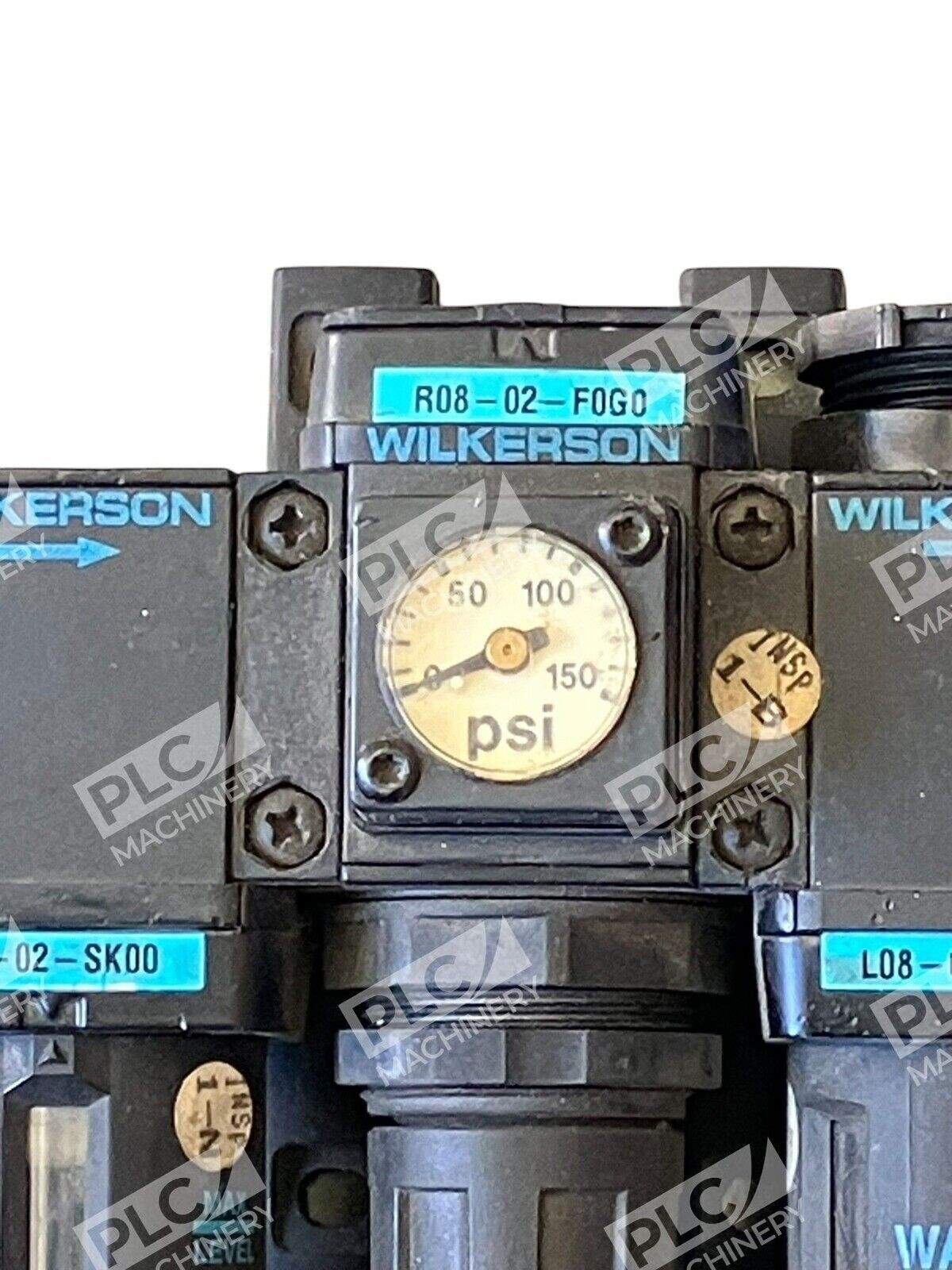

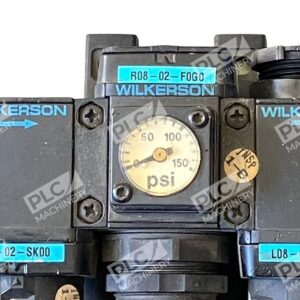

- Integrated pressure gauge for real-time monitoring
- 0–125 PSIG outlet pressure range with smooth adjustment
- 1/4″ NPT threaded ports for standard industrial connections
- Relieving diaphragm type ensures stable, consistent output pressure
- Zinc body construction for corrosion resistance
- Compact modular design simplifies installation and maintenance
Technical Specifications
- Pressure Range (Outlet): 0–125 PSIG
- Maximum Inlet Pressure: 300 PSIG
- Port Size: 1/4″ NPT
- Port Type: NPT (National Pipe Thread)
- Gauge Range: 0–150 PSI
- Diaphragm Type: Relieving
- Body Material: Zinc Die-Cast
- Weight: 0.85 lbs
- Temperature Range: up to 175°F
- Thread Type: Standard NPT
Typical Applications
The Wilkerson R08-02-F0G0 is ideal for:
- Pneumatic tool control and air supply regulation
- Industrial automation and process control
- Print finishing, labeling, and sheet-fed press systems
- Compressed air preparation and distribution networks
- Manufacturing and assembly line air circuits
- General pneumatic equipment and machinery requiring stable, reduced pressure
Compatibility & Replacements
Compatible With
- Standard pneumatic tubing and hoses (1/4″ NPT)
- Industrial compressed air systems and compressors
- Pneumatic tools, valves, and actuators rated 0–125 PSIG
- General manufacturing equipment and control circuits
Replaces / Drop-In Replacement For
- Wilkerson R08-02-F0G0 (direct replacement for legacy units)
- Compatible with other Wilkerson R08 series regulators in similar applications
Works With
- Wilkerson F08-02-SK00 silencer (supplied accessory)

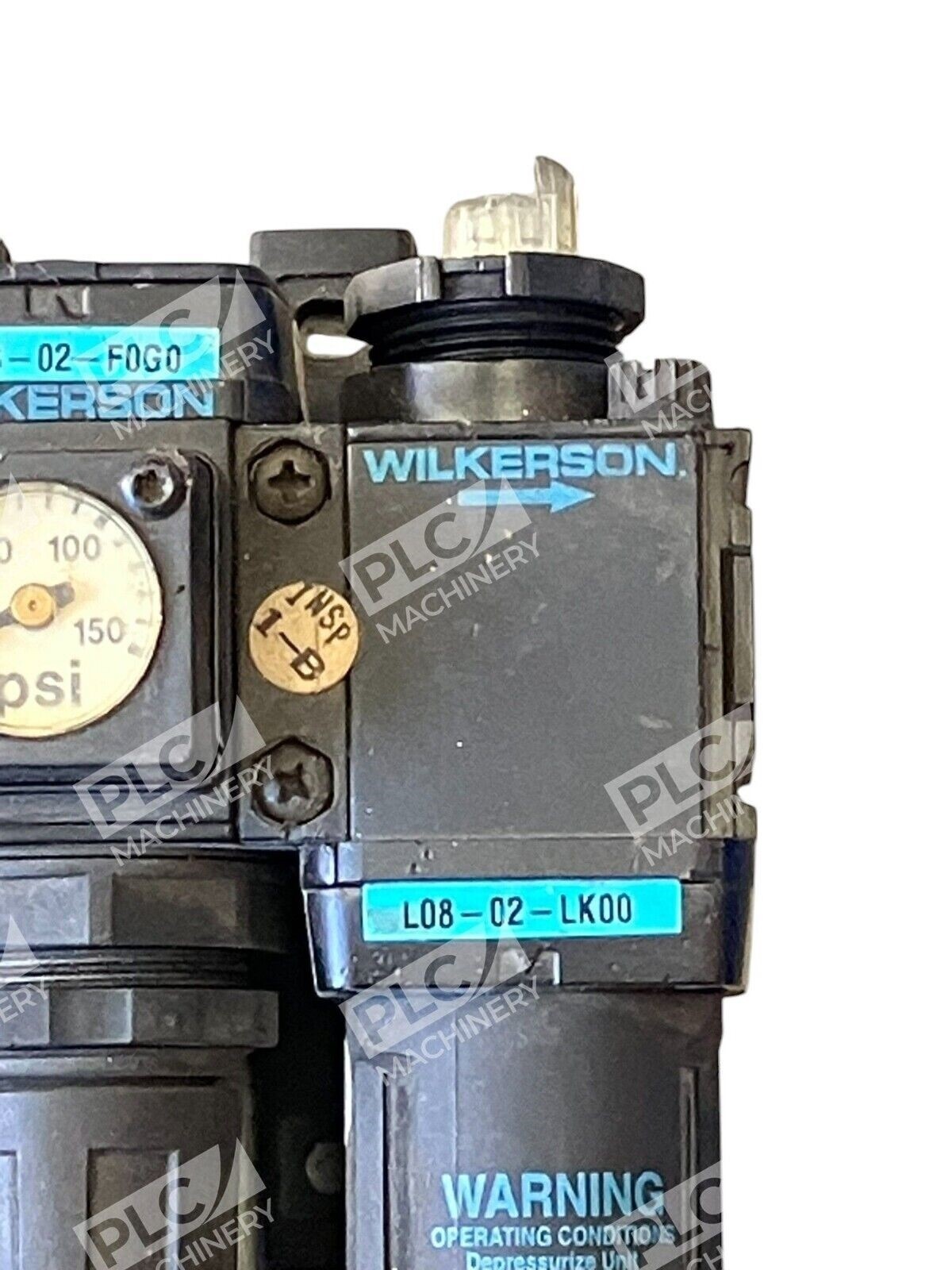

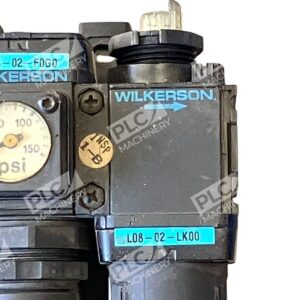

- Wilkerson L08-02-LK00 lock kit (supplied accessory)
- Standard ISO 4401 pneumatic circuits
- Pneumatic FRL (filter-regulator-lubricator) assemblies
