Overview

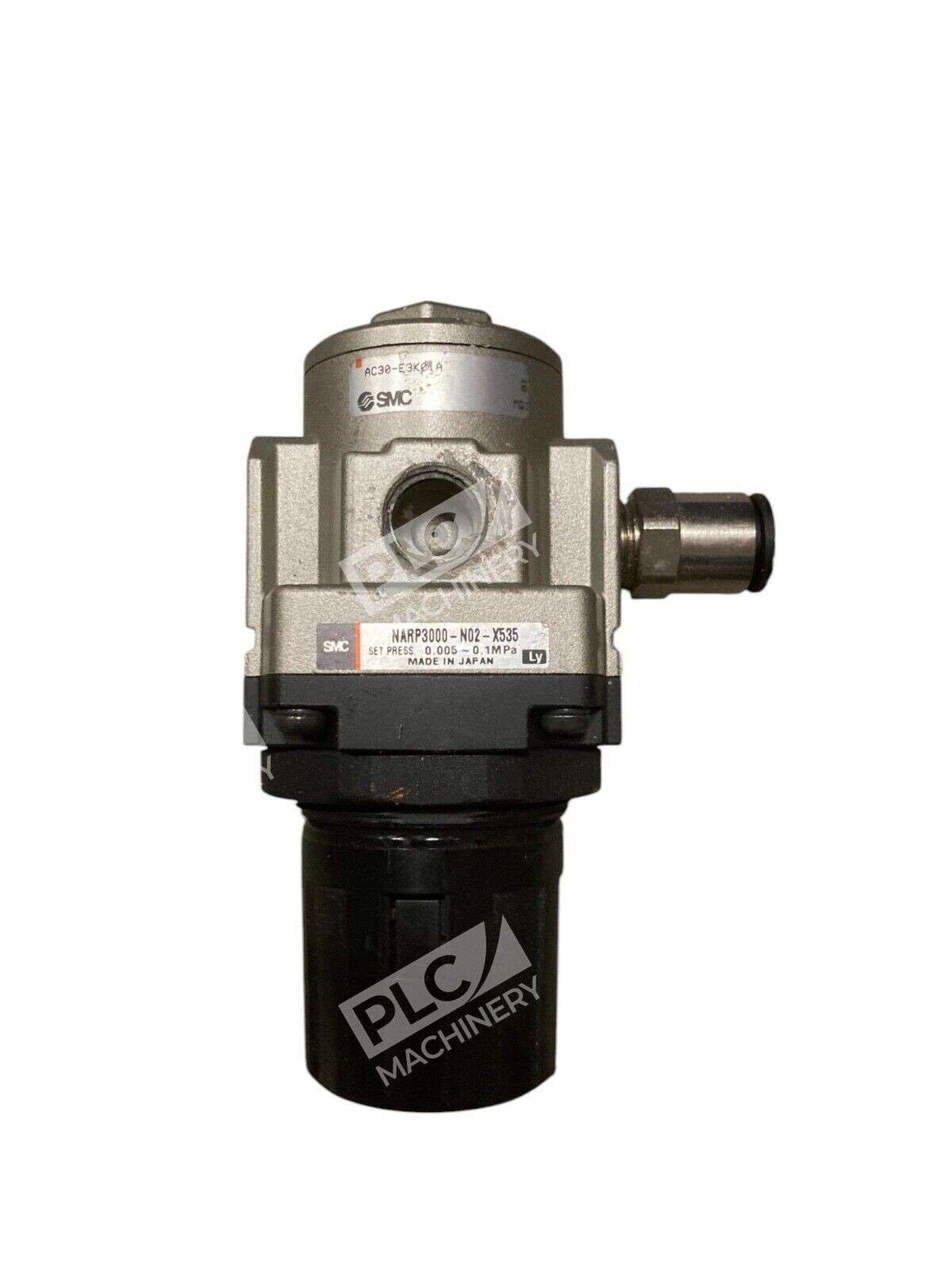

The SMC AC30-E3K01A is a precision air pressure regulator built for reliable pneumatic system control in industrial applications. Part of SMC’s renowned AC30 series, this unit combines modular construction with proven regulator technology for consistent pressure management across manufacturing, automation, and process control installations.
Key Features
- Modular Design: The modular design allows for easy installation and maintenance.
- Reduced Pressure Drop: The pressure drop across the regulator has been reduced, creating a more efficient unit.
- Compact Size: Space-efficient form factor for panel and inline mounting applications.
- Locking Adjustment Knob: The locking adjustment knob prevents accidental setting changes.
- Multiple Configuration Options: Options include a mounting bracket and set nuts for panel mounting as well as pressure gauges.
Technical Specifications
- Maximum Set Pressure: The -A version has a max set pressure of 100 PSI and the -B version has a max set pressure of 125 PSI.
- Port Thread Size: 3/8″ NPT (standard)
- Operating Pressure Range: 0–100 PSI (standard configuration)
- Series: AC30 modular air preparation equipment
- Body Material: Aluminum die-cast with polyacetal components
- Fluid Medium: Compressed air (ISO 8573-1:2010 Class 3 recommended)
- Standard Features: Pressure gauge, manual adjustment knob, mounting provisions
Typical Applications
- Pneumatic tool power supply and control
- Industrial machine automation and assembly line systems
- Air-powered actuator and cylinder regulation
- Test and inspection equipment pressure management
- Fluid dispensing and metering applications
- Plant compressed air system conditioning
Compatibility & Replacements
Compatible With
- SMC AC series filter-regulator-lubricator (F.R.L.) units and modular components
- Standard industrial compressed air systems (150 PSI maximum inlet)
- Pneumatic control circuits and pilot applications
- Panel-mounted air preparation assemblies
- 1/4″ and 3/8″ NPT port piping and fittings
Replaces / Drop-In Replacement For
- Earlier AC30 series models (AC30-N02, AC30-N03)
- Verify specific model compatibility with your system integrator before ordering to ensure correct pressure range and port configuration.
Works With
- SMC modular F.R.L. unit framework and interface brackets
- ISO 4401 standard valve mounting surfaces
- Rc and NPT threaded port connections
- Manual and electro-pneumatic control systems
- Standard industrial pneumatic tubing and fittings
