Overview

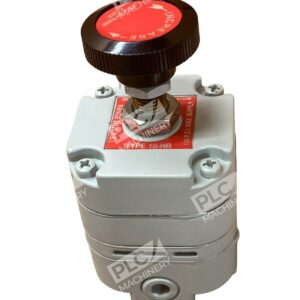

The Bellofram 960-028-000 is a Type 10 HR (High Relief) precision air regulator manufactured by Marsh Bellofram Precision Controls. This model combines accurate pressure regulation with an extra-large capacity integral relief valve, making it ideal for applications requiring fast exhaust and high performance. The regulator operates across a 2–120 PSI control range with 1/8″ NPT ports and is rated for 14 SCFM flow capacity.
Key Features
- High-accuracy pressure regulation with tight control stability
- Extra-large capacity integral relief valve for rapid pressure dump and exhaust
- Servo-operated control mechanism for enhanced pressure stability and repeatability
- High start-up stability with automatic return to set pressure after extended downtimes
- Rugged die-cast aluminum construction with protective vinyl finish
- Suitable for cylinder return stroke actuation, pneumatic hoists, and high-demand exhaust applications
Technical Specifications
Key technical parameters are detailed below:
- Part Number: 960-028-000

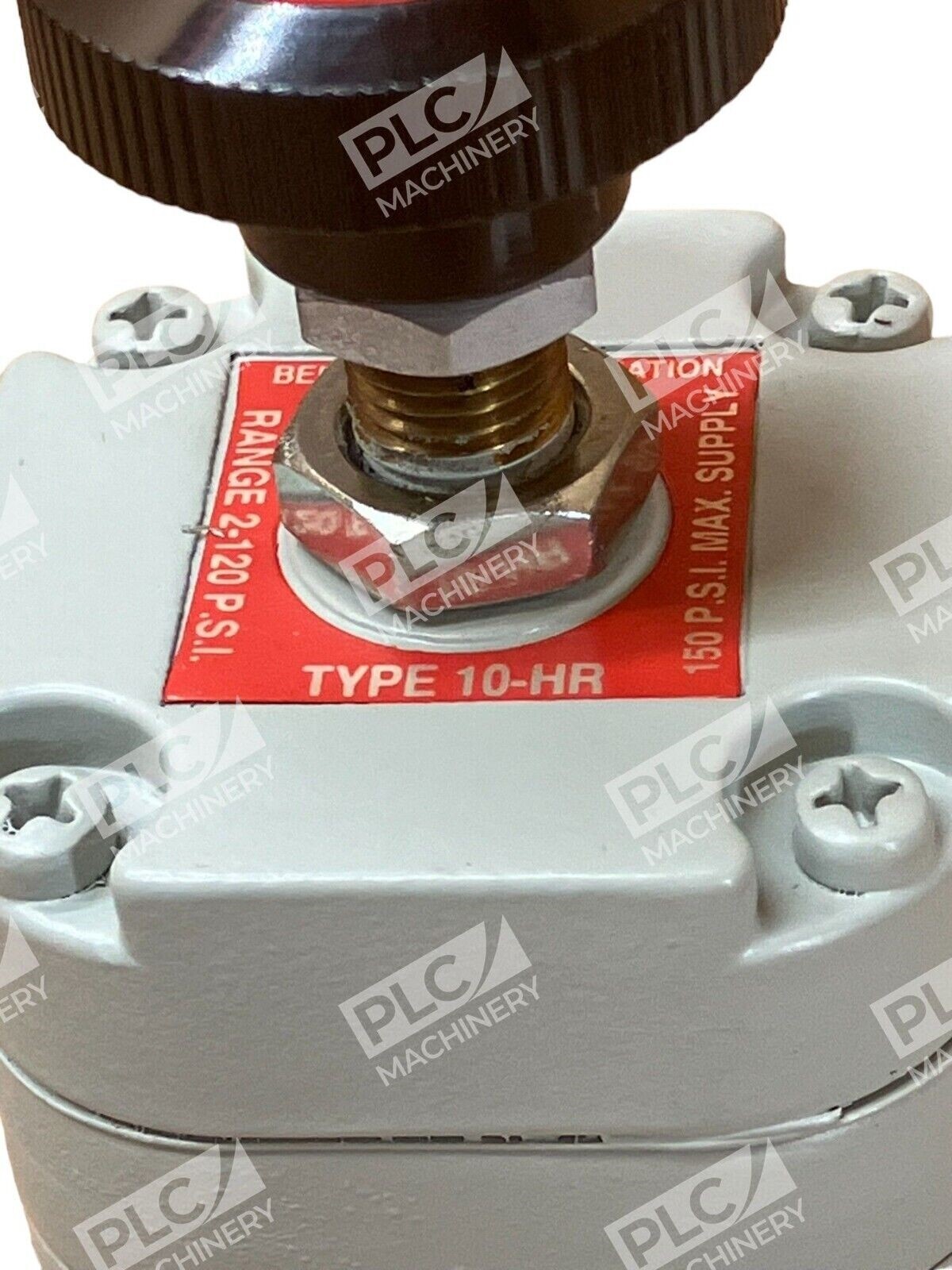

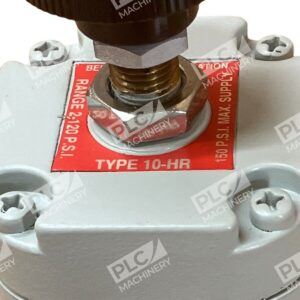

- Type: Type 10 HR (High Relief)
- Pressure Range: 2–120 PSIG
- Port Size: 1/8″ NPT
- Flow Capacity: 14 SCFM
- Regulator Body: Die-cast aluminum
- Finish: Vinyl paint
- Operating Media: Clean, dry compressed air
- Pressure Sensitivity: ±0.1% regulation accuracy
Typical Applications
The extra relief feature makes these regulators suitable for cylinder return stroke actuation, air hoists, and similar applications requiring fast exhaust. The Type 10 HR is also commonly used in:
- Pneumatic system emergency exhaust and pressure dump circuits
- High-speed pneumatic actuator pilot control lines
- Calibration and test equipment requiring stable, precision pressure control
- Industrial valve operations and gas mixing systems
Compatibility & Replacements
Compatible With
- Standard compressed air systems and plant air networks
- Pneumatic circuit applications requiring 1/8″ NPT port connections
- Equipment designed for Type 10 HR regulator mounting
- Industrial automation and pneumatic control systems
Replaces / Drop-In Replacement For
The Bellofram 960-028-000 is the primary designation for the Type 10 HR 1/8″ NPT 2–120 PSI model. For replacement verification, confirm the port size (1/8″ NPT), pressure range (2–120 PSI), and control type (Type 10 HR) with your system documentation.
Works With
- Pneumatic solenoid valve pilot stages
- Pressure relief and exhaust systems
- Flow control and counterbalance valve circuits
- Standard plant compressed air infrastructure (ISO 1219-1 compliant)
