Overview

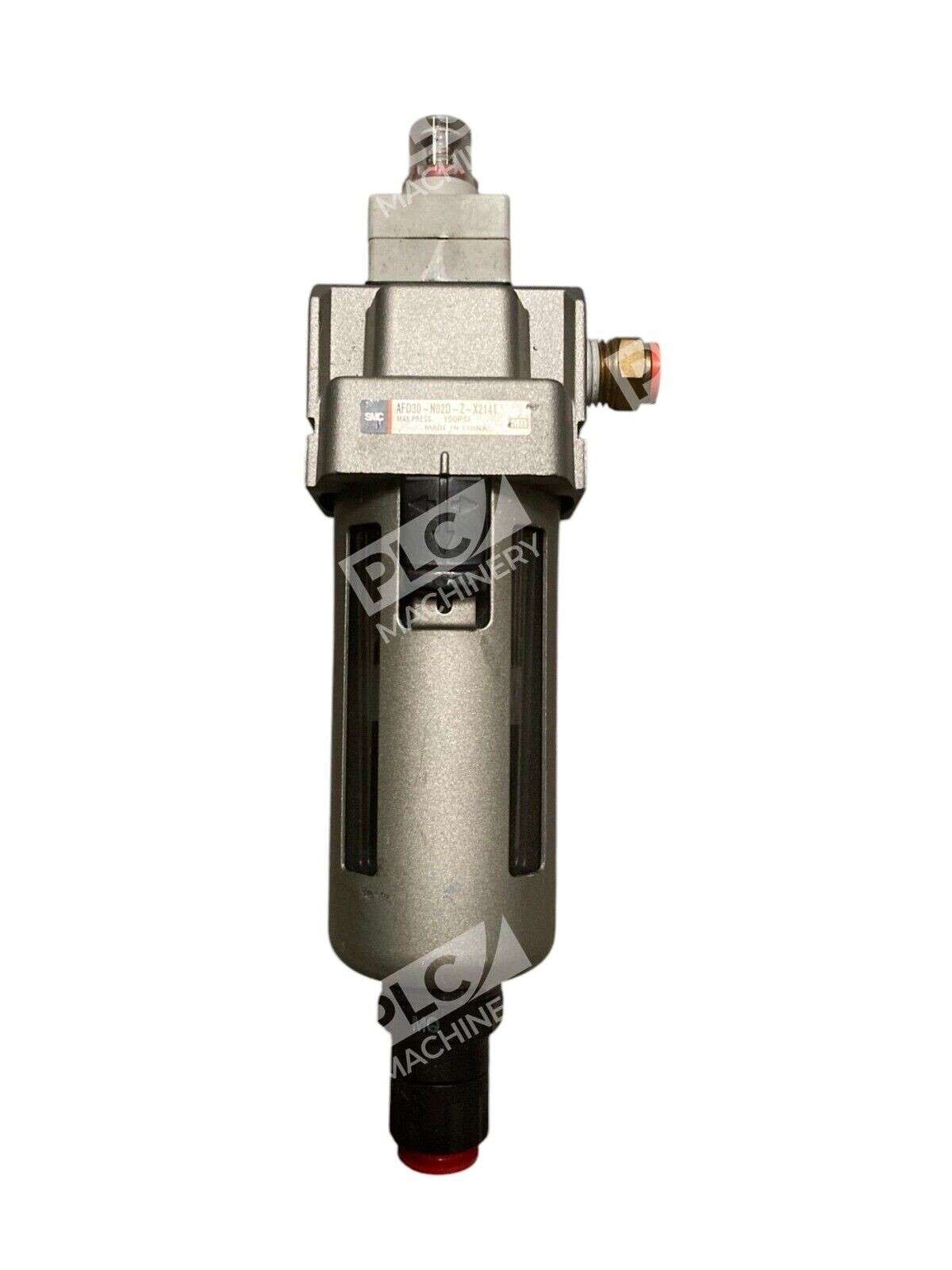

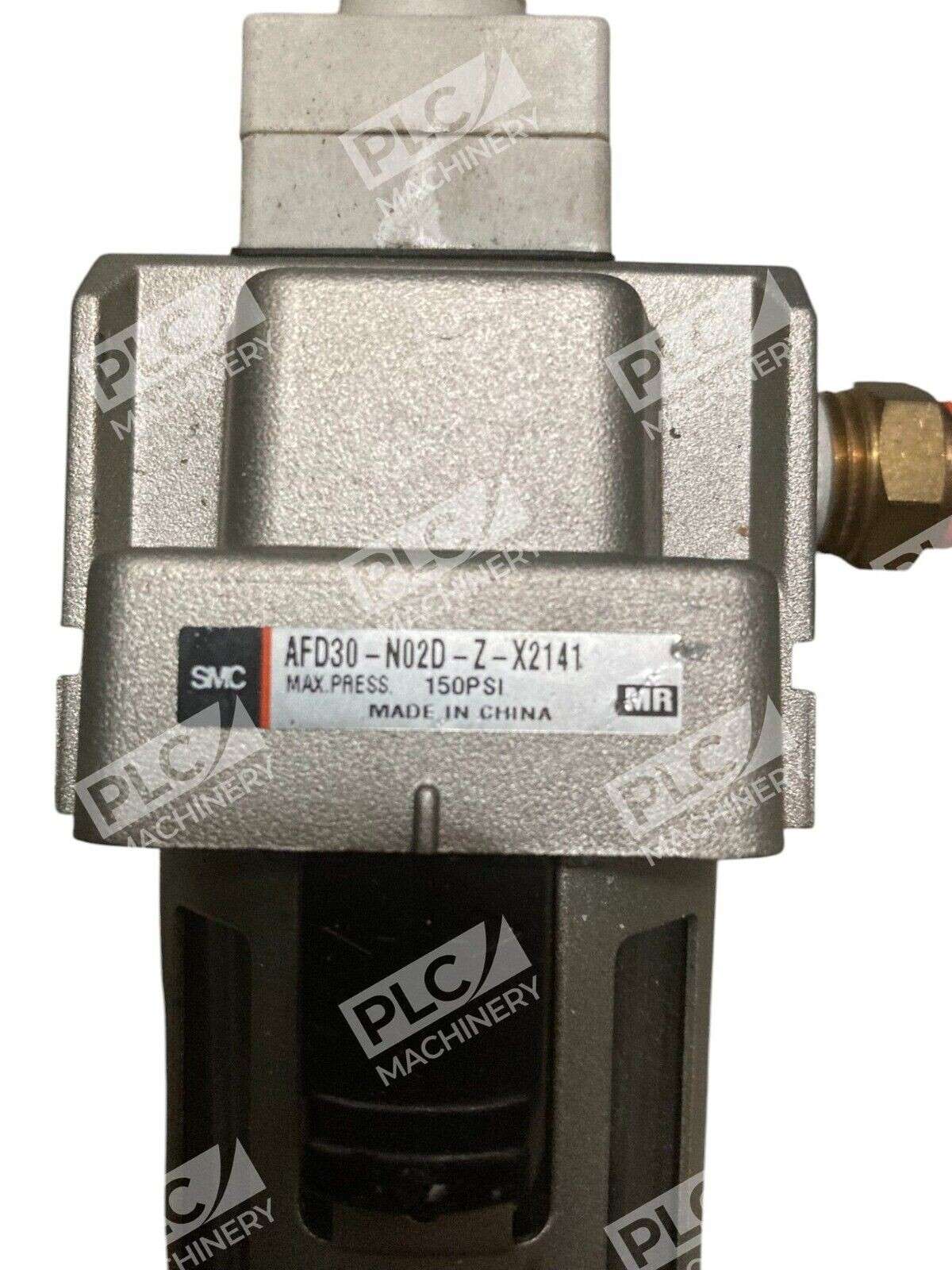

The SMC AFD30-N02D-Z-X2141 is a micro mist separator from SMC’s AFD series, engineered to remove mist, moisture, and oil aerosol from compressed air in pneumatic and hydraulic systems. This body size 30 unit features a polycarbonate bowl with transparent bowl guard, delivering 360° visibility while protecting against environmental contamination. The automatic drain (N.O. float type) and element service indicator make maintenance straightforward.
Key Features
- 0.01μm filtration level — Removes fine mist and moisture for compressed air quality suitable for precision applications.
- Element service indicator (X2141) — Alerts when filter replacement is needed, preventing bypass of unfiltered air.
- Transparent polycarbonate bowl guard — 360° visibility for monitoring condensate levels; protects bowl from impact and environment.
- Automatic drain (N.O. float type) — Continuous removal of collected condensate without manual intervention.
- Modular design — Supports mounting brackets and optional differential pressure drain accessories.
- NPT thread connection — Standard 1/4 NPT ports for industrial compressed air systems.
Technical Specifications
- Body Size: 30
- Connection Type: 1/4 NPT (National Pipe Thread)
- Filtration Level: 0.01μm
- Maximum Operating Pressure: 1.0 MPa (145 psi)
- Bowl Material: Polycarbonate
- Bowl Guard: Transparent polycarbonate, 360° visibility
- Drain Type: N.O. (Normally Open) float type automatic drain
- Drain Outlet: With drain cock
- Flow Direction: Left to right
- Pressure Unit Display: PSI and °F (imperial)
- Compressed Air Quality: General dry air
- Service Indicator: Element service indicator included (X2141 suffix)
Typical Applications
- Pneumatic automation systems requiring clean, dry air for precision control valves and actuators.
- Hydraulic systems using compressed air for pilot pressure or actuation.
- Industrial pumping stations where moisture removal prevents corrosion and component wear.
- Plumbing applications using compressed air for tool operation and equipment actuation.
- Manufacturing lines, assembly operations, and clean-room environments needing high-quality compressed air.
Compatibility & Replacements
Compatible With
- SMC pneumatic valves and control systems
- Industrial compressed air networks (1/4 NPT branch connections)
- Pneumatic and hydraulic power units
- Standard air compressor discharge lines (up to 1.0 MPa / 145 psi)
- Modular pneumatic component manifolds
Replaces / Drop-In Replacement For
- AFD30-N02D-Z-A — Base micro mist separator without service indicator
- AFD30-N02D-Z — Earlier variant without auto drain option
- Other SMC AFD30 series units with 1/4 NPT connections
Works With
- SMC AFM series mist separators (in multi-stage filtration setups)
- SMC air pressure regulators and lubricators
- Standard pneumatic tubing and fittings (1/4 NPT)
- Industrial air treatment and preparation systems
- Condensate disposal systems via drain outlet
