Overview

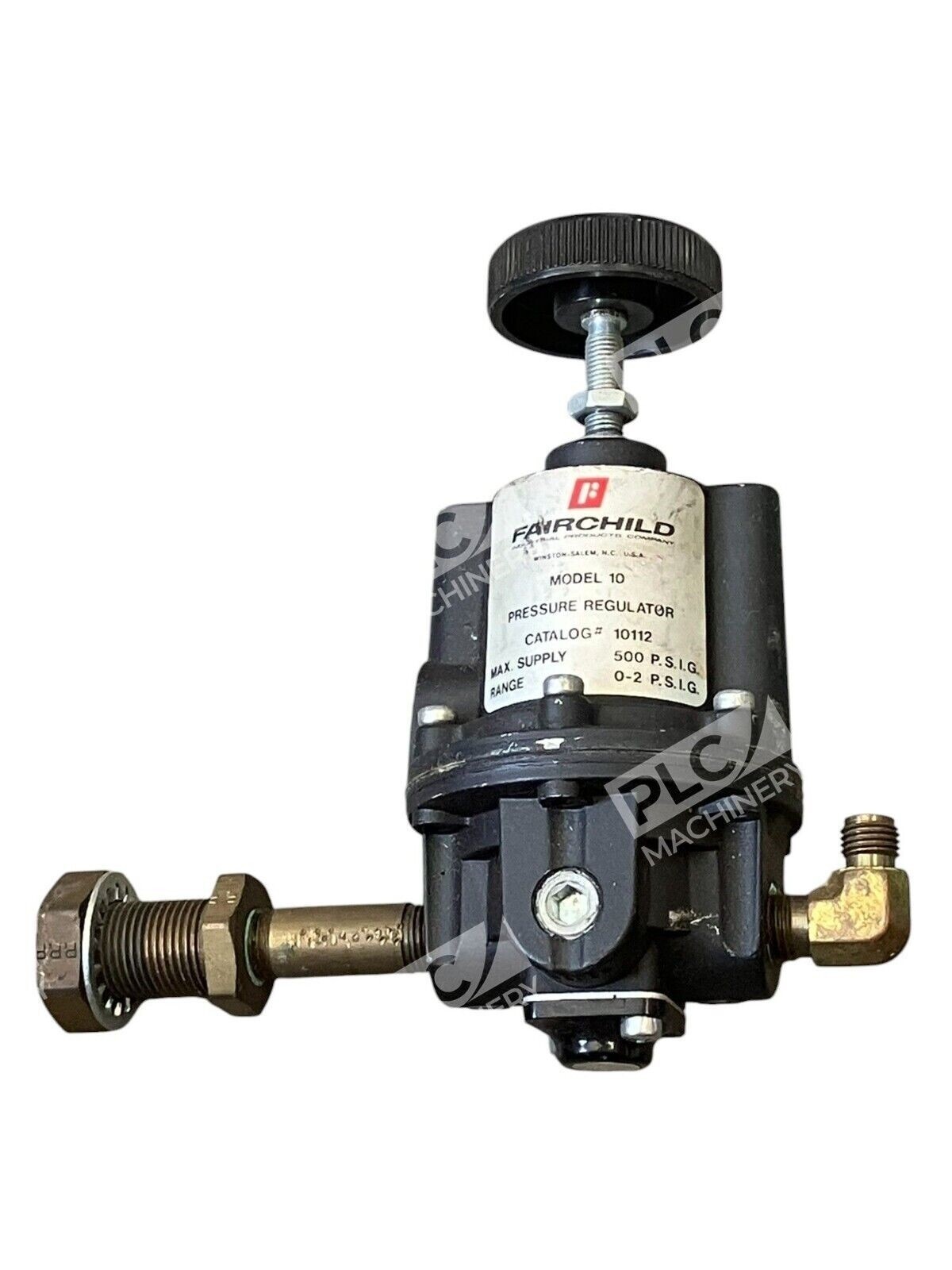

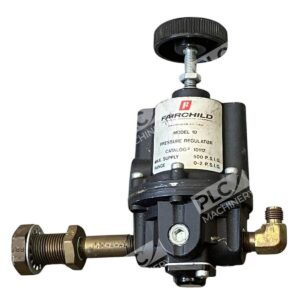

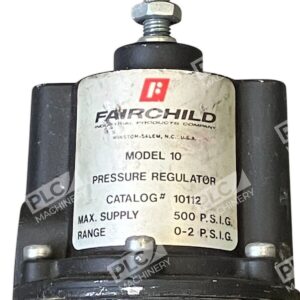

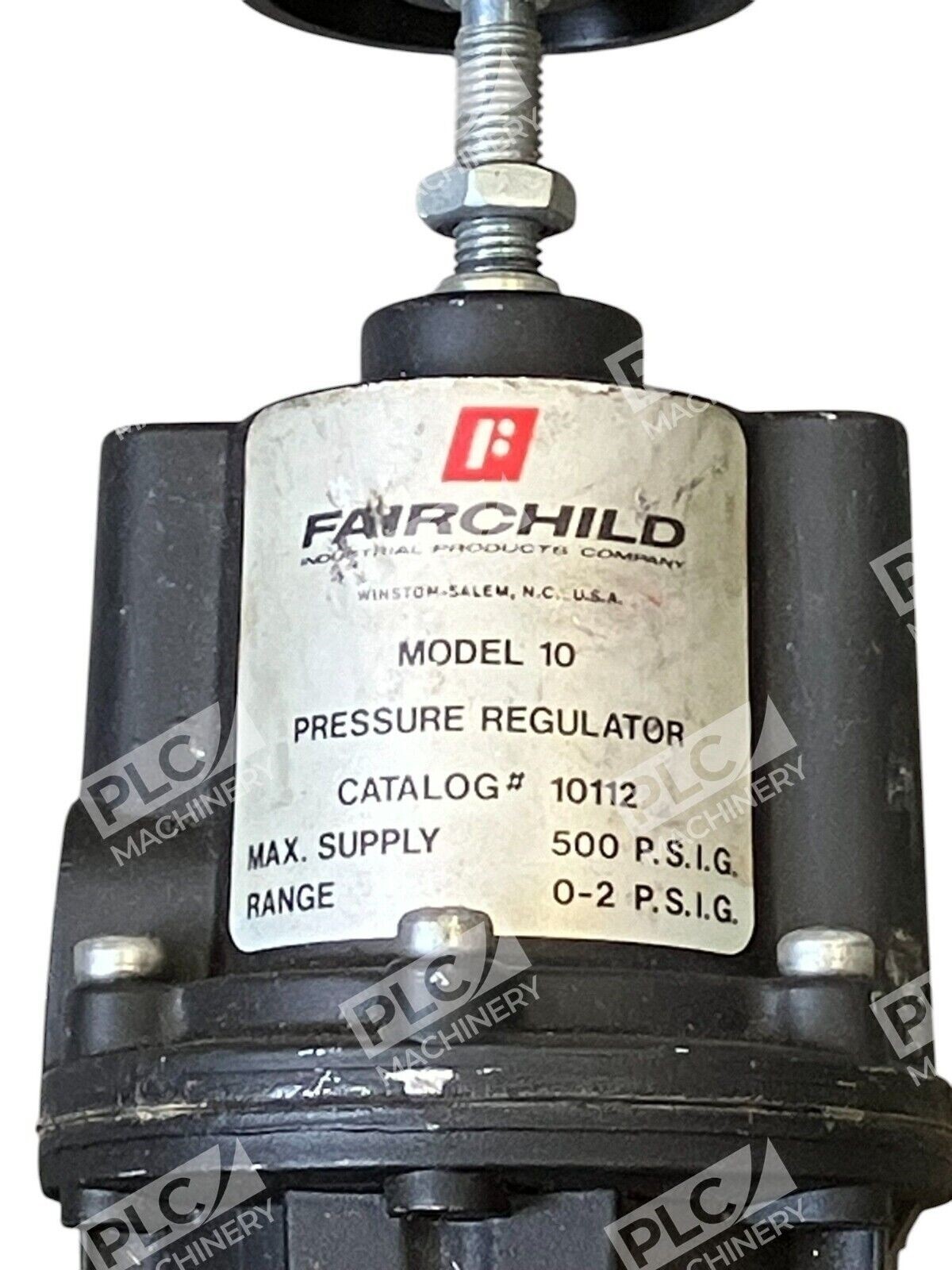

The Fairchild 10112 Model 10 is a precision pressure regulator engineered for pneumatic applications requiring stable, accurate control across varying flow conditions. This regulator uses a balanced supply valve and aspirator tube design to maintain consistent pressure regardless of supply pressure fluctuations or changing system demands. Fairchild 10112 Model 10 regulators are trusted in process control, robotics, machine tools, and OEM manufacturing across oil & gas, pharmaceutical, food processing, and industrial automation sectors.
Key Features
- Precision control sensitivity of 1/8″ water column for stable set point accuracy
- Aspirator tube design maintains regulated pressure under varying flow conditions
- Balanced supply valve for reliable, repeatable performance
- Durable alloy body construction with nitrile elastomer seals
- Nine selectable output pressure ranges from 0–2 psi up to 5–400 psi
- Self-relieving function for safe overpressure protection
- Compact knob-operated adjustment (1-7/8″ O.D.)
Technical Specifications
| Maximum Supply Pressure | 500 psi (34 BAR) |
| Output Pressure Ranges | 0–2 psi / 0–15 psi / 0–30 psi / 0–50 psi / 0–100 psi / 1–50 psi / 2–100 psi / 3–150 psi / 5–400 psi (9 options) |
| Flow Capacity | 40 SCFM (68 m³/hr) |
| Control Sensitivity | 1/8″ water column |
| Port Connection | 1/4″ NPT (inlet, outlet, vent) |
| Relief Function | Self-relieving |
| Body Material | Alloy with nitrile elastomer seals |
| Adjustment | Knob operator, 1-7/8″ O.D. |
| Weight | 0.75 kg (1.65 lbs) |
| Country of Origin | USA |
| Compatible Models | 10212, 10222, 10232, 10242 |
Typical Applications
- Precision process control in manufacturing and automation systems
- Robotics and machine tool pneumatic circuits
- Oil & gas, pharmaceutical, and biomedical equipment
- Food processing and chemical manufacturing
- Tyre manufacturing machinery
- OEM pneumatic control systems requiring accurate set point regulation
Compatibility & Replacements
Compatible With
- Standard pneumatic systems using 1/4″ NPT connections
- All supply pressures up to 500 psi (34 BAR)
- Compressed air applications requiring 0–500 psi inlet capability
- Systems requiring 0–2 psi through 5–400 psi regulated output ranges
- Pneumatic networks in manufacturing, robotics, and process control
Replaces / Drop-In Replacement For
- Other Fairchild Model 10 variants with matching pressure range and port configuration
- Legacy precision pressure regulators in equivalent SCFM capacity class (40 CFM)
Works With
- Pneumatic control valves and solenoid systems
- Pressure gauges and transducers (1/4″ NPT ports)
- Compressed air filtration and drying equipment
- Industrial automation and PLC-controlled pneumatic circuits
- Manual and automated precision process control systems
