Overview

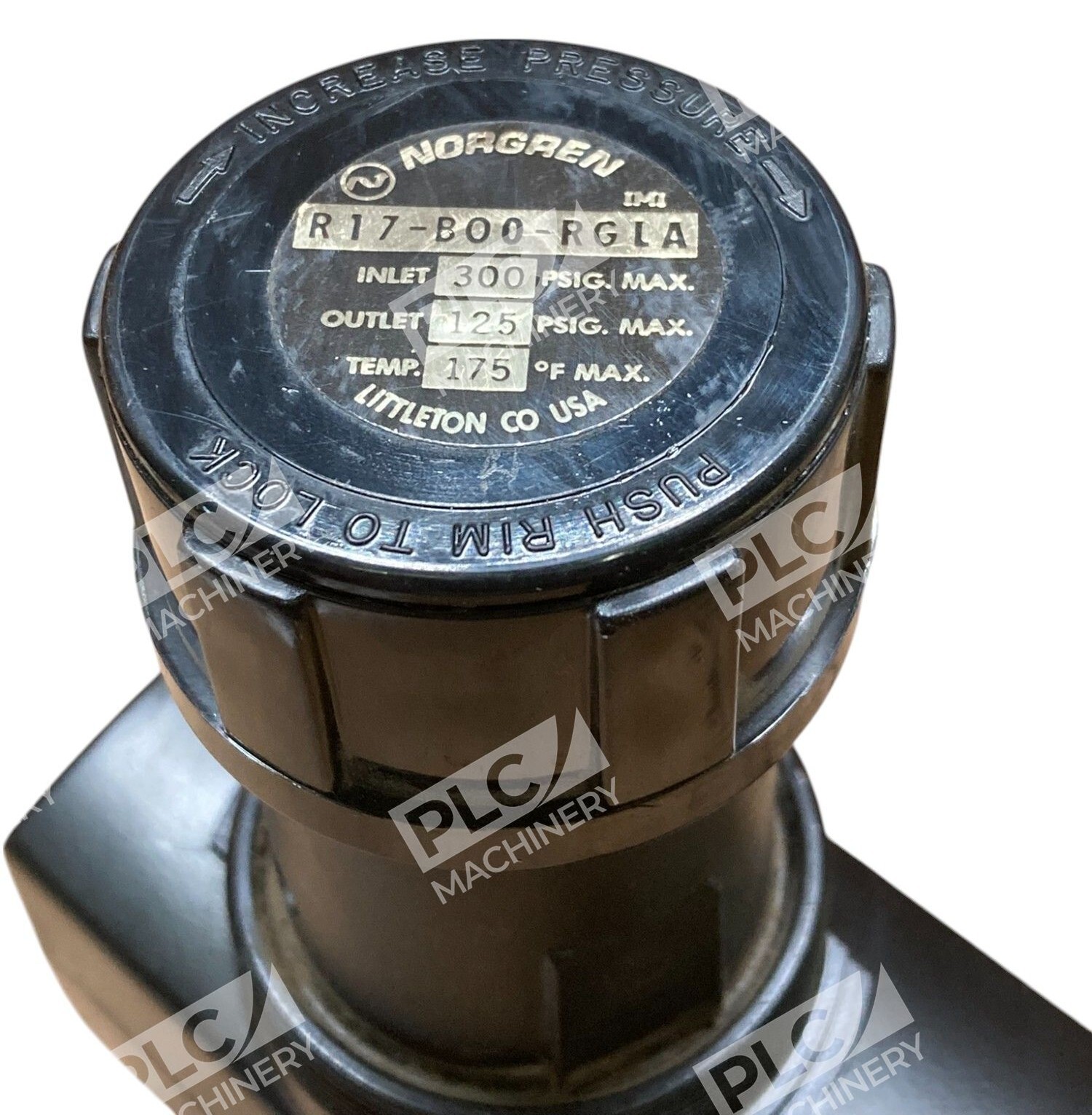

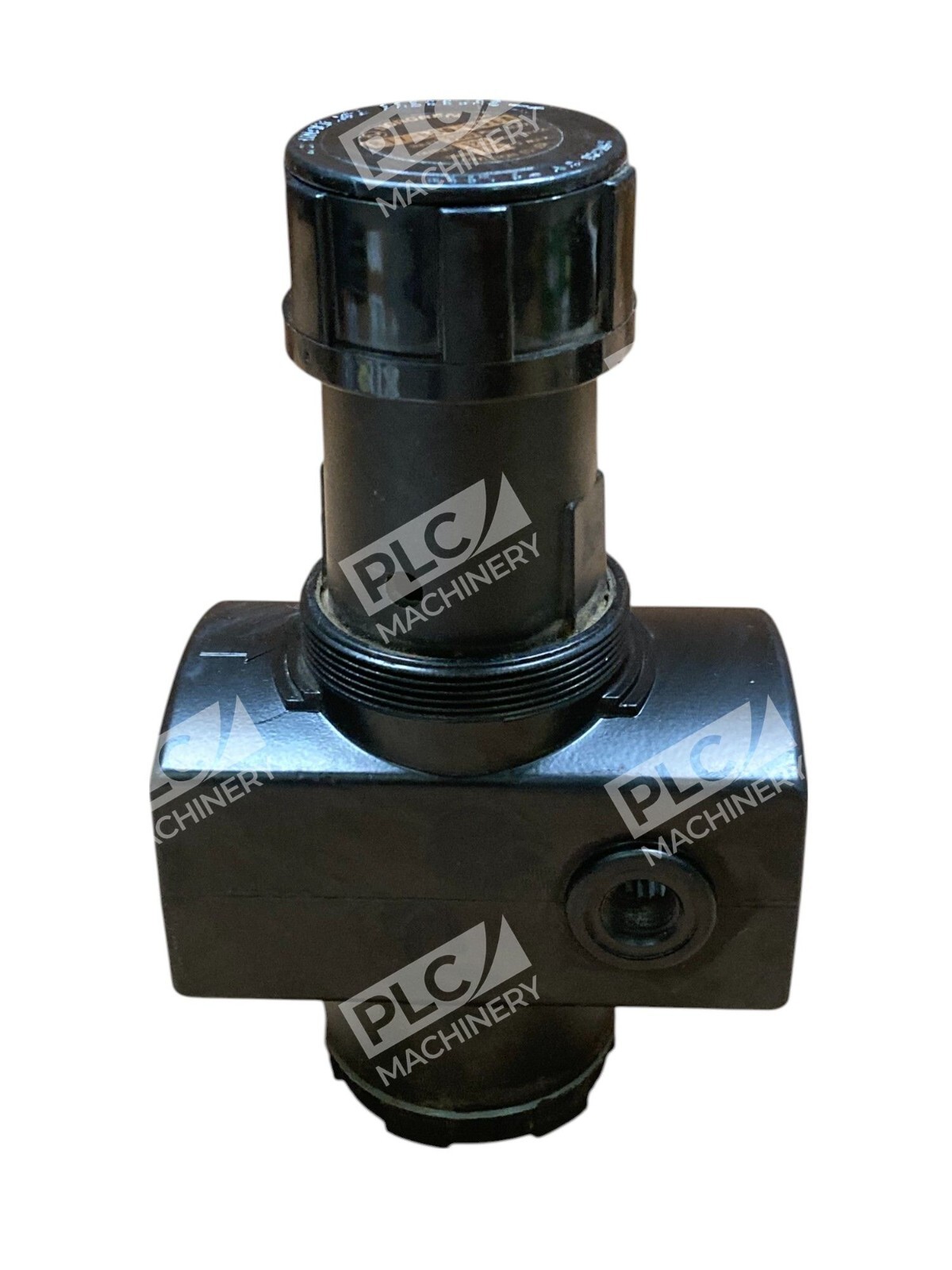

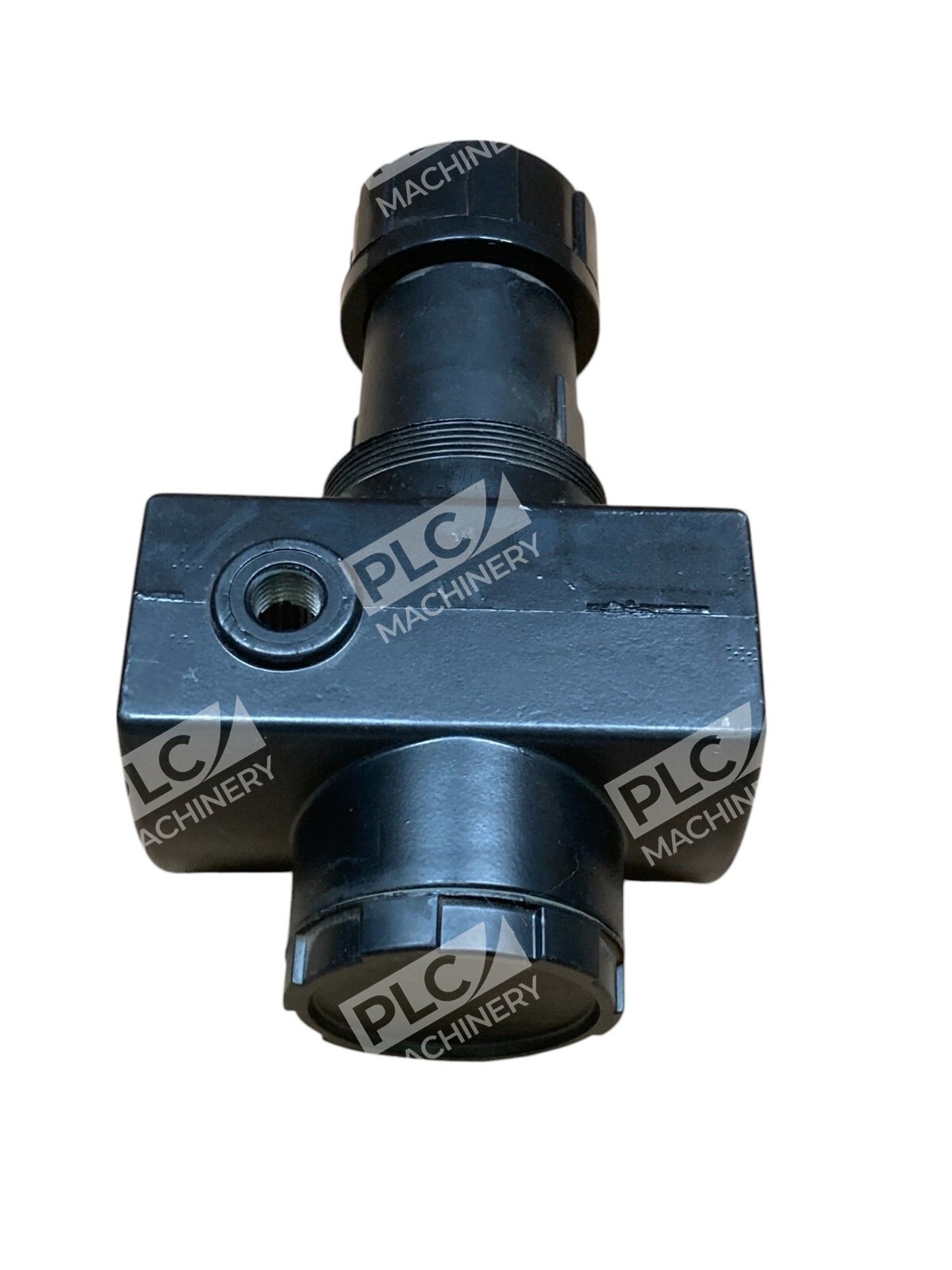

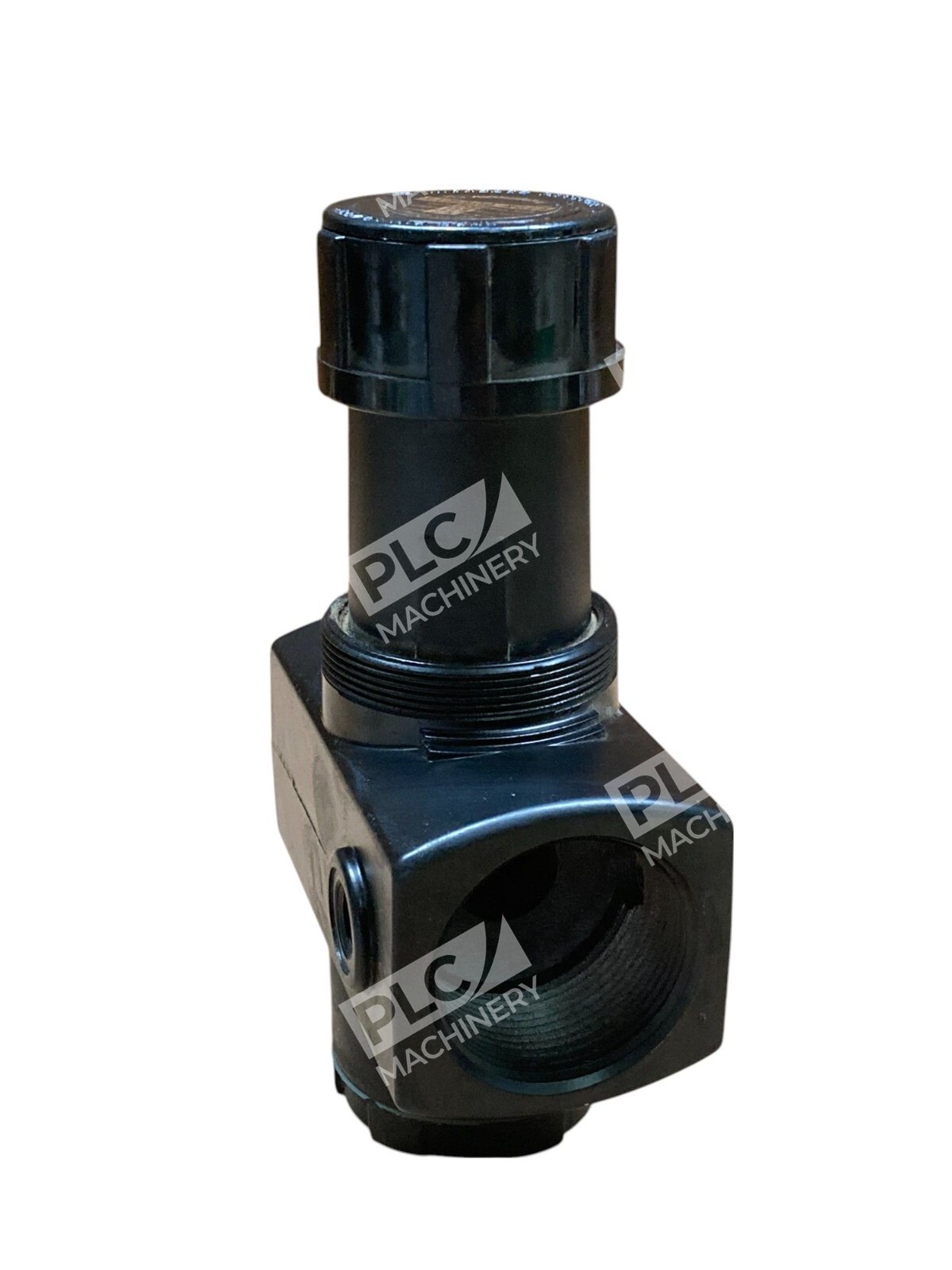

The Norgren R17-B00-RGLA is a heavy-duty air pressure regulator engineered for high-flow industrial and pneumatic applications. This general-purpose regulator delivers precise outlet pressure control from 5 to 125 PSI, making it suitable for manufacturing, automotive, agriculture, and compressed air system installations where reliable pressure stability is essential. The unit’s balanced valve design minimizes pressure variations under fluctuating inlet conditions, ensuring consistent downstream performance.
Key Features
- High-flow design with 440 CFM capacity for demanding applications
- Balanced valve minimizes inlet pressure effects on outlet pressure stability
- Knob adjustment for easy pressure setting and in-line adjustment
- Integrated pressure gauge for real-time outlet pressure monitoring
- Serviceable without removal from the air line—integral service valves reduce downtime
- Quick response to changes in flow demand and line pressure variations
Technical Specifications
The R17-B00-RGLA features a maximum operating pressure of 300 psi with 1-1/2″ PTF (pipe thread female) ports. Its outlet pressure range is adjustable from 5 to 125 PSI, with an integrated analog gauge for pressure indication. Flow capacity reaches 440 CFM under standard conditions, making it ideal for high-demand air systems. The regulator is constructed for heavy-duty service in harsh industrial environments.
Typical Applications
- Manufacturing and assembly line pneumatic systems
- Automotive shop air systems and tool operation
- Agricultural equipment pneumatic controls
- Industrial compressed air distribution networks
- High-flow air-powered machinery and equipment
- Pressure-sensitive process applications requiring stable outlet control
Compatibility & Replacements
Compatible With
- Standard 1-1/2″ NPT compressed air line systems
- ISO 4401-05 ported manifold blocks (with adapter)
- Pneumatic control systems requiring 5–125 PSI regulation
- Industrial and commercial air compressor networks
Replaces / Drop-In Replacement For
- Norgren R17-B00-RNLA (same size, without integrated gauge)
- Legacy high-flow general-purpose regulators in similar size class
Works With
- Pneumatic valves, actuators, and cylinders rated for 5–125 PSI
- Standard air distribution piping and hose (1-1/2″ NPT compatible)
- Air filtration, lubrication, and drying systems (FRL combinations)
- SCFM-rated pneumatic tools and control circuits
