Overview

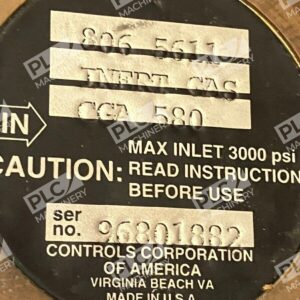

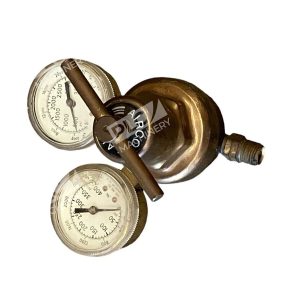

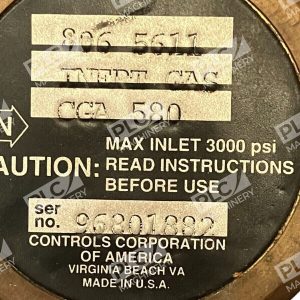

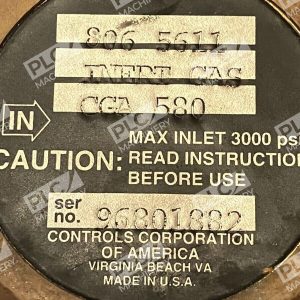

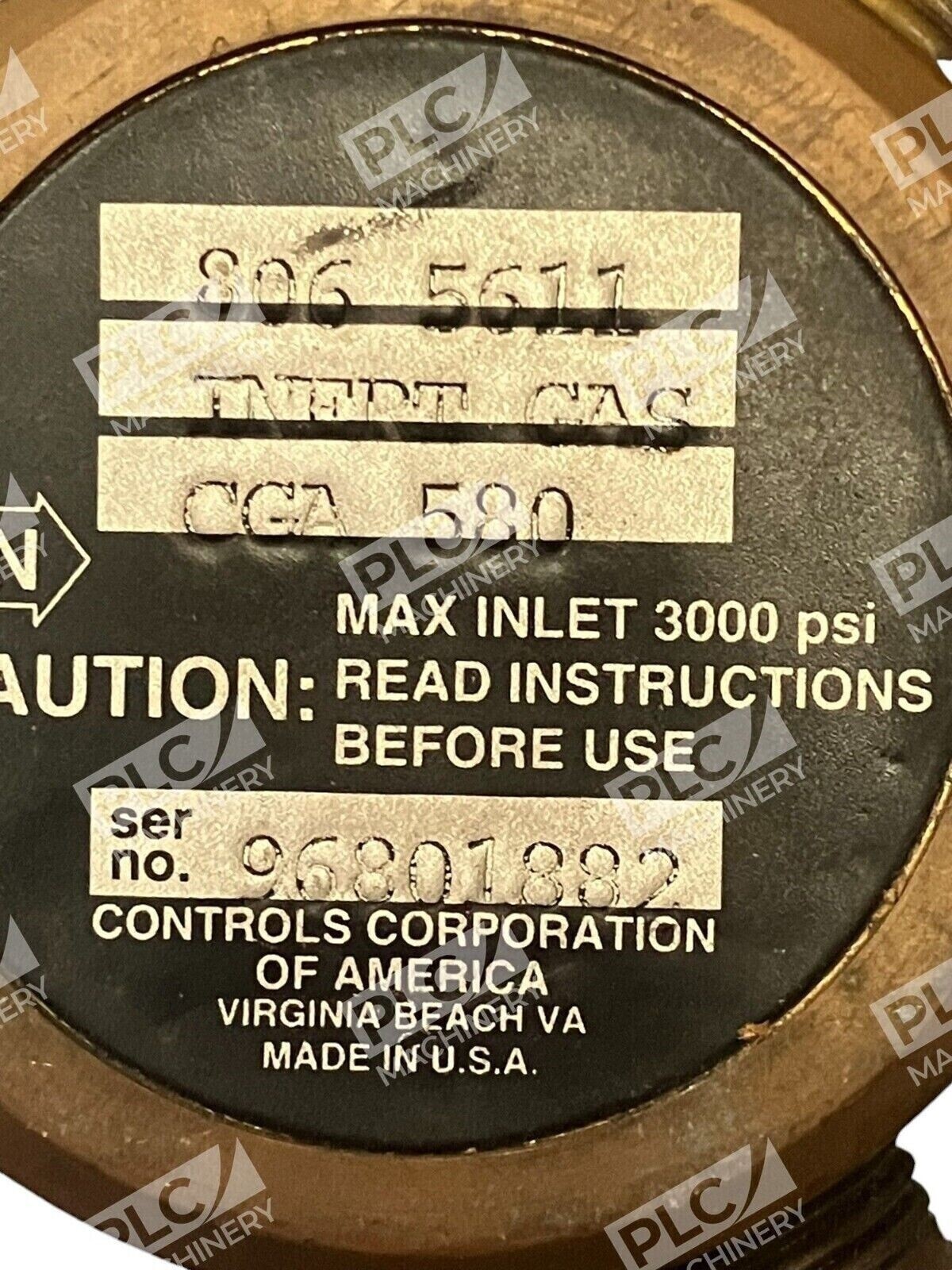

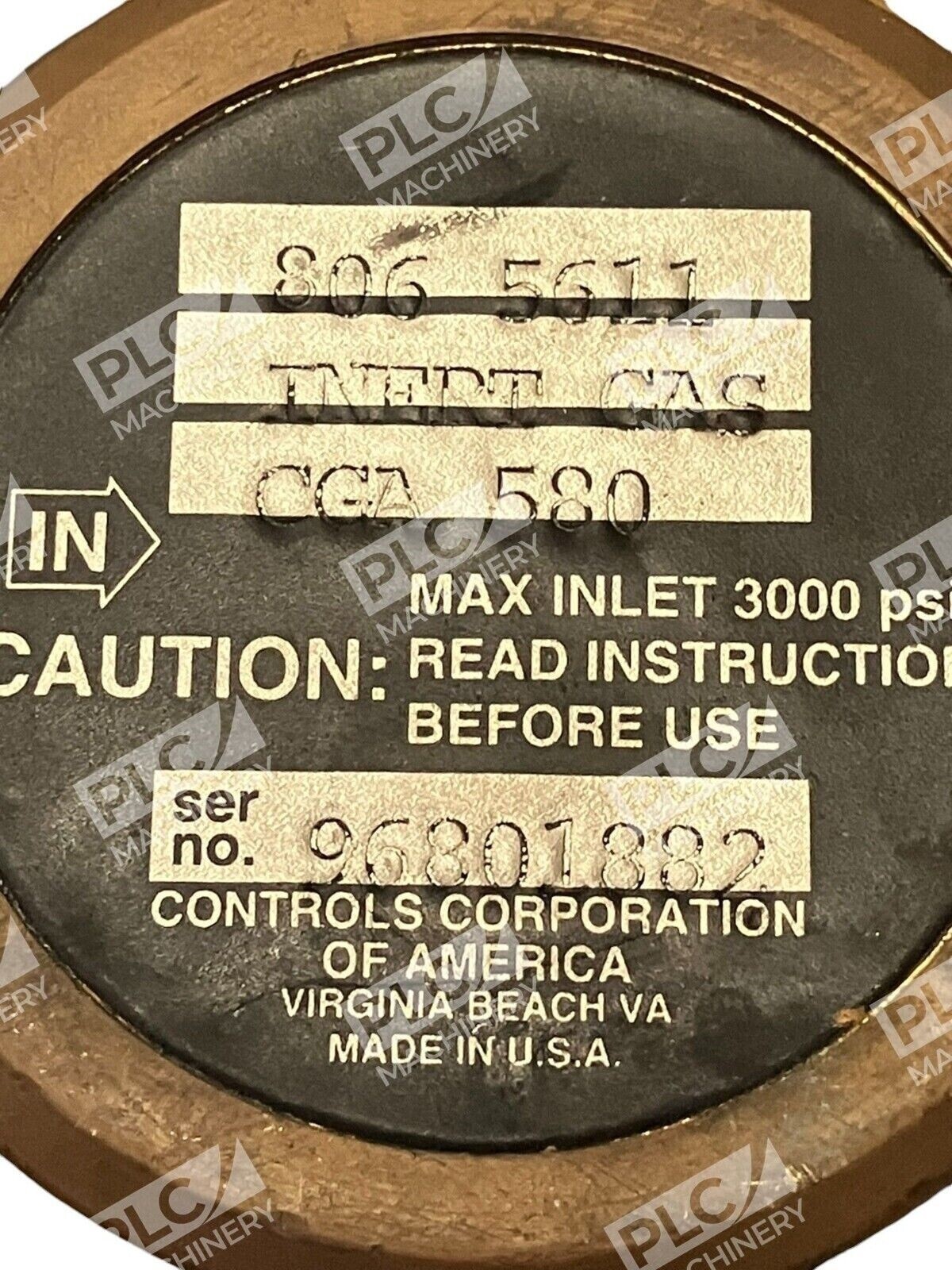

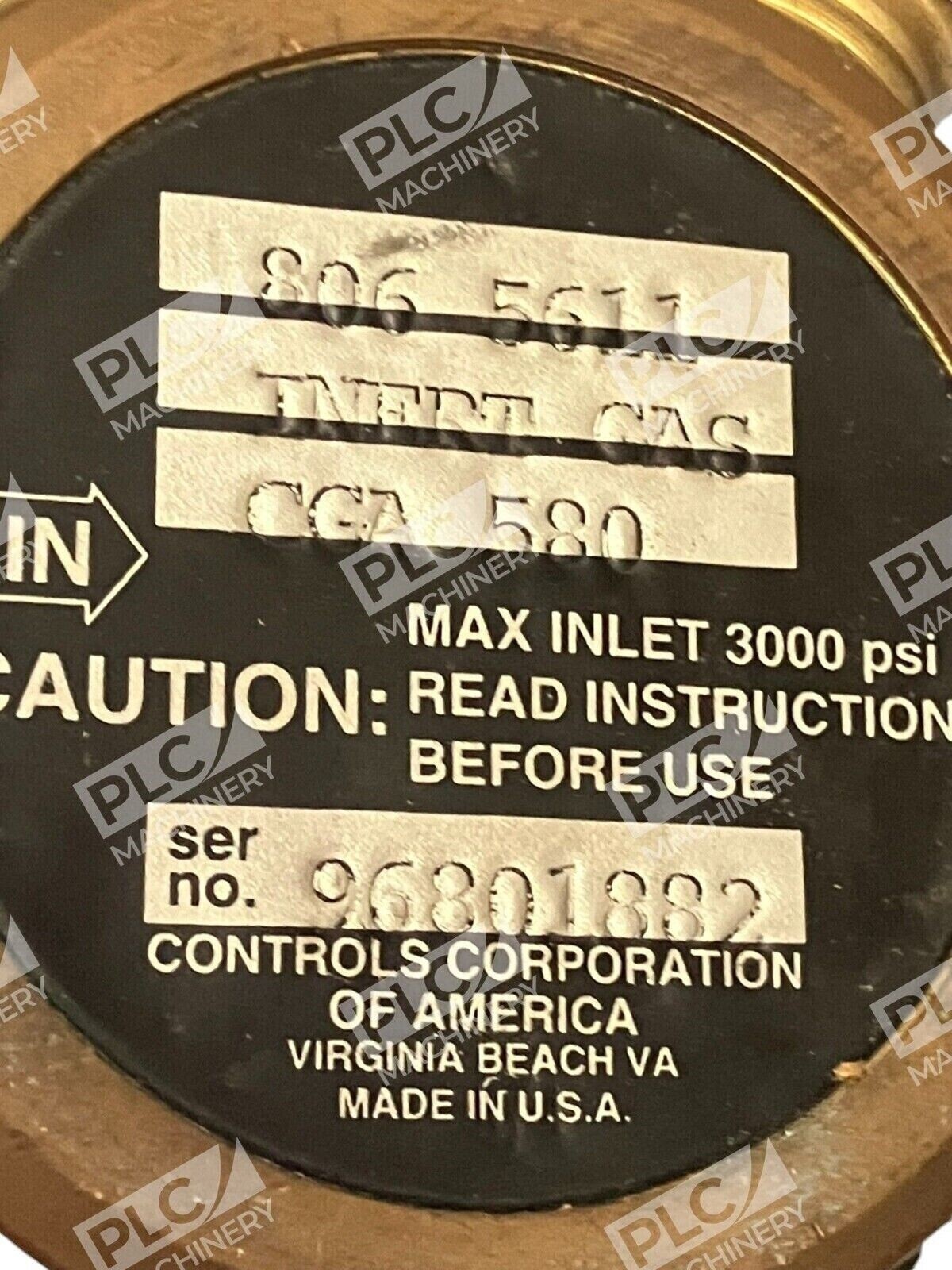

The CONCOA 806 5611 is a rugged, single-stage cylinder pressure regulator with CGA 580 inlet connection for inert gas service. This regulator is ideal for welding, heating, cutting, and laboratory applications where precise pressure control is essential. The CONCOA 806 5611 delivers consistent performance across a wide pressure range, making it suitable for both industrial and specialty gas operations.
Key Features
- CGA 580 inlet connection—standard for nitrogen, argon, and helium cylinders
- Output pressure range 30–200 PSIG for controlled gas delivery
- Inlet pressure rated to 4000 PSIG maximum
- Brass construction for durability and corrosion resistance
- Single-stage design for straightforward, maintenance-friendly operation
- Compact form factor fits standard cylinder mounting hardware
Technical Specifications
- Inlet Connection: CGA 580
- Output Pressure Range: 30–200 PSIG (2–14 BAR)
- Maximum Inlet Pressure: 4000 PSIG (276 BAR)
- Gas Service: Inert gases (Nitrogen, Argon, Helium)
- Construction Material: Brass
- Regulator Type: Single-stage cylinder regulator
- Outlet Connection: 5/8–18″ “B” RH Internal (standard)
Typical Applications
- Welding and cutting operations requiring inert gas shielding
- Laboratory and research gas delivery systems
- Heating and brazing processes
- Industrial manufacturing requiring nitrogen or argon pressure control
- Backup or replacement regulator in multi-station gas systems
Compatibility & Replacements
Compatible With
- Cylinder valve outlets fitted with CGA 580 connection (nitrogen, argon, helium)
- Standard 5/8–18″ “B” RH internal outlet gas lines and manifolds
- Welding torches and pressure reduction systems rated for 4000 PSIG inlet
- Laboratory gas distribution networks using inert gas
Replaces / Drop-In Replacement For
- Other CONCOA 800-series single-stage regulators with matching CGA 580 inlet and similar pressure range
- Verify specific model compatibility with your distributor or system integrator before ordering
Works With
- CGA 580 cylinder valve fittings
- Compressed cylinder regulators for nitrogen, argon, helium
- Industrial gas delivery and control systems
- Standard laboratory and welding equipment platforms
