Overview

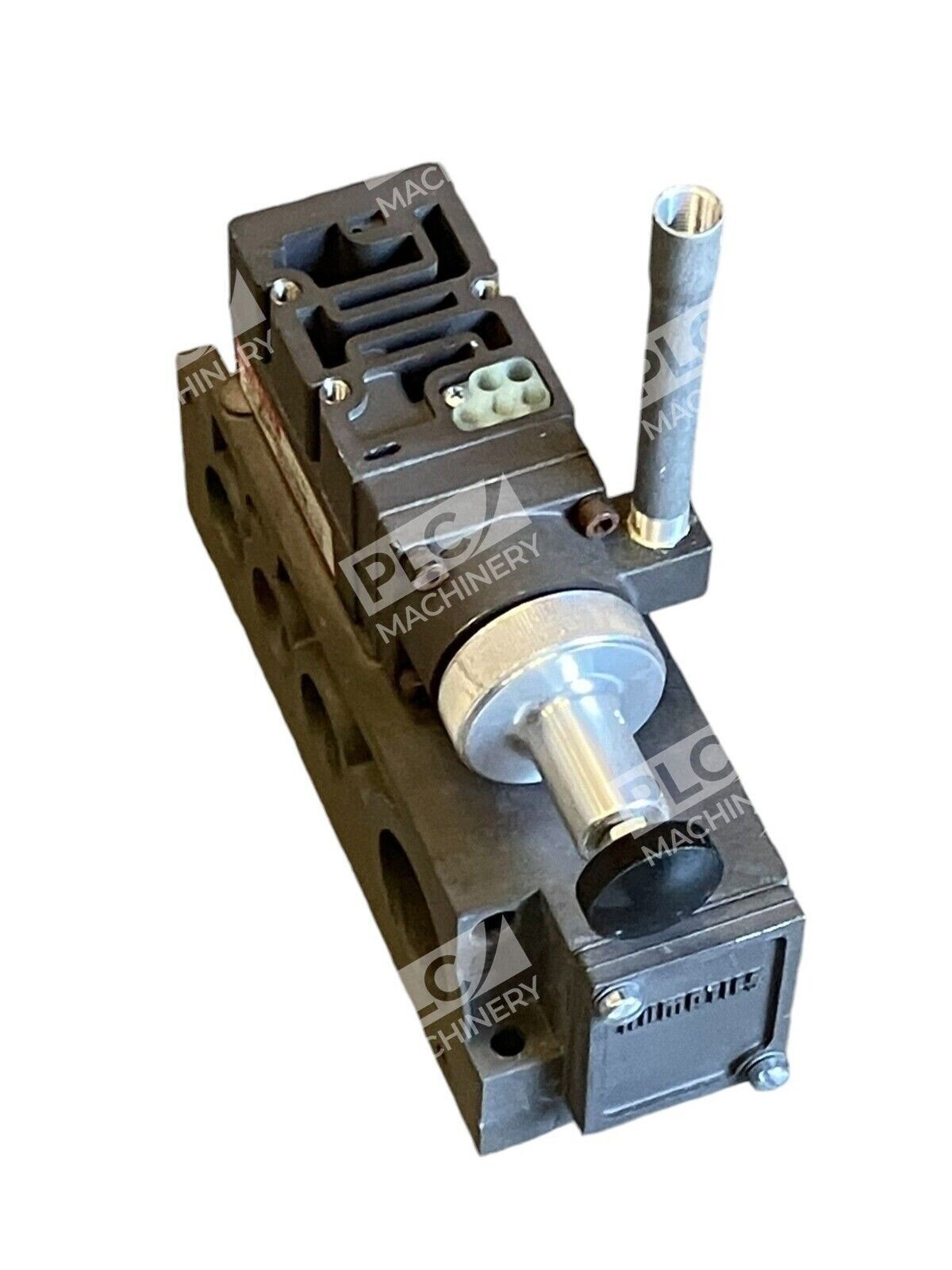

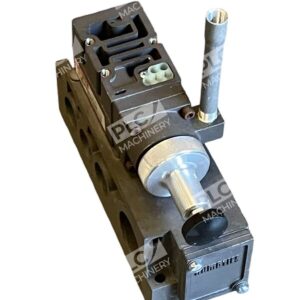

The Numatics 152RS100J016Y00 pneumatic pressure regulator is a precision control valve designed for reliable pressure regulation in compressed air systems. This regulator assembly delivers stable, repeatable pressure output across a wide operating range, making it ideal for factory automation, process control, and general pneumatic applications.
Key Features
- Pressure range: 10–130 PSIG (0.7–9 bar)
- Port size: 1/8″ NPTF (National Pipe Taper Fuel)
- Compact sandwich-style design for manifold or base mounting
- Gauge port for direct pressure monitoring
- Stable pilot pressure control with low hysteresis
- Durable internal components rated for continuous duty
Technical Specifications
The regulator operates within a nominal pressure band of 10–130 PSIG and is built to handle typical industrial pneumatic flow rates. Its sandwich-style construction allows integration into manifold assemblies or direct base mounting. Numatics regulators in this series feature internal pilot drainage, allowing flexible plumbing configurations.
Typical Applications
The Numatics 152RS100J016Y00 is commonly used in:
- Automated packaging and assembly machinery
- Pneumatic actuator control systems
- Industrial air tool supply systems
- Process automation and sequencing circuits
- Air brake and safety control systems
Compatibility & Replacements
Compatible With
- ISO 1219-1 compliant pneumatic systems
- Standard pneumatic manifold bases and sandwich blocks
- Compressed air networks operating at 10–130 PSIG
- Industrial pneumatic control circuits with 1/8″ NPTF ports
Replaces / Drop-In Replacement For
The 152RS100J016Y00 is part of the Numatics 152RS series and may serve as a direct replacement for other 152RS100J models with identical port configurations. Verify exact model compatibility with your system integrator or Numatics technical support before ordering to ensure port size and gauge options match your installation.
Works With
- ASCO Numatics Mark 15 and Mark 8 series valves
- Standard pneumatic FRL (Filter-Regulator-Lubricator) assemblies
- ISO 5211 directional control valves
- Pneumatic cylinders and air motors with 1/8″ port size
- Industrial PLC-based pneumatic control systems
