Overview

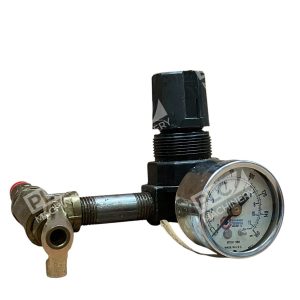

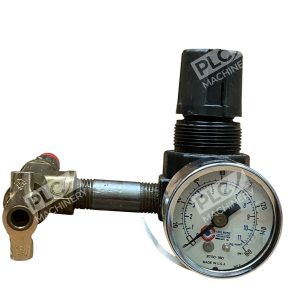

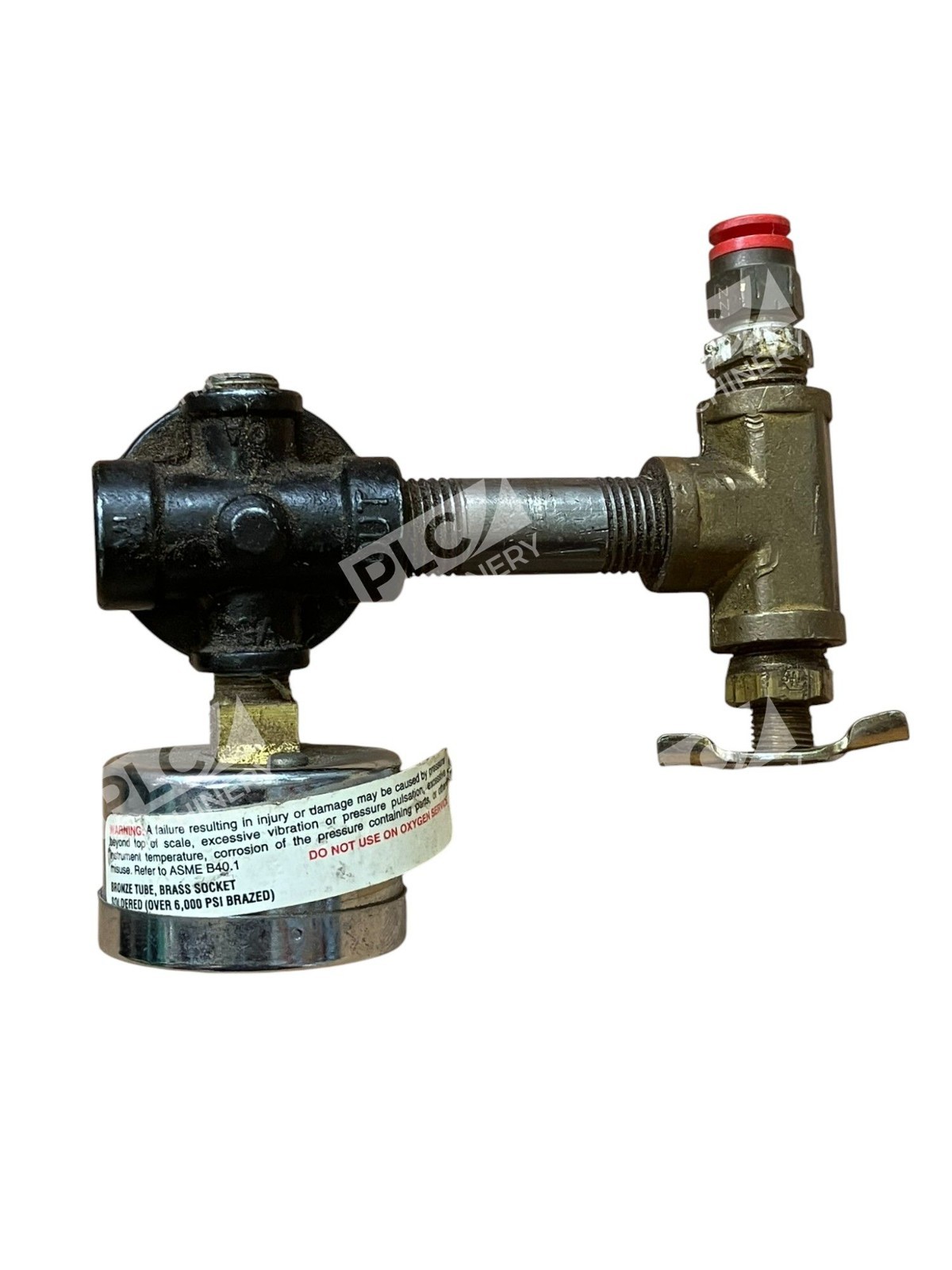

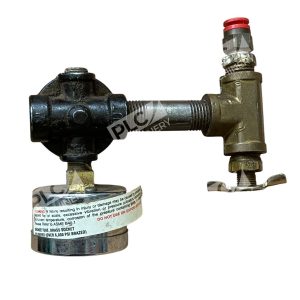

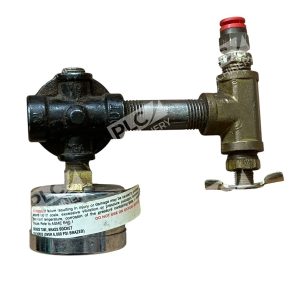

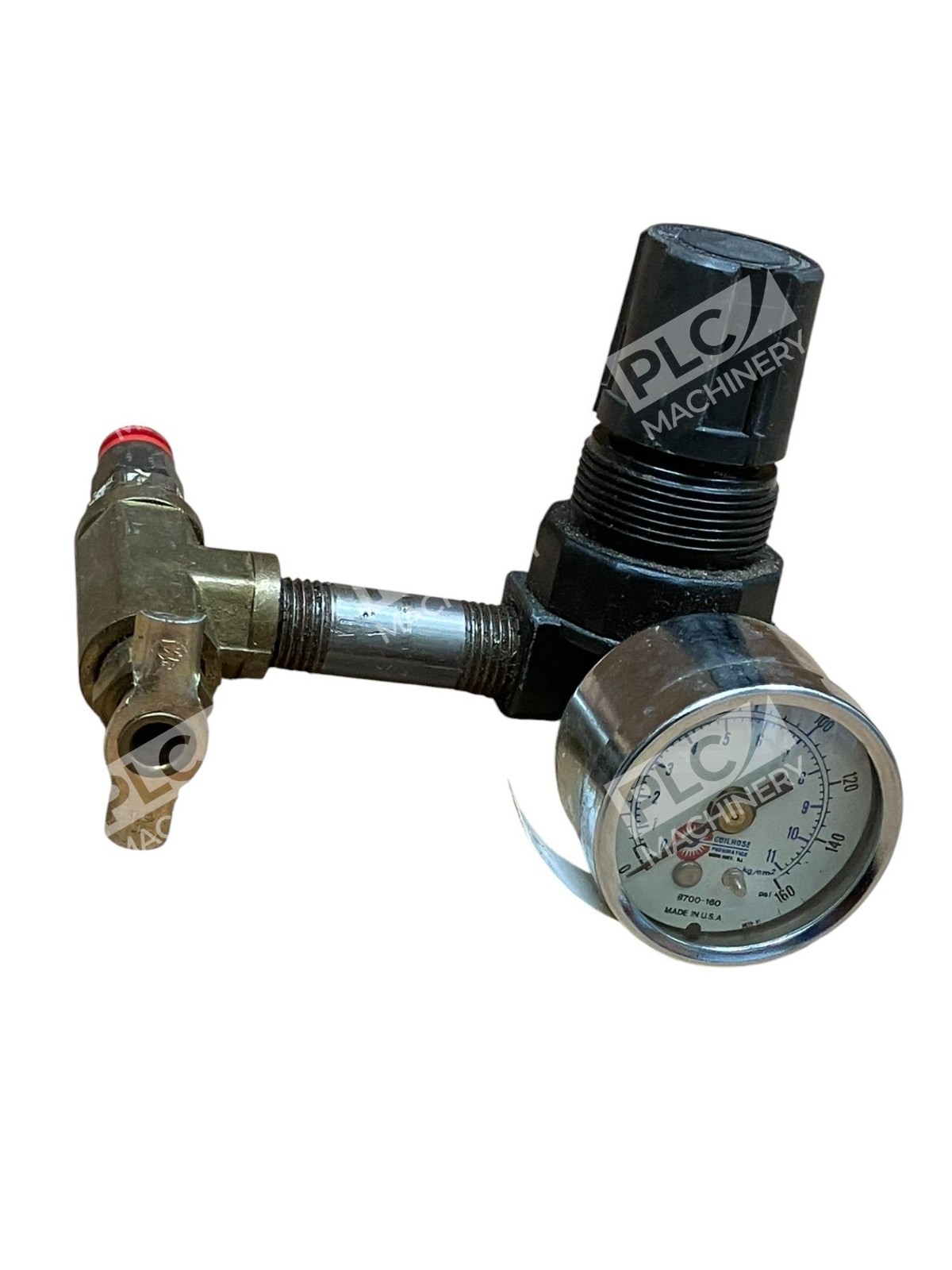

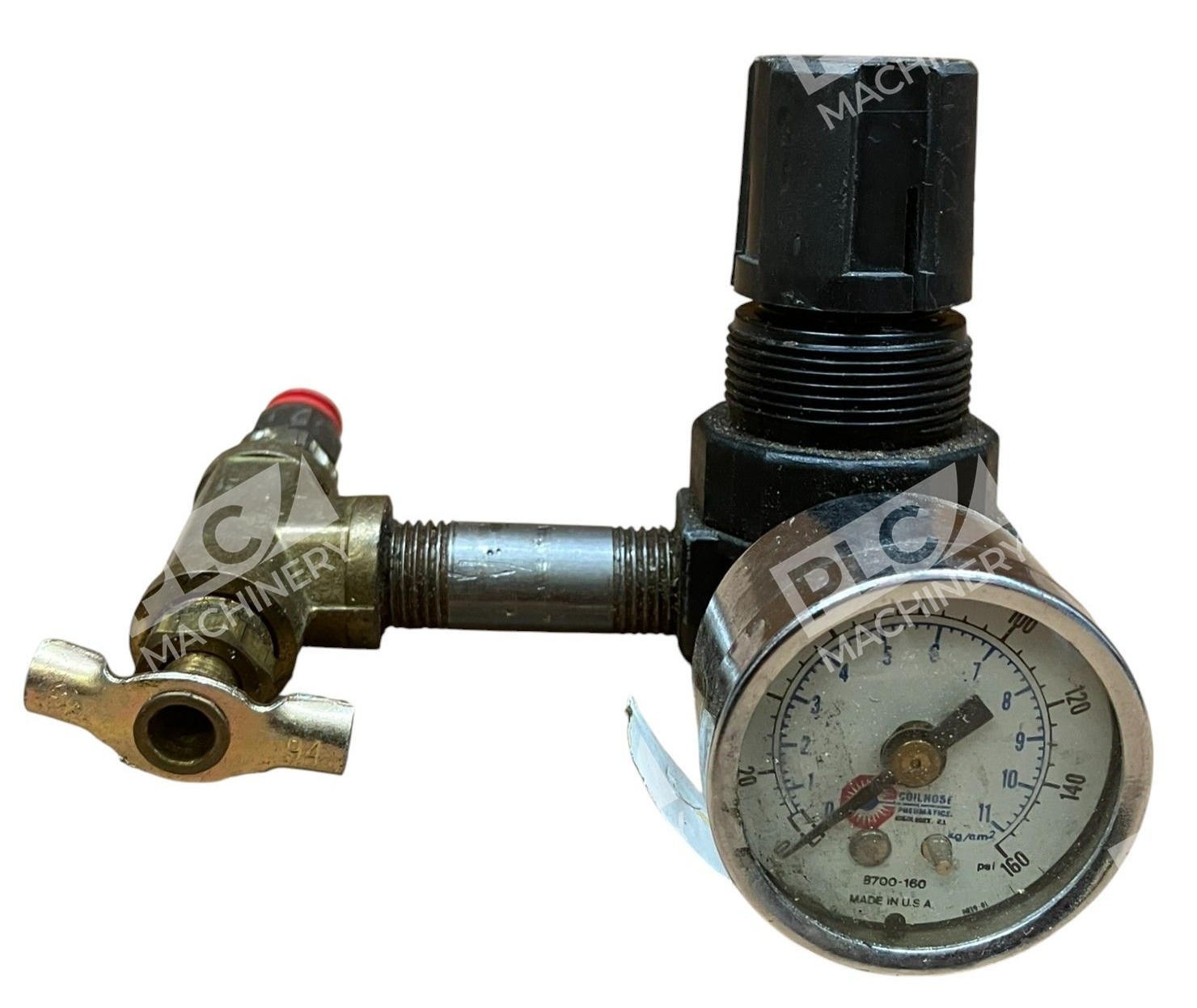

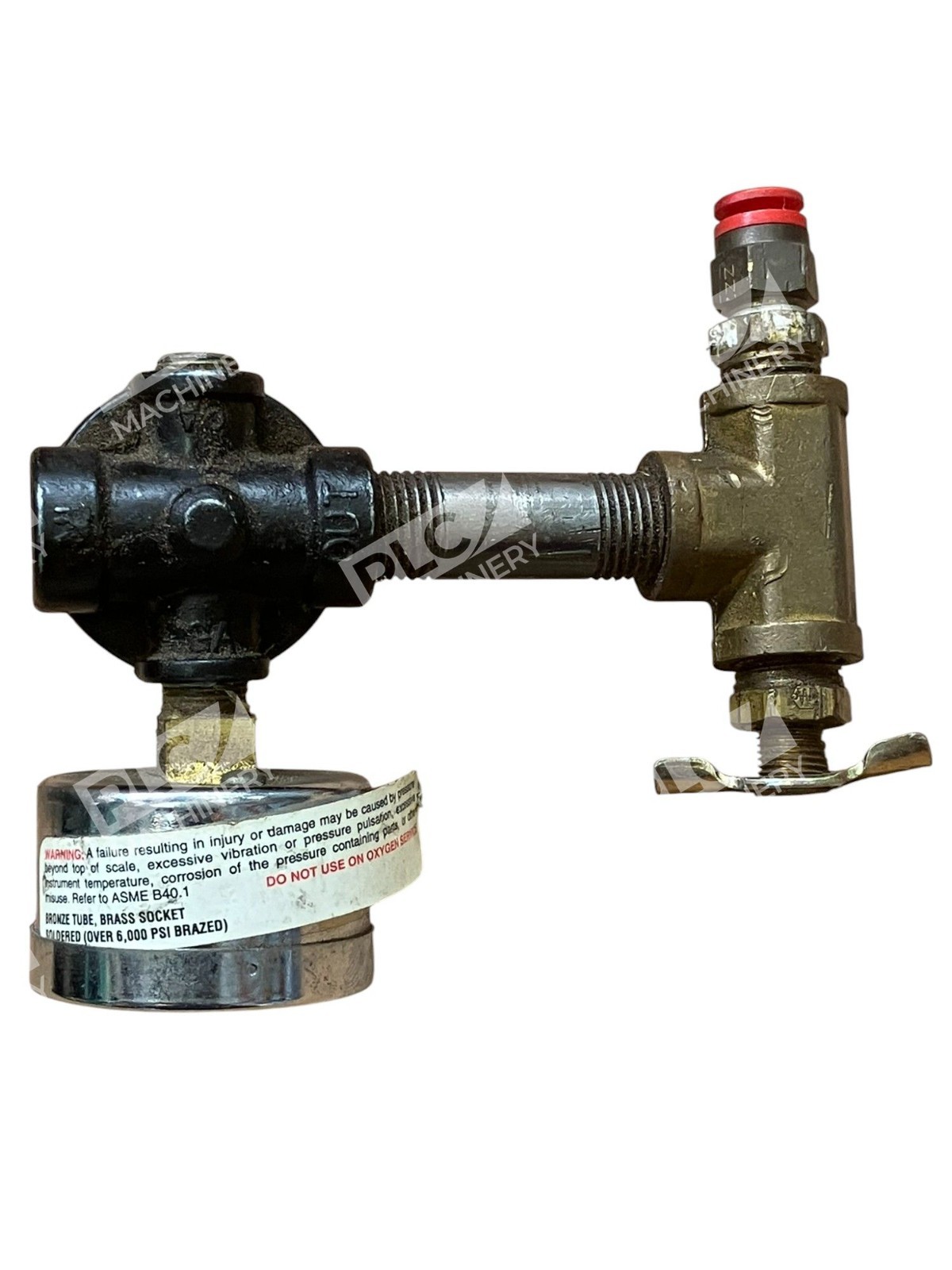

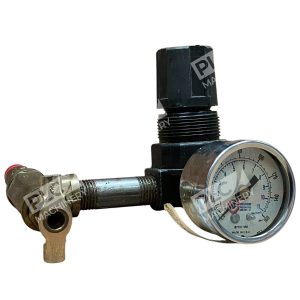

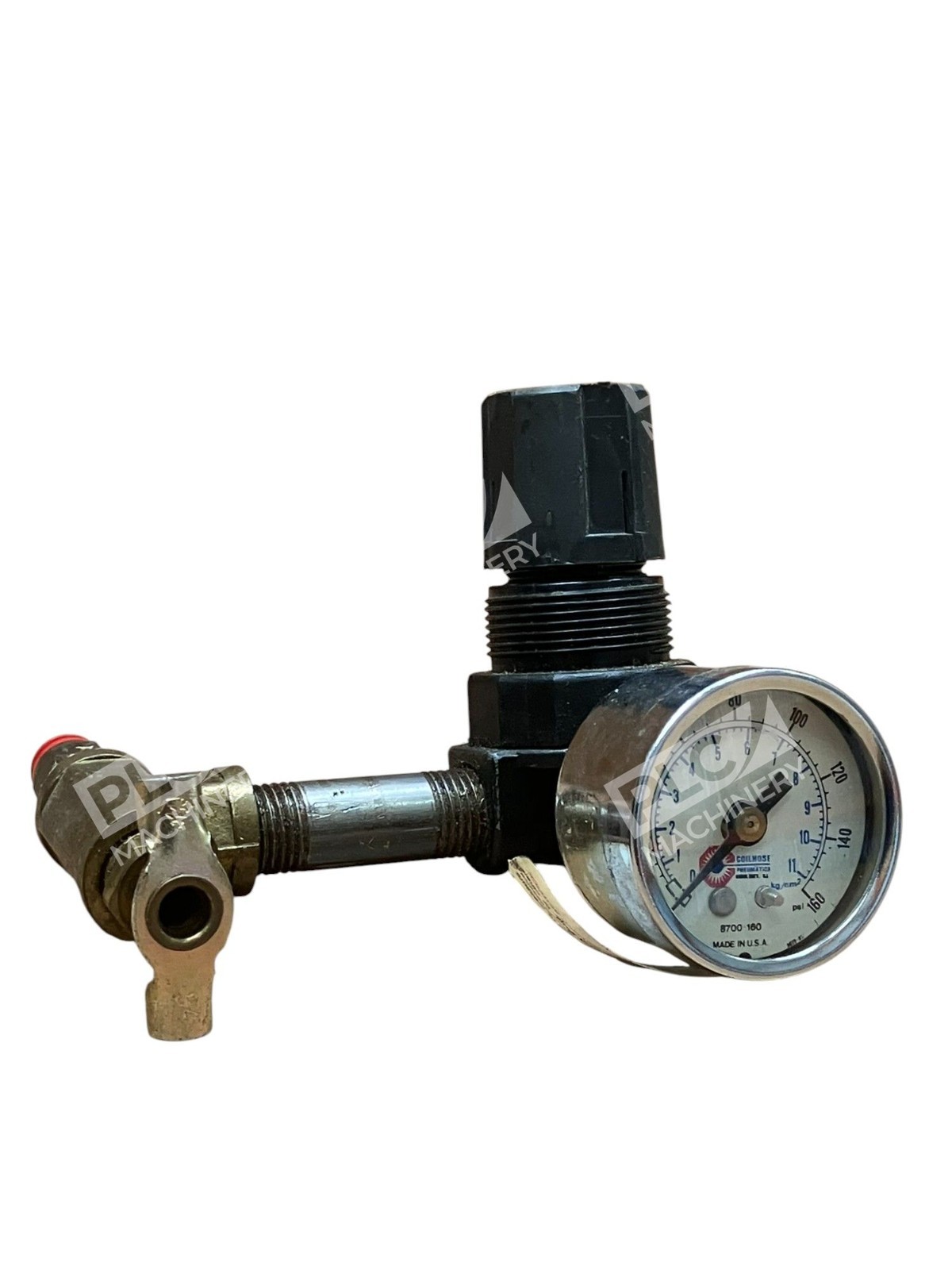

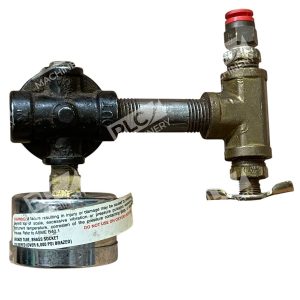

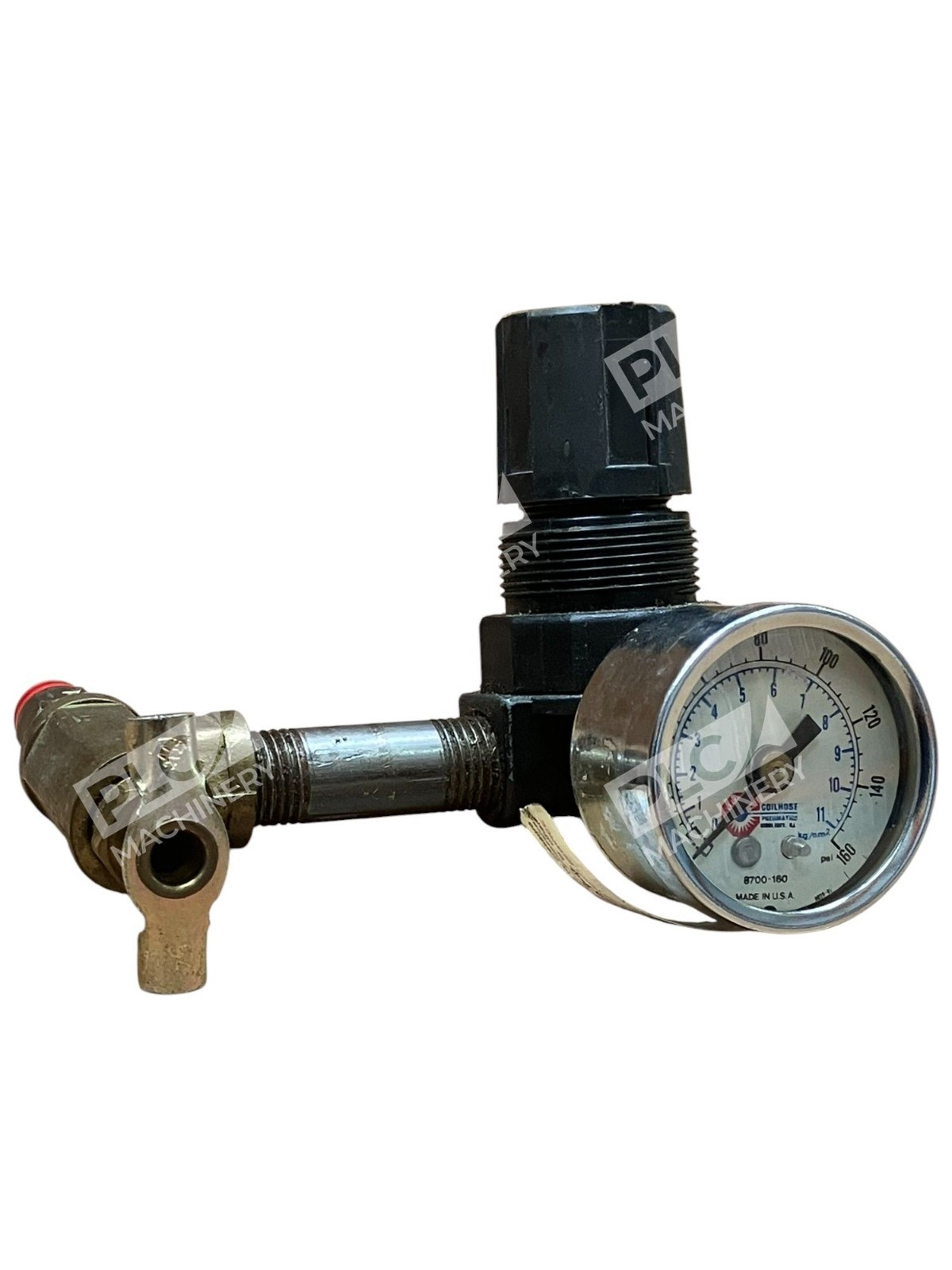

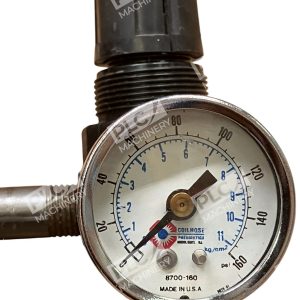

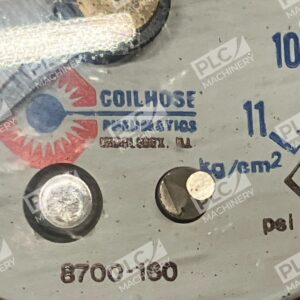

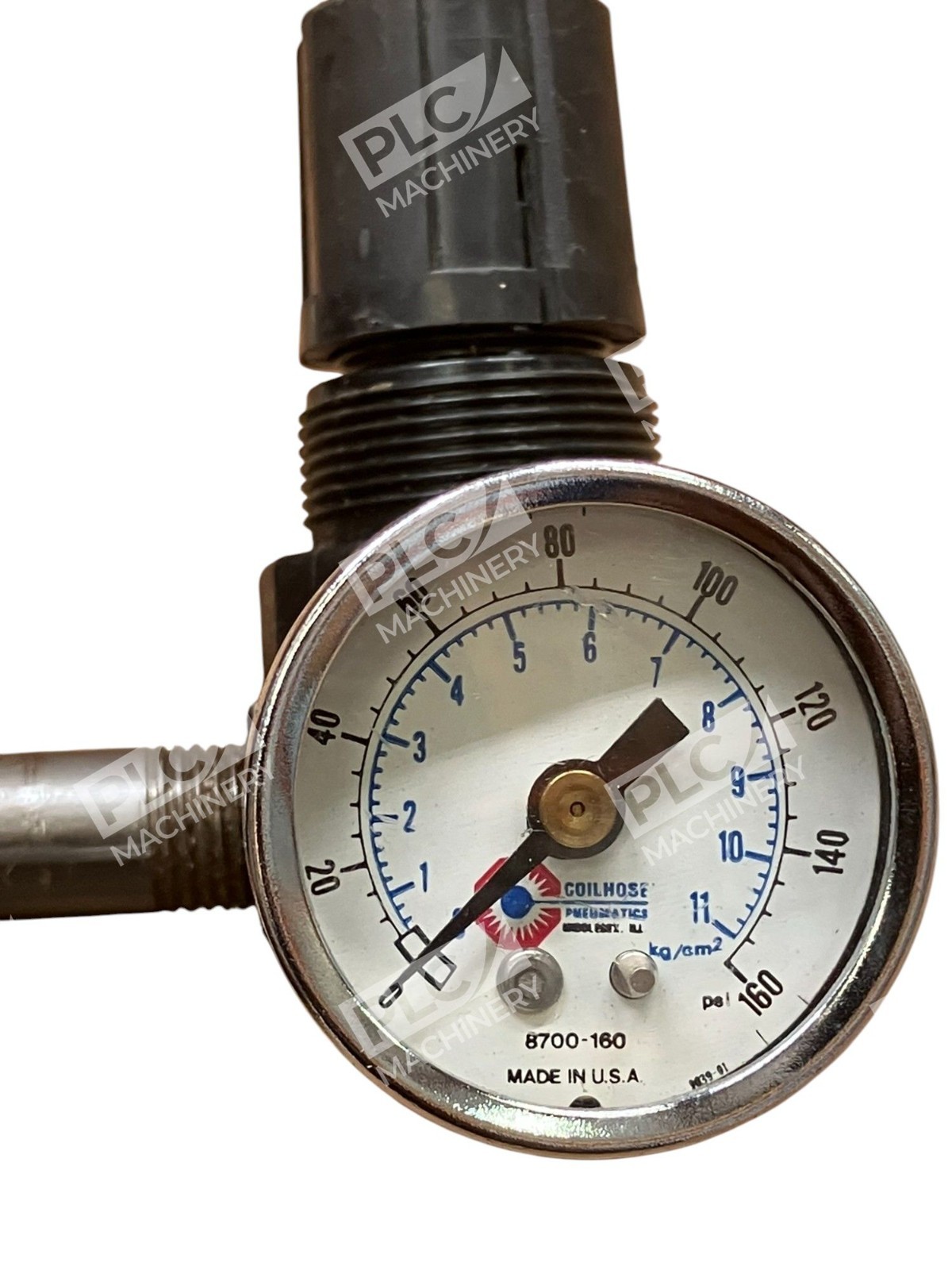

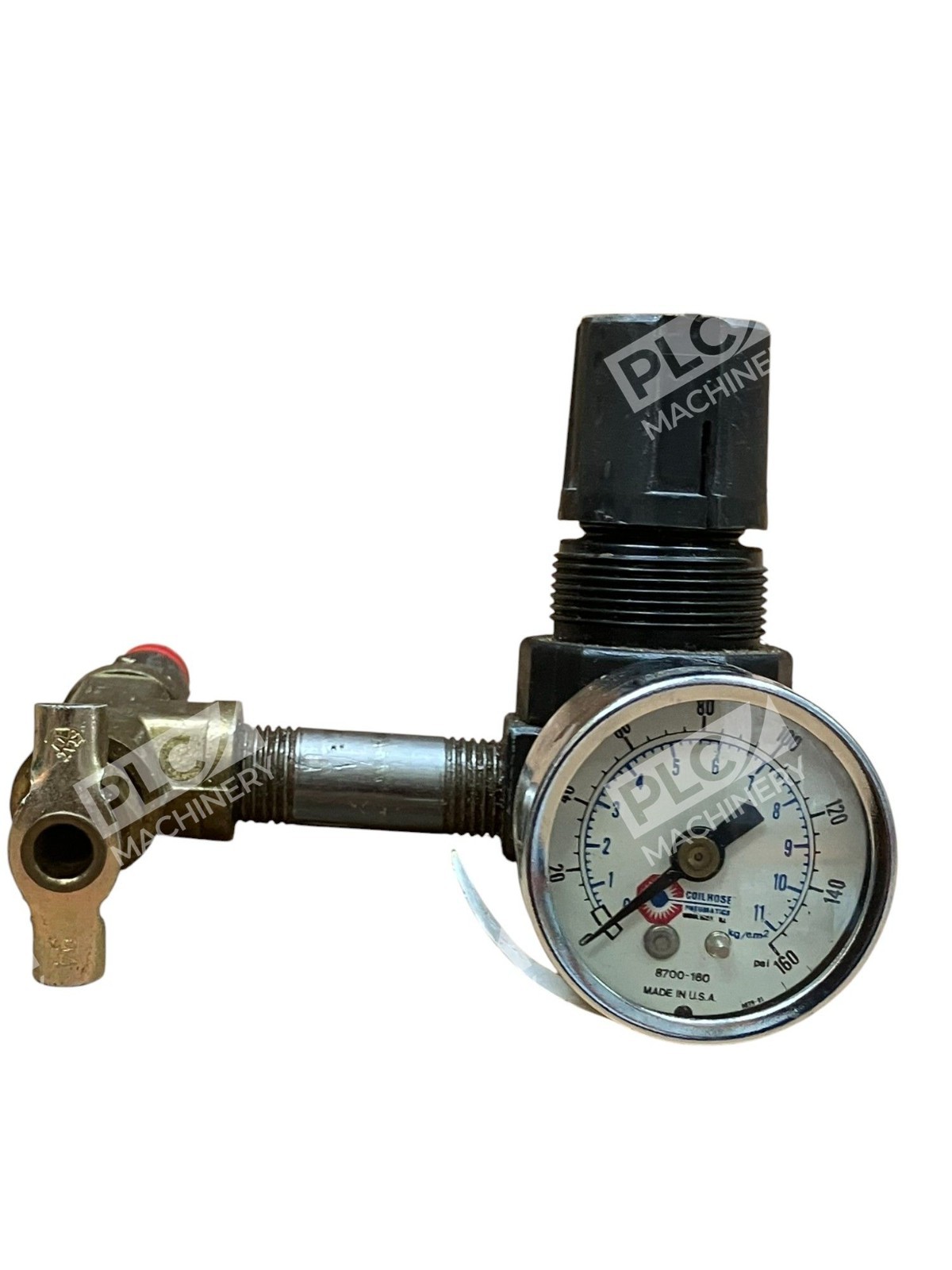

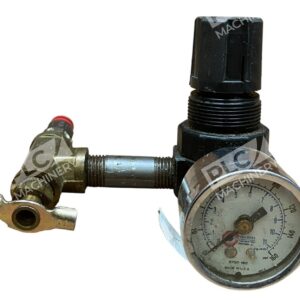

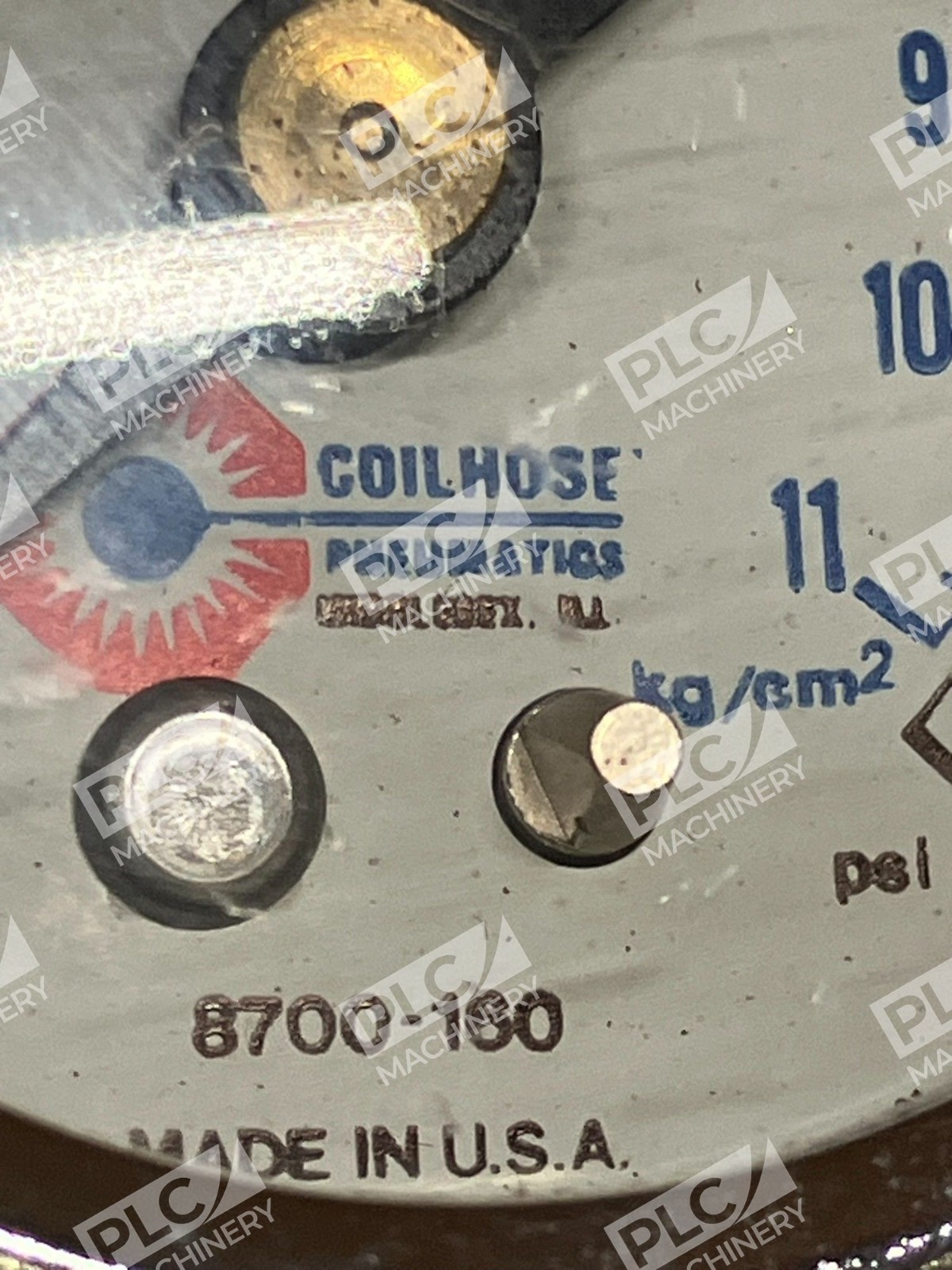

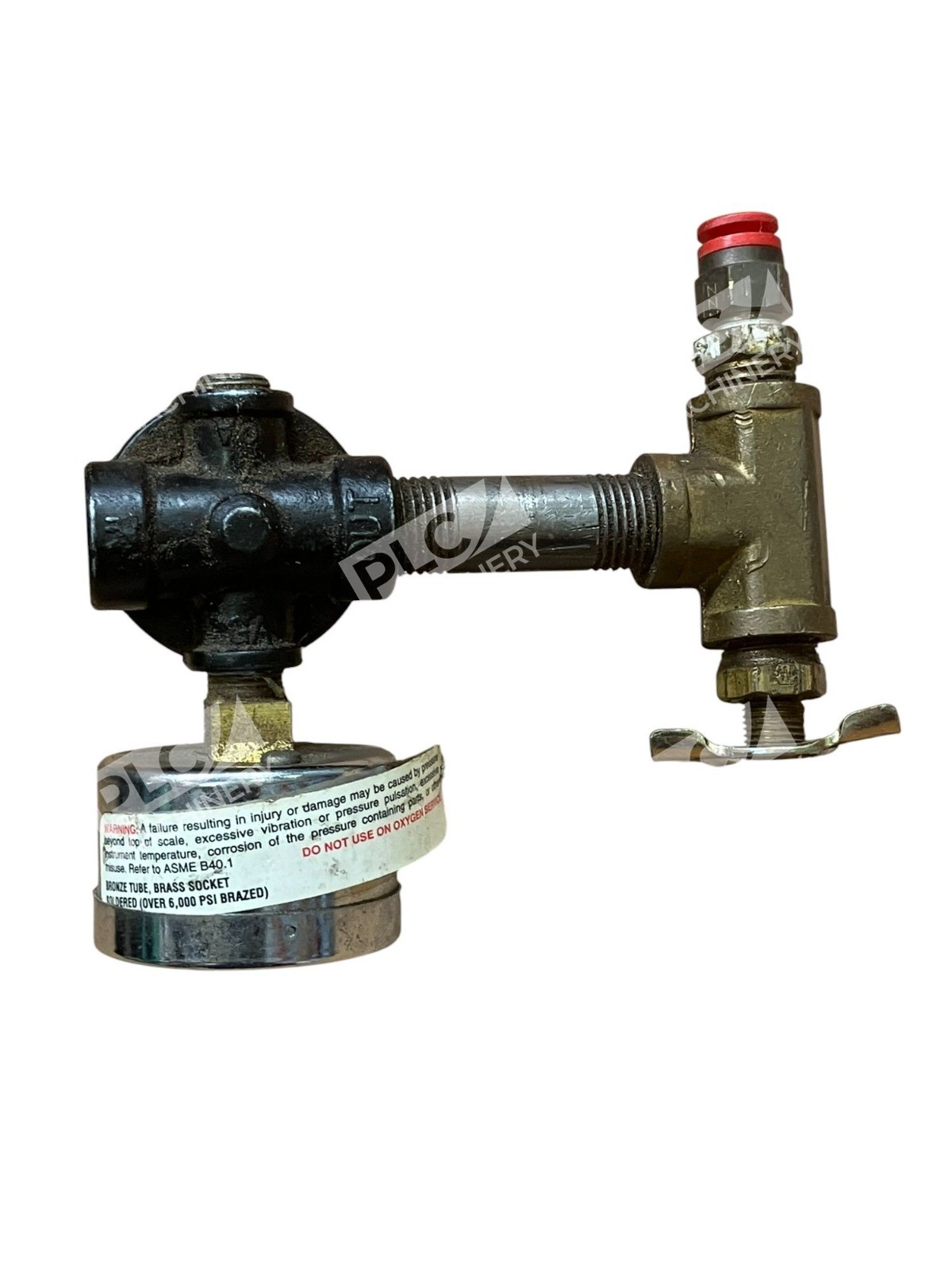

The Coilhose 8700-160 is a dependable analog dry pressure gauge for pneumatic and compressed air systems. Built to industrial standards, this gauge provides clear, real-time pressure readings across a 0–160 PSI range, making it essential for system monitoring, troubleshooting, and safety compliance in factories, workshops, and equipment installations.
Key Features
- 0–160 PSI measuring range for mid-to-high pressure applications
- 1-1/2″ dial diameter for easy reading from a distance
- 1/8″ NPT center back mount connection for standard industrial fittings
- Dry-type design with glass lens and chrome-plated case—no liquid dampening fluid
- ±3-2-3% accuracy class—ideal for process control and equipment protection
- Durable construction suitable for plant floors, compressors, and mobile equipment
Technical Specifications
- Pressure Range: 0–160 PSI
- Connection Type: 1/8″ NPT, center back mount
- Dial Size: 1-1/2″ diameter
- Case Material: Chrome-plated steel
- Lens Material: Glass
- Gauge Type: Dry-type analog round
- Accuracy: ±3-2-3%
- Dimensions: 1.85 × 1.85 × 1.85 inches
- Weight: 0.158 lbs
- Manufacturer: Coilhose Pneumatics
- Part Number: 8700-160
Typical Applications
- Compressed air system monitoring and pressure verification
- Pneumatic tool and equipment pressure checks
- Industrial plant compressor discharge and line pressure measurement
- Regulator outlet monitoring
- Pressure switch and safety valve testing and commissioning
- Mobile and portable air equipment pressure displays
Compatibility & Replacements
Compatible With
- Standard 1/8″ NPT pneumatic ports and manifolds
- Coilhose regulators, couplers, and fittings
- Industrial compressed air systems up to 160 PSI
- Plant air piping and hose assemblies
- Pneumatic tool circuits and portable compressors
Replaces / Drop-In Replacement For
- Other 0–160 PSI analog dry gauges with 1/8″ NPT back mount and similar dial size
- Legacy gauge installations requiring 1-1/2″ dial and center back mounting
Works With
- Coilhose Pneumatics product line (regulators, couplers, blow guns, air hoses)
- Standard compressed air treatment systems
- Manual and automated pressure monitoring setups
- Pneumatic control circuits and pilot-operated systems
