Overview

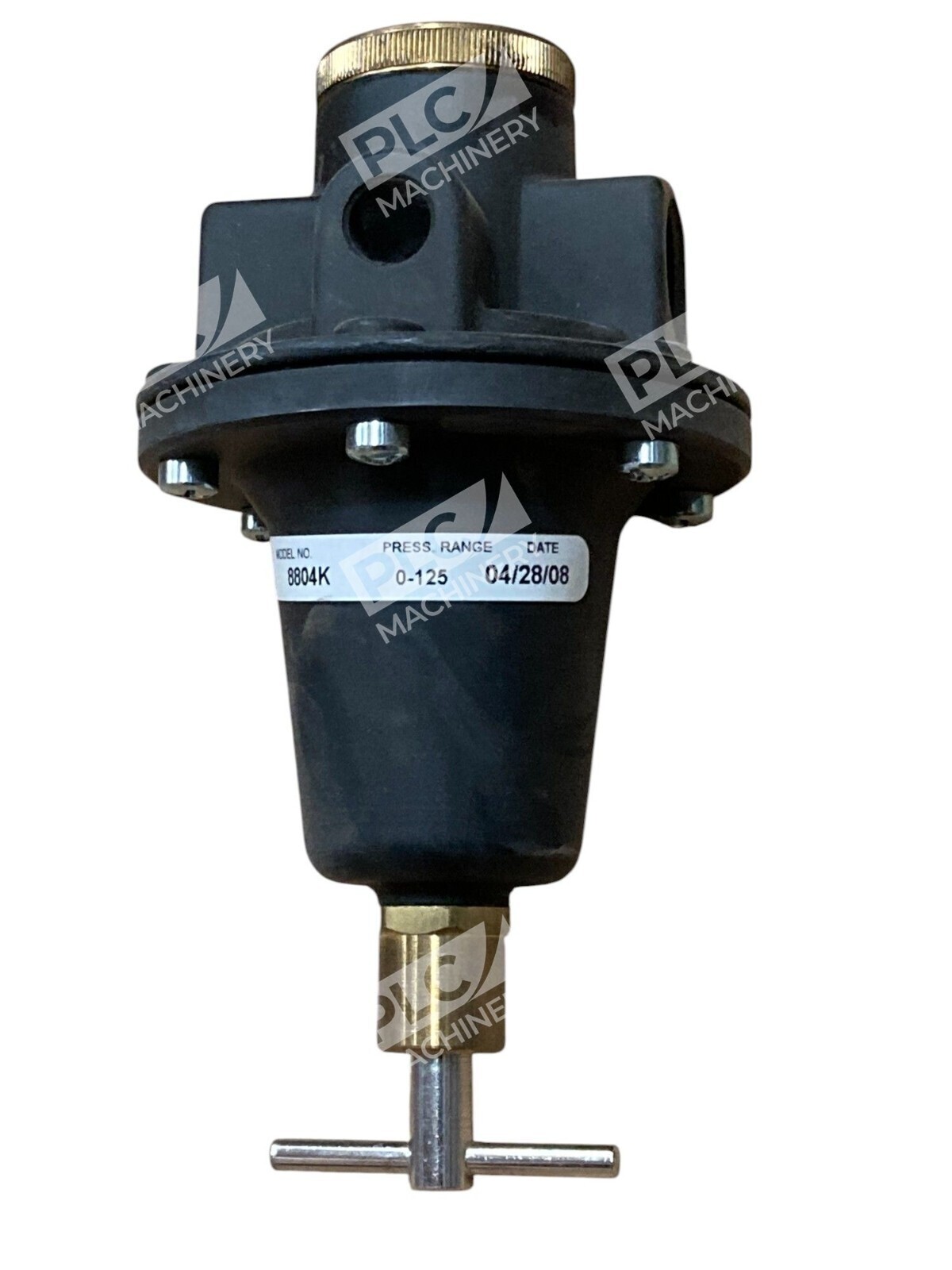

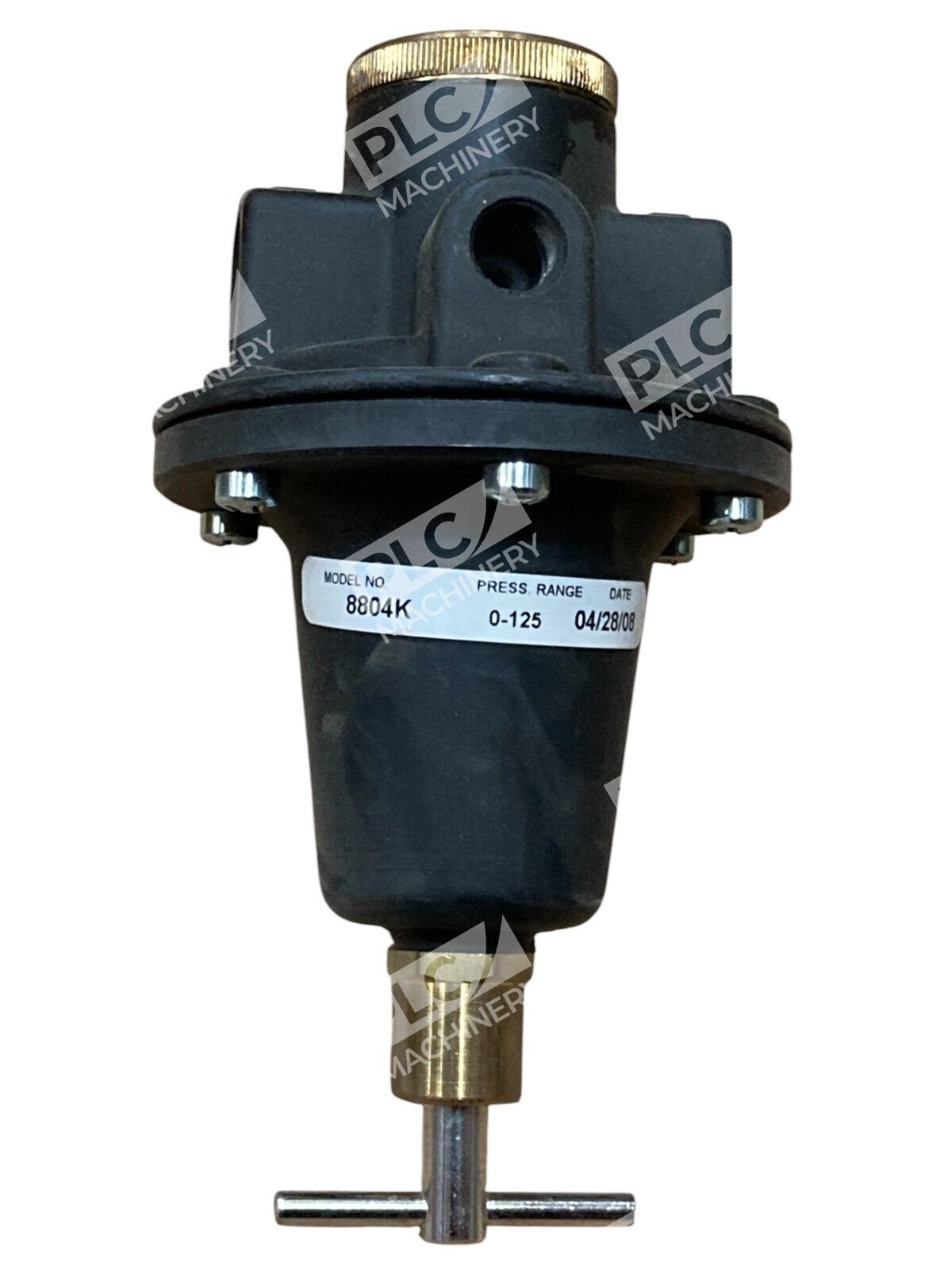

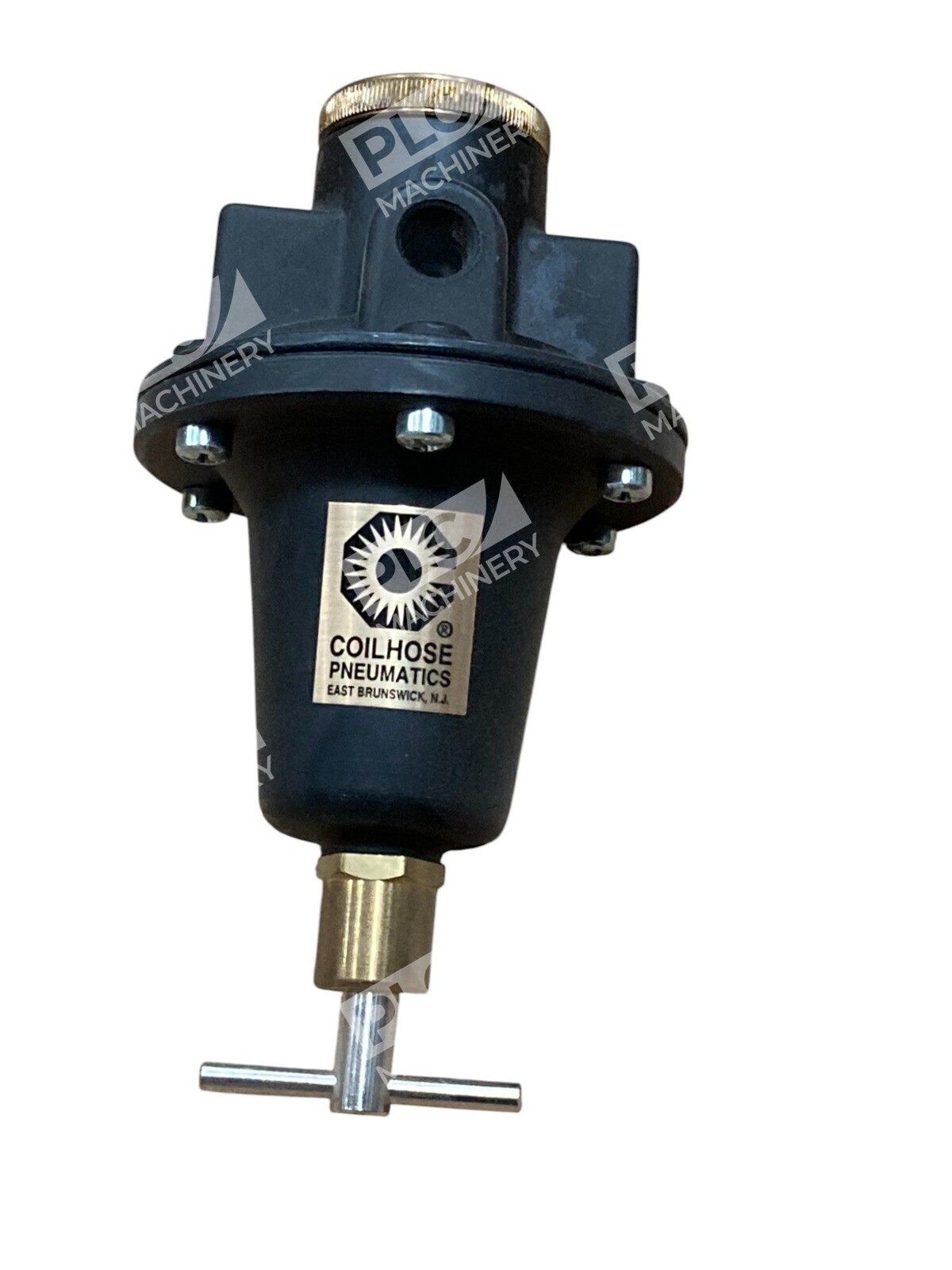

The Coilhose 8804K regulator is part of the Heavy Duty Series 88 line of pneumatic air regulators. This 1/2″ FNPT port model features a die-cast aluminum body and 0 to 125 psi pressure range, making it ideal for controlling compressed air systems in factories, maintenance shops, and pneumatic tool operations. The balanced poppet valve design maintains precise downstream pressure and the diaphragm stop prevents ruptures in the event of surges.
Key Features
- Tamperproof design prevents unauthorized adjustments, ensuring consistent pressure settings and enhancing system safety
- Balanced design with diaphragm stop to prevent ruptures and maintain stable pressure
- 80 cfpm flow rate capacity
- Relieving design allows excess pressure to vent safely
- Compact die-cast aluminum construction for durability in harsh industrial environments
- Proven, timeless design ensures long, trouble-free service life
Technical Specifications
- Pressure Range: 0 to 125 psi
- Port Size: 1/2 in FNPT
- Flow Rate: 80 cfpm
- Body Material: Die-cast aluminum
- Maximum Temperature: 250°F
- Spring Setting: 0-125 psi
- Product dimensions: 4 x 9 x 4 inches; Weight: 1.5 pounds
- Valve Type: Balanced poppet with diaphragm stop
Typical Applications
- Industrial pneumatic systems in factories and workshops requiring precise pressure control for tooling and machinery
- Automotive pneumatic tools and maintenance operations requiring optimal performance and reliability
- Compressed air circuits requiring regulated air supply to enhance overall system performance
- General compressed air systems where consistent downstream pressure is critical
- Environments where tamperproof operation prevents accidental pressure adjustment
Compatibility & Replacements
Compatible With
- Standard 1/2″ NPT pneumatic hose and fittings
- Compressed air systems rated for 0–125 psi operation
- Industrial air compressors with 1/2″ output ports
- Pneumatic tool circuits requiring regulated air supply
- Mobile and stationary compressed air installations
Replaces / Drop-In Replacement For
- Coilhose models 8802, 8803, 8804 (standard non-tamperproof version)
- Other Heavy Duty Series 88 regulators in the 1/2″ tamperproof category
Works With
- All standard compressed air preparation systems (filters, dryers, lubricators)
- Pneumatic control circuits and tool applications
- Workshop and industrial air supply networks
