Overview

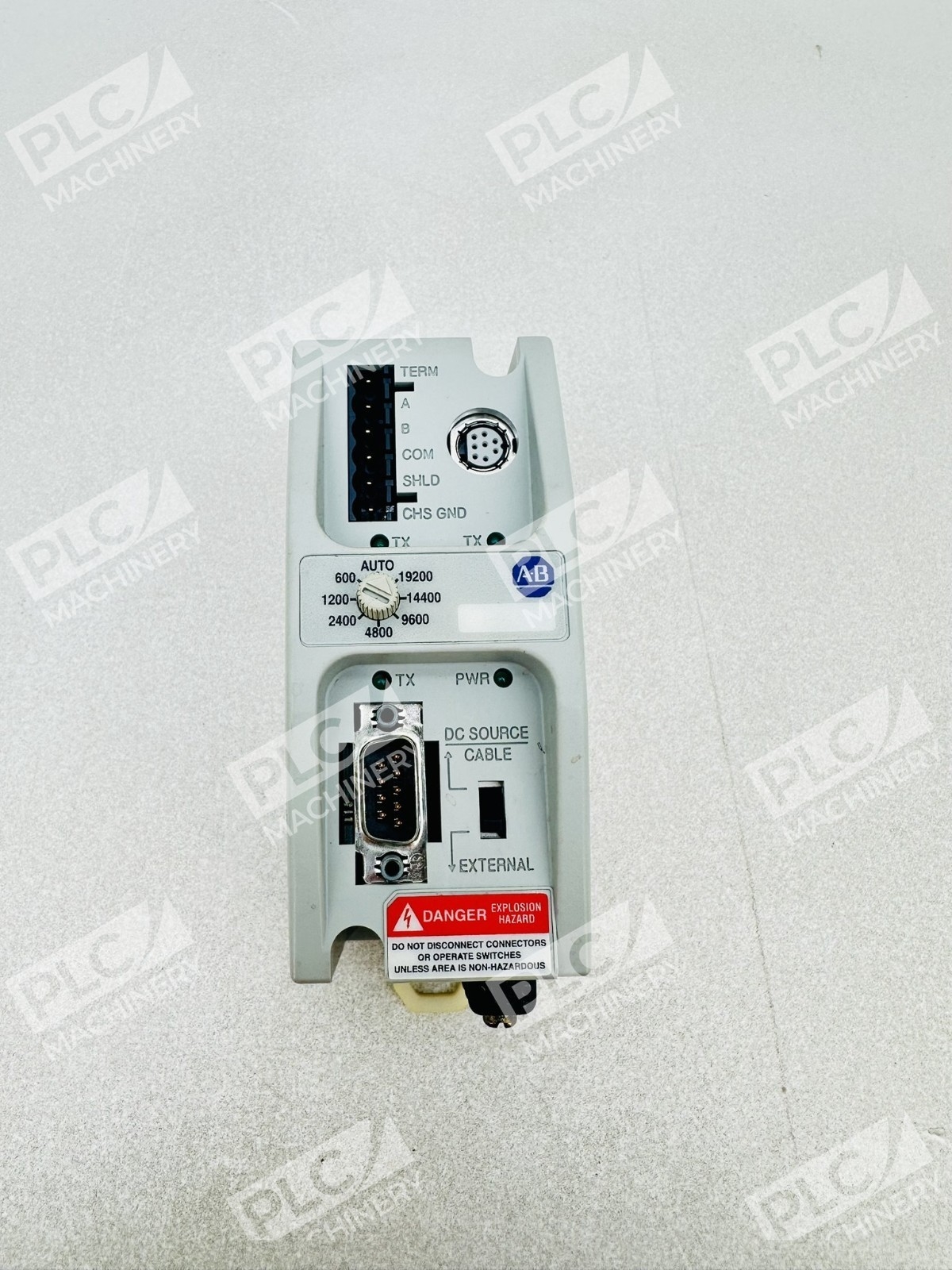

The Allen-Bradley 1761-NET-AIC Series B is an AIC+ Advanced Interface Converter engineered to facilitate seamless communication between MicroLogix 1000 controllers and networked devices. This compact conversion module functions as both a point-to-point isolator and an RS-232 to RS-485 isolator, making it essential for maintaining signal integrity in DH-485 network topologies. The 1761-NET-AIC bridges legacy automation equipment with modern control architectures, simplifying integration in retrofit and modernization projects.
Key Features
- Dual-mode operation: point-to-point isolator and RS-232 to RS-485 converter
- Designed specifically for MicroLogix 1000 series controllers and SLC communication
- DH-485 network compatibility for distributed control applications
- 24VDC operation via external supply or communication cable power

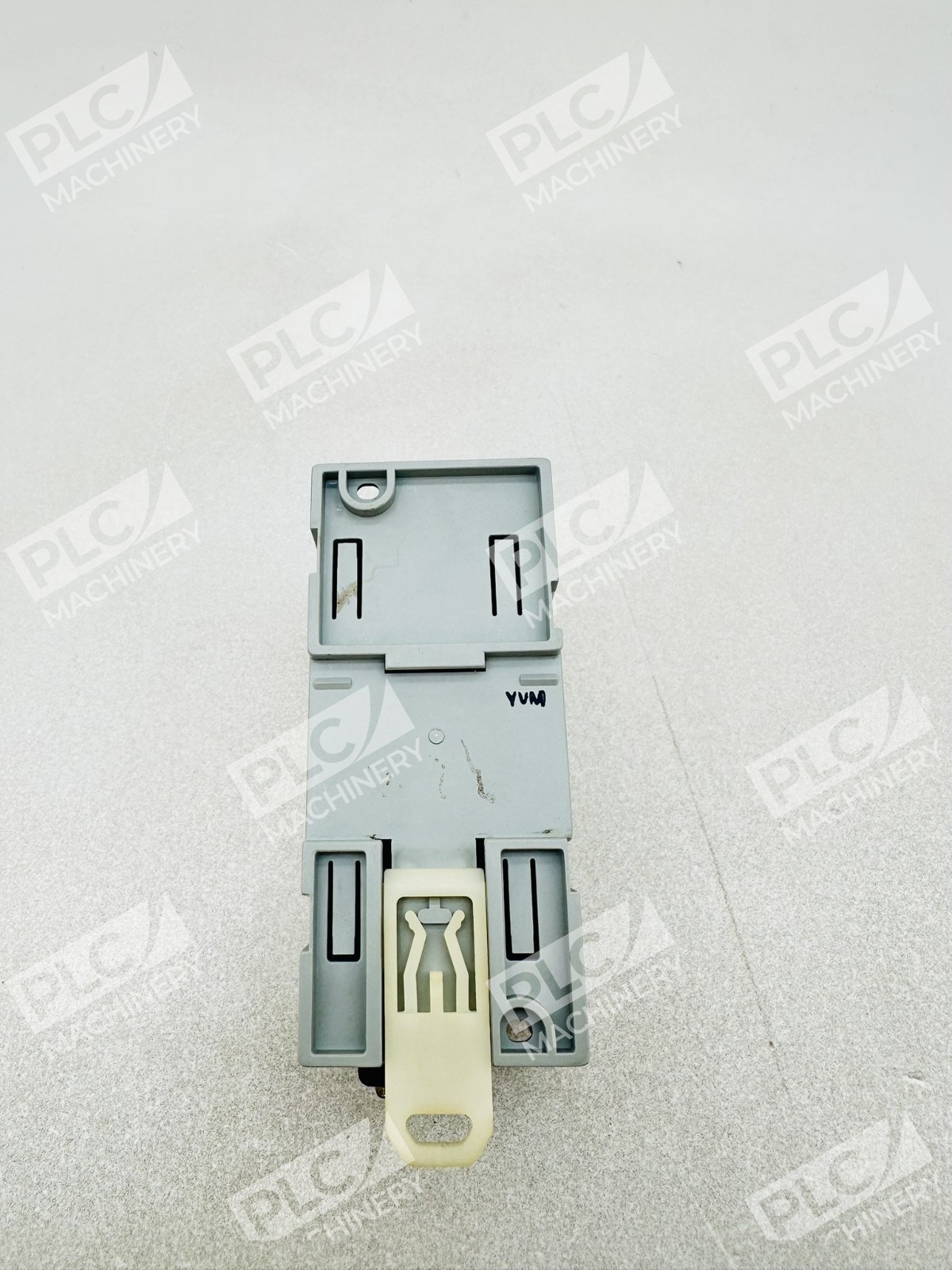

- Compact DIN-rail or panel-mount installation options
- Wide operating and storage temperature range for diverse industrial environments
Technical Specifications

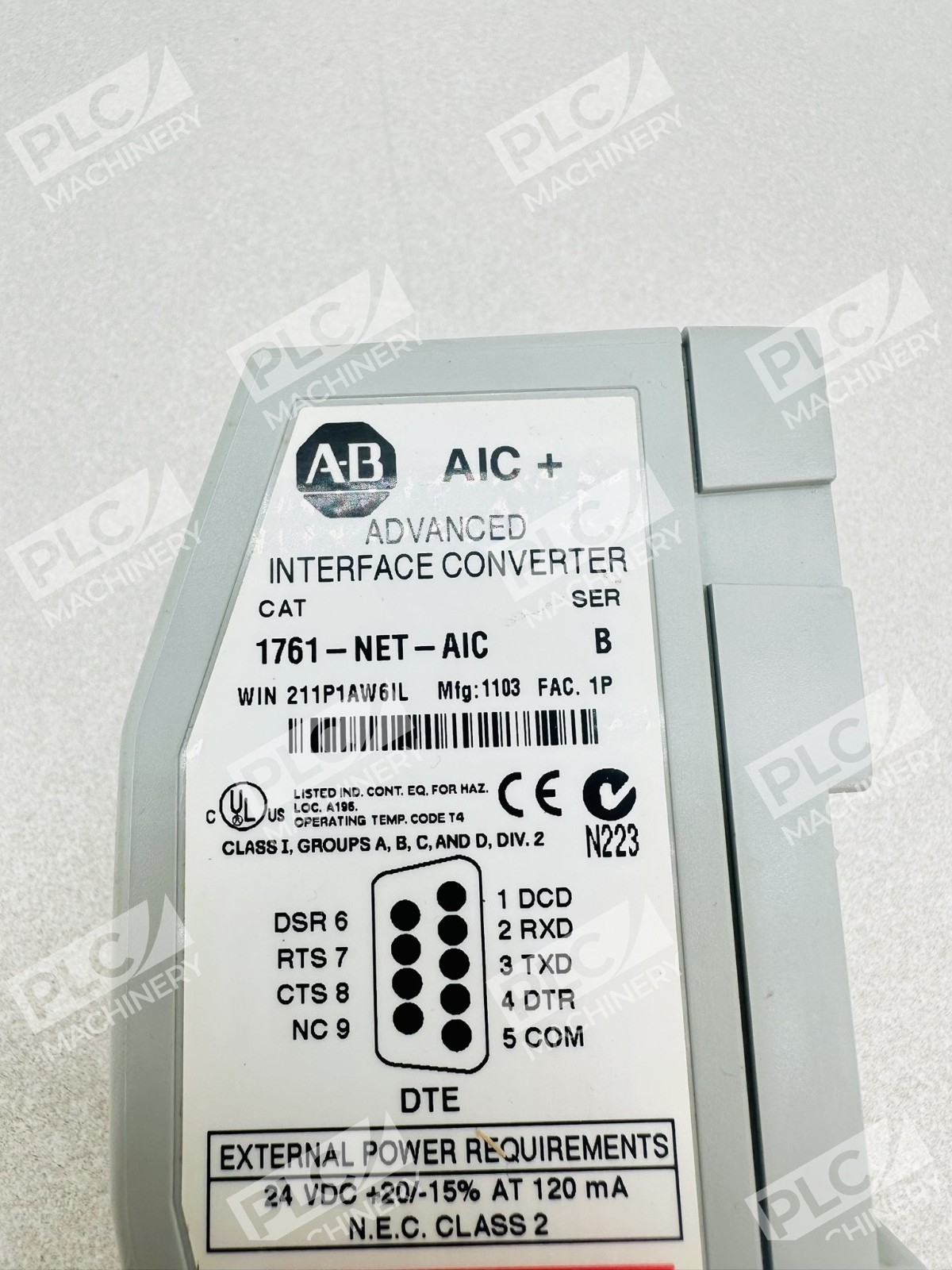

- Part Number: 1761-NET-AIC
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Series: AIC+ Advanced Interface Converter

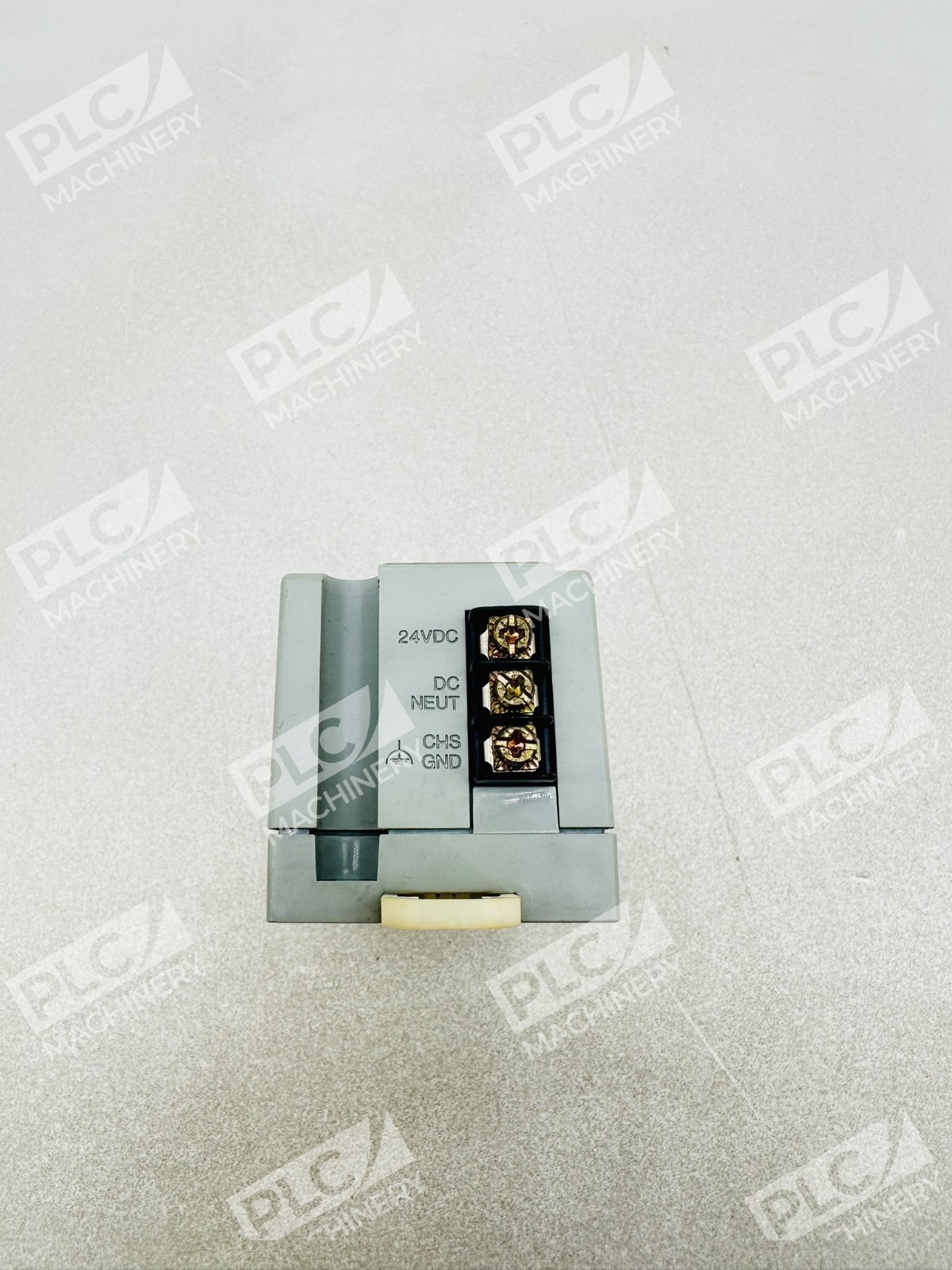

- Input Power: 24 VDC (external supply or cable-supplied)
- Operating Temperature: 0°C to 60°C
- Storage Temperature: −40°C to 85°C
- Communication Protocols: DH-485, RS-232, RS-485
- Mounting: DIN-rail or panel mount
- Product Status: Discontinued (December 31, 2016)
Typical Applications
The 1761-NET-AIC is widely used in legacy industrial automation systems for:
- MicroLogix 1000 and SLC 5/03–5/05 processor networks
- DH-485 multi-drop communication topologies
- Point-to-point isolator implementations to eliminate ground loops
- RS-232 to RS-485 serial interface conversion
- System integration and equipment upgrades in established plants
Compatibility & Replacements
Compatible With
- MicroLogix 1000 controllers
- SLC 5/03 and SLC 5/04 processors
- DH-485 half-duplex network topology
- RS-232 serial communication devices
- Industrial automation networks requiring signal isolation
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This unit replaces previous isolation modules in legacy MicroLogix and SLC networks but has no planned direct Rockwell Automation successor product.
Works With
- DH-485 communication networks
- Allen-Bradley programming software compatible with MicroLogix 1000
- Serial communication protocols: RS-232, RS-485
- Industrial control systems requiring isolation and protocol conversion
