Overview

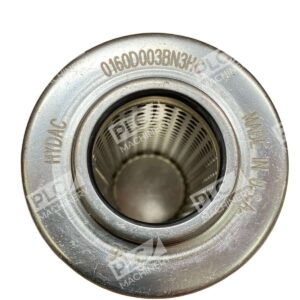

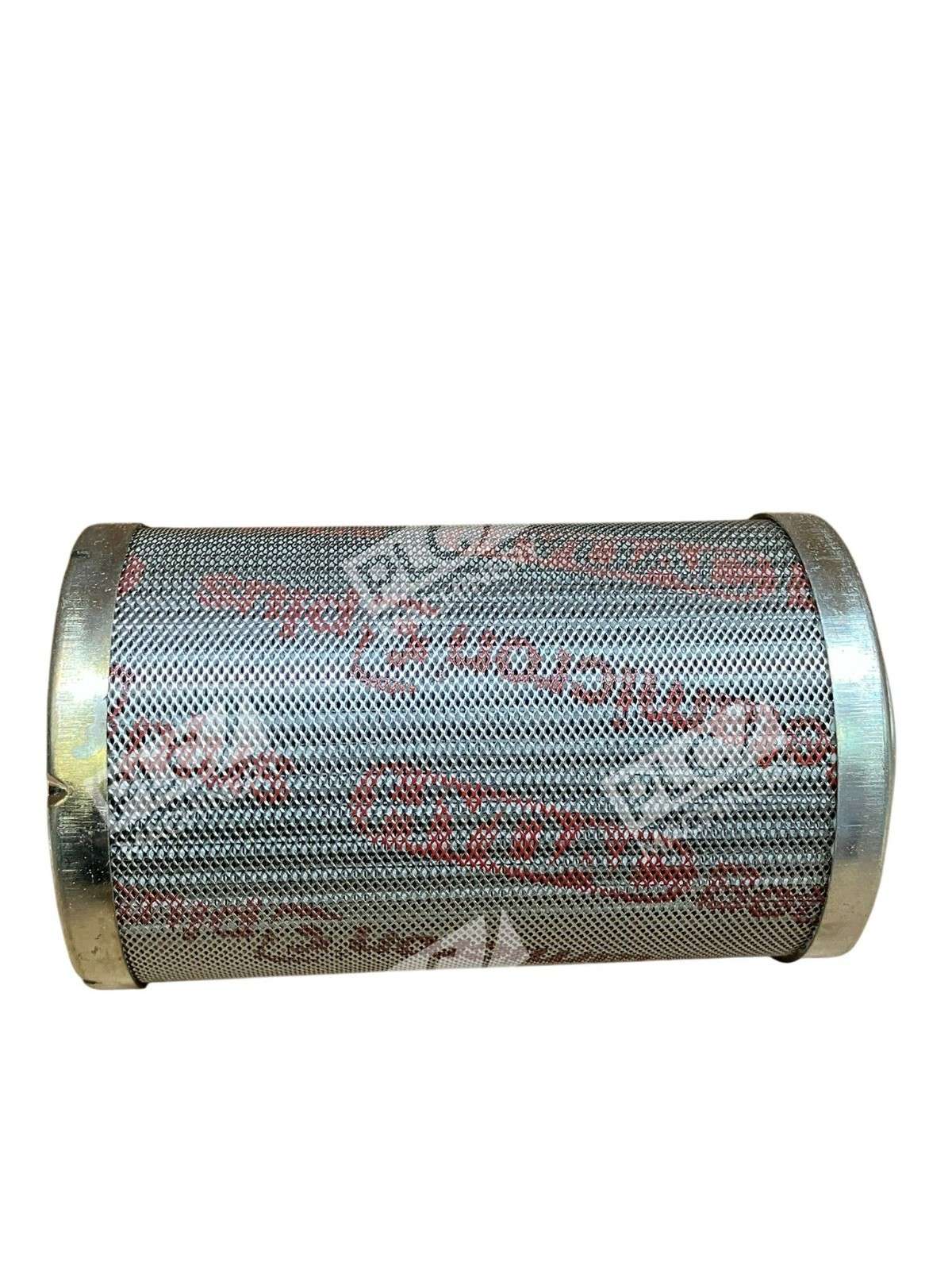

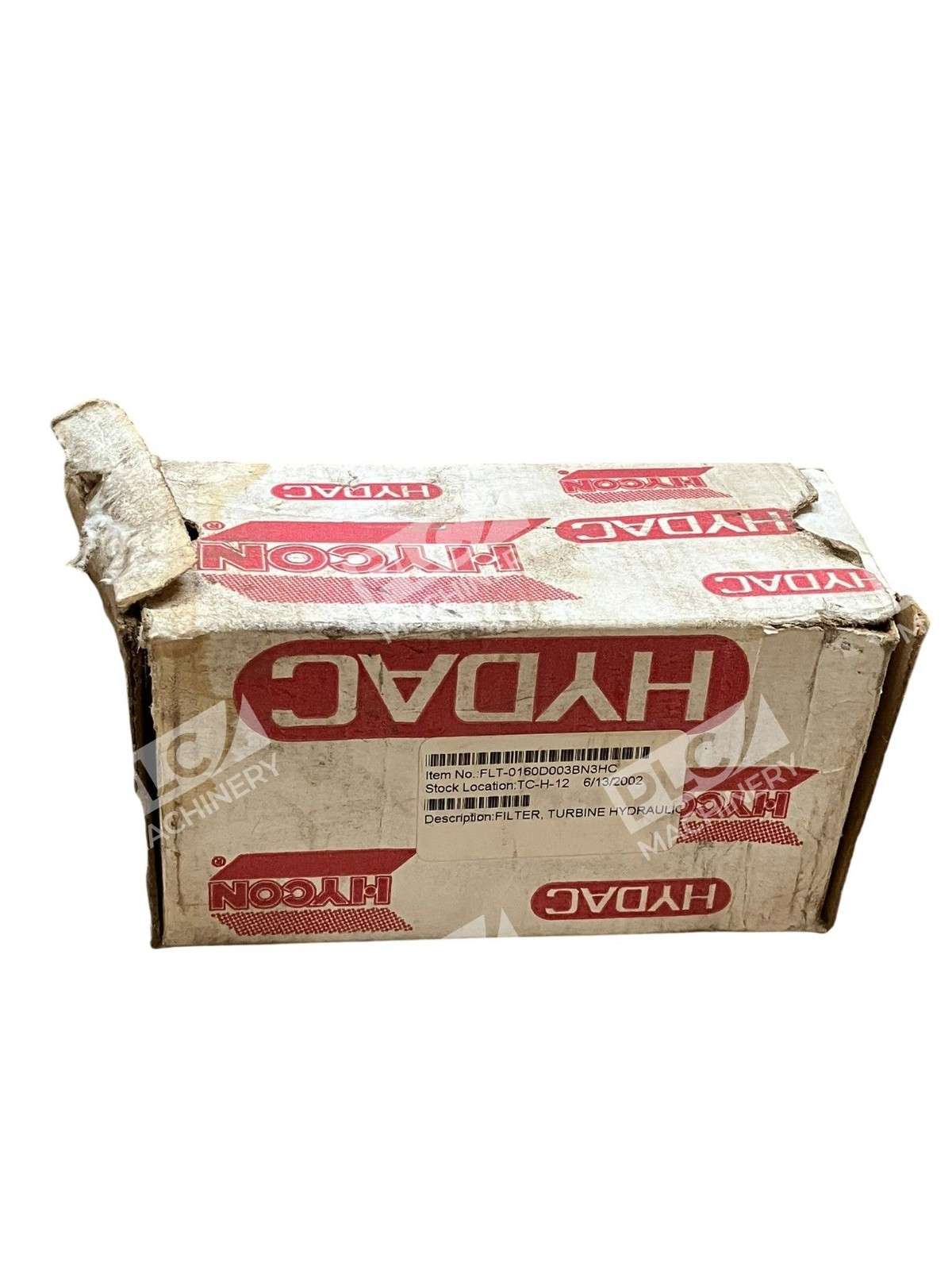

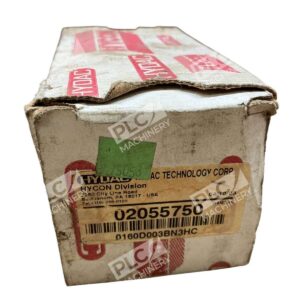

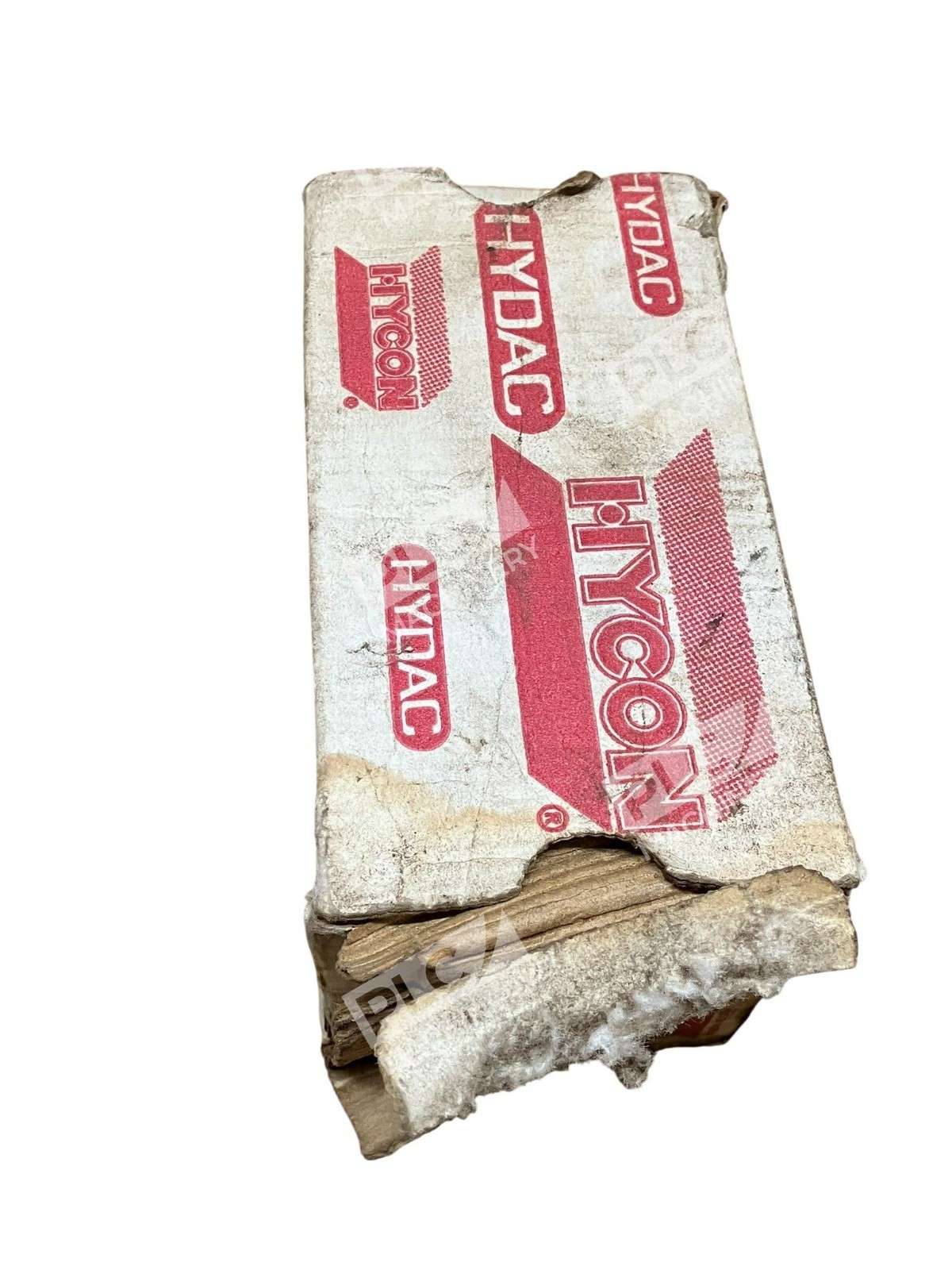

The Hydac 0160D003BN3HC filter is a genuine pressure line filter cartridge designed for critical hydraulic applications. This microglass element delivers absolute 3 micron filtration to protect pumps, motors, and actuators from particulate contamination, ensuring system reliability and component longevity.
Key Features
- 3 Micron Absolute Rating: Removes particles as small as 3 microns, maintaining ISO cleanliness targets
- Beta 200 Performance: High efficiency dirt capacity and particle capture across the fluid stream
- Robust Construction: Viton seals, epoxy-sealed endcaps, and plated steel components withstand pressure differentials
- Temperature Rated to 250°F: Operates reliably in hot oil conditions without media degradation
- 50 PSID Changeout: Clear indicator threshold for preventive maintenance scheduling
- Versatile Fluid Compatibility: Works with HH, HL, HM, and HV hydraulic fluids
Technical Specifications
- Filtration Rating: 3 Micron Absolute (Beta 3 = 200)
- Filter Type: Pressure Line Cartridge
- Media Type: Microglass (pleated synthetic)
- Maximum Collapse Pressure: 100 PSID
- Maximum Operating Temperature: 250°F (121°C)
- Recommended Changeout Pressure Differential: 50 PSID
- Flow Direction: Outside-to-Inside (radial)
- Outer Diameter (Top/Bottom): 2.75 inches (69.85 mm)
- Inner Diameter (Top): 1.38 inches (35.05 mm)
- Element Length: 4.63 inches (117.60 mm)
- Seal Material: Viton (fluorocarbon)
- End Cap Material: Plated Steel
- Center Tube: Plated Steel
- Configuration: Single Open End (spin-on or direct cartridge mount)
- Shipping Weight: 0.70 lbs (0.32 kg)
Typical Applications
The Hydac 0160D003BN3HC filter element is used across industries requiring fine hydraulic fluid conditioning:
- Industrial machinery and production equipment (presses, injection molding, assembly lines)
- Power generation and turbine control systems
- Mobile and off-highway equipment (construction, agriculture, forestry)
- Marine propulsion and deck hydraulics
- Oil and gas drilling and production systems
- Mining and material handling equipment
- Steel mill and metal processing hydraulics
Compatibility & Replacements
Compatible With
- Hydac high-pressure filter housings rated for 0160D series elements
- HYCON filter systems (Hydac OEM equivalent branding)
- Custom pressure line manifolds and direct cartridge installations
- Hydraulic systems using HH, HL, HM, or HV ISO VG 32 through VG 100 fluids
- OEM equipment originally spec’d for 0160D003 series filters
Replaces / Drop-In Replacement For
- 0160D003BN3HCV (Hydac pressure line variant)
- 0160D003BN4HC (alternative pressure line configuration)
- Generic pressure line cartridges rated for 3 micron, 100 PSID applications
Works With
- Standard hydraulic filter bowl assemblies with spin-on or direct cartridge mounting
- Hydac electronic clogging indicators for automated changeout alerts
- Pressure relief and bypass valve systems on filter housings
- Retrofit kits from aftermarket filter suppliers (Millennium Filters, Big Filter, Fluitek, SONAfilter)
