Overview

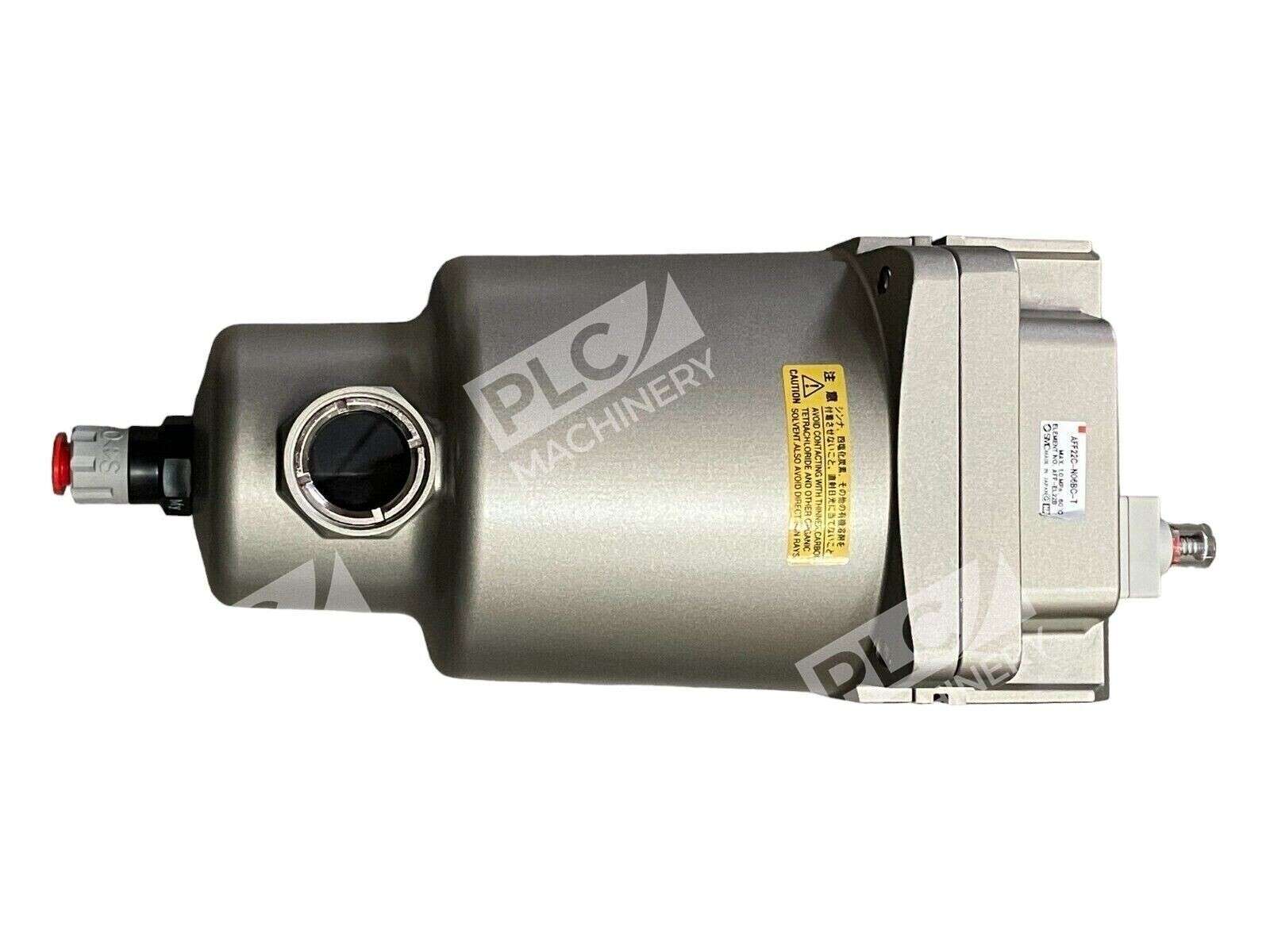

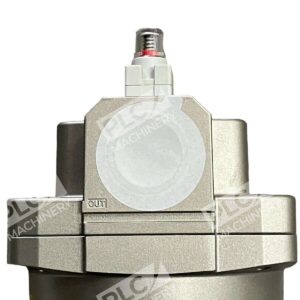

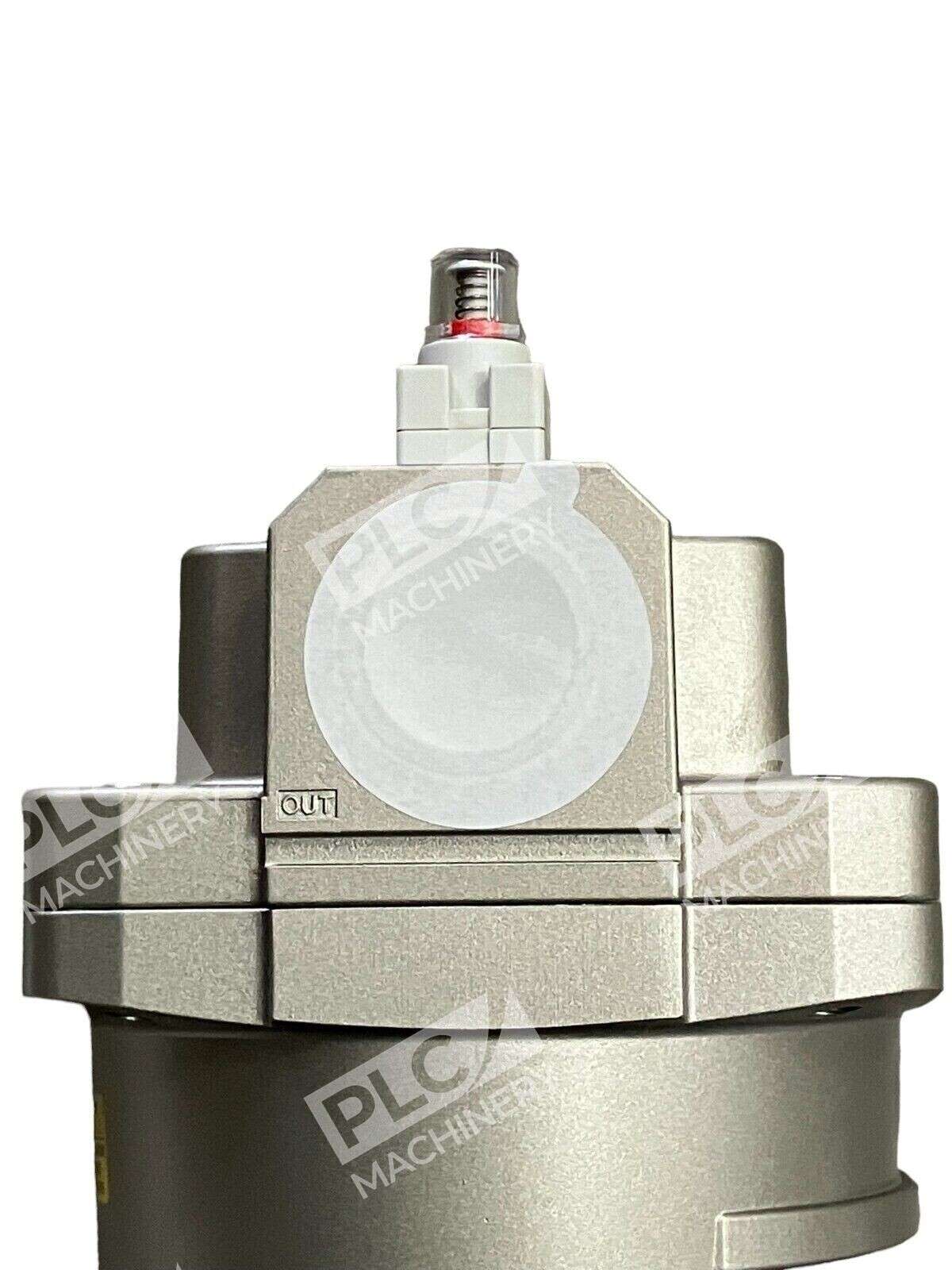

The SMC AFF22C-N06BC-T main line filter is a modular pneumatic air preparation component designed for primary-stage filtration in compressed air systems. This coarse (3 um) filter removes foreign matter and droplets to protect down stream dryers and extend the life of more precise filters. The AFF series offers a cost-effective solution with modular design allowing connection with other SMC air preparation equipment.
Key Features
- 3 Micron Filtration: 3 µm particulate filter (99% efficiency)
- Metal Bowl Construction: Durable metal bowl with sight glass for easy element monitoring

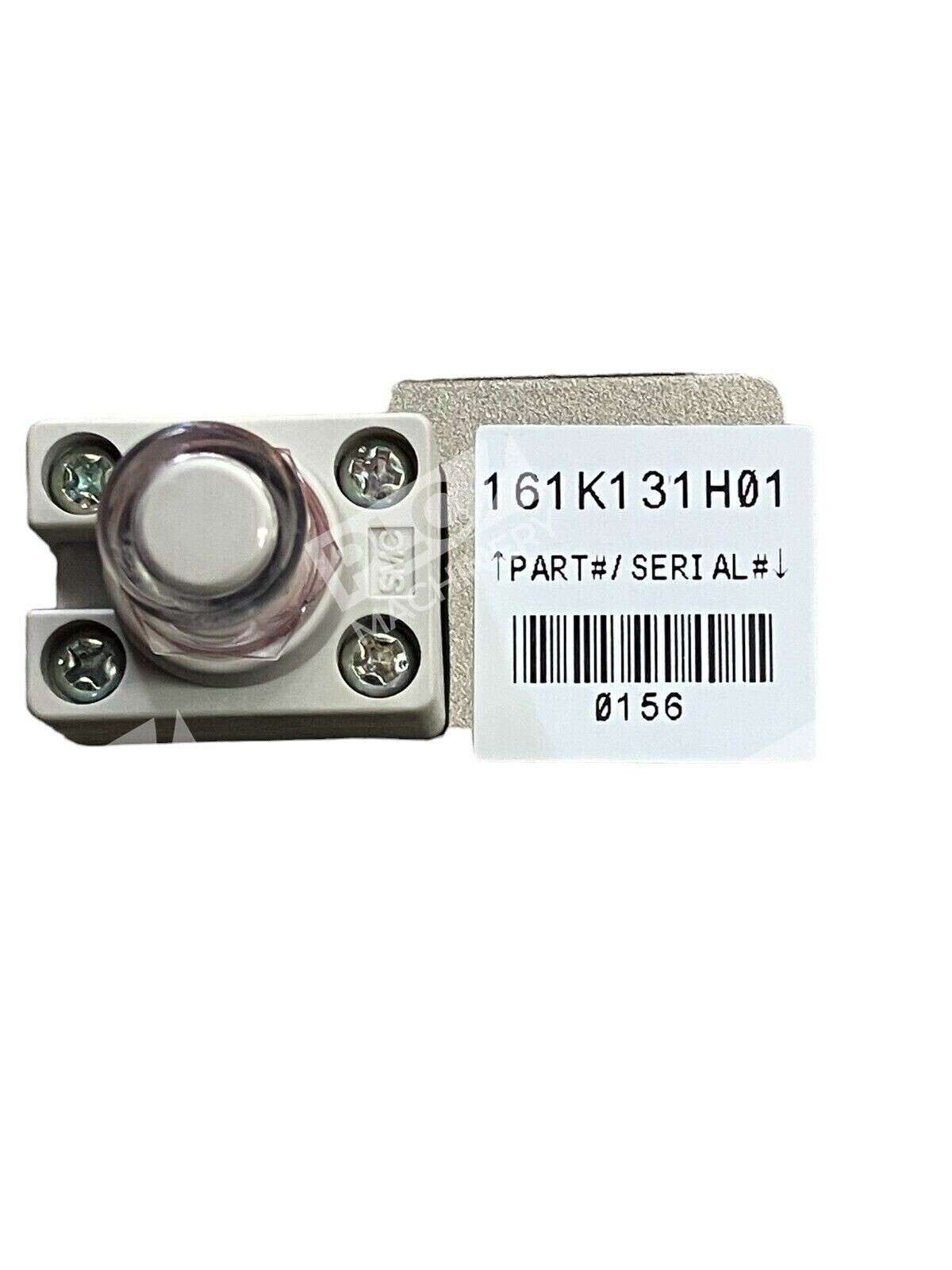

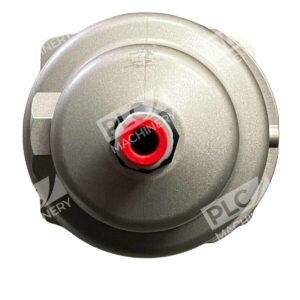

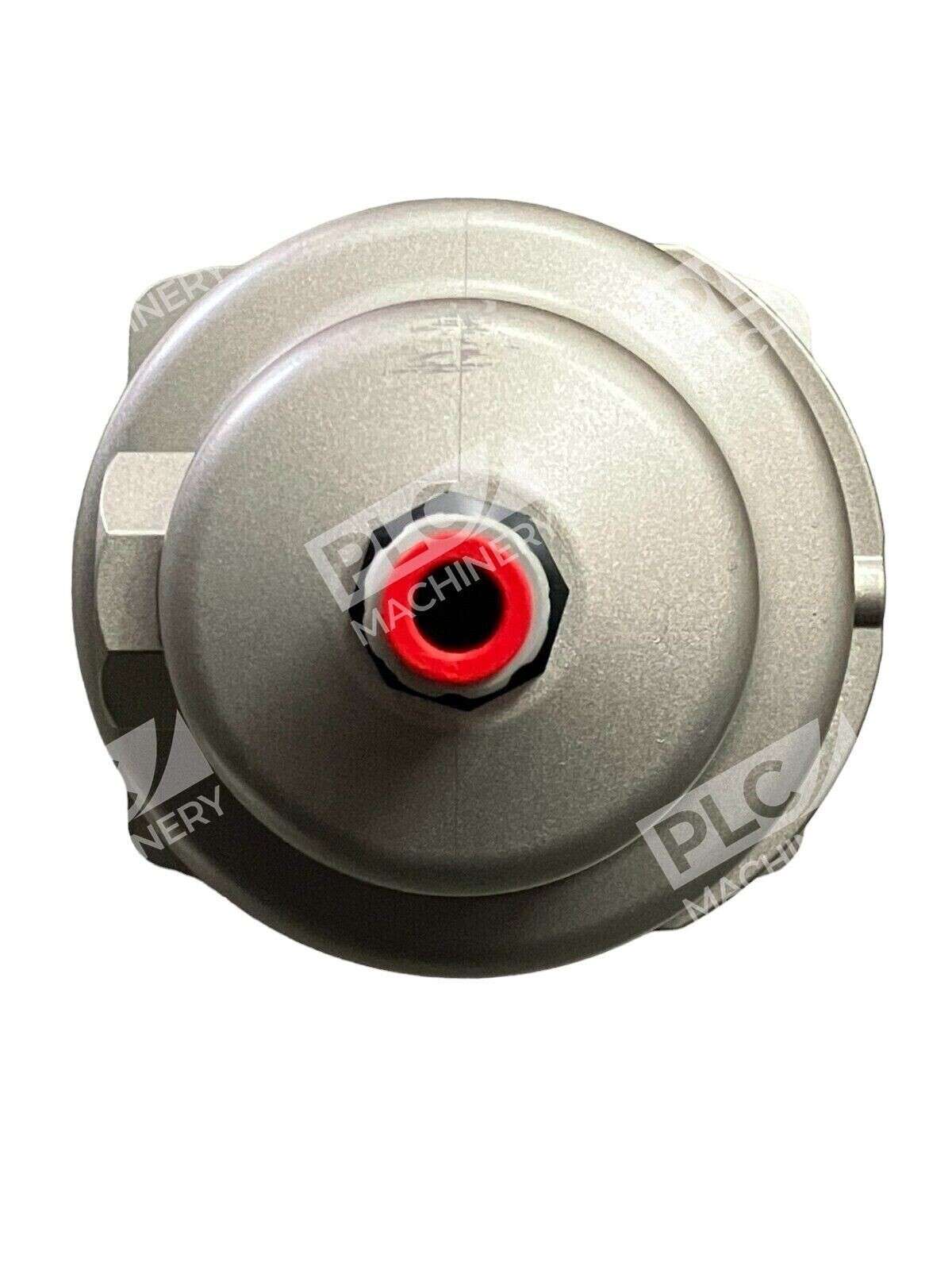

- Automatic Drain: Auto Drain: N.C.(Normally Closed) Drain Port Is Closed When Pressure Is Not Applied
- Modular Design: Modular connection possible with AFF2C to 22C
- Element Life: 2-year service life for filter element

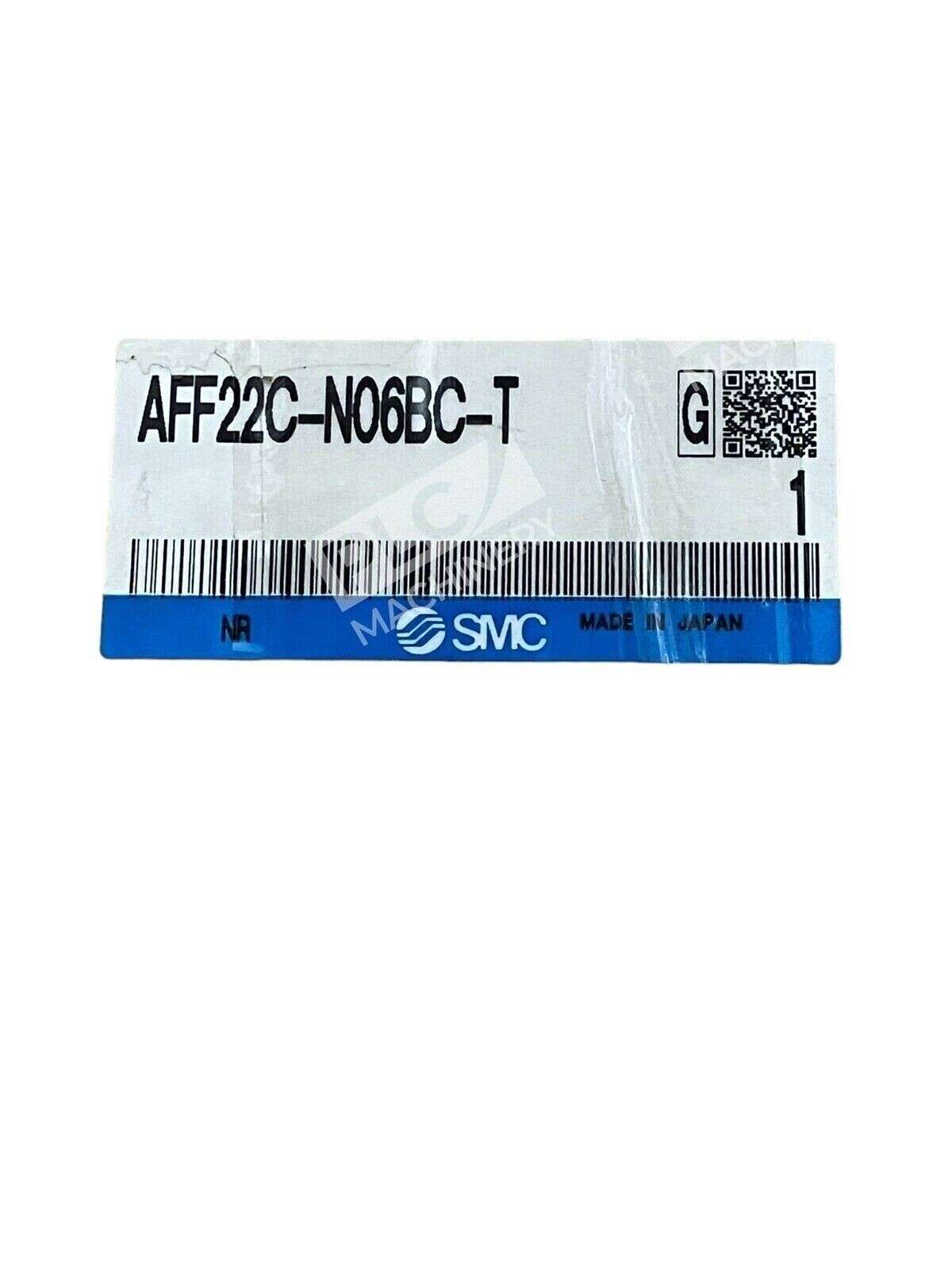

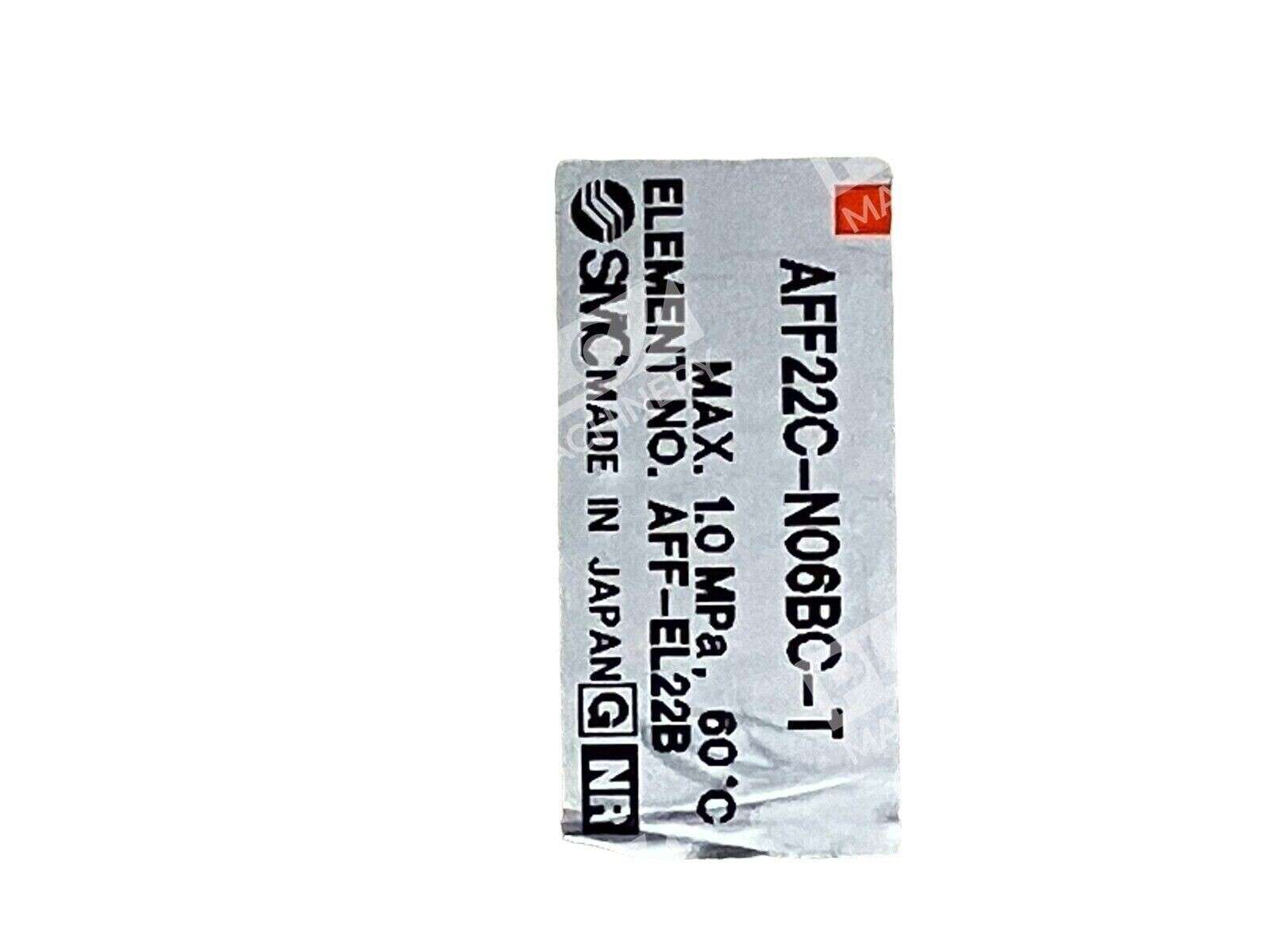

Technical Specifications
- Series: AFF
- Filter Size: 22C
- Port Size: 3/4″ NPT
- Filter Rating: 3 micron
- Bowl Material: Metal with sight glass
- Maximum Flow Rate: 3700 Lpm (124 scfm)
- Operating Pressure Range: 0.05 to 1.0 MPa (7 to 145 psi)
- Proof Pressure: 218 psi (1.5 MPa)
- Operating Temperature: 50 to 60°C (122 to 140°F)
- Dimensions: 349 mm H × 126 mm L × 122 mm W
- Weight: Approximately 3.5 kg
- Standards: CE, CSA, UL, JIS
- Accessories Included: Mounting bracket
Typical Applications
The AFF22C-N06BC-T is widely used as a first-stage coarse filter in pneumatic systems where:
- Removal of water droplets and oil mist is critical for downstream dryer protection
- Extended service life of precision filters is desired
- Modular air preparation systems are being assembled
- Industrial automation and manufacturing equipment require clean compressed air
- Pneumatic control circuits must be protected from contamination
Compatibility & Replacements
Compatible With
- SMC AFF series filters (modular connection capability)
- SMC pneumatic dryers and regulators
- Standard pneumatic systems with 3/4″ NPT ports
- Industrial compressed air distribution networks
- Pneumatic control systems requiring primary-stage filtration
Replaces / Drop-In Replacement For
- AFF22C filter elements (filter cartridge only)
- Earlier-generation SMC AFF series main line filters of same size/port configuration
Works With
- SMC air preparation equipment (modularity with other AFF filters)
- Pneumatic distribution systems using NPT threaded connections
- Compressed air conditioning networks requiring multi-stage filtration
- ISO 4401 (CETOP) standard pneumatic circuits
