Overview

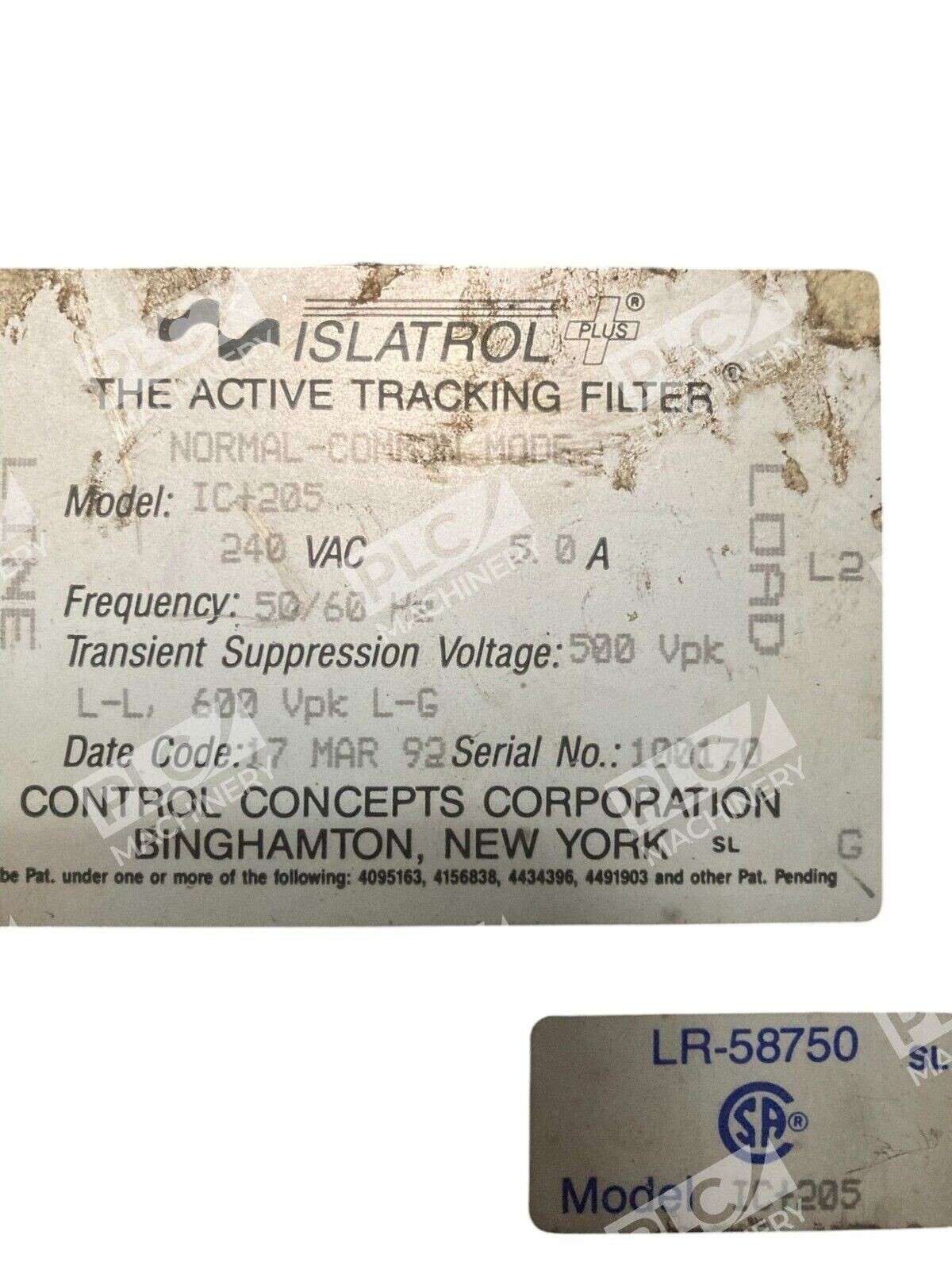

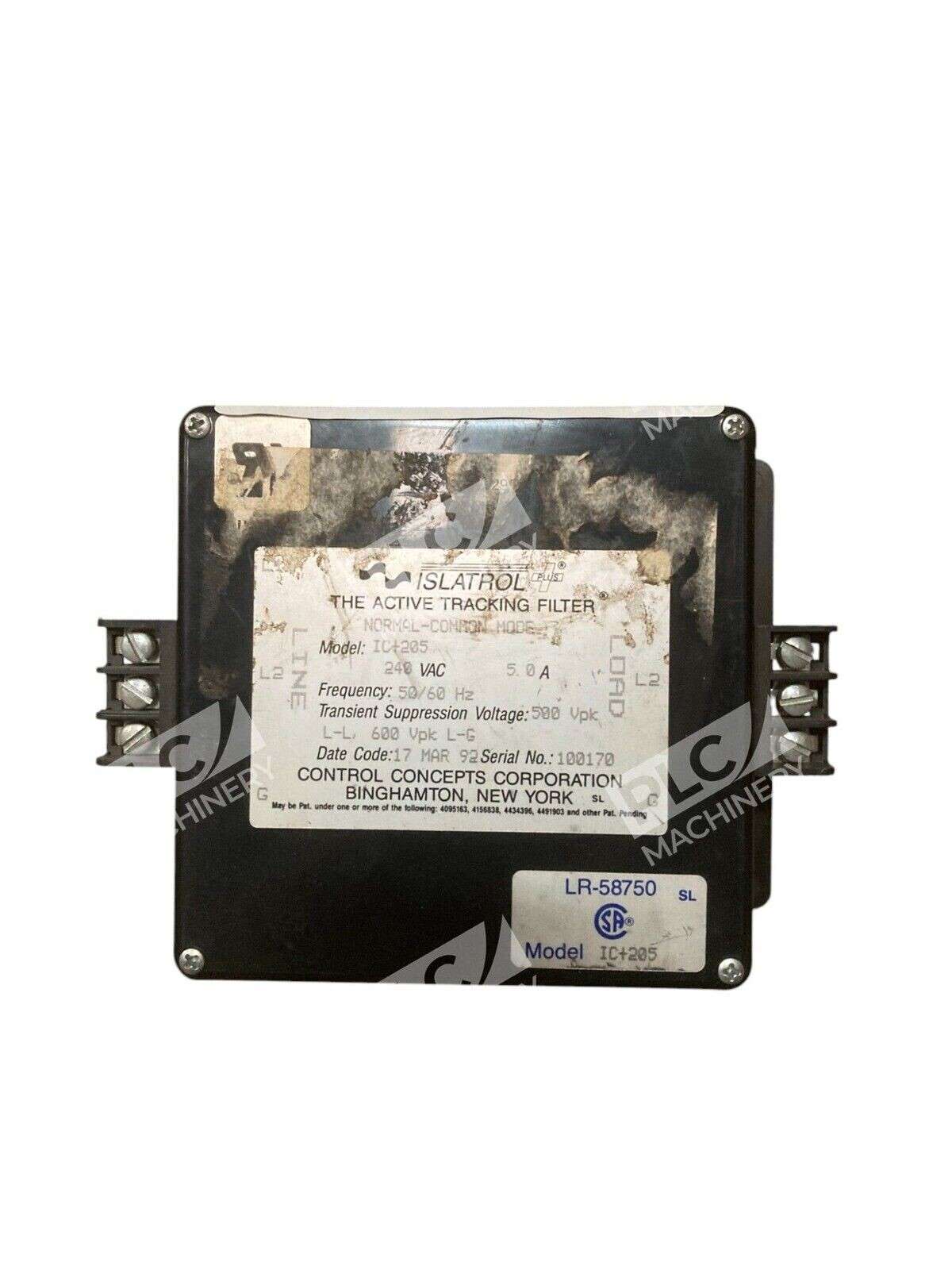

The Control Concepts IC+205 Islatrol Active Tracking Filter is a transient voltage surge suppression (TVSS) device designed for industrial and commercial power quality applications. This 240VAC, 5A filter eliminates electromagnetic noise, power spikes, and voltage transients that can degrade equipment performance or trigger nuisance shutdowns. The Control Concepts IC+205 operates at 50/60Hz and is rated to suppress transient voltages up to 500Vpk line-to-line and 600Vpk line-to-ground, making it suitable for protecting sensitive controls, drives, and instrumentation.
Key Features
- Active tracking technology — real-time monitoring and suppression of voltage disturbances
- Transient protection — rated for 500Vpk L-L and 600Vpk L-G surge events
- Dual-mode filtering — normal and common-mode noise rejection
- Industrial-grade design — compact form factor suitable for DIN-rail or panel mounting
- Drop-in replacement — compatible with standard 240VAC power distribution systems
Technical Specifications
- Input Voltage: 240VAC, 50/60Hz
- Rated Current: 5.0A
- TVSS Rating (L-L): 500Vpk
- TVSS Rating (L-G): 600Vpk
- Operating Mode: Normal and Common Mode
- Weight: 950g (gm)
- Shipping Dimensions: 8.00 x 4.00 x 4.00 inches
- Series: Islatrol Plus
- Manufacturer: Control Concepts Corporation
Typical Applications
The Control Concepts IC+205 is commonly used in:
- Industrial machinery and CNC equipment protection
- Motor drive and VFD input conditioning
- PLC and control system power conditioning
- Data center and telecommunications UPS pre-filtering
- Manufacturing process equipment where power quality is critical
Compatibility & Replacements
Compatible With
- Standard 240VAC, 50/60Hz three-wire and three-phase power systems
- Industrial motor controls and VFDs
- PLC and industrial automation systems
- Uninterruptible power supplies (UPS) and power distribution units (PDU)
- Standard electrical panels and DIN-rail enclosures
Replaces / Drop-In Replacement For
The Control Concepts IC+205 directly replaces:
- Earlier Islatrol Plus models with identical 240VAC, 5A ratings
- Control Concepts I-205 (120VAC variant with equivalent 240VAC-rated models)
- OEM-equivalent TVSS filters rated for 240VAC, 5A applications
Verify compatibility with your system integrator before ordering to ensure voltage and current ratings match your application.
Works With
- Standard industrial power distribution and metering systems
- Maintenance and troubleshooting tools (power quality analyzers, multimeters)
- Electrical design software for load and transient protection calculations
- Any equipment rated for 240VAC, 50/60Hz operation up to 5A input draw
