Overview

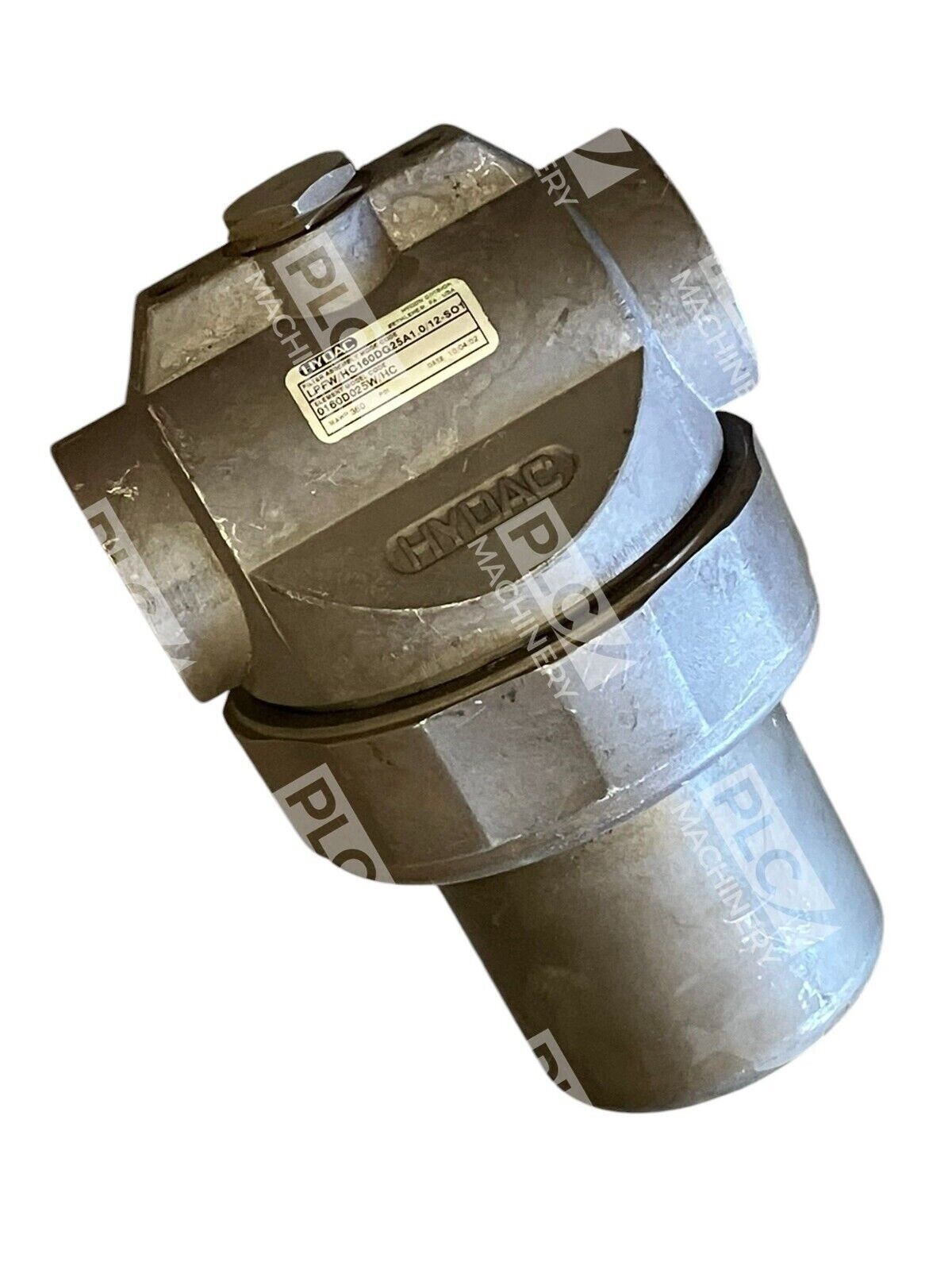

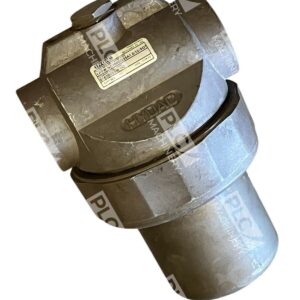

The Hydac LPFW/HC160DG25A1.0/12-SO1 is a low-pressure filter assembly engineered for cost-effective fluid contamination control in hydraulic systems. Built with an aluminum filter bowl and equipped with a 25 micrometer filtration element, this unit provides dependable protection for hydraulic components in pressurized and return-line applications. The spin-on design simplifies maintenance and element replacement in field and plant environments.
Key Features
- Low-pressure design rated for 50 bar (725 psi) maximum operating pressure
- 25 micrometer filtration element for efficient contamination removal
- Aluminum construction for corrosion resistance and lightweight installation
- Spin-on element configuration for quick and tool-free replacement
- SAE and ISO standard port connections for broad system compatibility
- Built-in bypass valve protection to maintain system flow during element saturation
Technical Specifications
| Model Number | LPFW/HC160DG25A1.0/12-SO1 |
| Manufacturer | Hydac International |
| Filter Type | Low-Pressure In-Line |
| Filter Rating | 25 micrometer |
| Filter Element Material | Aluminum |
| Maximum Operating Pressure | 50 bar (725 psi) |
| Flow Capacity | 160 L/min (42 gpm) |
| Port Connection | SAE/ISO standard |
| Element Design | Spin-On (SO1) |
| Seal Material | Nitrile Rubber |
| Bypass Valve | Standard |
| Condition | New – No Original Box |
Typical Applications
The LPFW/HC160DG25A1.0/12-SO1 is suitable for:
- Industrial hydraulic system return lines and tank breather applications
- Mobile equipment hydraulics (tractors, loaders, compressors)
- Circulation and charge pump filtration
- General fluid conditioning in low-to-moderate pressure circuits
- OEM and aftermarket equipment maintenance
Compatibility & Replacements
Compatible With
- Hydraulic systems operating at 50 bar or lower
- SAE and ISO ported manifolds and cavity designs
- Mobile and stationary hydraulic equipment
- Circulation pump and return line applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Similar Hydac LPFW/HC160 series assemblies with 25 micrometer elements may share cross-compatibility, but exact model matching is required to confirm drop-in capability.
Works With
- ISO 4406 fluid cleanliness monitoring standards
- Hydac bypass and low-pressure relief valve packages
- Standard hydraulic test points and fluid sampling systems
- OEM mobile and stationary equipment with SAE/ISO port mounting
