Overview

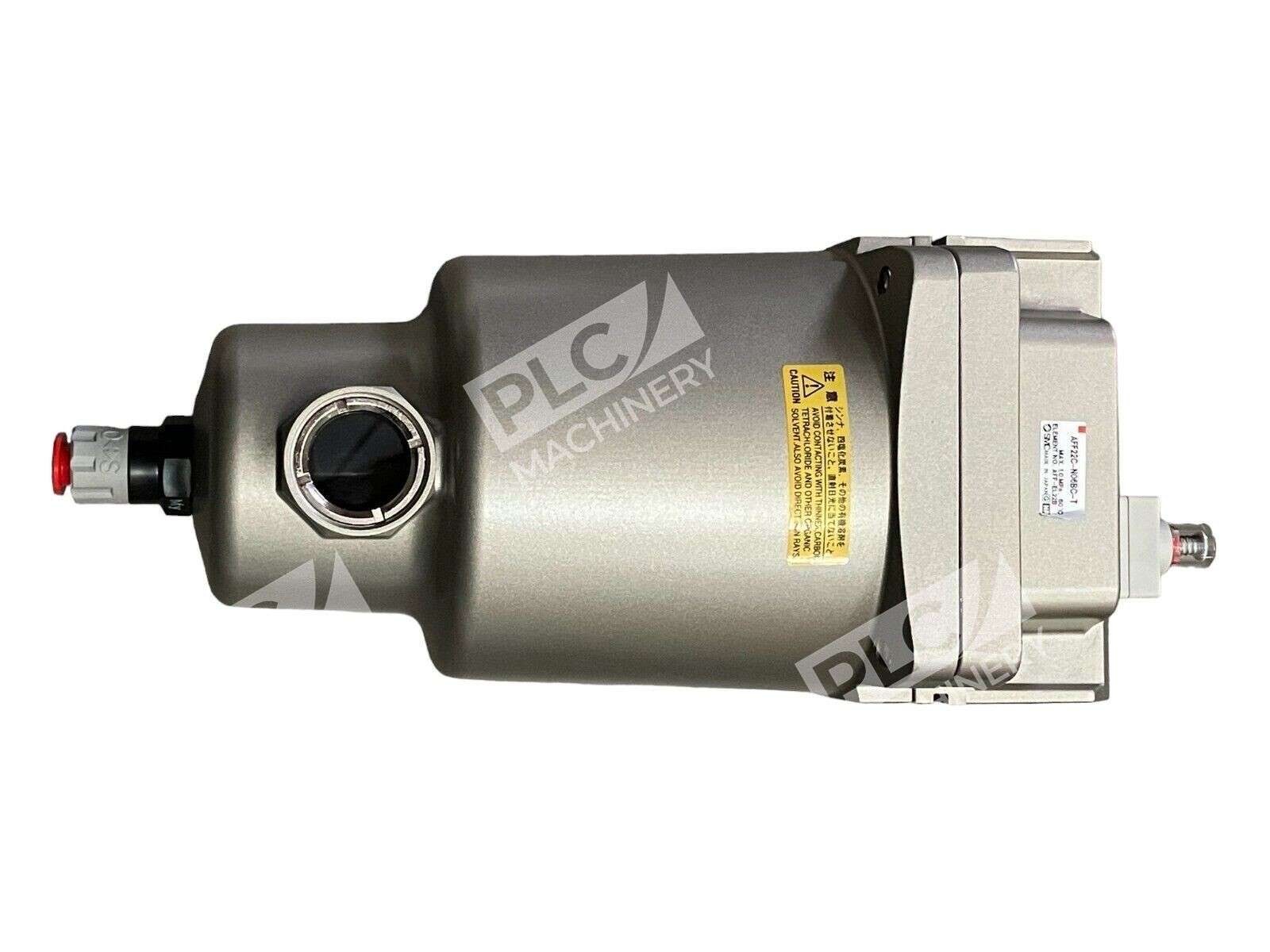

The SMC AFF22C-N06BC-T main line filter is a compact, high-capacity pneumatic filter engineered to protect downstream equipment and extend system service life. As the first stage in a compressed air purification scheme, this filter removes particulates, oil mist, and liquid water droplets, improving dryer function and preventing equipment malfunction. The metal bowl construction with sight glass provides visual inspection of filter saturation.
Key Features
- 3 µm particulate filtration with 99% efficiency
- Automatic drain (normally closed) prevents water backflow
- 3/4 inch NPT thread connections for standard industrial piping

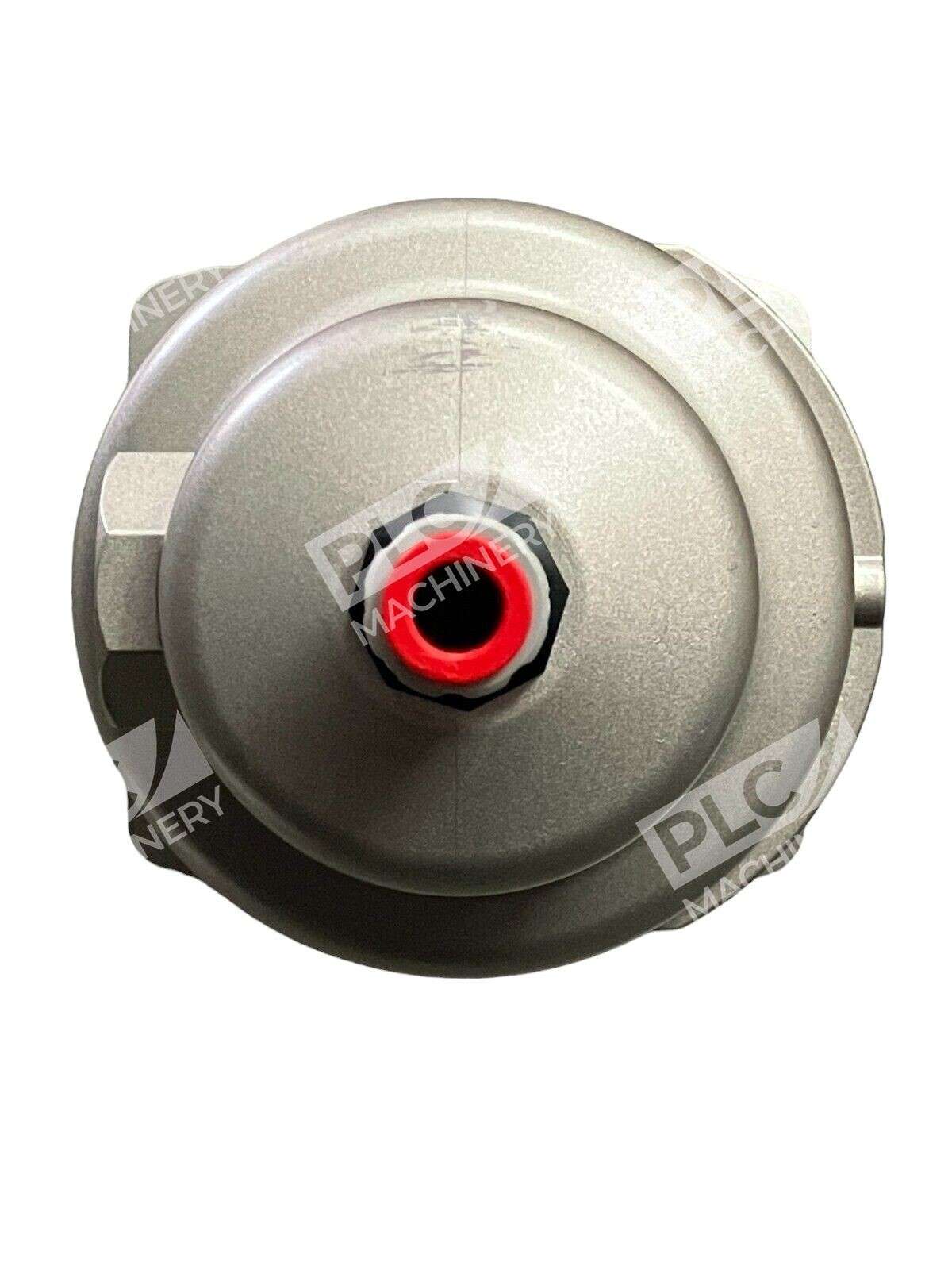

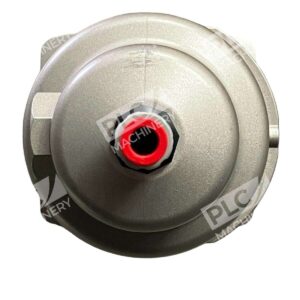

- Metal bowl with sight glass for element condition visibility

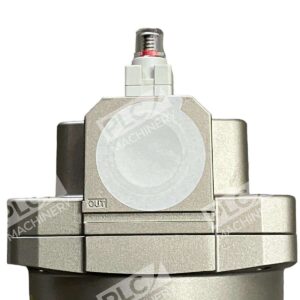

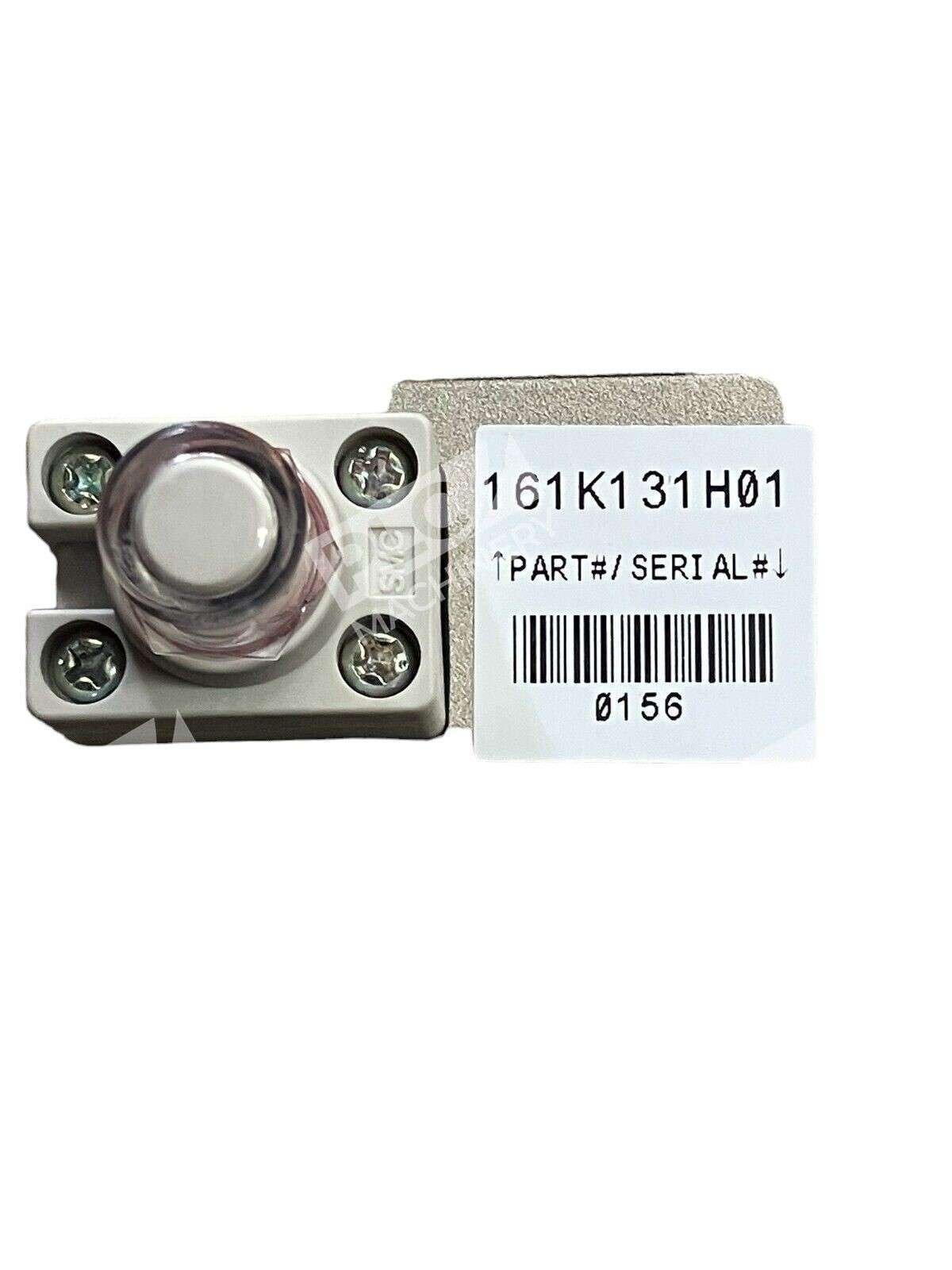

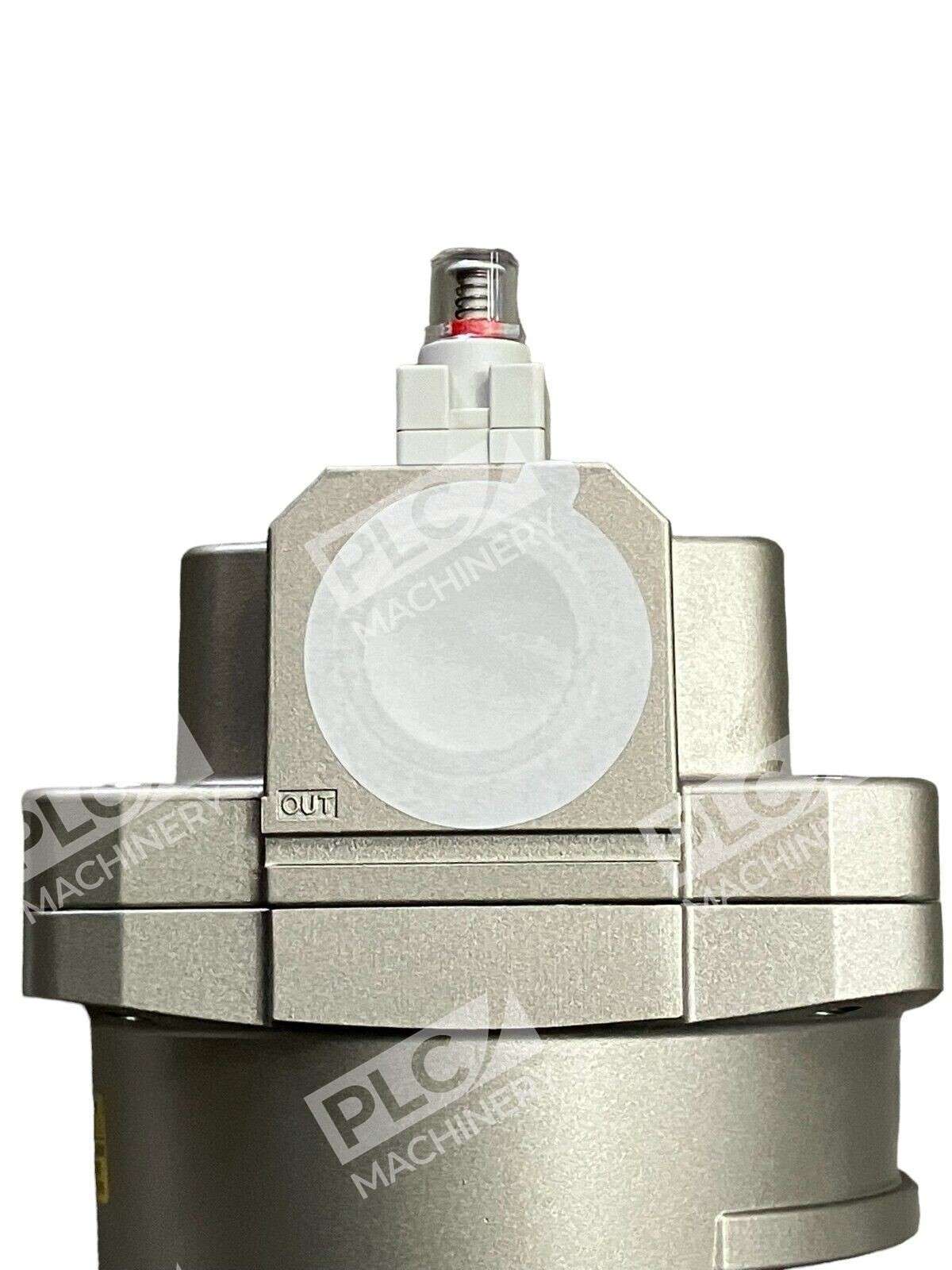

- Element service indicator alerts when filter replacement is needed
- Modular design allows connection with AFF2C to 22C series units
- Bracket accessory included for mounting flexibility

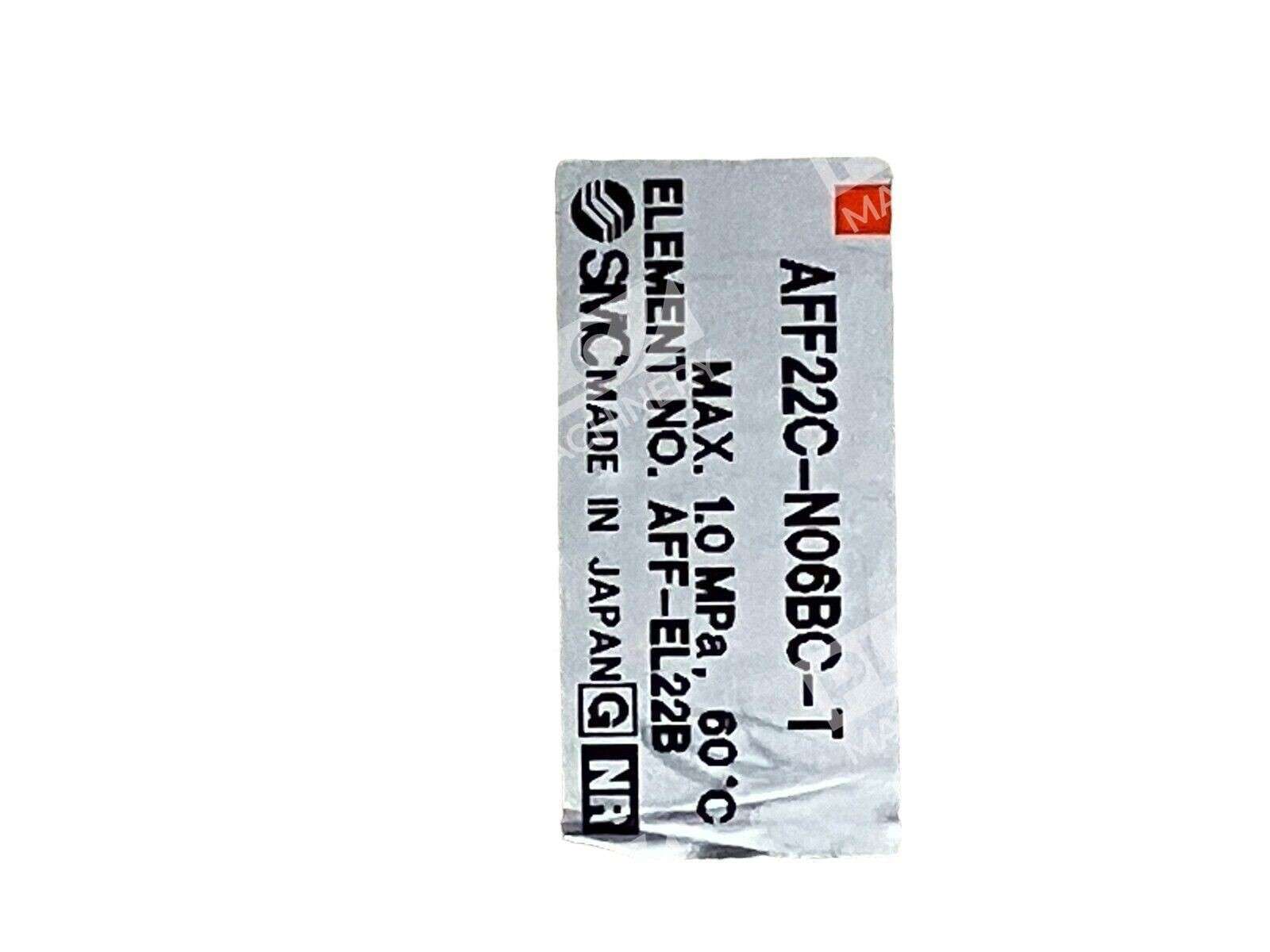

Technical Specifications
- Flow Rate: 3,700 Lpm (124 scfm)
- Filter Micron Rating: 3 µm (99% efficiency)
- Operating Pressure: 0.05–1.0 MPa (0.7–145 psi)
- Operating Temperature: 50–60°C (122–140°F)
- Port Size: 3/4 inch NPT (female)
- Body Size: 22C
- Bowl Material: Metal with sight glass
- Dimensions (Overall): 349 mm H × 126 mm L × 122 mm W
- Drain Method: Automatic (normally closed)
- Element Life: 2 years typical
- Proof Pressure: 218 psi (1.5 MPa)
- Standards: CE, CSA, UL, JIS
- Series: AFF (Classic AFF Series)
Typical Applications
The SMC AFF22C-N06BC-T is ideal for:
- General pneumatic system protection and compressed air purification
- Industrial machinery and automation equipment requiring clean air
- Food, beverage, and pharmaceutical manufacturing environments
- Plasma and precision tool applications sensitive to particulate contamination
- Pre-filtration stage before precision regulators, FRL combinations, or air dryers
Compatibility & Replacements
Compatible With
- Compressed air systems with 3/4 inch NPT ports
- SMC AFF2C to 22C series modular filter units
- Industrial pneumatic networks requiring 0.05–1.0 MPa operating range
- Downstream SMC drying, regulation, and lubrication components
Replaces / Drop-In Replacement For
- SMC AFF22C-06C-T (alternative 3/4 NPT configuration)
- SMC AFF22C-06BD (comparable 3/4 inch main line filter)
- Other 3/4 NPT AFF-series filters with 3 µm elements
Works With
- SMC pneumatic valve and actuator ecosystems
- Standard compressed air preparation systems
- ANSI/ISO pneumatic networks
- Industrial automation platforms requiring ISO 8573-1 Class 4–5 air purity
