Overview

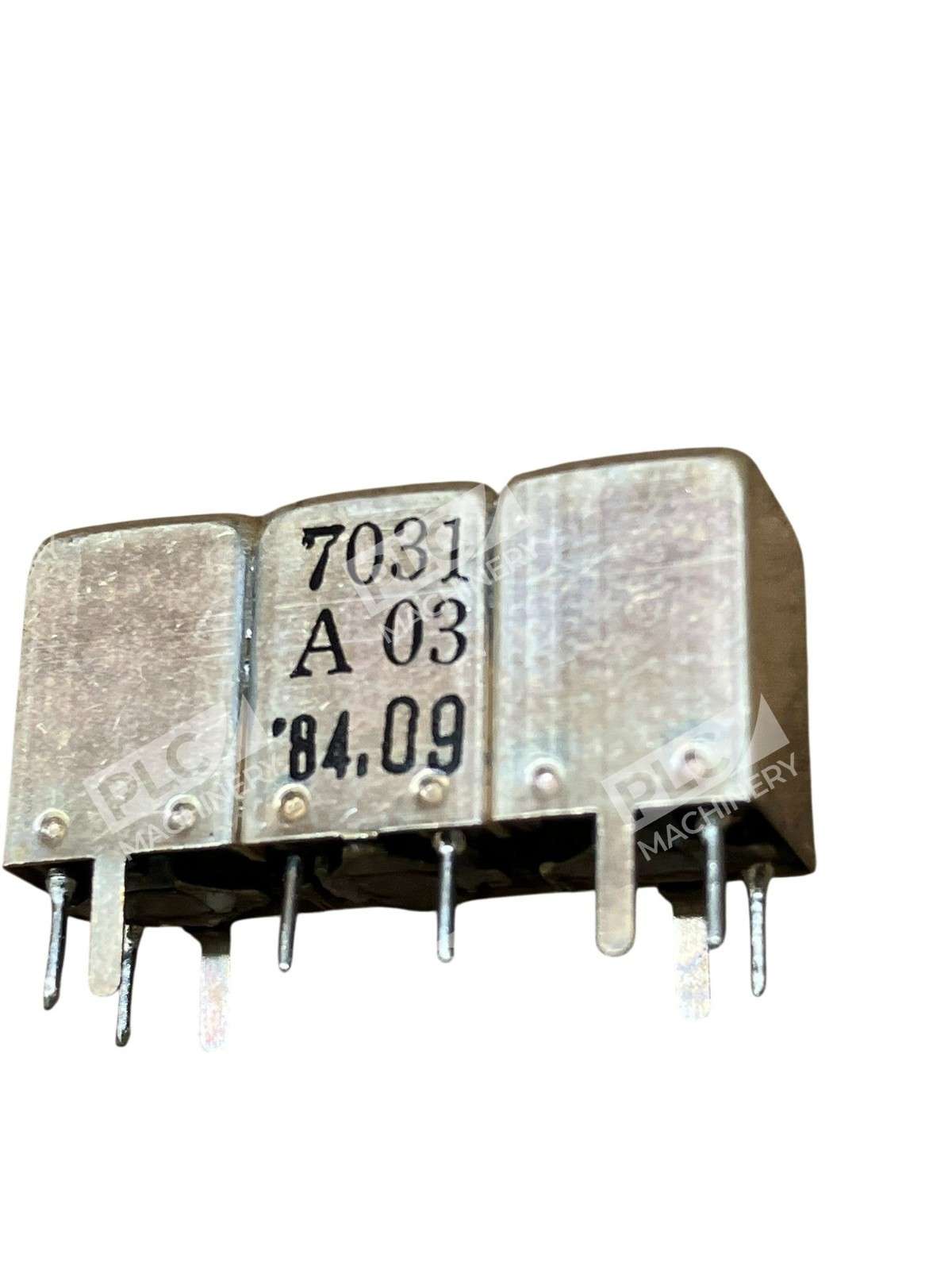

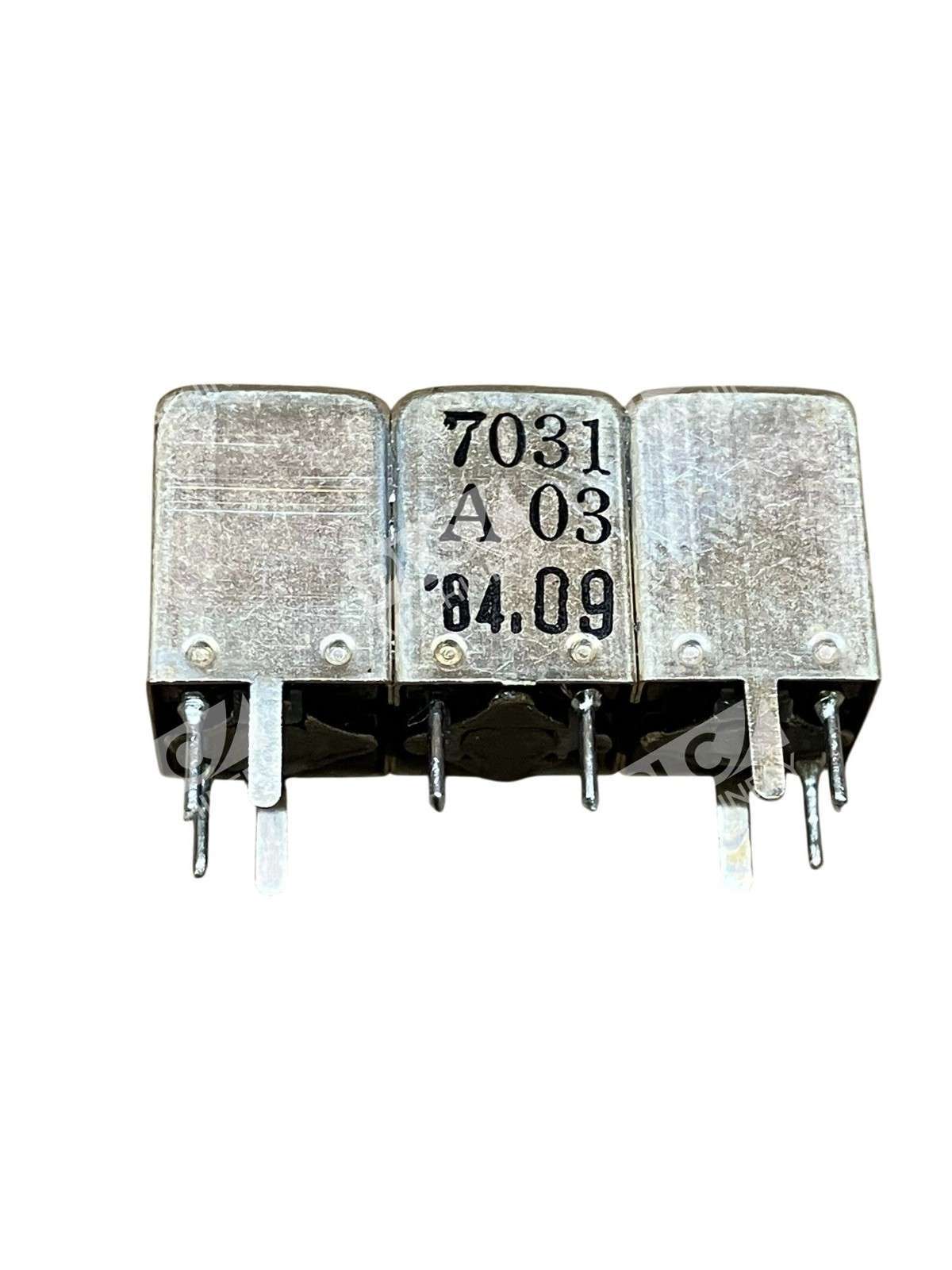

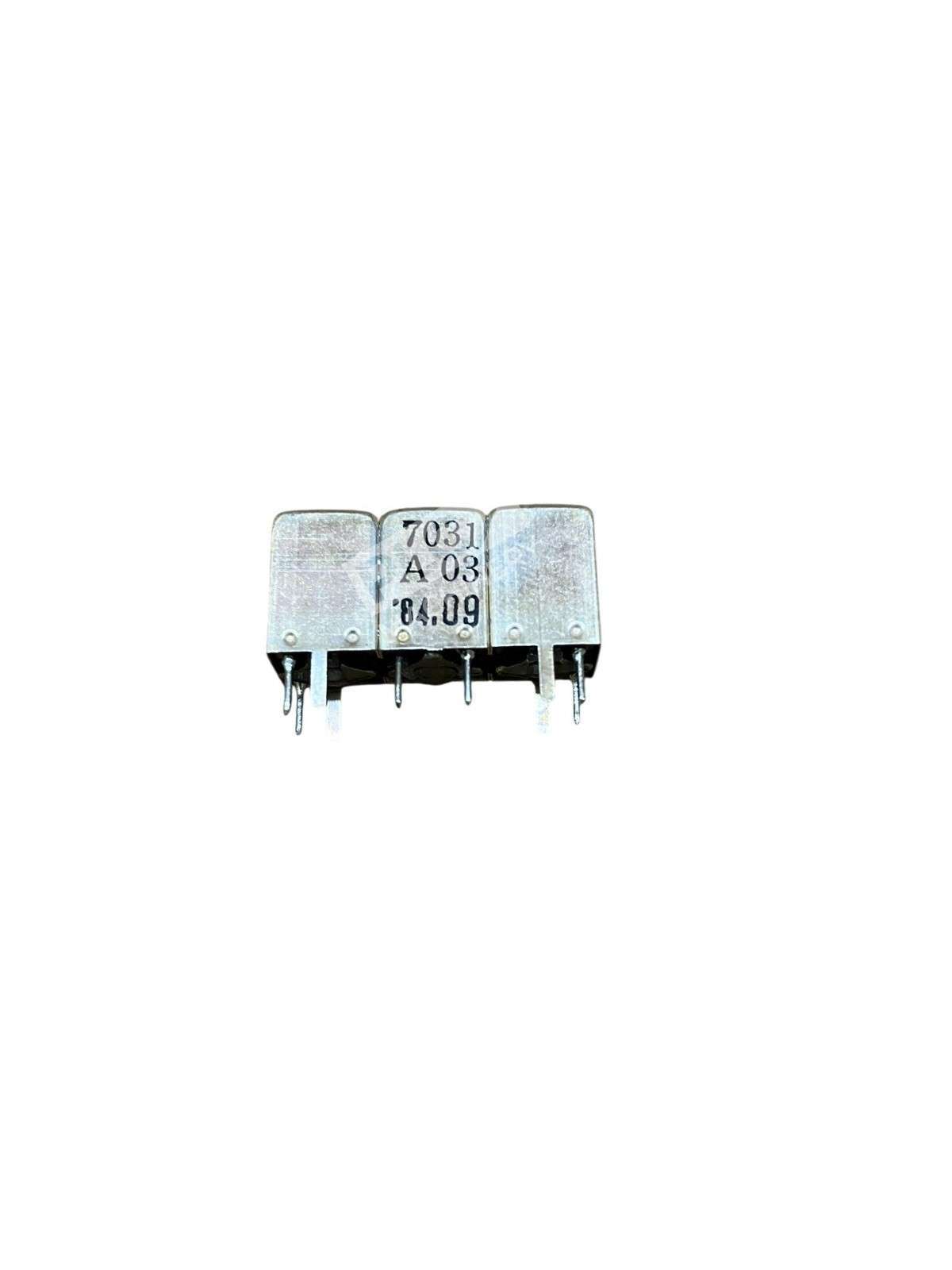

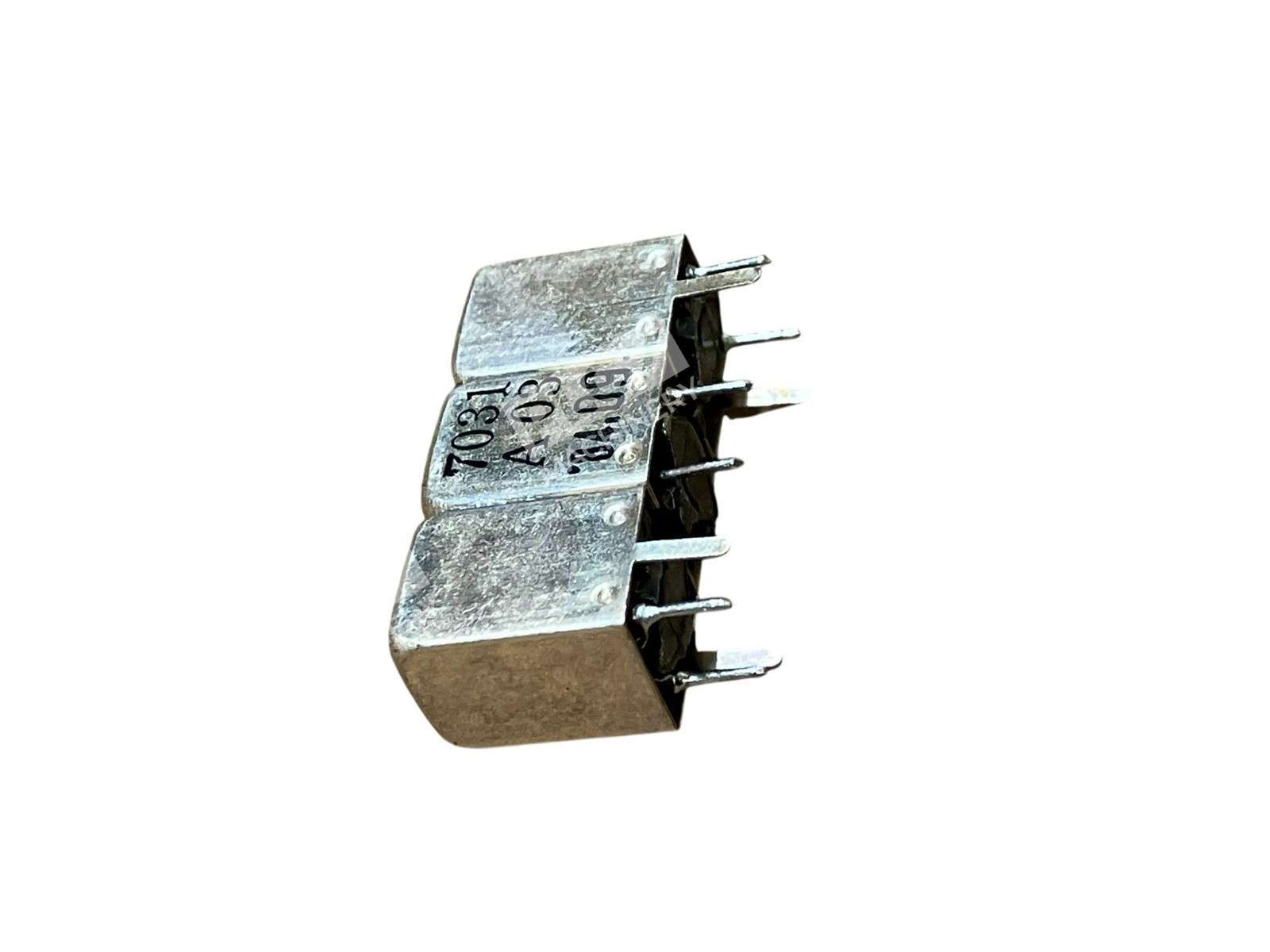

The F-7031-A03 helical band-pass filter is a bulk set of 60 filter units engineered for selective frequency filtering in RF and microwave applications. Helical band-pass filters use resonant coils within shielded cavities to pass desired frequency bands while rejecting out-of-band signals. This design is widely used in telecommunications, test equipment, measurement systems, and signal conditioning circuits where precise frequency selection is essential.
Key Features
- Helical resonator construction for compact, high-Q filtering
- Selective band-pass response—passes desired frequencies, attenuates others
- Ideal for RF and microwave signal applications (100 MHz to several GHz range typical)

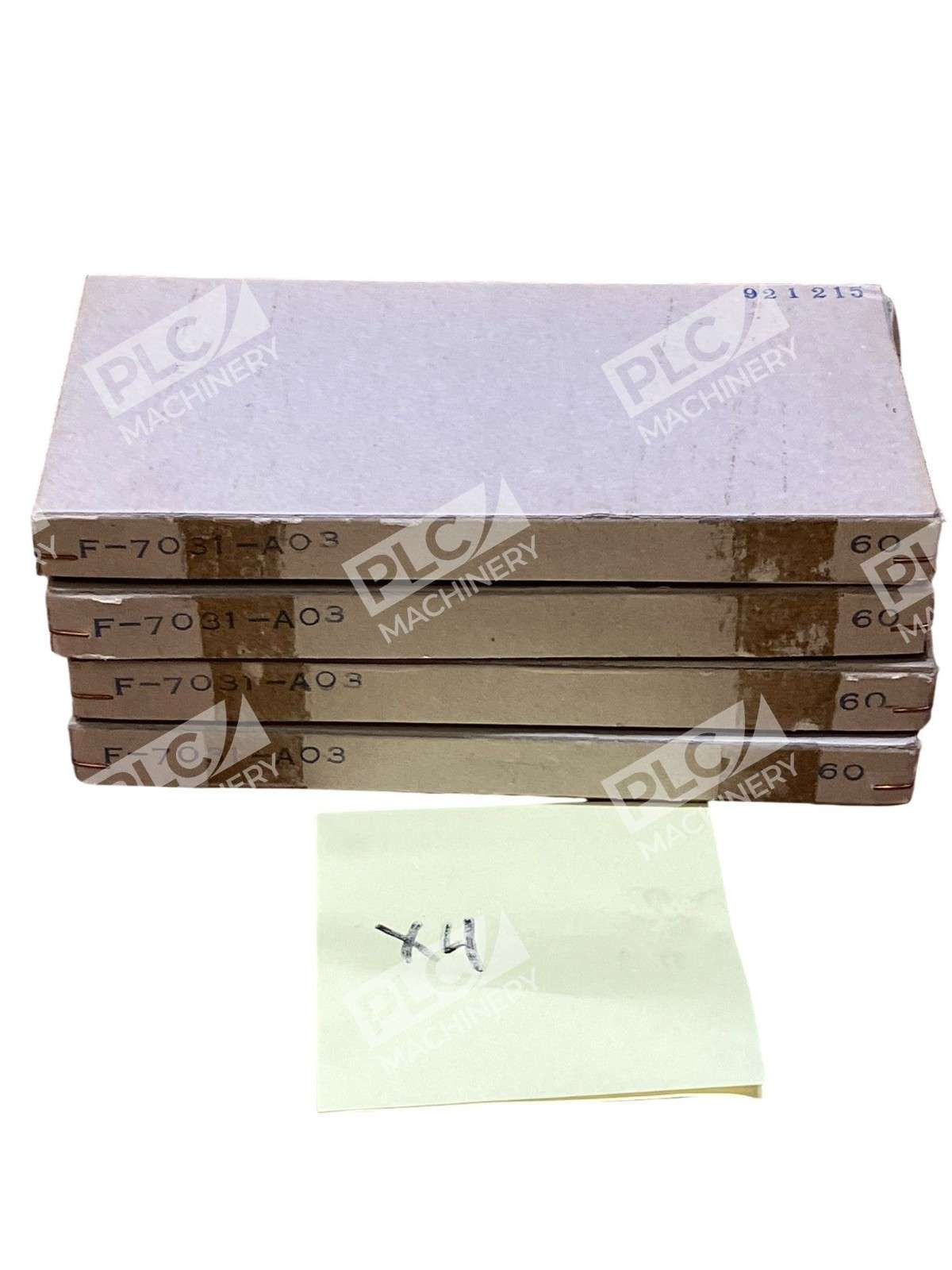

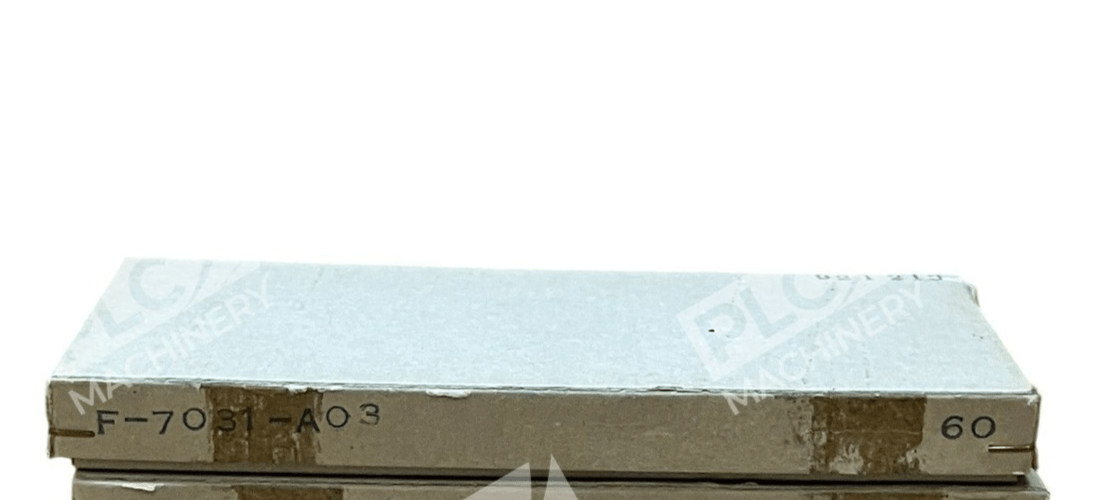

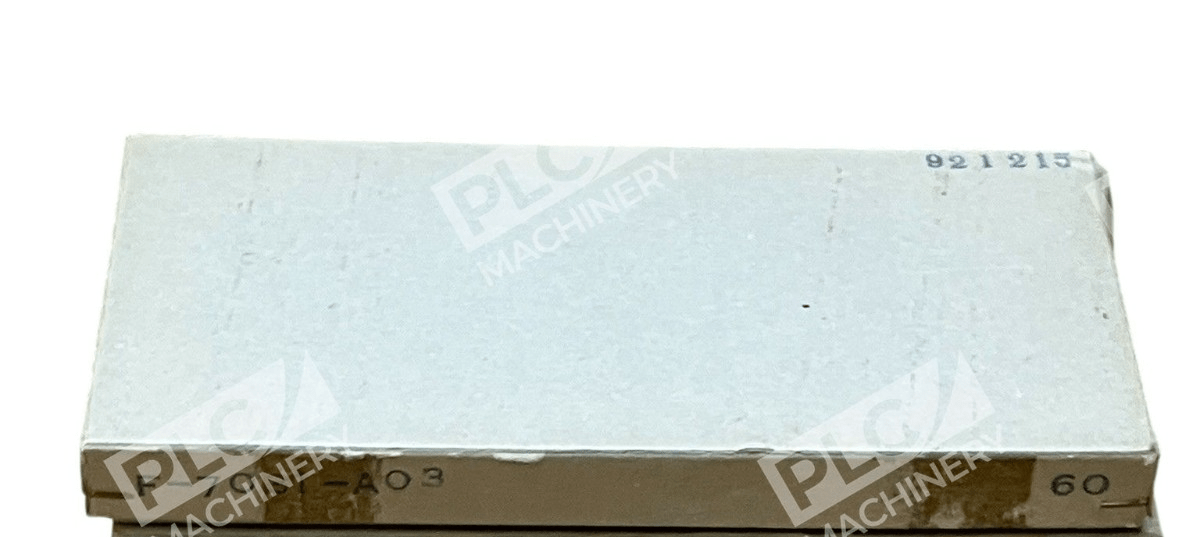

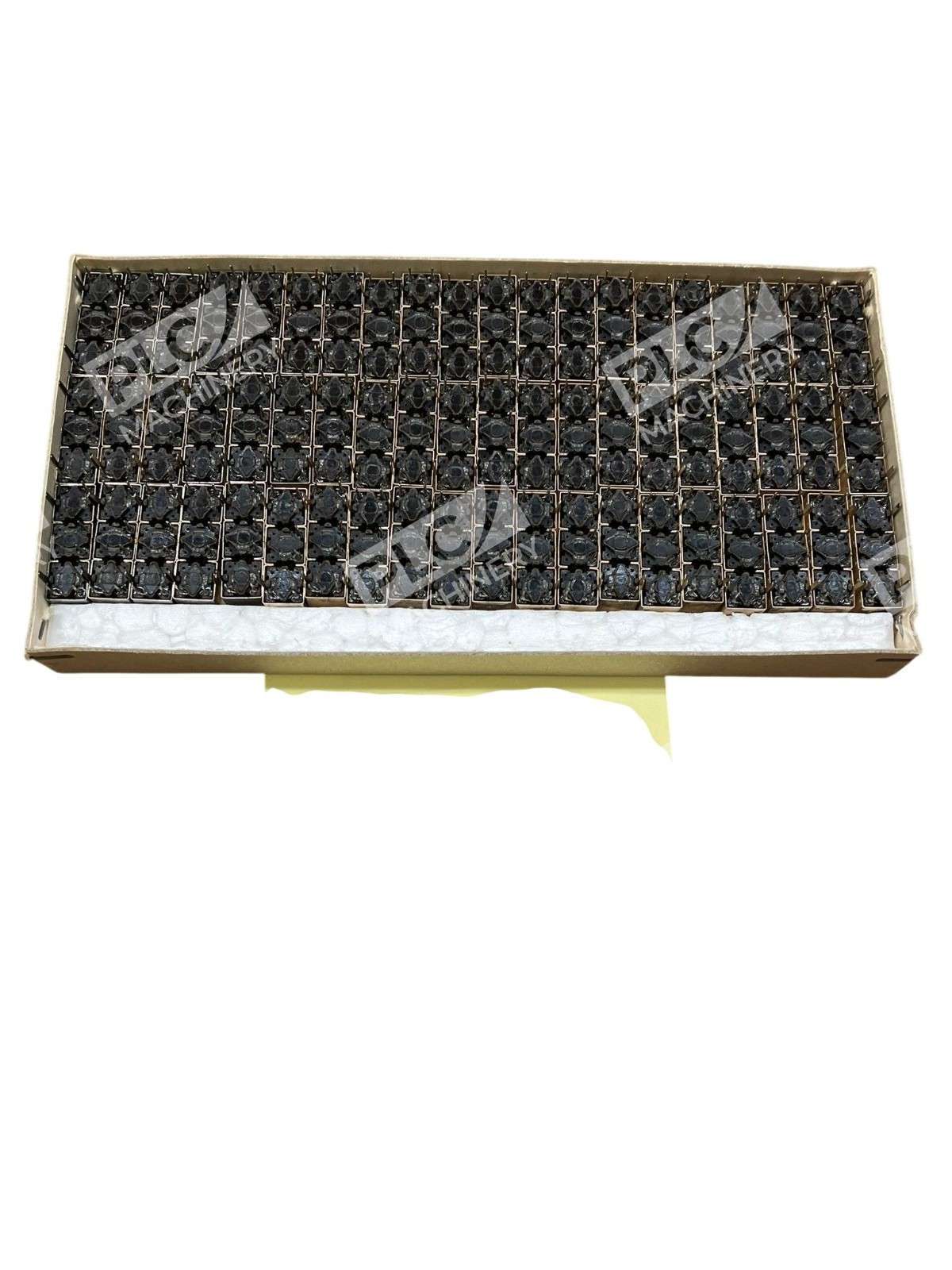

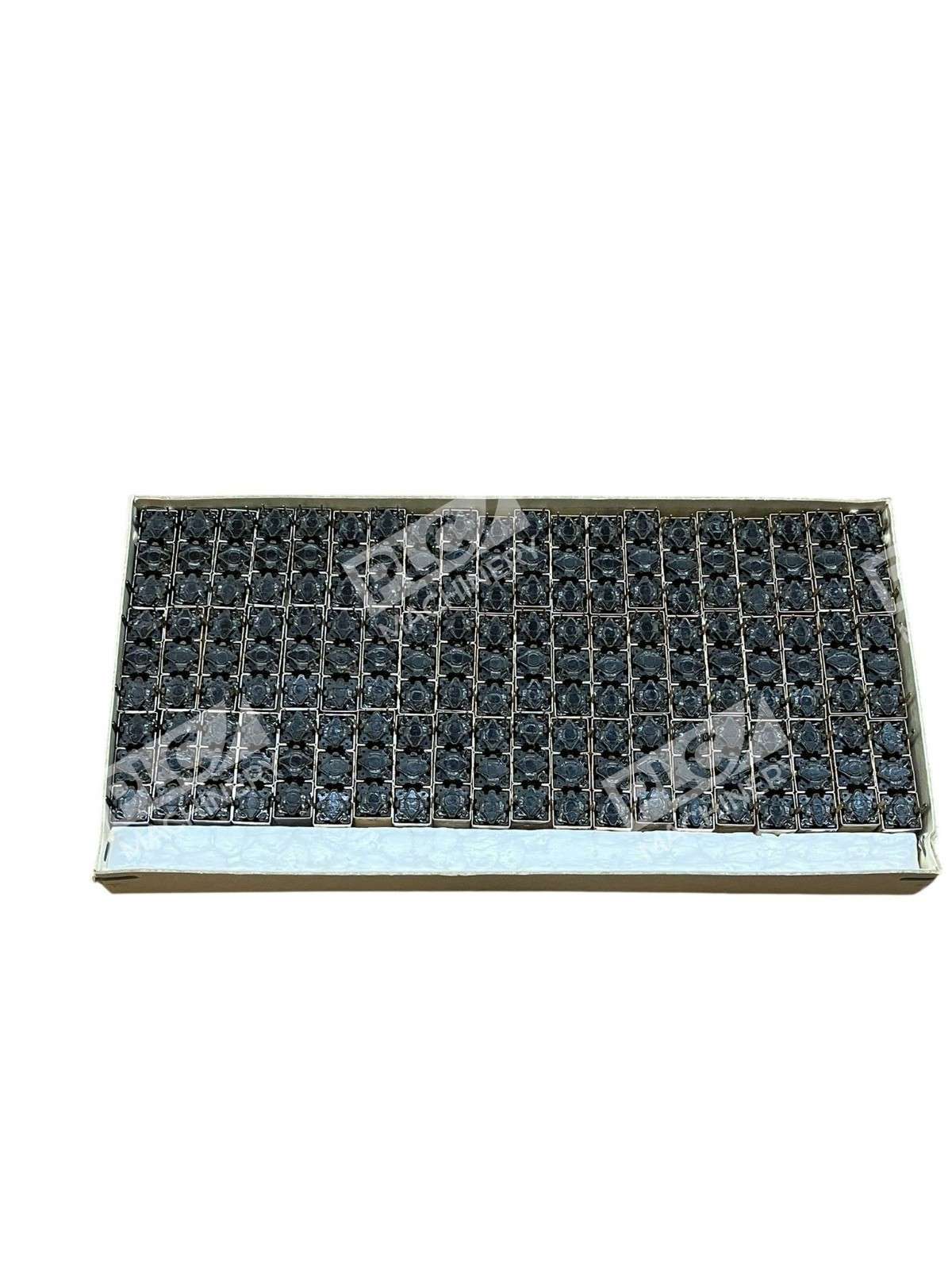

- Box of 60 units—suitable for manufacturing runs, system integration, or bulk test labs
- Shielded cavity design minimizes external electromagnetic interference
- Low insertion loss characteristic of helical design
Technical Specifications
- Product Type: Helical Band-Pass Filter

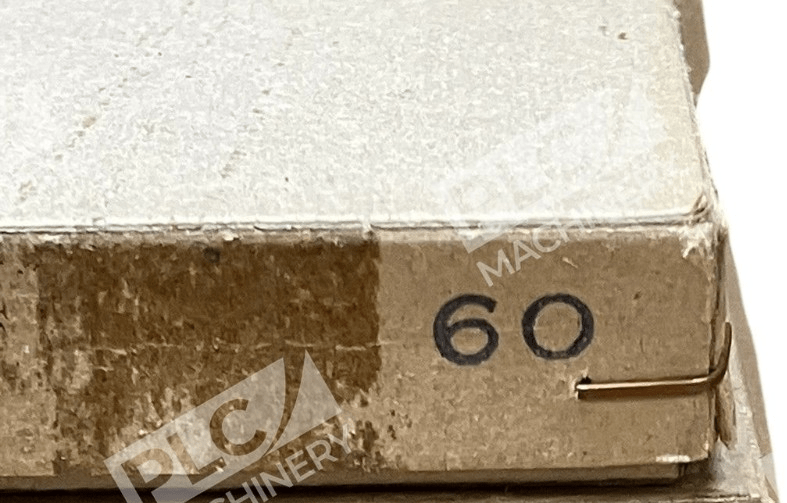

- Quantity per Box: 60 units
- Manufacturer: Unbranded

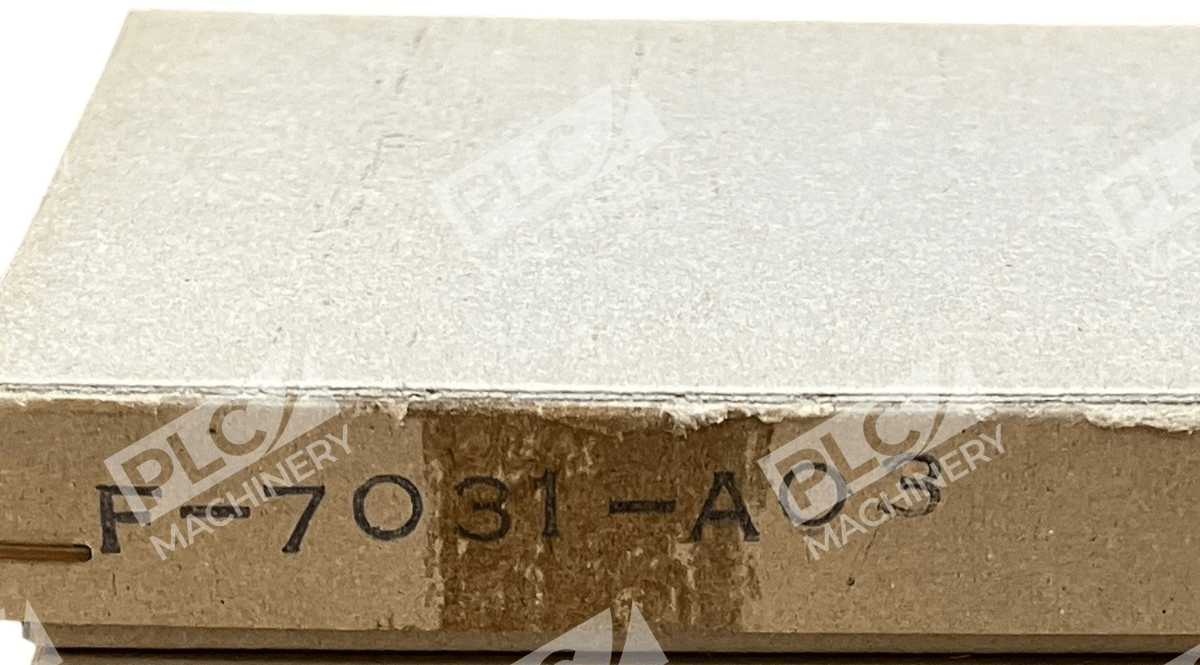

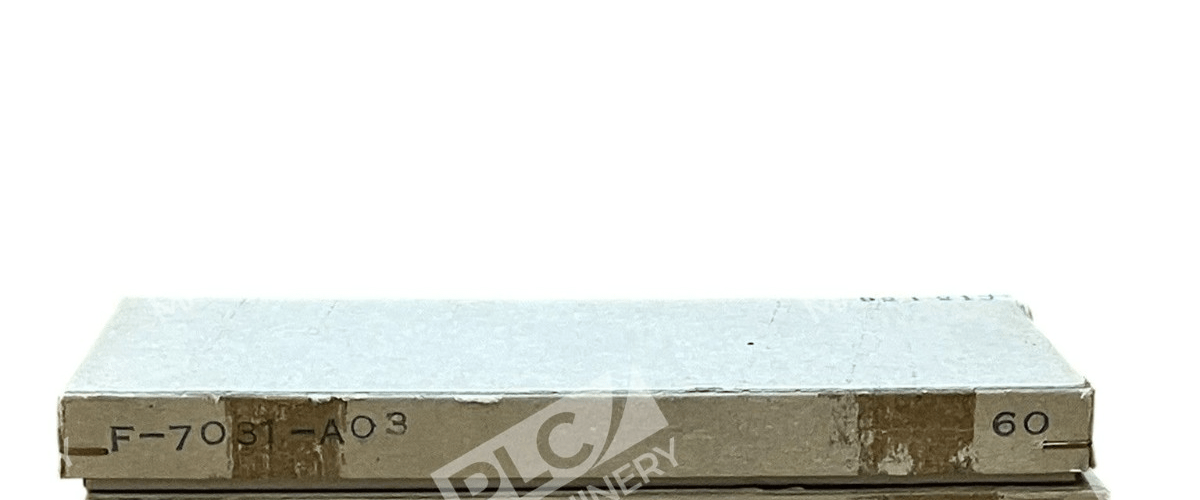

- Part Number: F-7031-A03
- Condition: New – Open Box
- Application Class: RF/Microwave frequency filtering
- Resonator Type: Helical coil in shielded cavity
- Typical Frequency Range: VHF/UHF/microwave (exact center frequency and bandwidth vary by unit design)
Typical Applications
- Test and measurement equipment—signal filtering and conditioning
- RF transmitter/receiver front-end filtering
- Microwave systems—adjacent channel rejection
- Telecommunications equipment—channel selection
- Signal source filtering in laboratory and industrial settings
- Bulk inventory for OEM and system integrator assembly
Compatibility & Replacements
Compatible With
- RF and microwave test equipment
- Telecommunications systems and transceivers
- Signal conditioning and measurement circuits
- VHF/UHF/microwave signal sources
- OEM manufacturing and system integration platforms
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment manufacturer before ordering. Helical filters are often application-specific; confirm frequency response, impedance, and coupling characteristics match your system requirements.
Works With
- RF/microwave measurement instruments
- Signal generators and sources
- Receiver front-end assemblies
- Laboratory test benches
- Industrial and commercial telecommunications equipment
