Overview

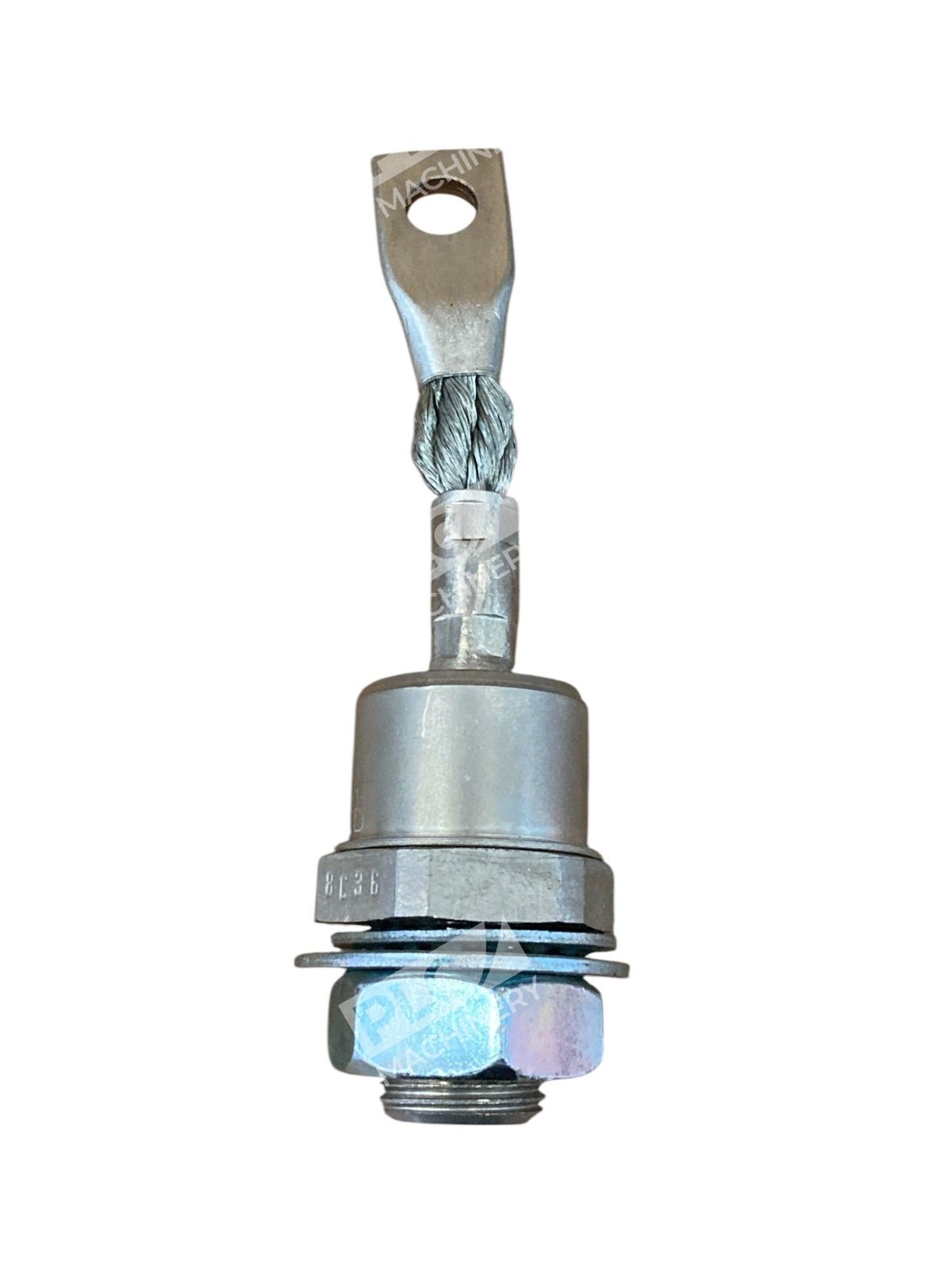

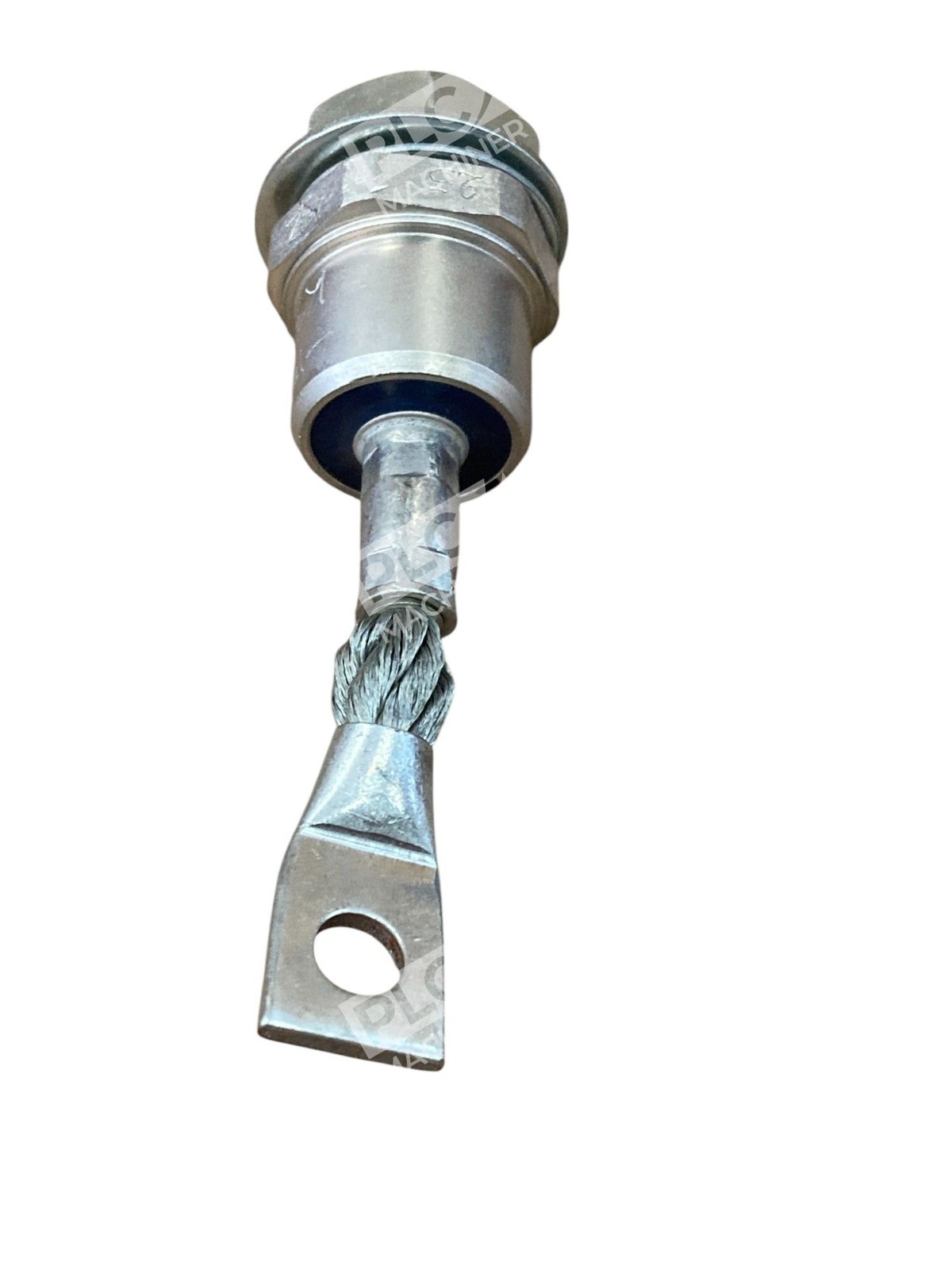

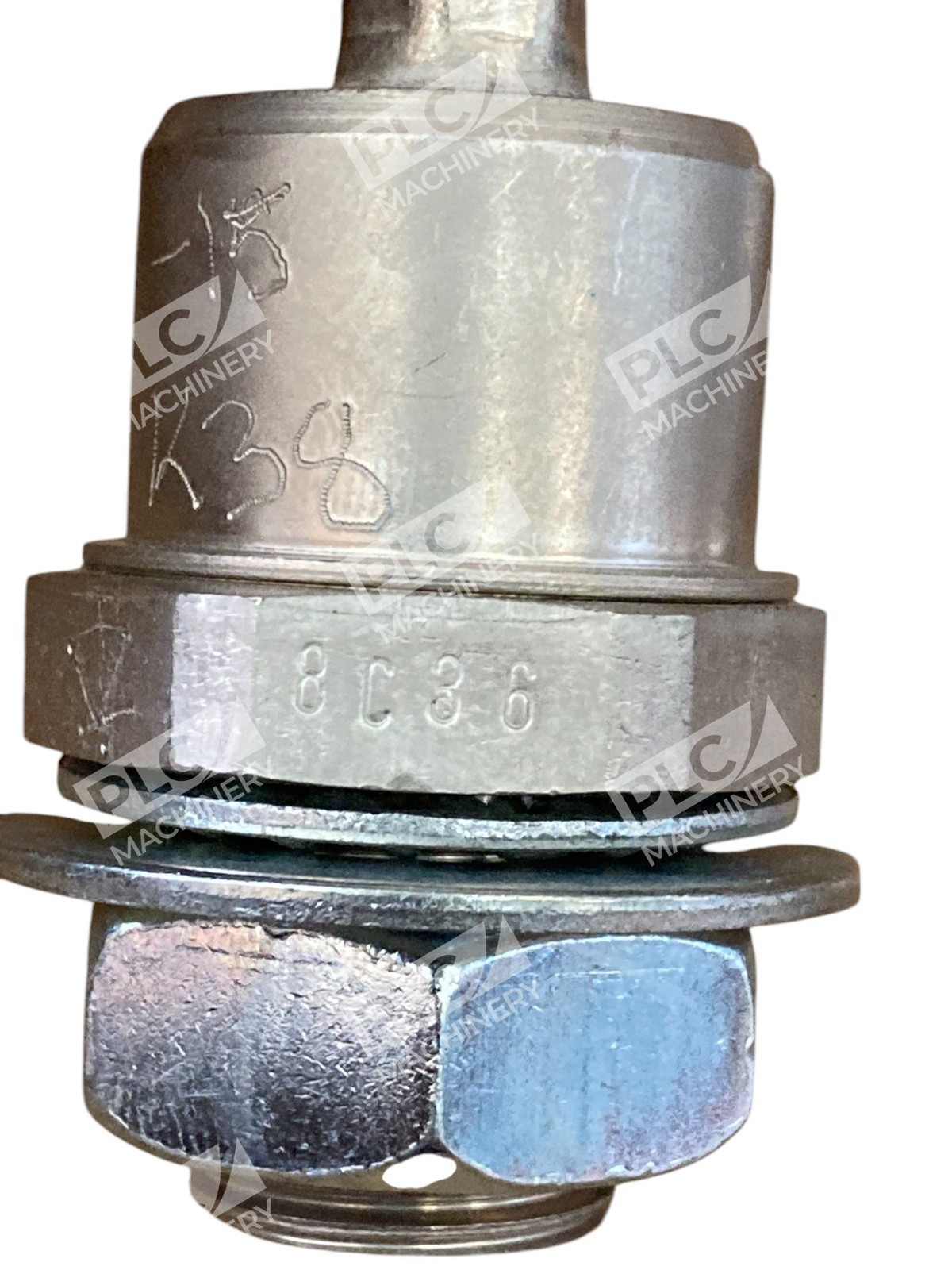

The 8C36 is a stud-mounted power rectifier diode engineered for high-current rectification in industrial electrical systems. Stud-mounted construction provides secure mechanical mounting and excellent thermal coupling to heatsinks, making this 8C36 diode ideal for power supplies, variable-frequency drives, welding equipment, and DC power distribution systems.
Key Features
- Stud-mounted design for secure mechanical installation and efficient heat dissipation
- Industrial-grade reliability suitable for continuous operation in power conversion circuits
- Low forward voltage drop for efficient power conversion
- Flexible lead configuration for standard power circuit integration
- Compatible with industry-standard heatsink mounting systems
Technical Specifications
Stud-mounted rectifier diodes of this class are typically rated for high-current DC applications with junction temperatures rated to 125–150°C. Blocking voltages generally range from 300V to 3000V depending on the series variant. The diode exhibits low conduction losses optimized for line-frequency applications up to 400 Hz.
Typical Applications
- AC/DC power supply rectification
- Variable frequency drive (VFD) input rectifiers
- Industrial motor control systems
- DC power distribution and conversion circuits
- Welding equipment and high-current switching applications
- Traction converters and railway power systems
Compatibility & Replacements
Compatible With
- Standard industrial heatsink mounting systems (stud-mount compatible)
- AC/DC power supply designs operating 50–400 Hz
- High-current rectification circuits rated 100–500A
- Power electronics with blocking voltages 300V–3000V
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering, as stud-mounted rectifier diode variants may differ in blocking voltage, current rating, and lead polarity. Consult the original equipment documentation to confirm direct replacement compatibility.
Works With
- Industrial power conversion and AC/DC rectifier circuits
- Forced-air and natural cooling heatsink systems
- Metric and standard thread stud-mount configurations
- High-frequency and line-frequency power applications
