Overview

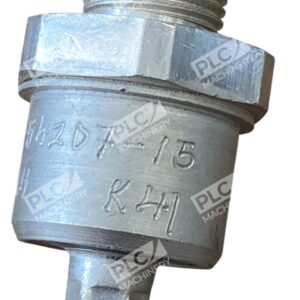

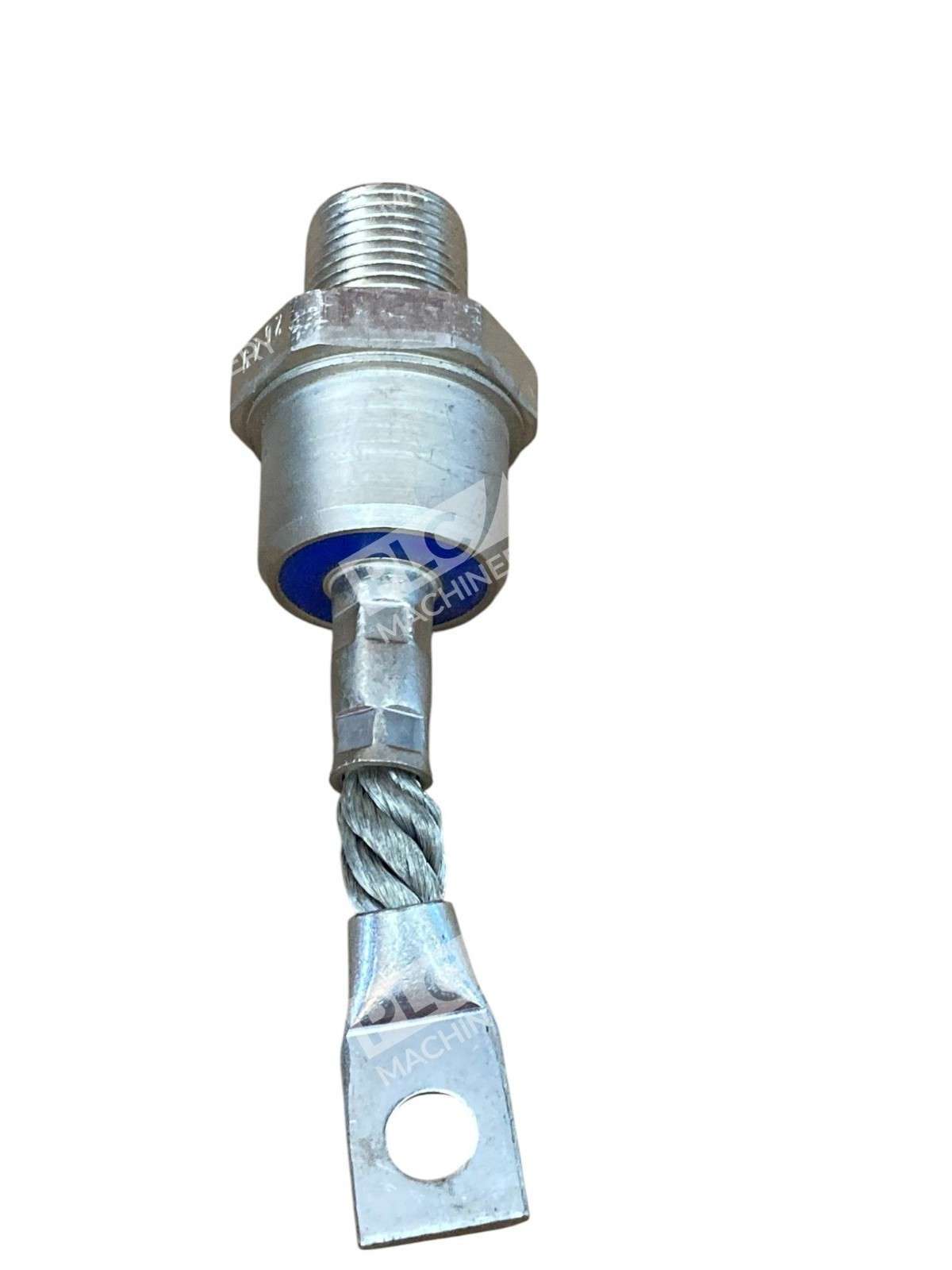

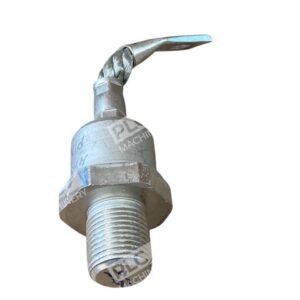

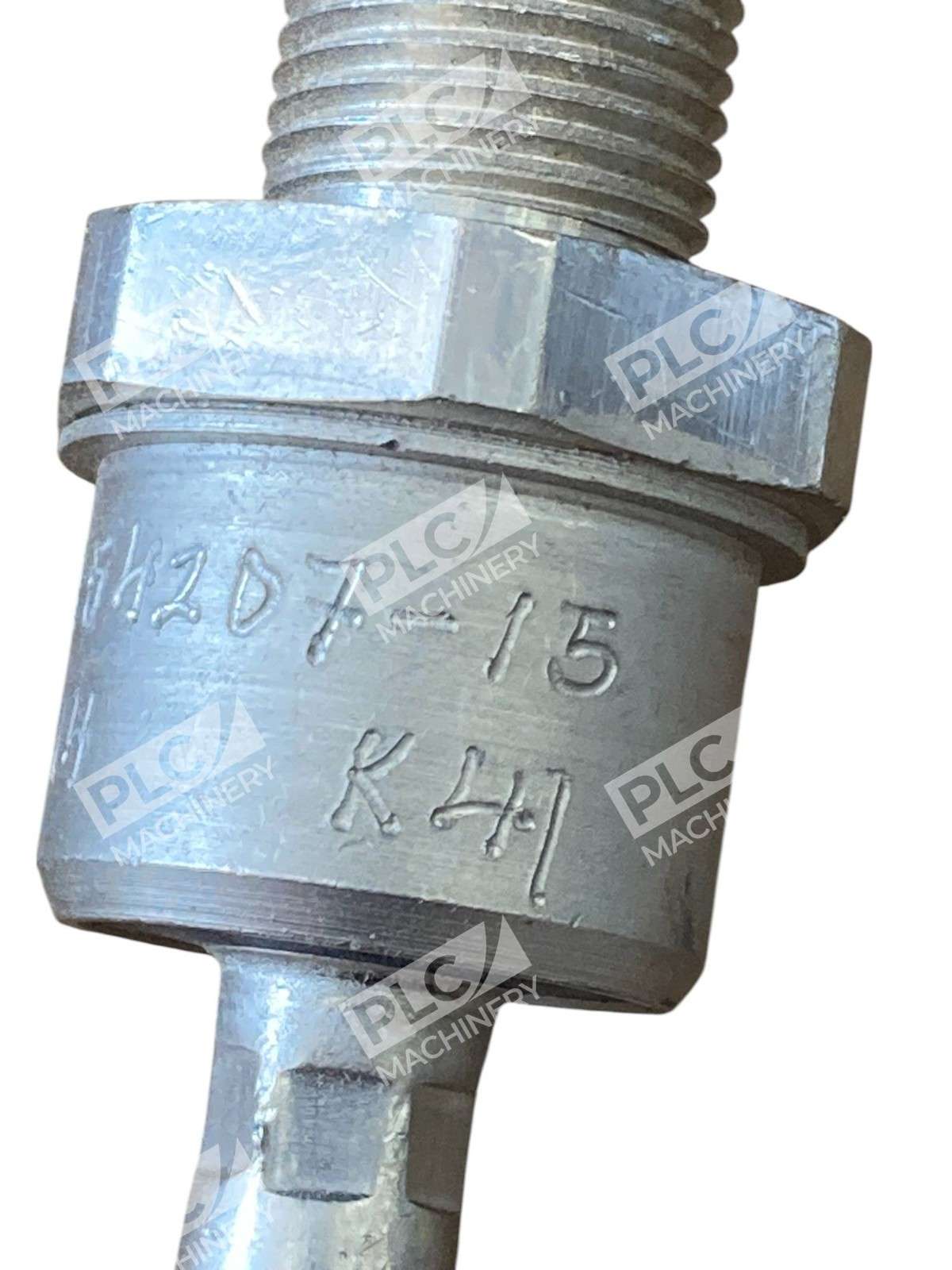

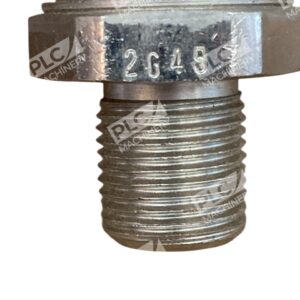

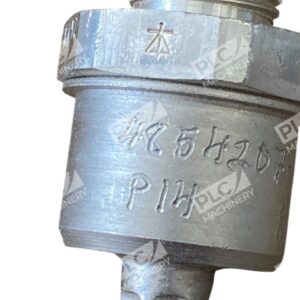

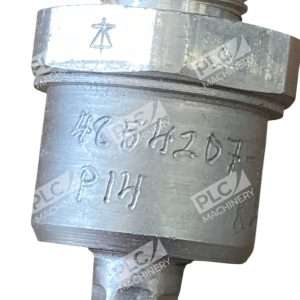

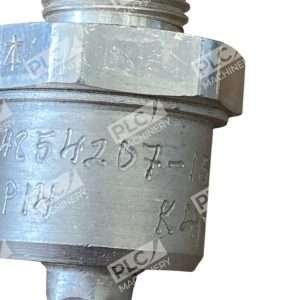

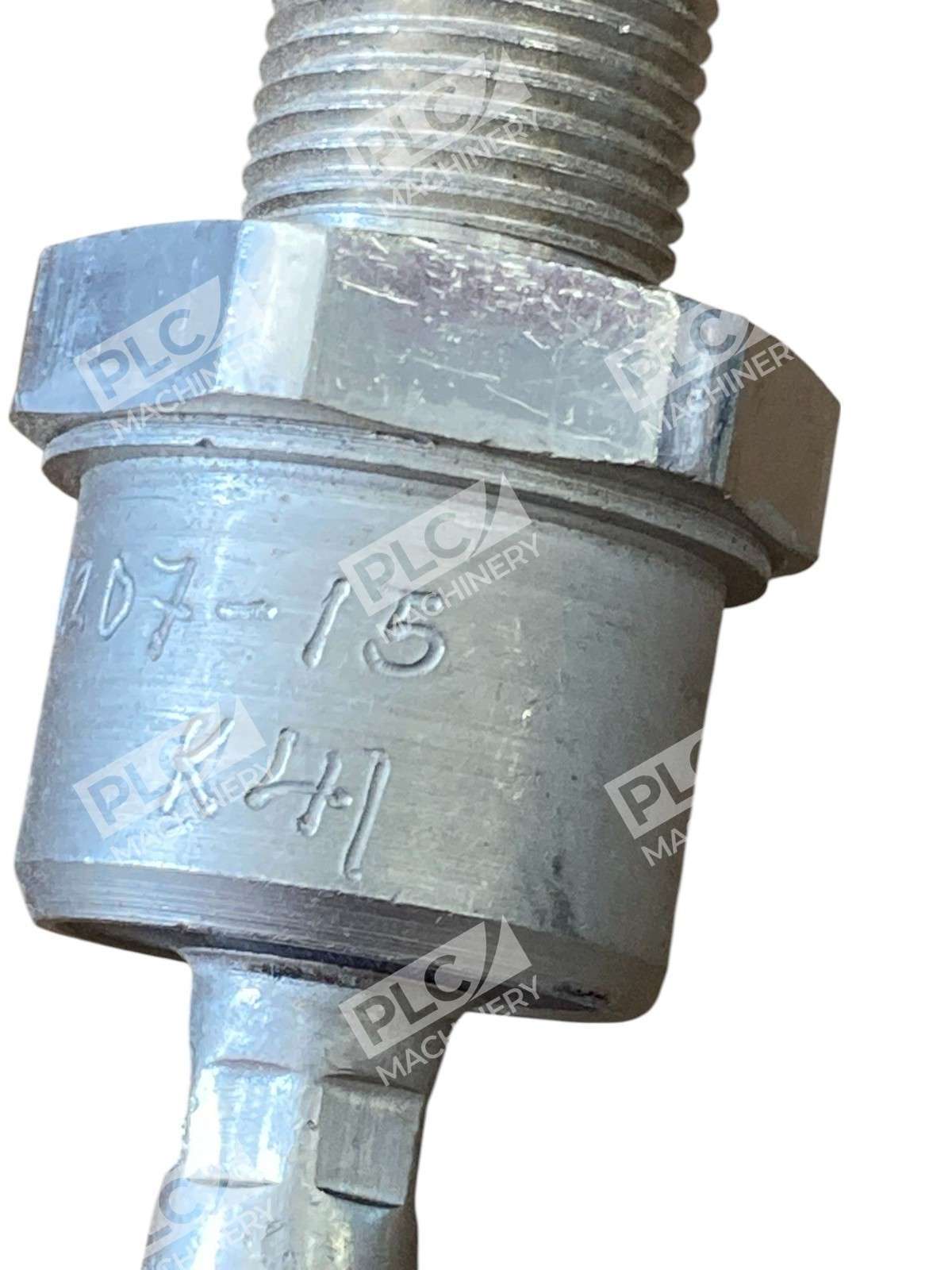

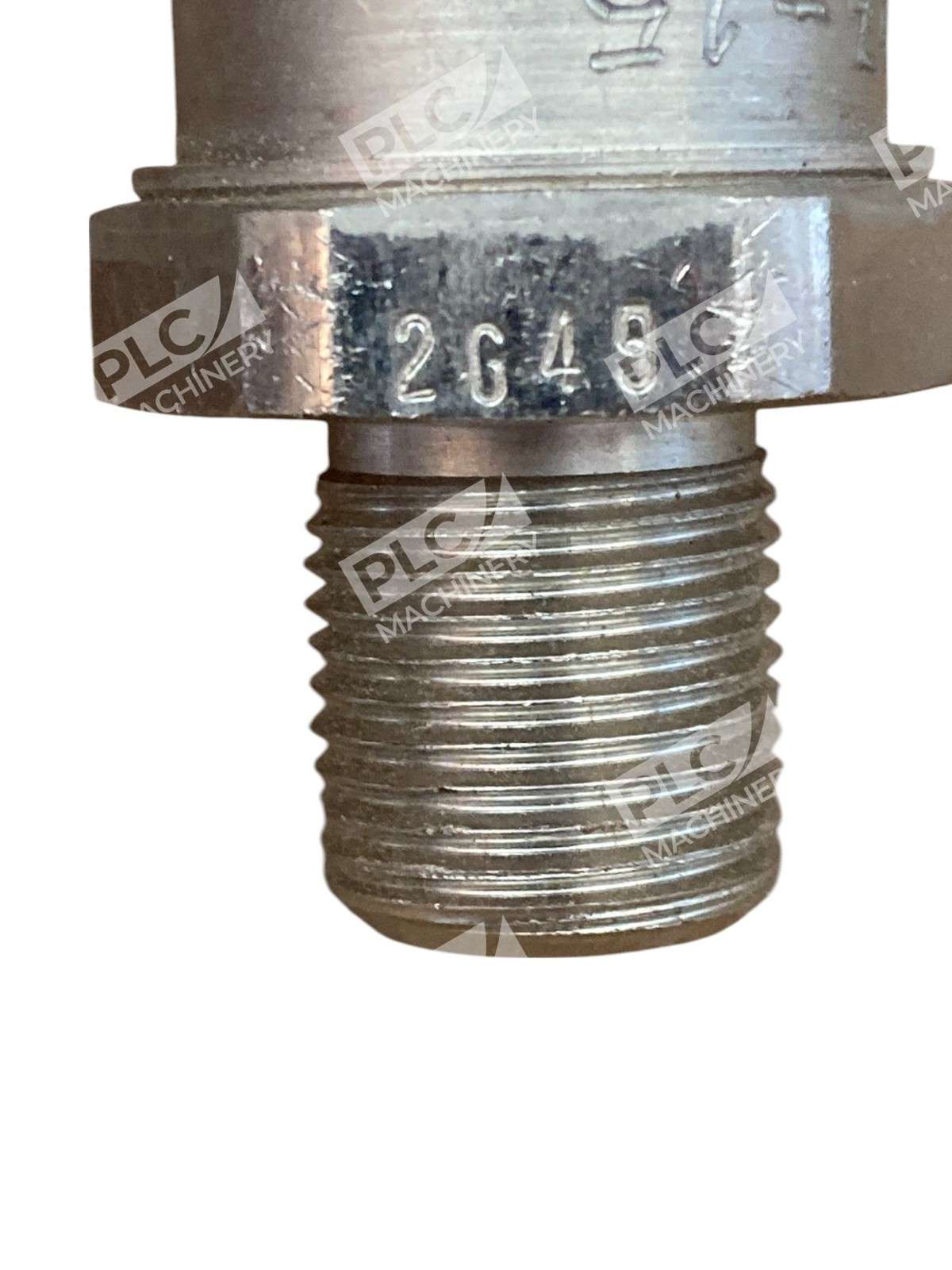

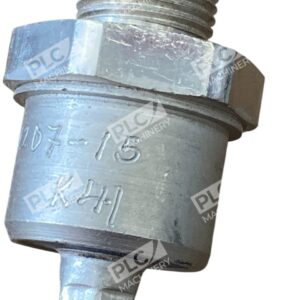

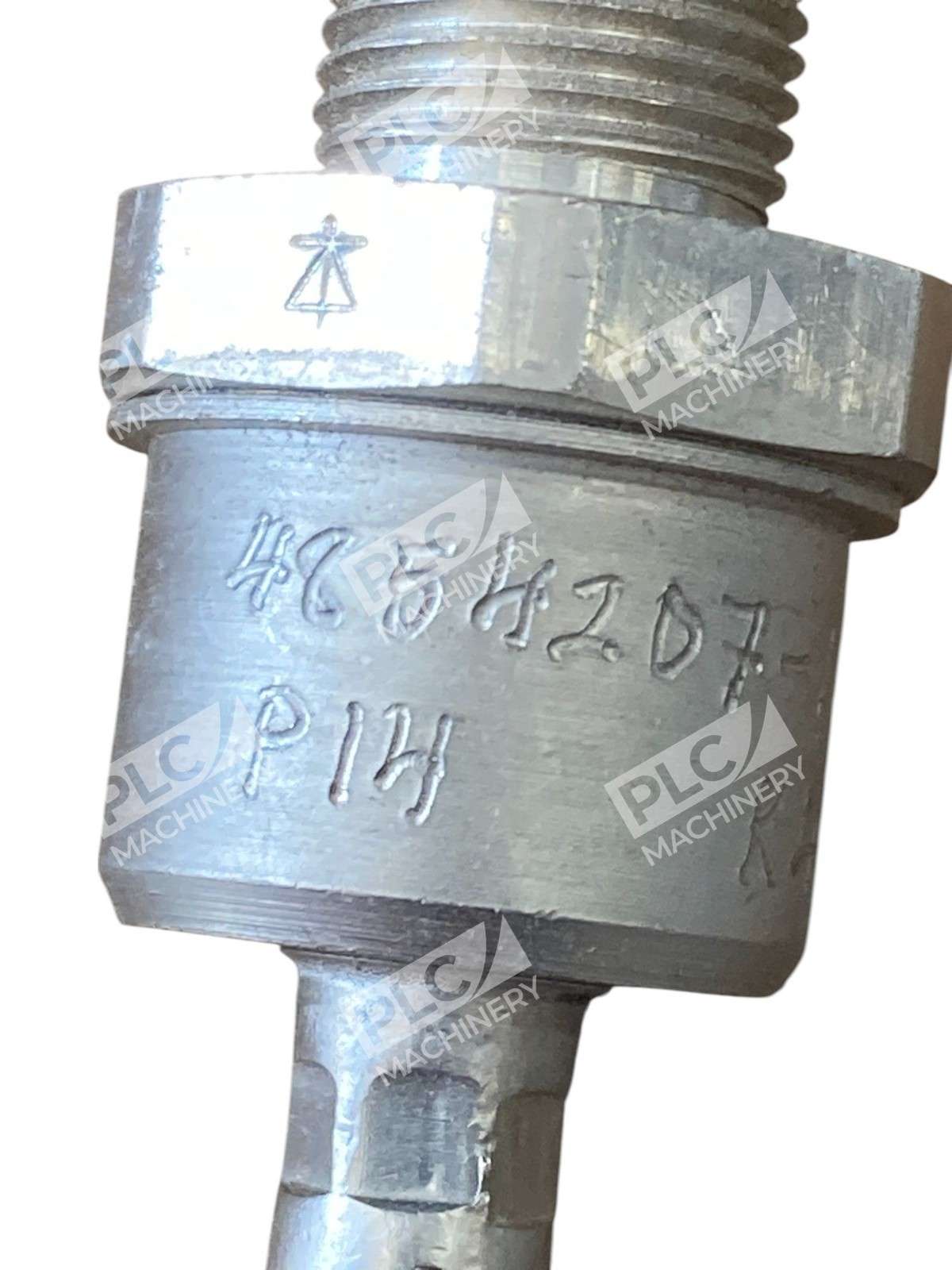

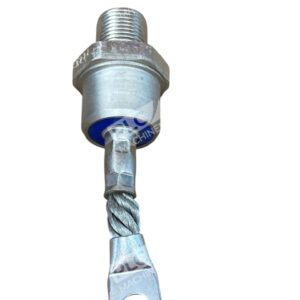

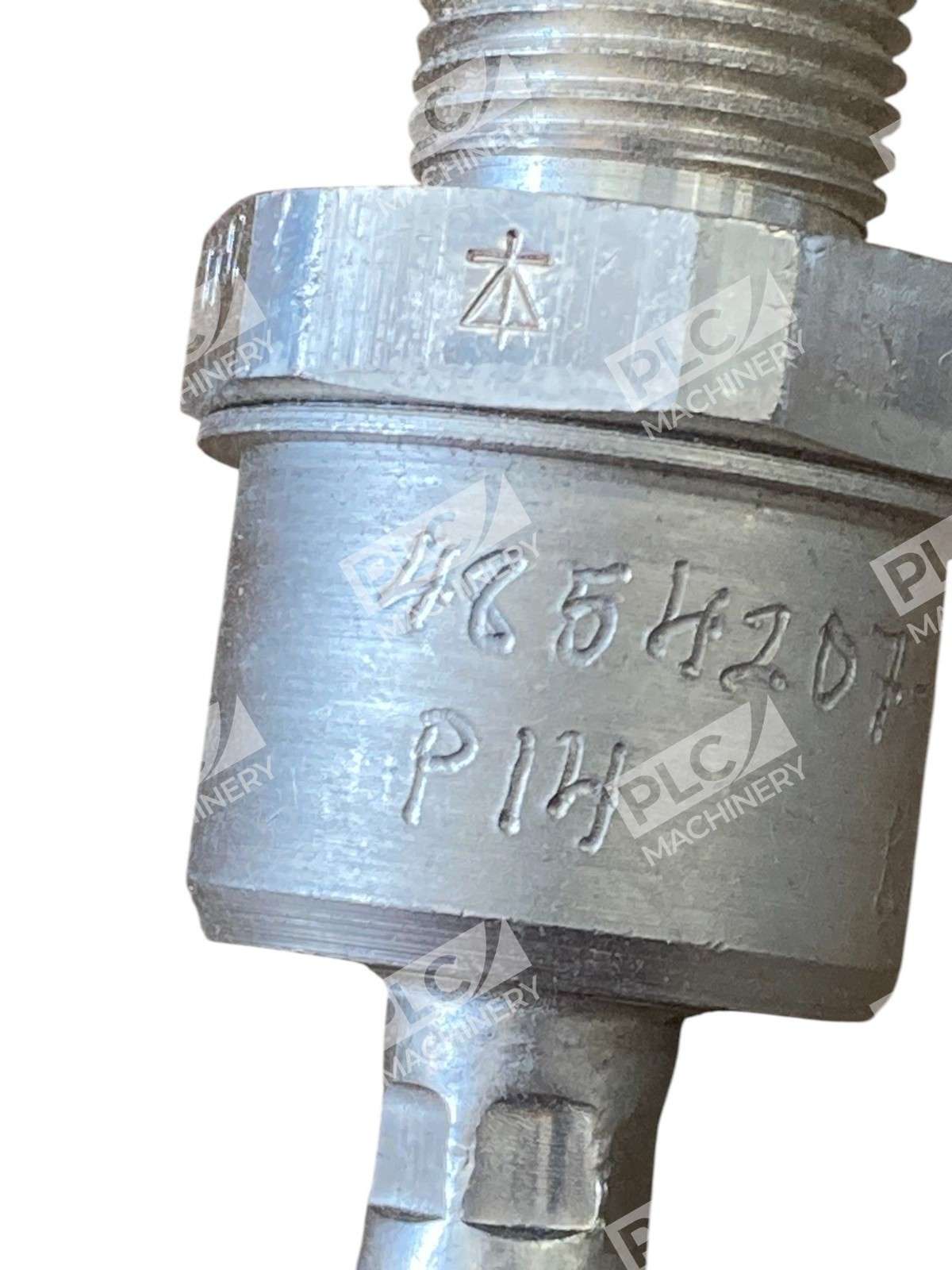

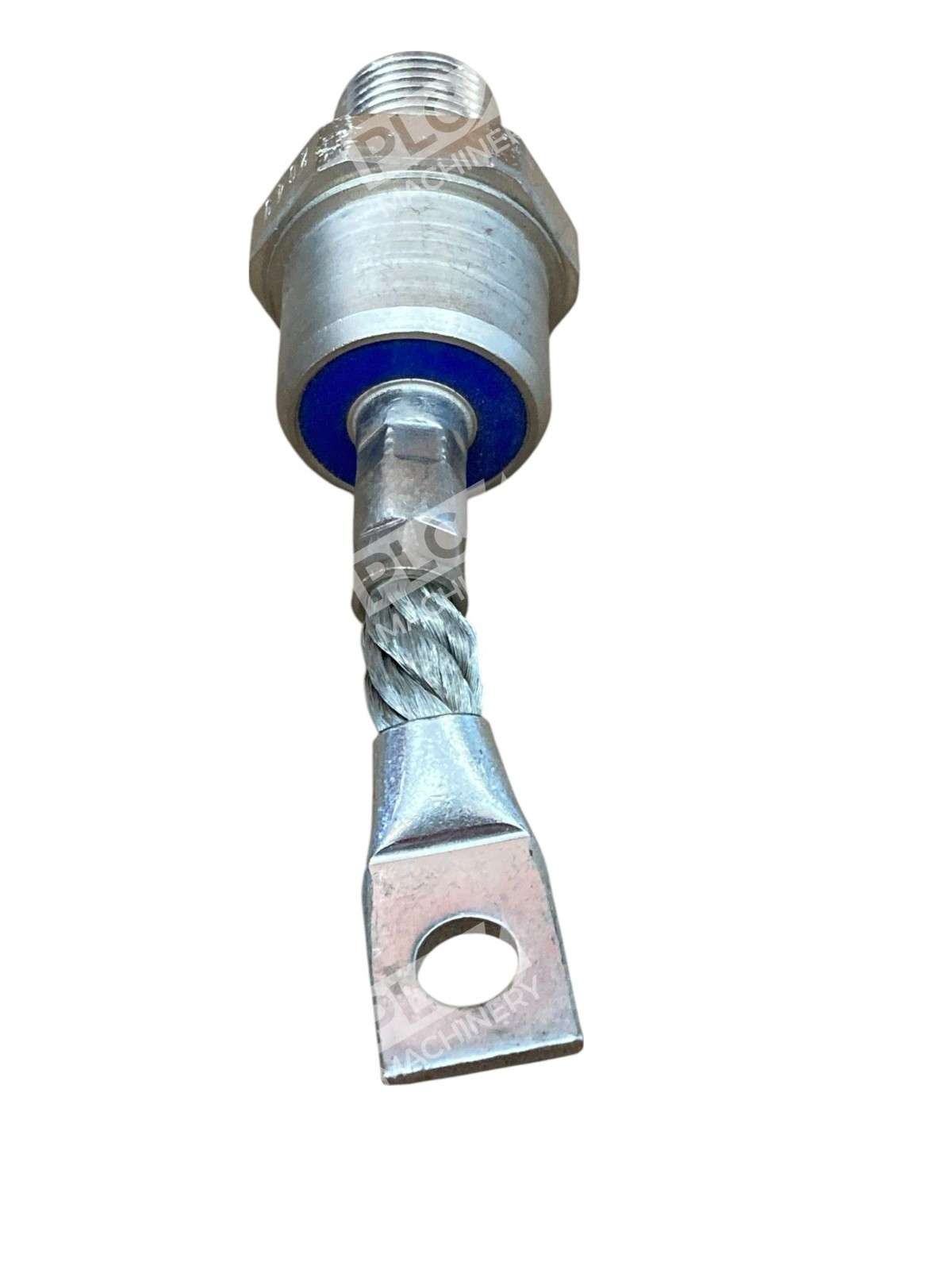

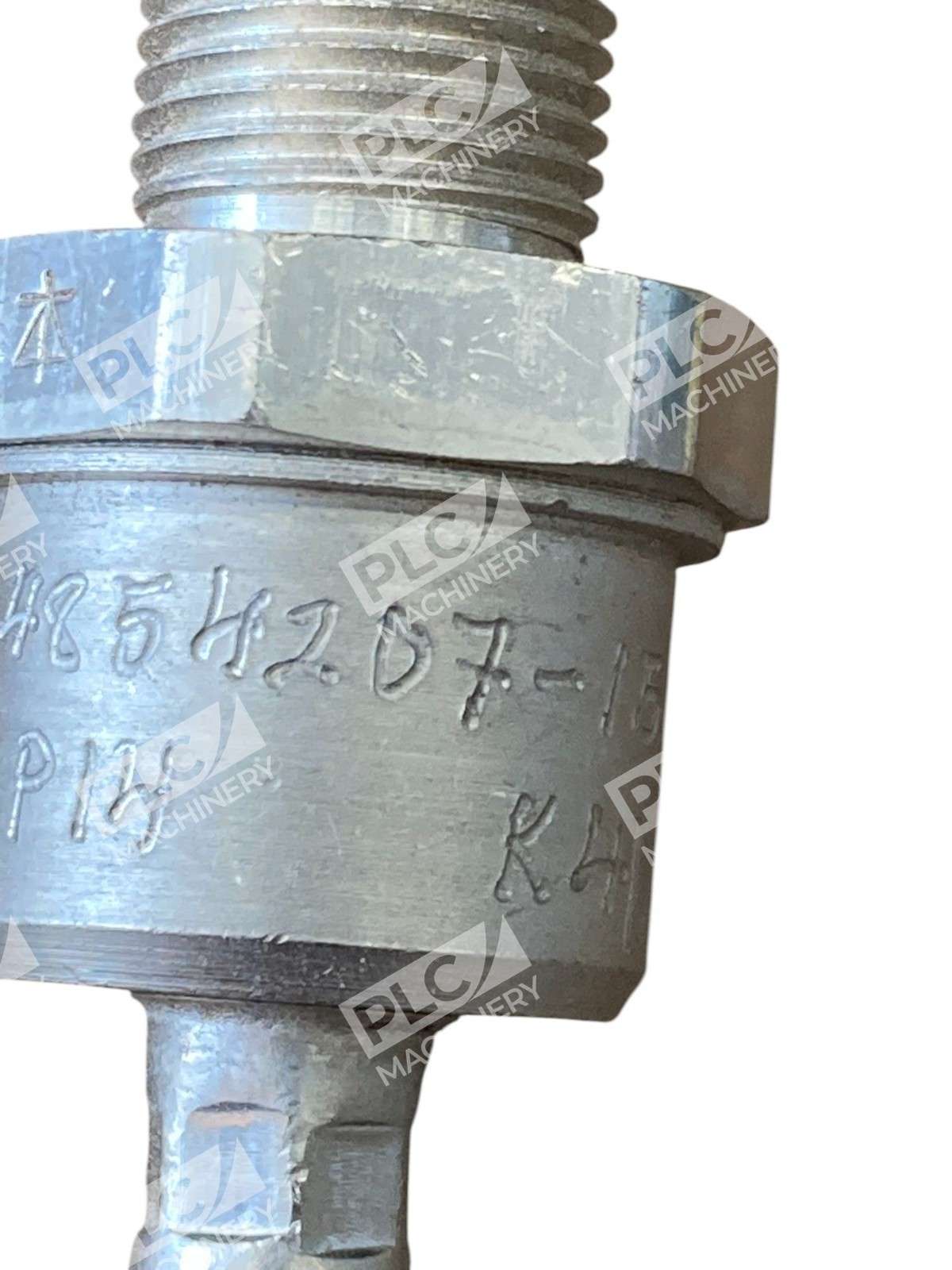

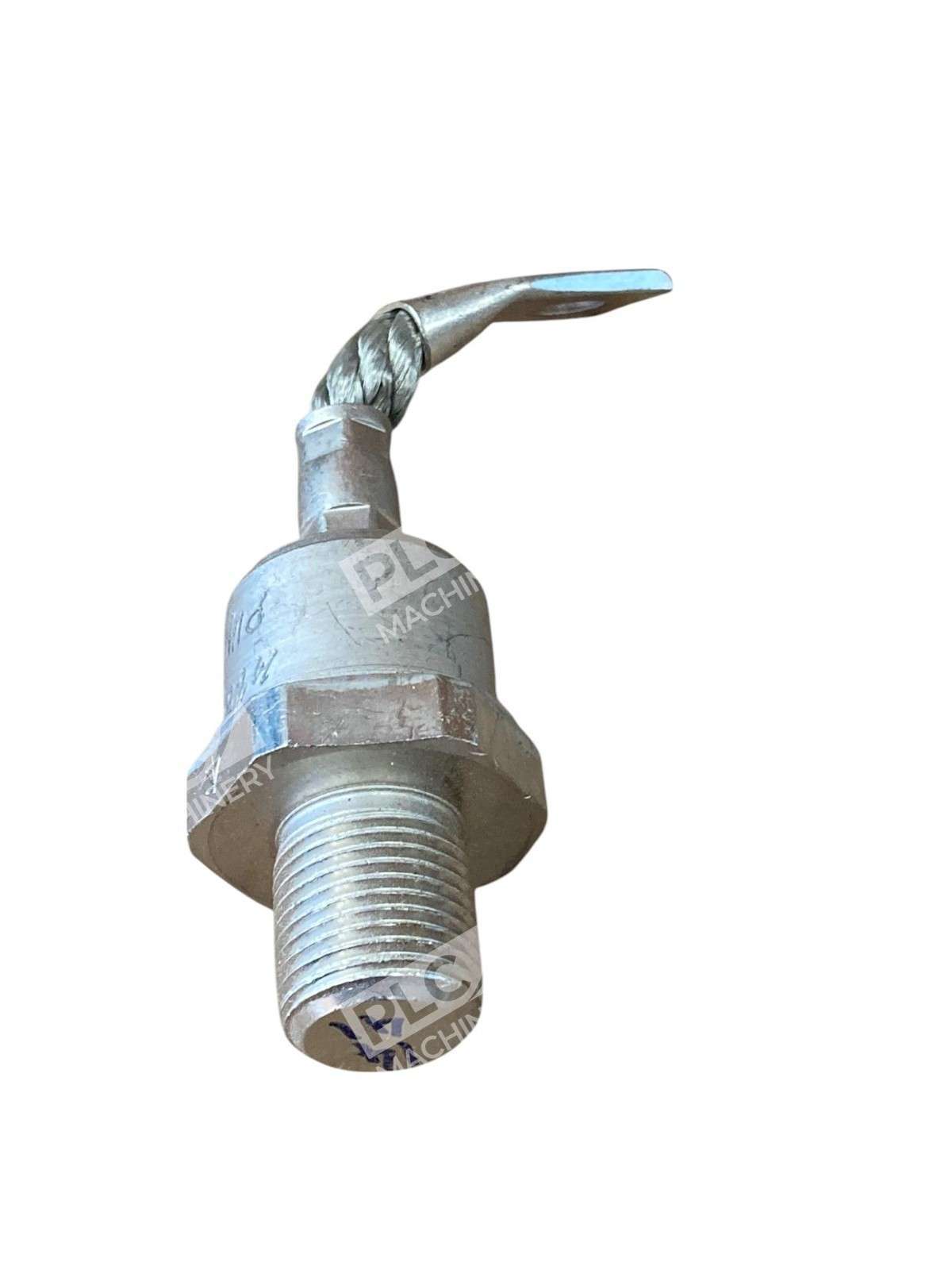

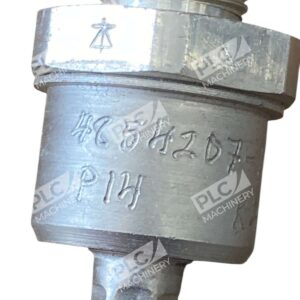

The ABB 4854 207-15 rectifier diode is a precision-engineered power semiconductor designed for industrial-grade rectification applications. This single-phase bridge rectifier combines low on-state losses with robust surge-current handling, making it suitable for AC-to-DC conversion in drives, power supplies, and control systems.
Key Features
- 4A maximum continuous current rating
- 207V gate trigger voltage specification
- 1V peak forward voltage for minimal power dissipation
- 4A peak surge current capability
- Industrial-grade construction for demanding environments
Technical Specifications
- Maximum Continuous Current: 4A
- Gate Trigger Voltage: 207V
- Peak Forward Voltage: 1V
- Peak Surge Current: 4A
- Configuration: Single-phase bridge rectifier
- Manufacturer: ABB
- Part Number: 4854 207-15
- Condition: New
Typical Applications
The ABB 4854 207-15 is well-suited for:
- Industrial power rectifiers and DC power supplies
- Variable frequency drive (VFD) input stages
- Control system rectification circuits
- Commercial electronics requiring efficient AC-to-DC conversion
- Equipment with moderate current demands (4A range)
Compatibility & Replacements
The ABB 4854 207-15 is a legacy part designation. When sourcing replacements or equivalents, consult ABB’s current rectifier diode portfolio, which includes the 5SDD series of standard rectifier diodes for similar applications. Compatibility should be verified by matching voltage rating, current class, and trigger specifications to ensure proper circuit operation. When upgrading, refer to ABB’s technical bulletins or contact ABB sales engineering for approved substitutes.
