Overview

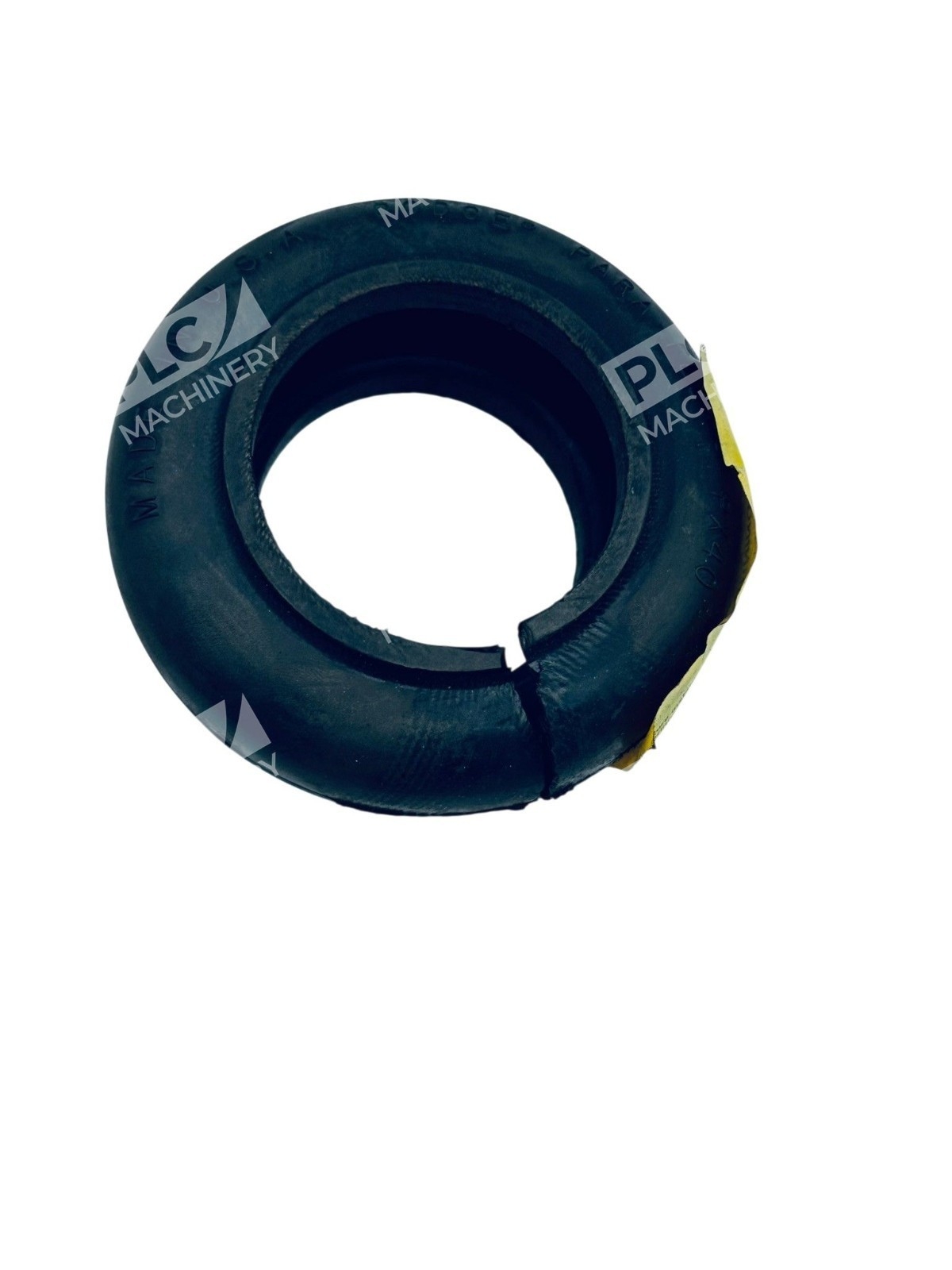

The Dodge 011529 PX-40 is a standard elastomeric tire coupling element engineered for demanding industrial applications. As part of the Para-Flex coupling family, this 011529 PX-40 element delivers reliable torque transmission, shock absorption, and misalignment accommodation without requiring lubrication. The coupling element is manufactured with natural rubber and textile cord reinforcement, making it suitable for applications where vibration isolation and flexible power transmission are critical.
Key Features
- Non-lubricated design — eliminates maintenance and contamination risks
- Patented cording system — transmits torque while absorbing shock loads and protecting equipment
- Industry-leading misalignment capacity — accommodates 4° angular, 1/8″ parallel, and 5/16″ end-float simultaneously
- Wear indicator — visual inspection alerts when element replacement is needed
- Reinforced split design — reduces element fatigue during shock loading and extends coupling life
- Easy replacement — element is removable without disturbing connected equipment or requiring realignment
Technical Specifications
- Coupling Size: PX40
- Part Number: 011529
- Coupling Type: Elastomeric (Natural Rubber)
- Maximum Torque Rating: 429 in-lb
- Maximum Speed: 4500 rpm
- Torsional Stiffness: 120 in-lb/deg
- Outer Diameter: 4-1/4 in
- Angular Misalignment: 4°
- Parallel Misalignment: 0.125 in
- Axial Misalignment: 0.3125 in
- Operating Temperature Range: -45°F to +180°F (Natural Rubber)
- Lubrication: None Required
- Material: Natural Rubber with Textile Cord Reinforcement
- Component Type: Flexible Element / Tire
- Shaft Spacing: Close Coupled
- Warranty: Five-year limited warranty on element
Typical Applications
The Dodge 011529 PX-40 element is used in:
- Pump and motor couplings requiring vibration damping
- Compressor and fan drive systems
- Industrial gearbox connections
- Conveyor and material handling equipment
- Blower and turbine applications
- Any machinery requiring flexible power transmission with shaft misalignment compensation
Compatibility & Replacements
Compatible With
- Dodge Para-Flex PX40 coupling assemblies
- Taper-Lock flange designs (H or F style)
- QD (Quick Disconnect) bushed coupling systems
- Bored-to-size flange configurations
- Standard SAE grade cap screw clamping systems
Replaces / Drop-In Replacement For
- Original equipment Dodge 011529 PX-40 elements
- Worn or damaged Para-Flex PX40 elastomeric elements
- Verify coupling assembly part number for proper fit
Works With
- All Dodge Para-Flex PX40 coupling sizes and flange styles
- Industrial drive systems using elastomeric flexible coupling technology
- Equipment requiring non-lubricated, maintenance-free power transmission
