Overview

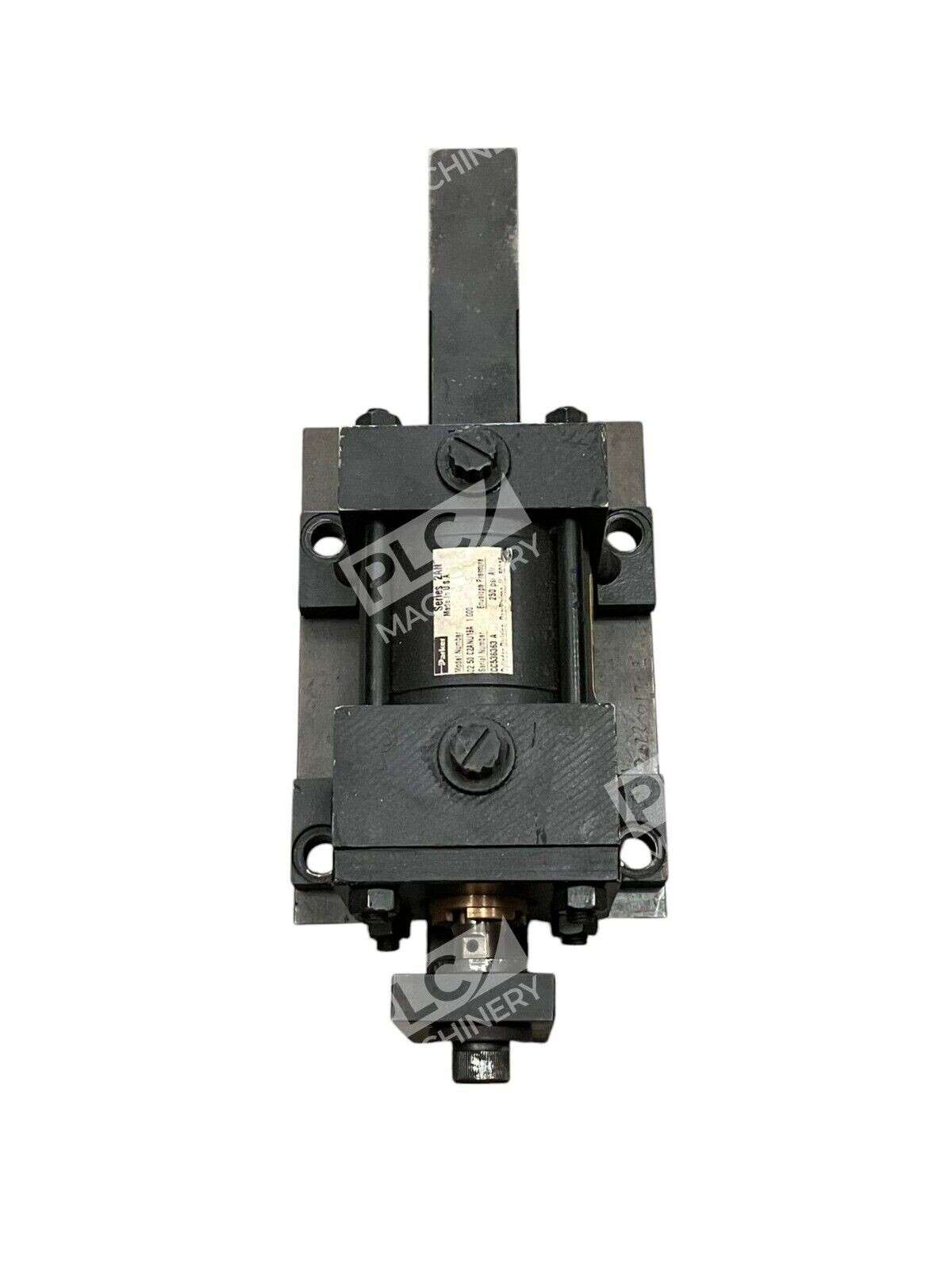

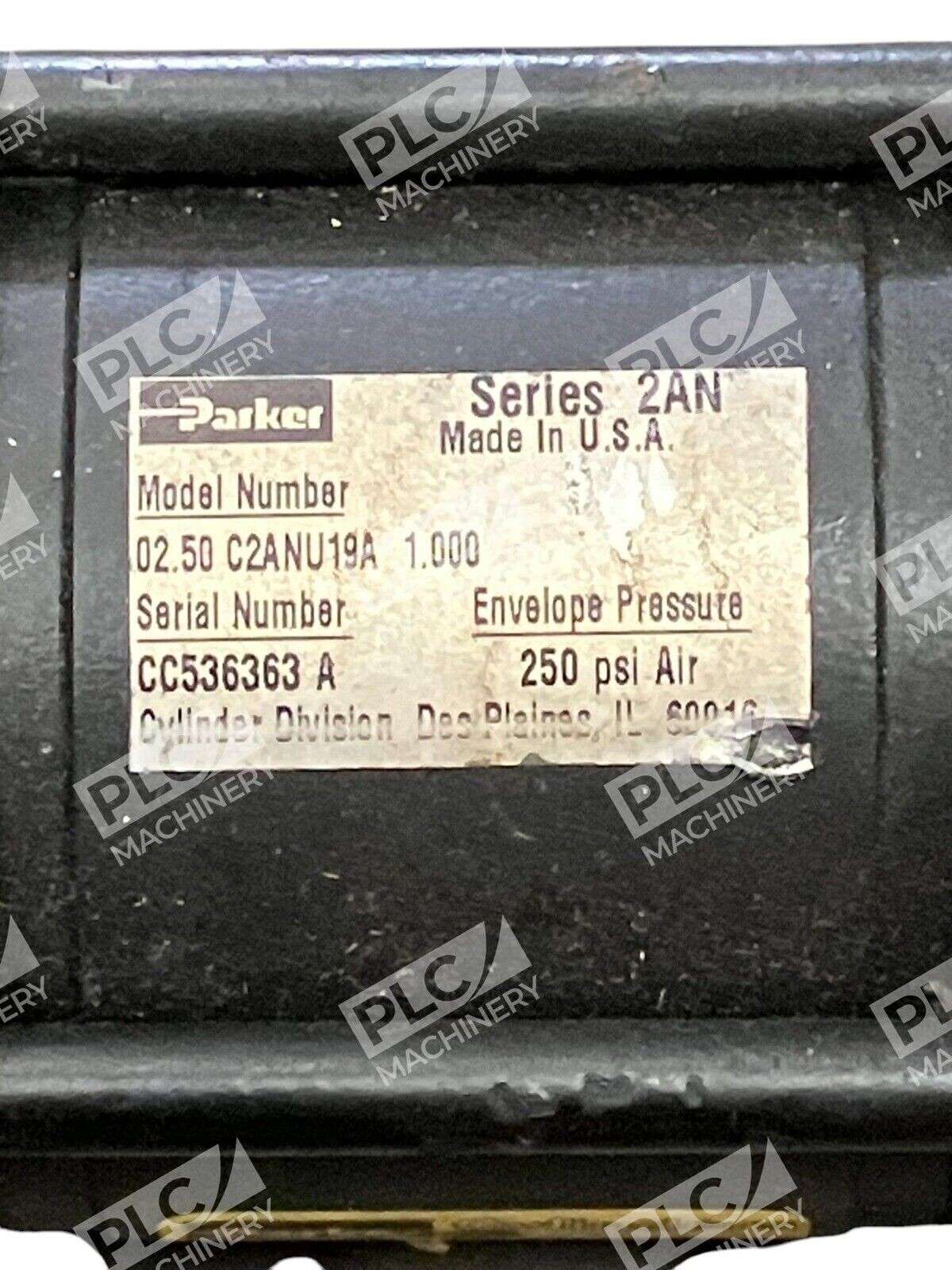

The Parker 02.50 C2ANU19A 1.000 Series 2AN non-lubricated pneumatic cylinder is engineered for heavy-duty industrial applications requiring reliable linear actuation at 250 PSI. This unit delivers the proven performance that Parker pneumatic cylinders are known for, with a 2.5″ bore and 1″ stroke configuration. Designed to meet ANSI/NFPA T3.6.7 standards, this cylinder is suitable for manufacturing, automation, and process control systems.
Key Features
- Heavy-duty construction – Tie-rod design rated for 250 PSI air service with proven durability in industrial applications
- Non-lubricated operation – The 2AN variant eliminates the need for auxiliary lubrication in systems where oil-free air is used
- Superior sealing – Features Parker’s unique serrated lipseal design that is self-compensating and self-relieving
- Rod protection – Double-service Wiperseal acts as secondary pressure seal on extend stroke and cleans rod on return
- ANSI/NFPA compliant – Meets Square Head Industrial Fluid Power Cylinder specifications
Technical Specifications
- Bore Diameter: 2.5 inches
- Stroke Length: 1.0 inch
- Operating Pressure Rating: 250 PSI (air service)
- Series: 2AN (non-lubricated)
- Piston Rod Diameter: Standard rod for 2.5″ bore (verify for specific force requirements)
- Port Type: NPTF (National Pipe Thread Fuel) standard
- Primary Seal: Serrated lipseal, self-compensating design
- Secondary Seal: Wiperseal (rod wiping and secondary pressure sealing)
- Temperature Range: -20°C to +80°C (standard seals)
- Construction: Tie-rod, heavy-duty steel body with integral head and cap
- Standards Compliance: ANSI/NFPA T3.6.7
- Condition: Used, fully functional
Typical Applications
The Parker Series 2AN 02.50 C2ANU19A cylinder is commonly found in:
- Manufacturing automation and assembly line equipment
- Press and stamping machinery
- Packaging and material handling systems
- Industrial clamp and fixture applications
- Oil-free pneumatic systems requiring non-lubricated cylinders
Compatibility & Replacements
Compatible With
- Standard 250 PSI pneumatic systems (air or nitrogen)
- Compressed air networks with NPTF port connections
- Industrial PLC control systems for linear actuation
- Pneumatic valve manifolds and logic circuits
- Oil-free and dry air system installations
Replaces / Drop-In Replacement For
The Parker 02.50 C2ANU19A 1.000 is a direct replacement for equivalent Parker Series 2AN cylinders with matching bore (2.5″), stroke (1.0″), and mounting style. Verify exact mounting configuration (Style TB, TC, TD, etc.) with your system integrator before ordering.
Works With
- Parker pneumatic valve bodies and subplates
- Standard 1/4″ and 3/8″ NPTF ported controls
- Pneumatic cushioning circuits and flow controls
- Industrial air preparation systems (filters, regulators, lubricators where permitted)
- Third-party NFPA-compliant mounting adapters and rod ends
