Overview

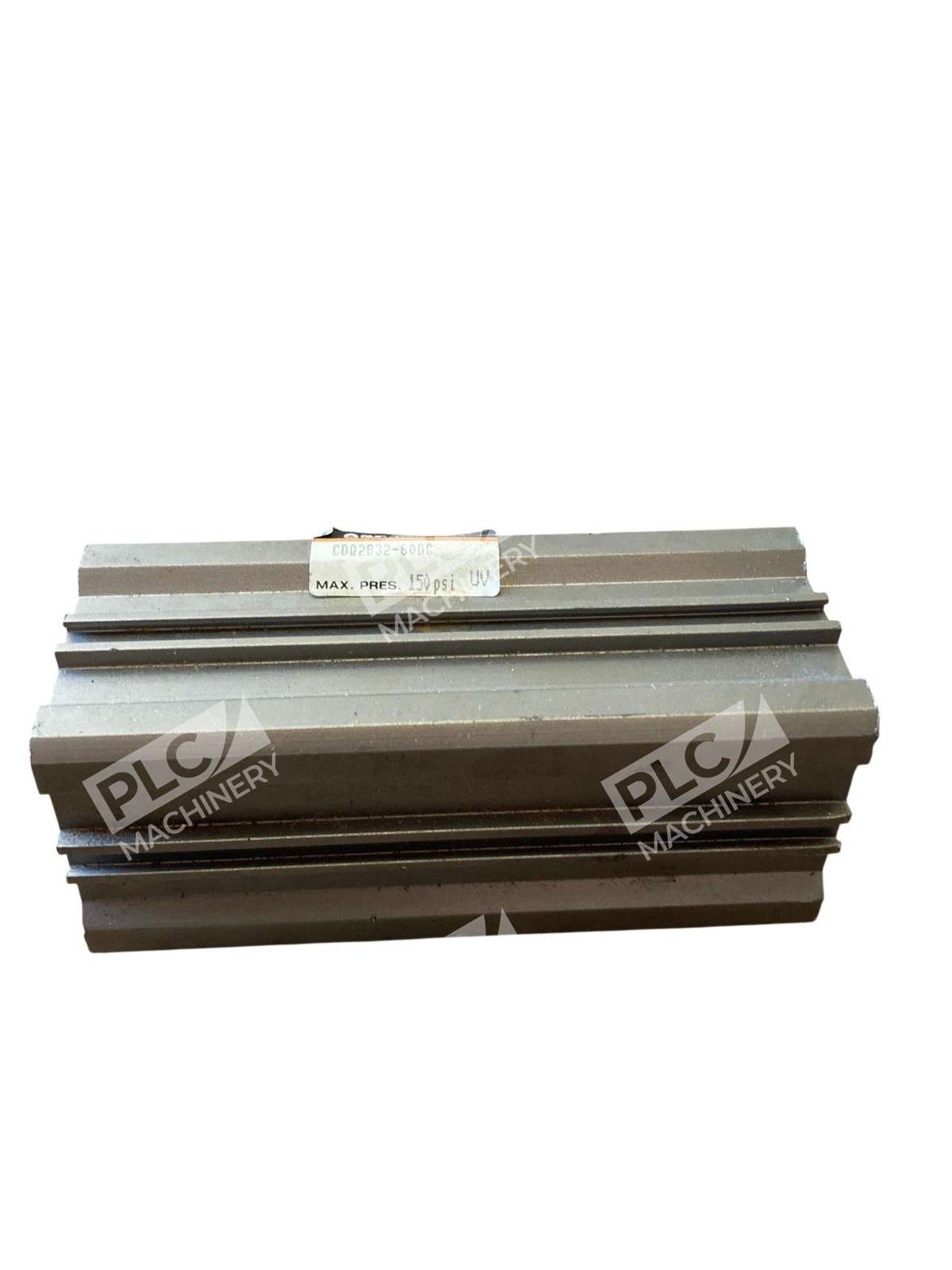

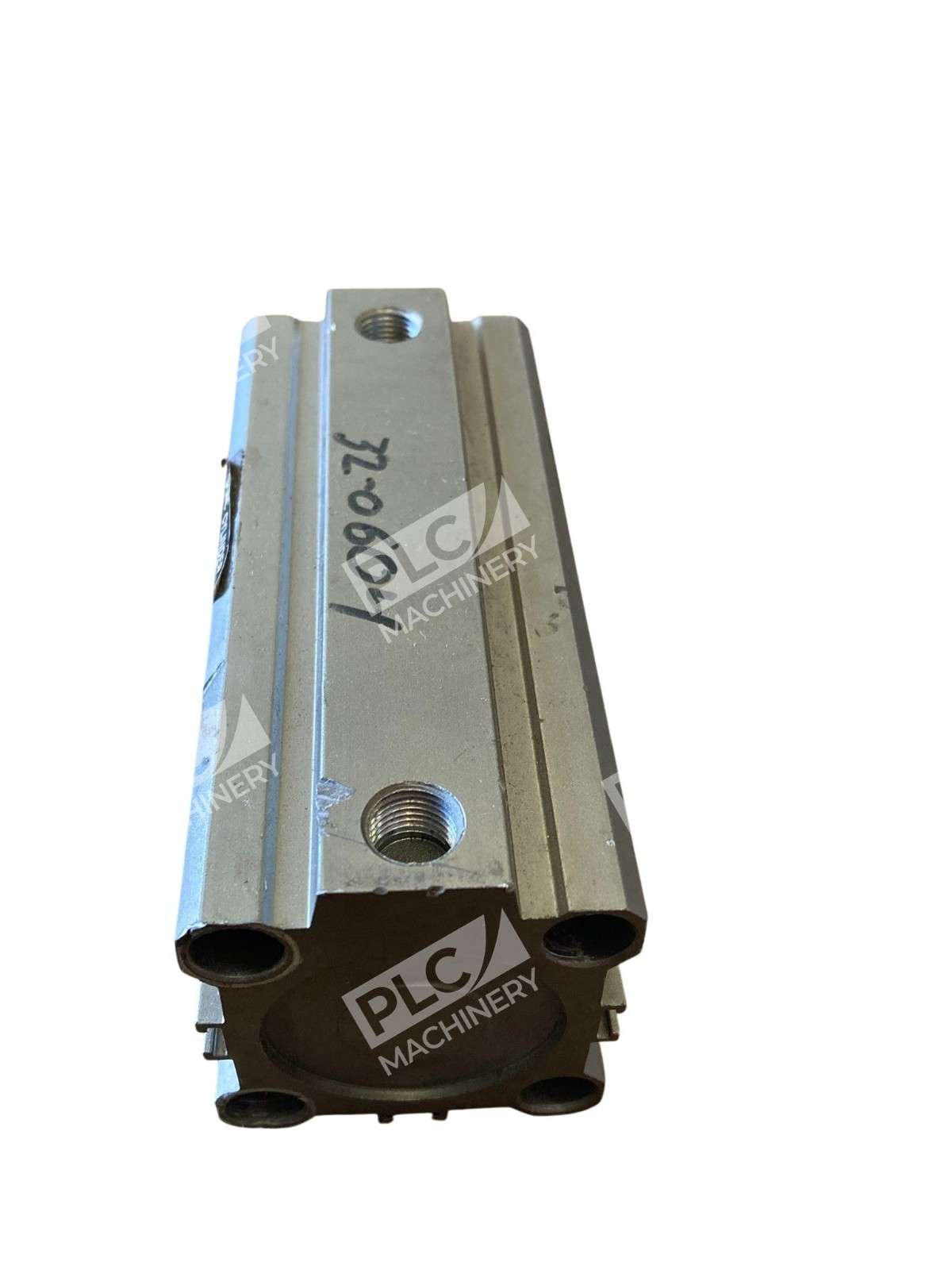

The SMC CDQ2B32-60DC is a compact pneumatic cylinder from SMC‘s CQ2/CDQ2 series. This double-acting cylinder delivers precise, controlled motion in a compact footprint, making it ideal for space-constrained automation applications. The CDQ2B variant features a rod-end double clevis bracket configuration for flexible mounting options. With 32mm bore diameter and 60mm stroke length, this cylinder provides consistent performance in material handling, clamping, and linear positioning tasks.
Key Features
- 32mm bore diameter with 60mm stroke
- Double-acting operation for push and pull motion
- Rod-end double clevis (CDQ2B) configuration for versatile mounting
- Compact lightweight design suitable for space-limited installations
- Compatible with standard pneumatic auto-switch mounting
- Dual-side low friction operation capability
Technical Specifications
| Bore Diameter | 32 mm |
| Stroke Length | 60 mm |
| Cylinder Type | Double-acting compact |
| Port Type | DC (subplate style ports) |
| End Configuration | Rod-end double clevis (CDQ2B) |
| Operating Pressure | 0–1 MPa typical for compact cylinders |
| Series | CQ2/CDQ2 Compact Cylinder |
| Mounting | Rod-end clevis; auto-switch compatible |
| Condition | Used |
Typical Applications
- Material handling and transfer systems
- Fixture clamping and positioning
- Machine tool automation
- Assembly line component placement
- Light-duty pneumatic automation in confined spaces
- Food processing and light industrial machinery
Compatibility & Replacements
Compatible With
- SMC CQ2/CDQ2 series auto-switches (position sensing)
- Standard pneumatic control systems
- Rod-end mounting brackets and clevis pins
- Pneumatic speed controllers and regulators
- One-touch pneumatic fittings (M5 piping)
Replaces / Drop-In Replacement For
- Other obsolete CDQ2B32-60 variants with similar DC (subplate) port configurations
- Verify exact fit and port compatibility before ordering, as the CDQ2B32-60DC is discontinued
Works With
- SMC pneumatic auto-switch manifolds
- Standard pneumatic supply systems (compressed air)
- Voltage-controlled solenoid directional control valves
- Industry-standard clevis mounting accessories
- Pneumatic cushioning and damping components
