Overview

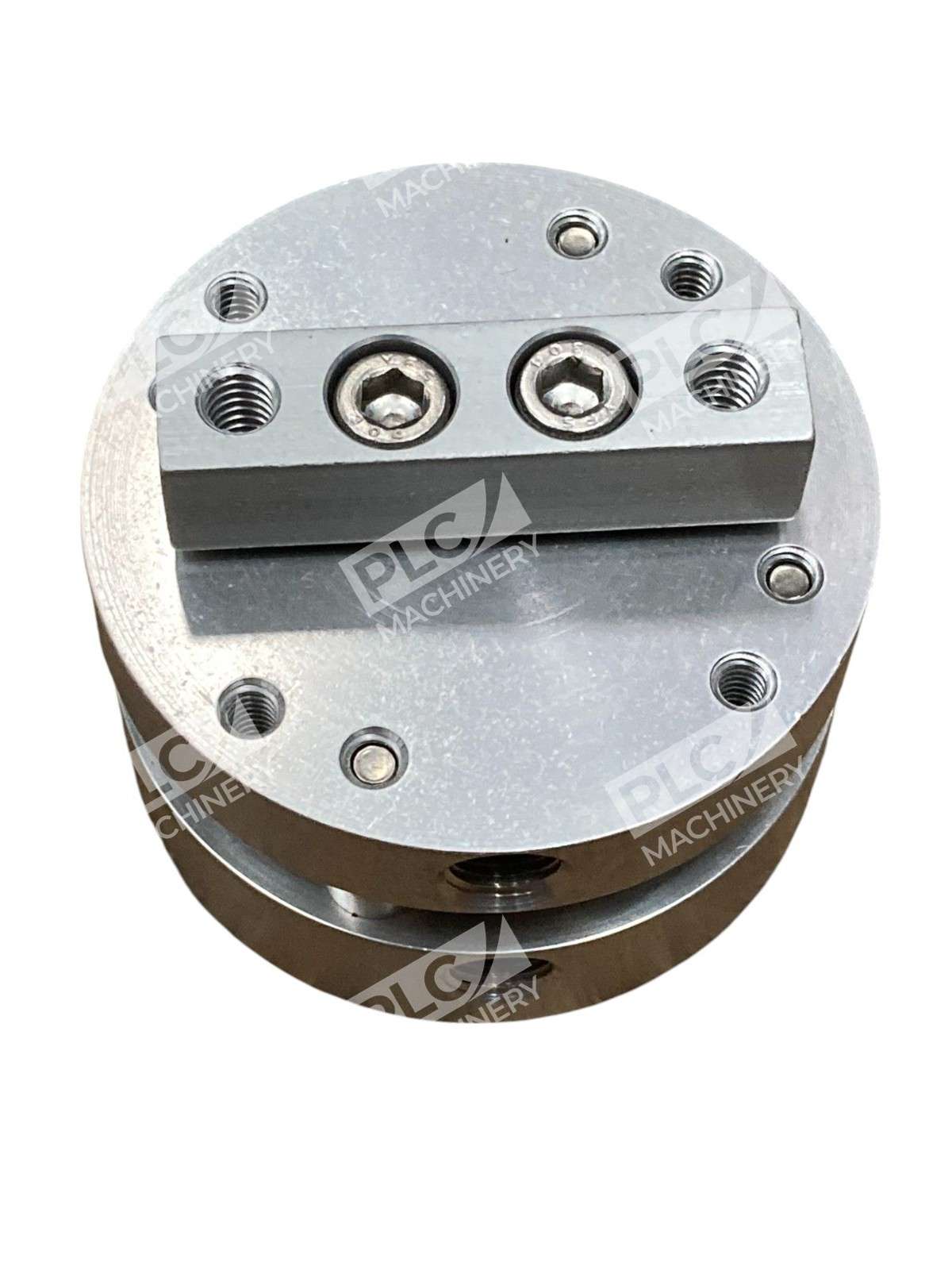

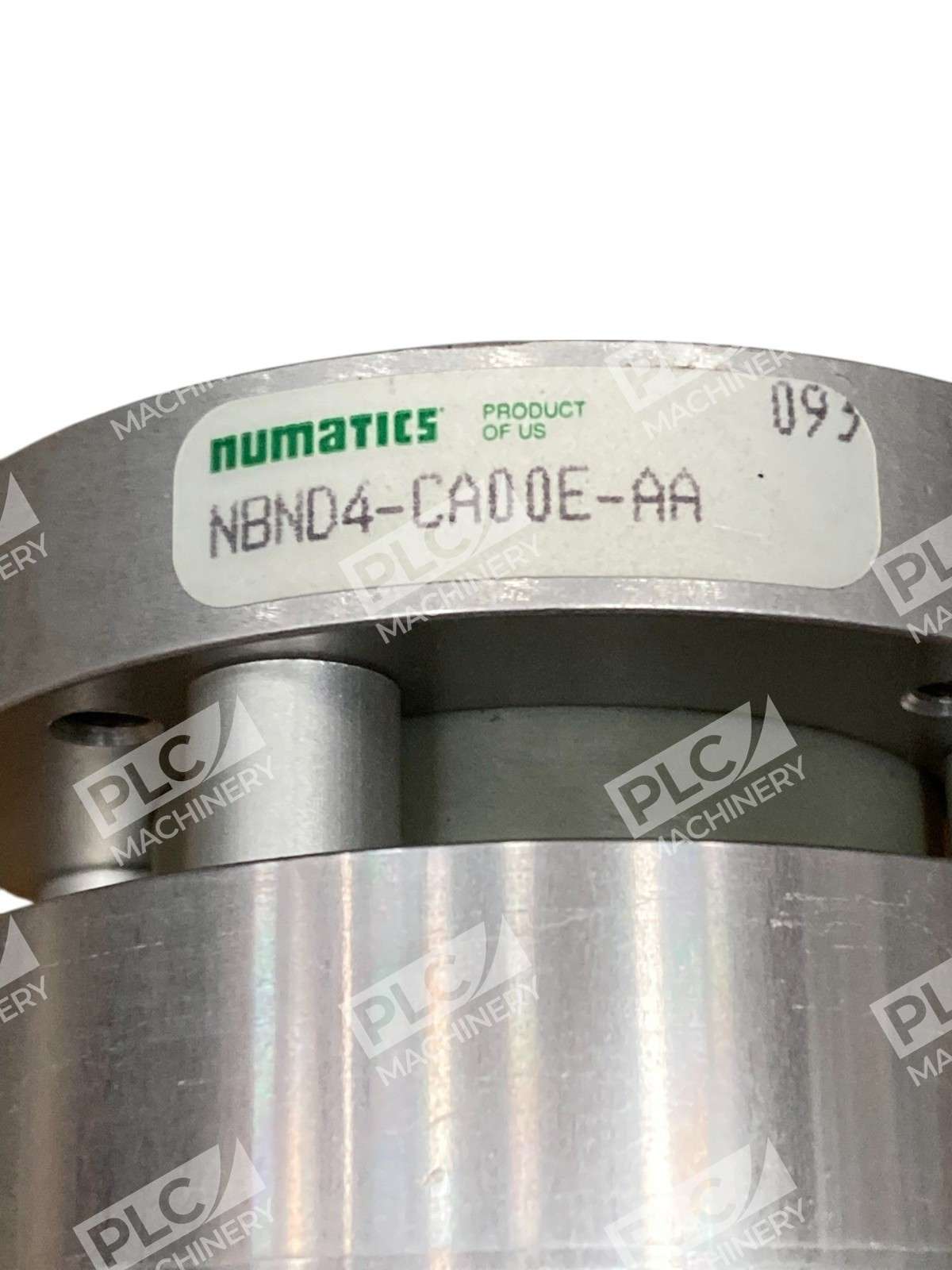

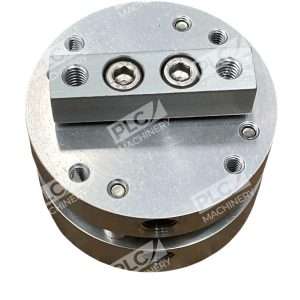

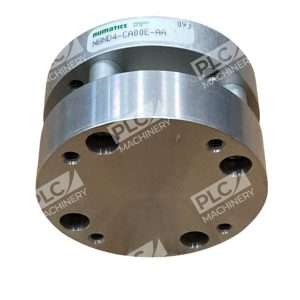

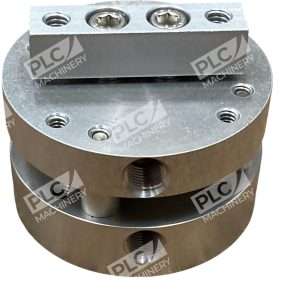

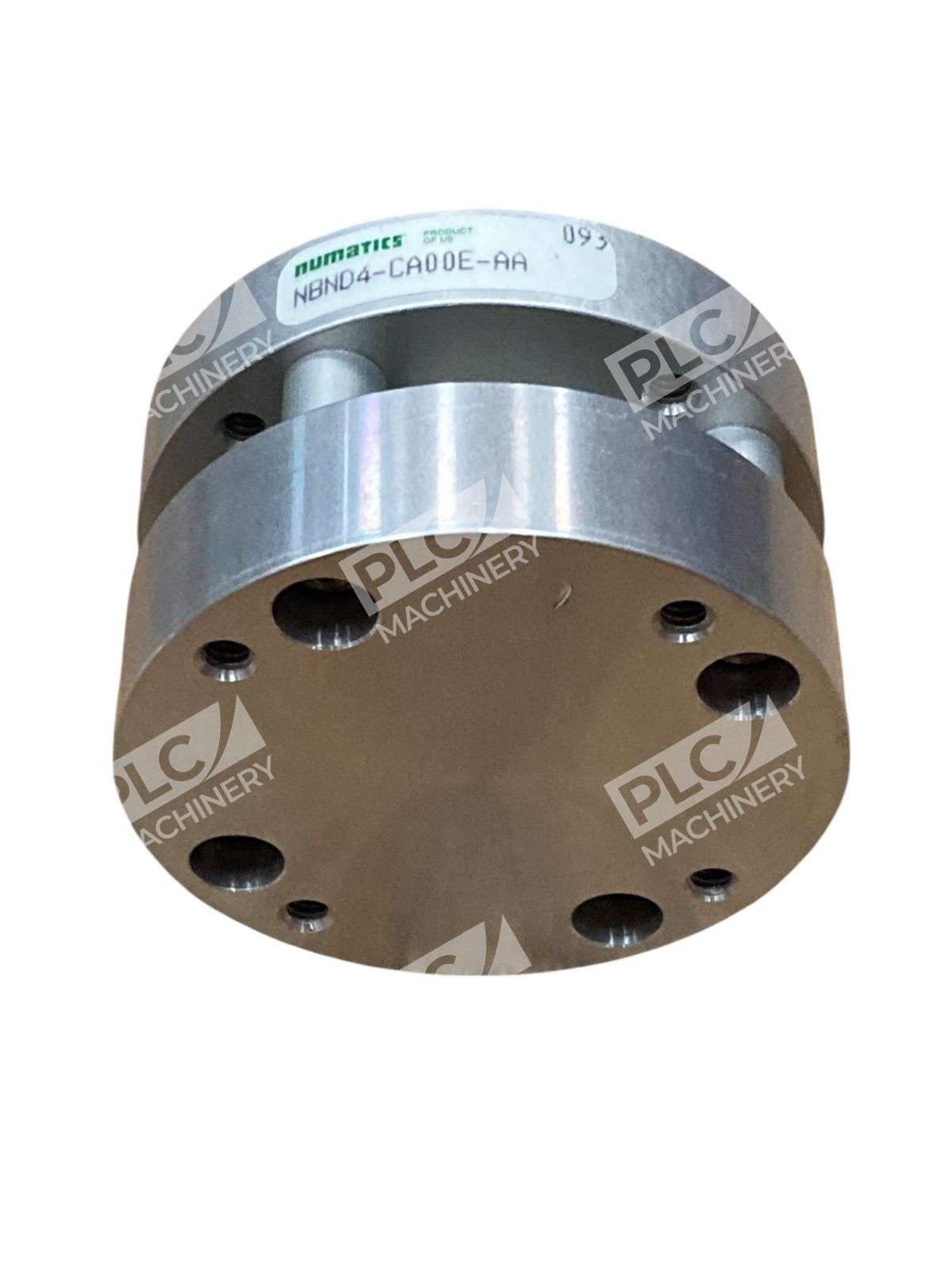

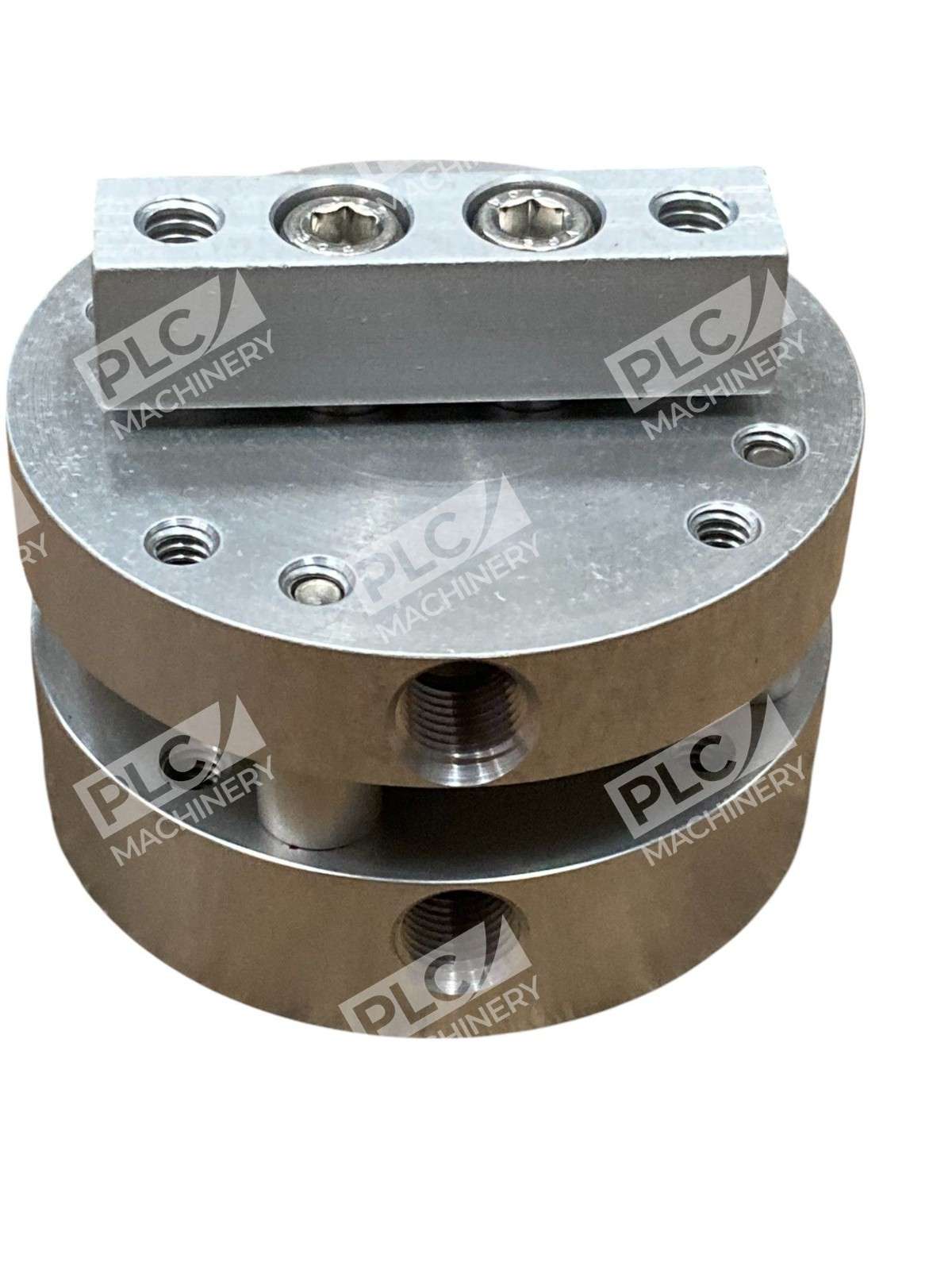

The Numatics NBND4-CA00E-AA is a compact double-acting twin-rod tie-rod pneumatic cylinder designed for industrial automation and mechanical actuation. Part of Numatics’ NB Compact series, this cylinder provides predictable performance for positioning, clamping, and transfer applications in manufacturing, packaging, and assembly systems. Built with durable materials and precision sealing, it delivers consistent actuation across thousands of cycles.
Key Features
- Double-acting, twin-rod design ensures balanced force and reduced lateral loading
- 200 psi maximum operating pressure rated for high-performance duty cycles
- Buna-N internally lubricated seals for extended service life
- Chrome-plated steel piston rod and stainless steel piston for corrosion resistance
- Clear anodized aluminum alloy head and cap for light weight and durability
- Composite self-lubricating body reduces friction and wear
- Threaded mounting holes for flexible installation options
Technical Specifications
This pneumatic cylinder is built to withstand rigorous industrial environments with proven reliability in OEM and retrofit applications. The NBND4-CA00E-AA combines compact dimensions with robust construction for space-constrained machine designs.
Typical Applications
- Material handling and transfer systems
- Press and assembly machine actuation
- Clamping and holding fixtures
- Packaging and labeling equipment
- Machine tool automation
- Industrial process control systems
Compatibility & Replacements
Compatible With
- Standard pneumatic system networks rated 200 psi maximum
- ISO 6149 or NPT threaded pneumatic ports
- Compressed air systems (filtered and regulated)
- Double-acting solenoid valve circuits
- Pneumatic control systems and manifolds
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Similar Numatics compact cylinders in the NBND4 series may have interchangeable mounting patterns depending on stroke length and port configuration.
Works With
- Pneumatic solenoid valves (3/2, 4/2, 4/3 way)
- Pneumatic timers and flow controls
- Manual and automatic pressure regulators
- Compressed air distribution systems
- PLC-based pneumatic control systems
