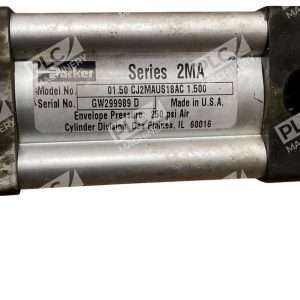

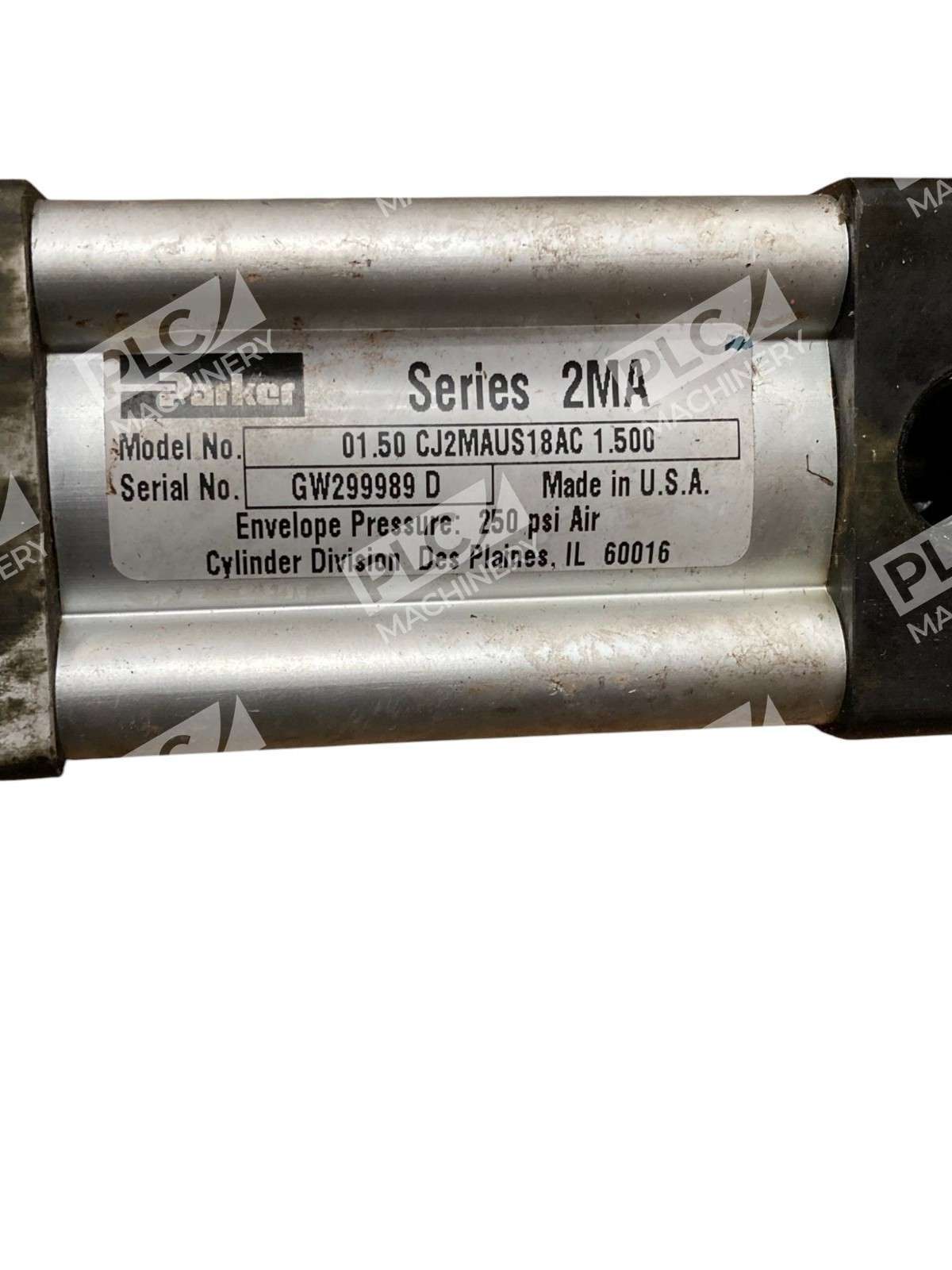

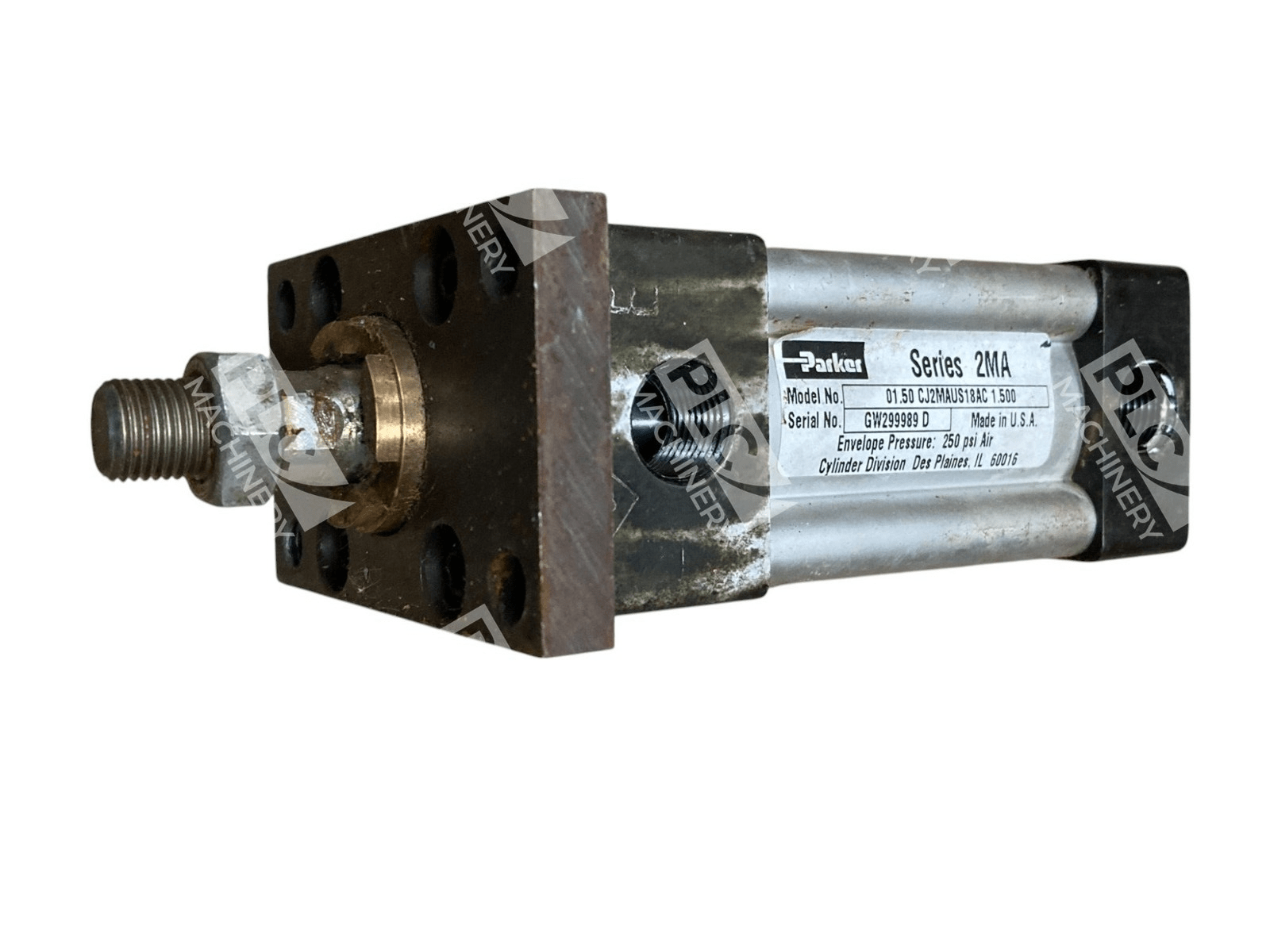

Parker 01.50 CJ2MAUS18AC Overview
The Parker 01.50 CJ2MAUS18AC Series 2MA is a tie-rod construction pneumatic cylinder designed for reliable, efficient operation in compressed air systems. As a double-acting design, this cylinder delivers both extend and retract force, making it suitable for a wide range of industrial automation and material handling applications where consistent linear motion is required.
Key Features
- Double-Acting Design — Compressed air drives piston extension and retraction for balanced force delivery
- 250 PSI Maximum Pressure Rating — Operates reliably in standard industrial air systems up to 250 psi
- 1.50-Inch Bore — Mid-range bore size provides practical force output for light to medium duty applications
- Tie-Rod Construction — Durable frame design with external tie rods for structural integrity and ease of service
- Factory Prelubricated — Ready to install without additional preparation
Technical Specifications
- Cylinder Type — Double-Acting Pneumatic (Series 2MA)
- Bore Size — 1.50 inch
- Maximum Operating Pressure — 250 psi
- Construction — Tie-Rod
- Media — Compressed Air (dry, filtered)
- Port Configuration — Standard (NPTF threads)
- Sealing System — Factory prelubricated seals
- Application Rating — Industrial Grade
Typical Applications
- Machine tool clamping and indexing fixtures
- Assembly line transfer and positioning systems
- Material handling and sorting equipment
- Production line automation and press operations
- Industrial workholding and chuck systems
- Pneumatic press and stamping applications
Compatibility & Replacements
Compatible With
- Parker pneumatic valve systems (directional control, solenoid)
- Standard industrial compressed air networks (150–250 psi operating range)
- ISO 4394 ported manifold systems
- Parker fittings and air prep equipment
- Standard pneumatic control circuits (24 VDC solenoid pilots)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Parker 01.50 CJ2MAUS18AC is a specific model designation within the Series 2MA family. Comparable cylinders in this series may include other CJ2MA variants with different bore sizes or stroke lengths.
Works With
- Parker directional control valves (4/3, 4/2 solenoid)
- Standard pneumatic flow control regulators
- ISO 4393 cushion cartridges (if equipped)
- Parker electrical actuators and control components
- Industrial PLC and pneumatic logic circuits
