Overview

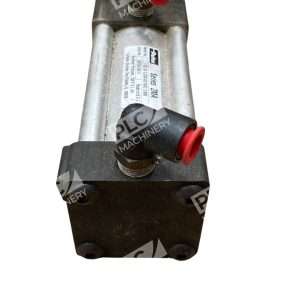

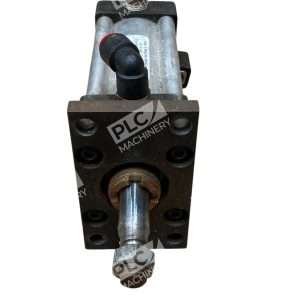

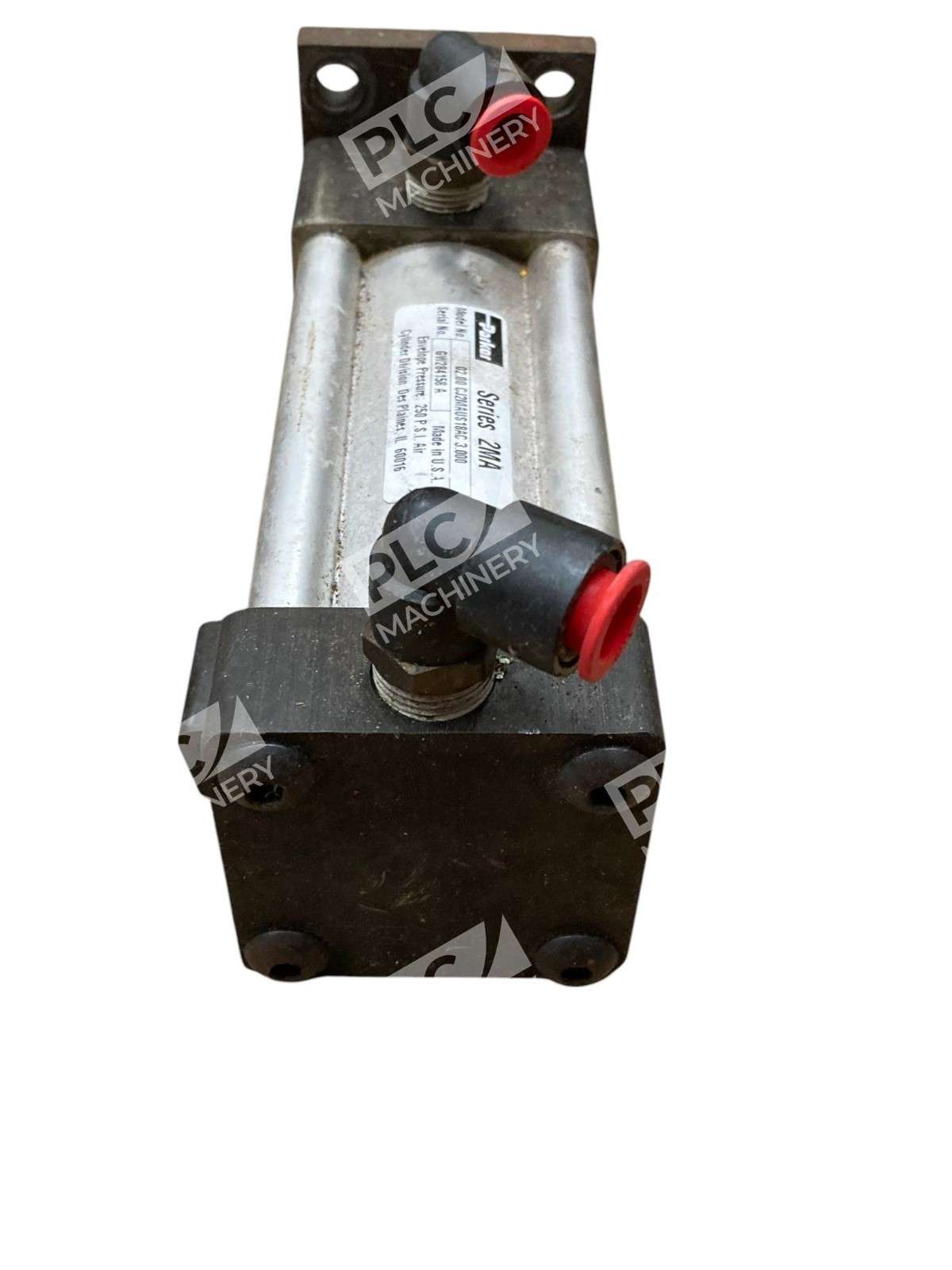

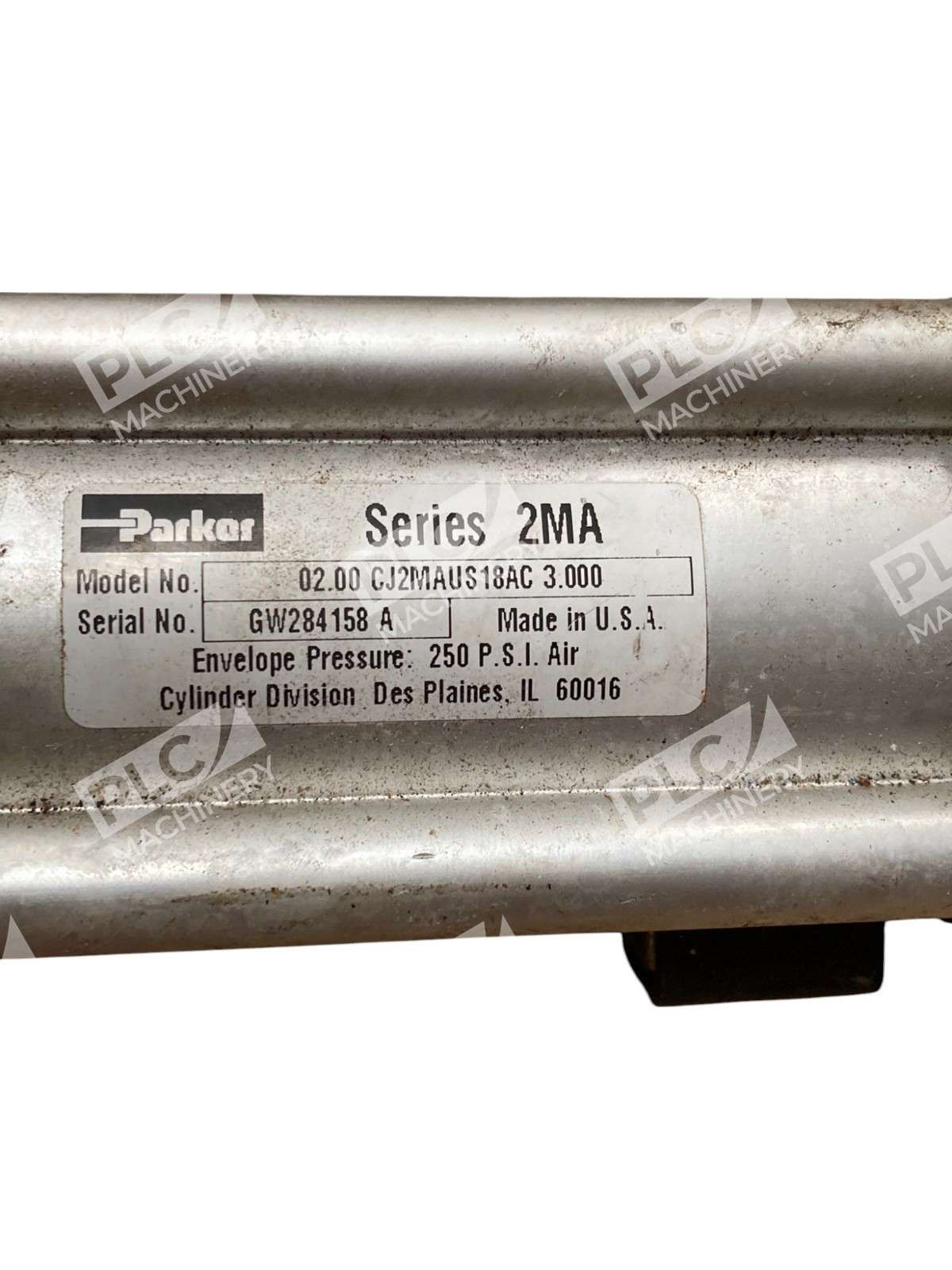

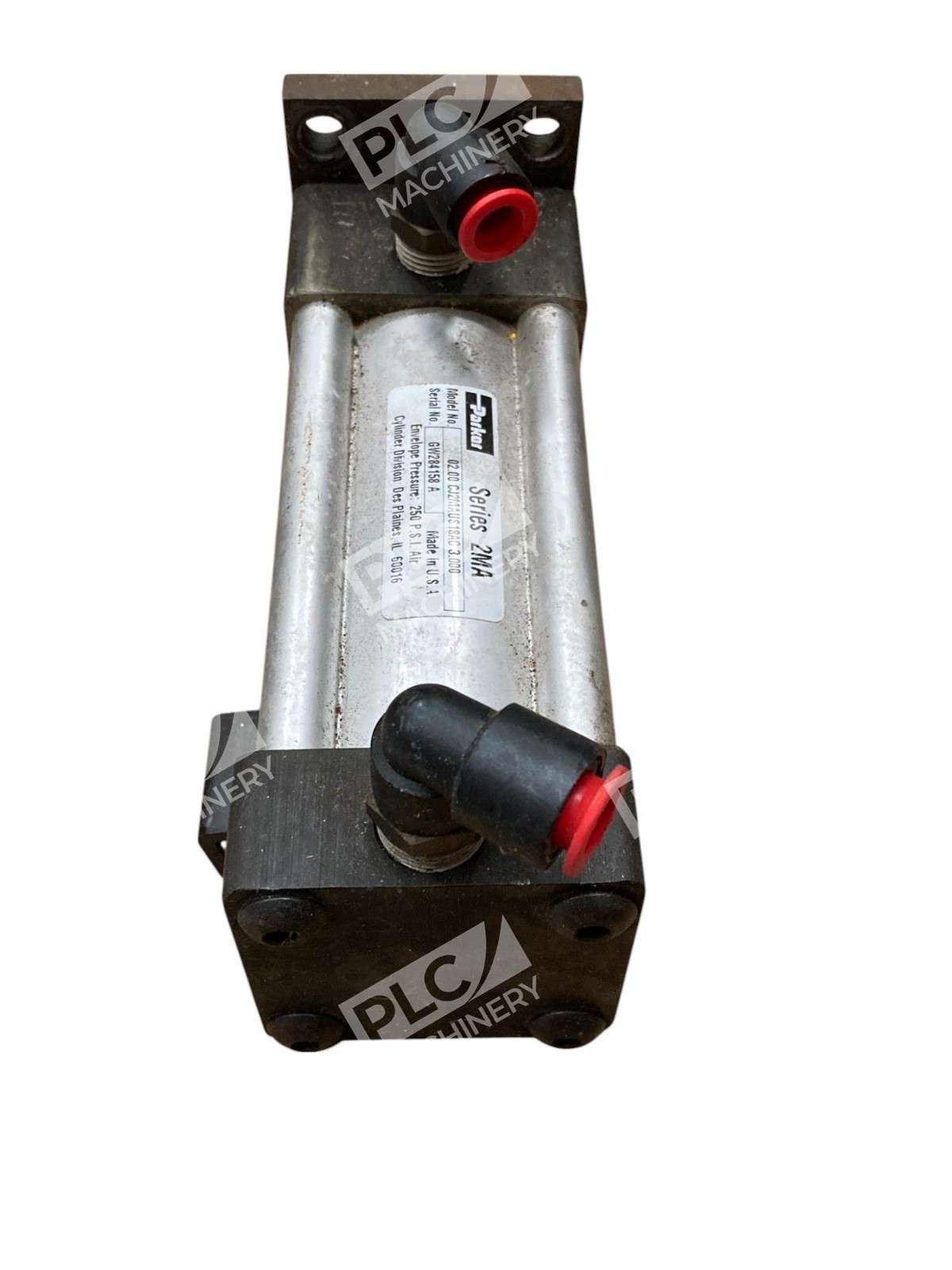

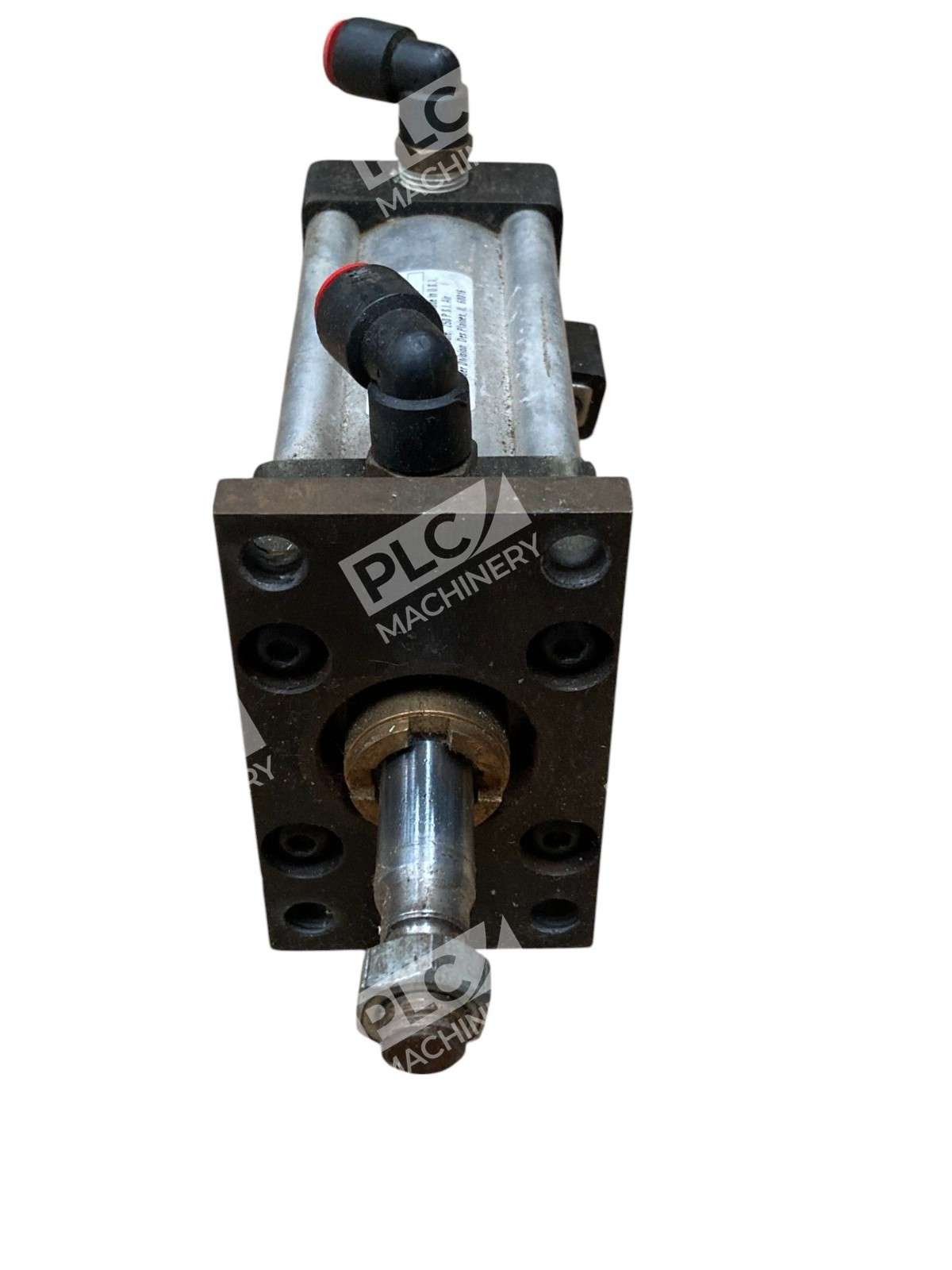

The Parker 02.00 CJ2MAUS 18AC 3.000 is a Series 2MA pneumatic cylinder engineered for high-performance industrial automation and manufacturing. This double-acting, tie-rod style cylinder combines proven durability with straightforward integration into pneumatic control systems. The model designation breaks down as: 02.00 = 2-inch bore, CJ = Series 2MA double-acting rod-end configuration, MAUS = specific port and rod-end type, 18AC = 18 bar (approximately 250 psi) rated pressure, and 3.000 = 3-inch stroke length.
Key Features
- Tie-Rod Construction: Heavy-duty frame design provides superior strength and stability for demanding applications with enhanced lateral load capacity.
- Double-Acting Operation: Powered extension and retraction enable precise bidirectional control in automation sequences.
- 250 PSI (18 Bar) Rated Pressure: Appropriate for most standard industrial compressed air systems operating at typical plant pressures.
- 2-Inch Bore × 3-Inch Stroke: Compact size suitable for space-constrained applications requiring moderate force and travel.
- Multiple Mounting Styles: Compatible with pivot mounts, end-angle brackets, flange plates, and side-lug kits for flexible system integration.
- ANSI/NFPA Compliant: Meets industrial standards for interchangeability and safety in pneumatic systems.
Technical Specifications
- Bore Size: 2.00 inches (50.8 mm)
- Stroke Length: 3.000 inches (76.2 mm)
- Rated Pressure: 250 psi (18 bar)
- Cylinder Type: Double-Acting Pneumatic
- Construction Style: Tie-Rod (Series 2A)
- Port Type: NPTF threaded ports
- Seal Material: Standard carboxylated nitrile (NBR)
- Operating Temperature Range: −10°F to +350°F (−23°C to +177°C) with approved lubricant
- Series: Parker Series 2MA / 2A Heavy-Duty Pneumatic Cylinders
Typical Applications
The Parker 02.00 CJ2MAUS is well-suited for:
- Manufacturing and assembly automation (clamping, ejection, indexing)
- Industrial press and punch operations
- Material handling and part manipulation
- Packaging machinery control
- Machine tool automation and fixture actuation
- General factory automation and pneumatic control systems
Compatibility & Replacements
Compatible With
- Standard industrial compressed air systems operating at 80–250 psi
- Parker and third-party directional control valves (2/2, 4/2, 4/3 spool types)
- ANSI/NFPA compliant pneumatic power systems
- Solenoid valve assemblies and manual control stations
- PLC and automation controller outputs via pneumatic interface modules
Replaces / Drop-In Replacement For
- Parker Series 2A cylinders with identical bore (2.00″), stroke (3.000″), and port configuration
- Other 2-inch bore, 3-inch stroke double-acting cylinders meeting ANSI/NFPA mounting standards
- Verify specific model compatibility with system integrator before ordering to confirm port types and mounting brackets.
Works With
- Standard NPTF pneumatic valves and manifolds
- Parker directional and proportional valve systems
- EtherCAT and PROFIBUS pneumatic I/O terminals
- Pneumatic position sensors and limit switches (reed and solenoid types)
- Industrial control platforms: Siemens TIA Portal, Rockwell FactoryTalk, Beckhoff TwinCAT
